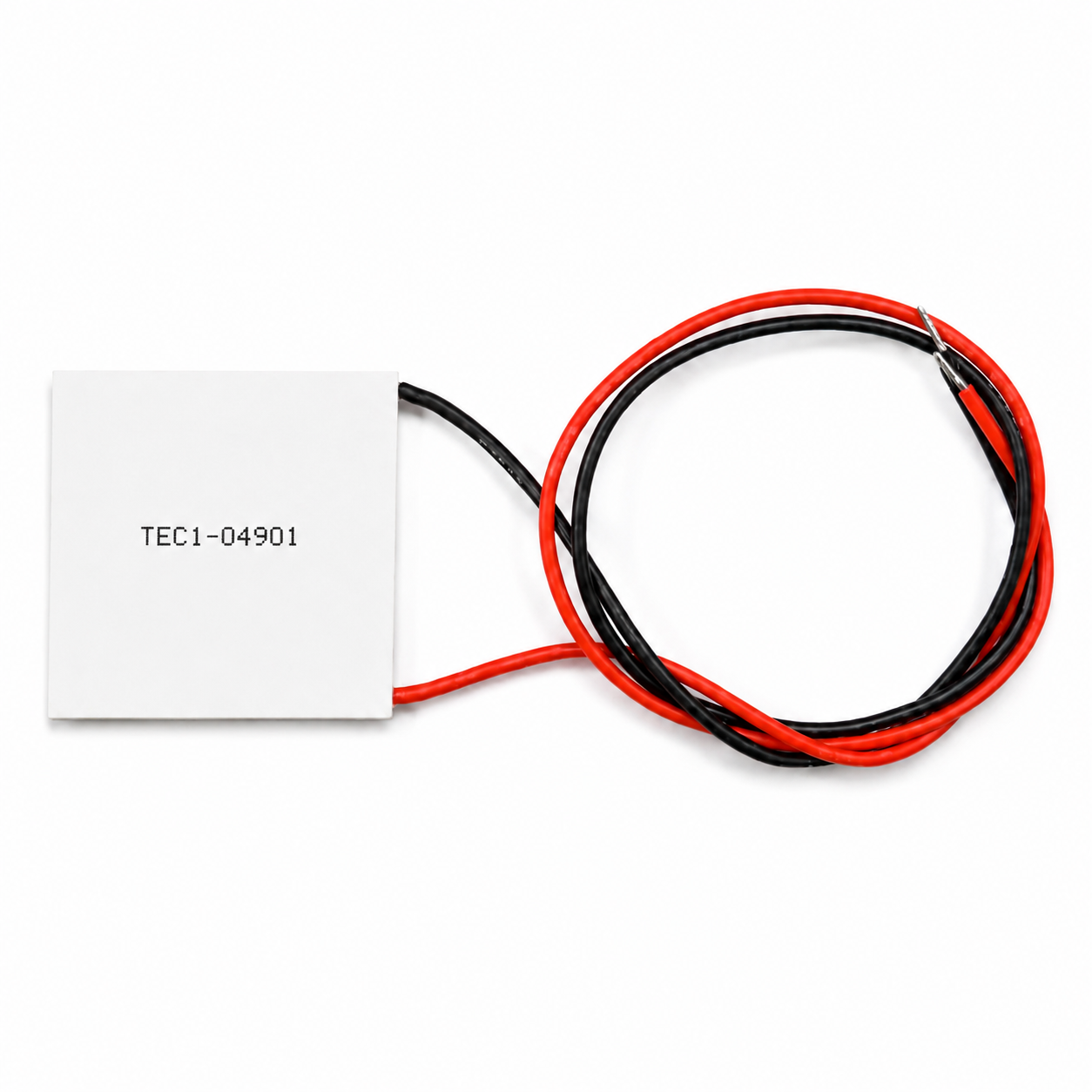

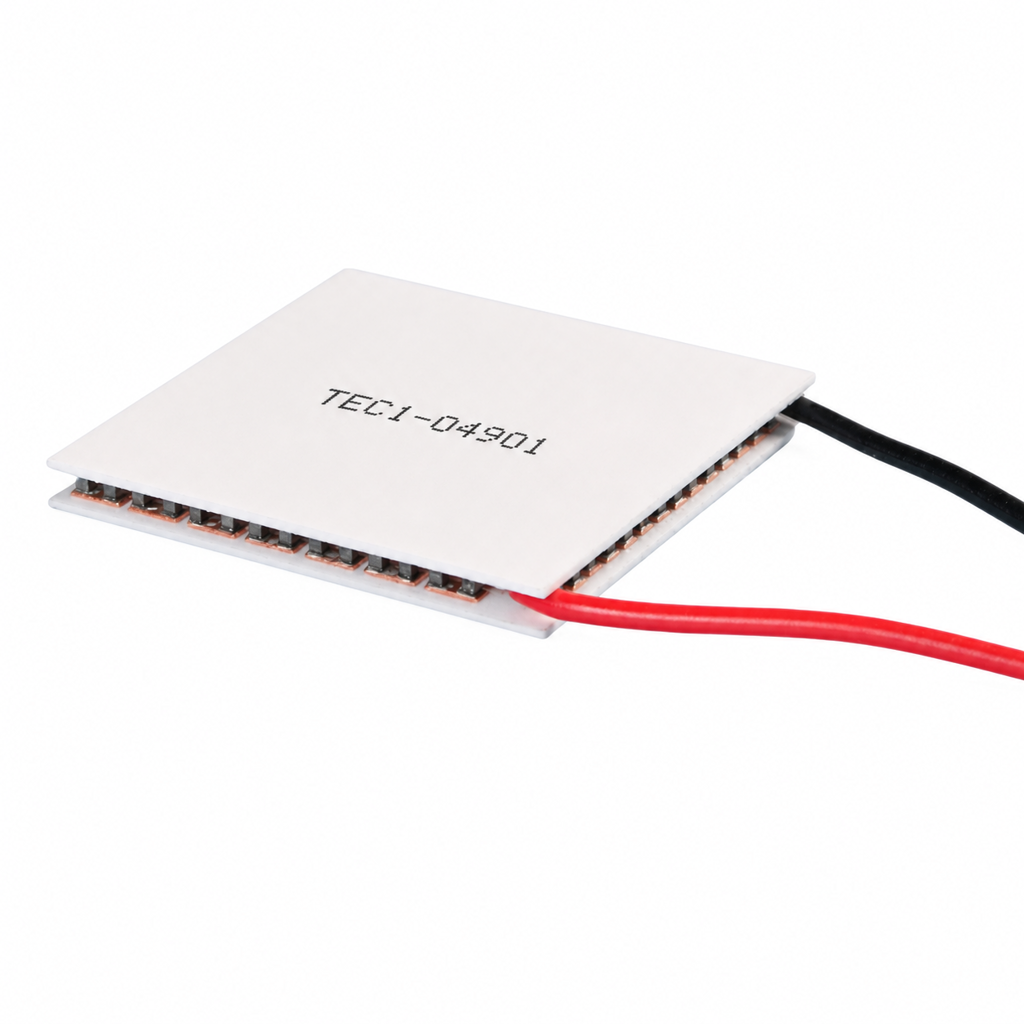

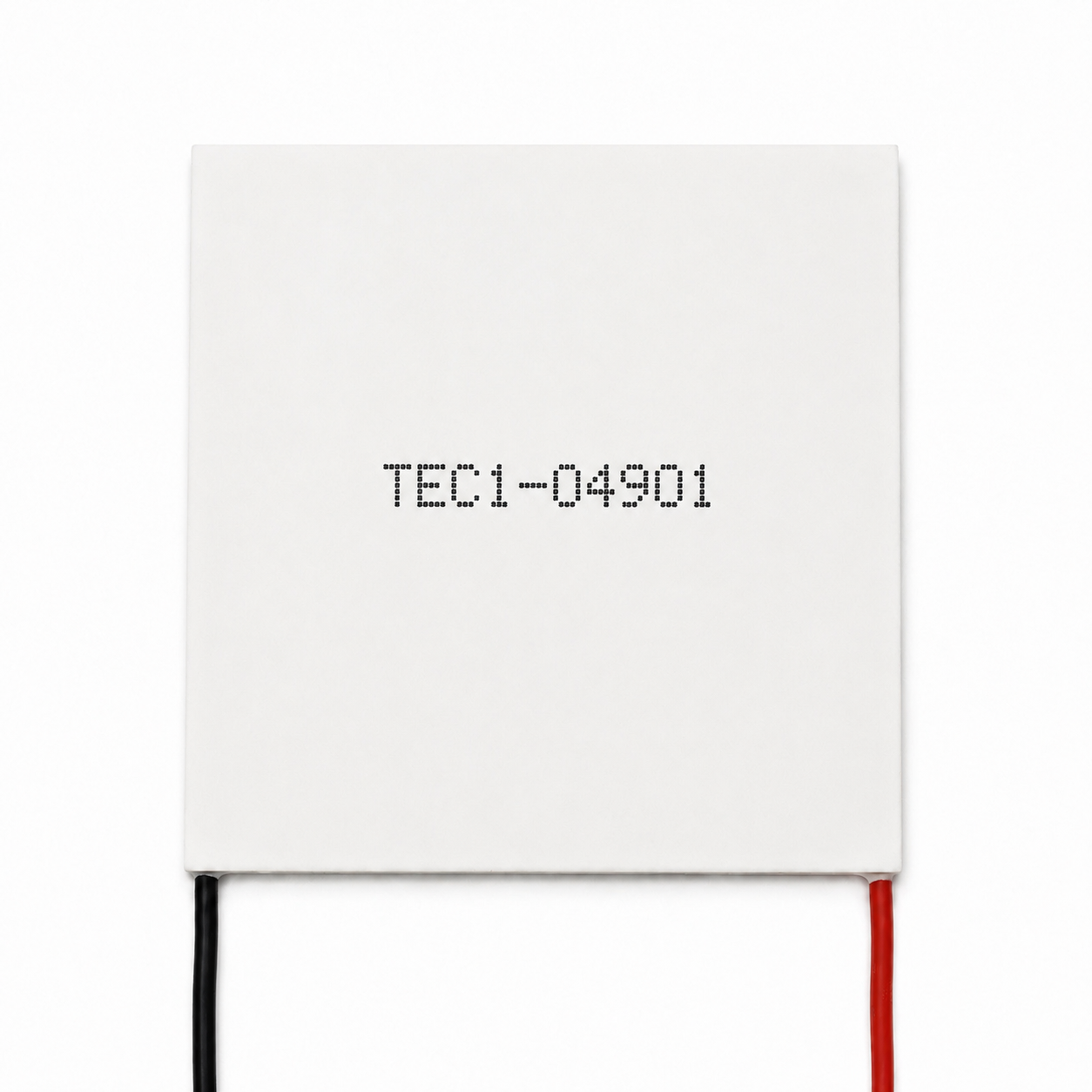

The TEC1-04901 is a miniature semiconductor cooling module designed for ultra-low power consumption, ultra-high energy efficiency, and deep cooling. With dimensions of just 15×15 mm, it is one of the smallest and most compact models in its series. 🟧 Price List Contact Customer Service 🟦 Certifications Contact Customer Service ⬜ Product PDF Spec Contact Customer Service 🟪 Contact customer Contact Customer Service 🟨 MOQ:1 Pcs 🟥 Fast Delivery:2-15 Days 🟩 Source Factory：Online Factory Video 🟫 Multiple Payment Methods：T/T|PayPal|Alipay ⬛ Pre|After Service：+86 13377785035|xyy@kkg.tw

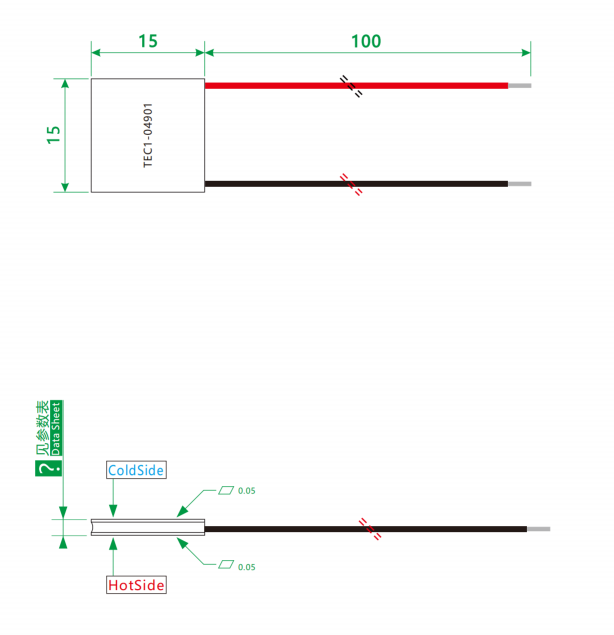

🔷TEC Cooling System Product Drawing
🔷Thermoelectric Cooling Device Basic Performance Spec
| Type Mode | Chip Model | ΔTmax (°C) | ACR (Ω) | Umax (V) | Imax (A) | Pmax (W) | Size (mm) |
|---|---|---|---|---|---|---|---|
| TEC1-04901 | K10 | 60 | 3.23 | 5.8 | 1.4 | 8 | 15×15×3.0 |
| TEC1-04901 | K16 | 65 | 3.23 | 5.8 | 1.4 | 8 | 15×15×3.6 |
| TEC1-04901 | K22 | 70 | 3.23 | 5.8 | 1.4 | 8 | 15×15×4.2 |
🔷Thermoelectric Cooling Element Additional Performance Spec
| Parameter | Specification |
|---|---|
| Substrate Material | 96% alumina (0.76 mm) + oxygen-free copper (0.2 mm), sintered process |
| Lead Wire Specification | Silicone wire, 26 AWG, L = 100 mm |
| Terminal Specification | Not included as standard; available upon request |
| Assembly Pressure | 0.5 kg (0.25 kg/cm²) |
| Packaging Standard | Polystyrene (PS) foam box |
| Sealant Material | 704 silicone rubber sealant |
| Maximum Temperature Resistance | Bismuth-tin eco-friendly solder, melting point 138°C |
| Storage Environment | Temperature < 120°C, Humidity < 60% Rh |

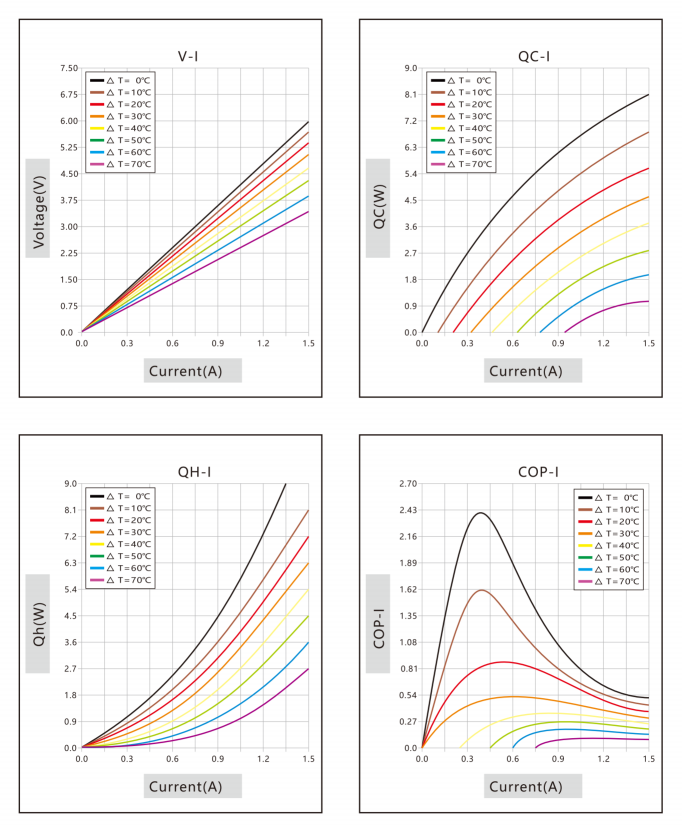

🔷Thermoelectric Generation Performance Curve
🔷Thermoelectric Generator Modules Product Overview
The TEC1-04901 is a miniature semiconductor cooling module designed for ultra-low power consumption, ultra-high energy efficiency, and deep cooling. With dimensions of just 15×15 mm, it is one of the smallest and most compact models in its series.
This product is available in three chip configurations—K10, K16, and K22—with thicknesses of 3.0 mm, 3.6 mm, and 4.2 mm, respectively, corresponding to maximum cooling temperature differences of 60°C, 65°C, and 70°C (under a hot-end temperature of Th=40°C). It has a maximum voltage of 5.8V, a maximum current of only 1.4A, a maximum cooling power of only 8W, and an internal resistance of 3.23Ω.
Compared to the 15×15mm TEC1-04902 (2.2A/13W/2.06Ω/60–70°C), the TEC1-04901 reduces power consumption by 38% (8W vs. 13W) and current is reduced by 36% (1.4A vs. 2.2A), while maintaining the same maximum temperature difference of 70°C. Energy efficiency is significantly improved—it generates a temperature difference of 8.75°C per watt of power consumption (70°C/8W), compared to 5.38°C/W for the TEC1-04902, representing an efficiency improvement of over 60%.
Compared to the 15×15mm TEC1-03101 (3.7V/1.4A/5W/55–65°C), although power consumption is slightly higher (8W vs. 5W), the TEC1-04901 offers a higher maximum temperature difference (70°C vs. 65°C) and greater voltage flexibility (5.8V vs. 3.7V). It is fully compatible with 5V USB power sources and achieves a superior balance between low power consumption and deep cooling.
This product is the most comprehensive temperature control solution in the 15×15mm series, offering extremely low power consumption, the widest temperature difference range, and optimal energy efficiency.
🔷Thermo Cooler Product Selection
| 模型 | 热电偶对 | Umax（伏特） | Imax（安培） | DTmax（°C） | 瓦特 | 电阻器（Ω） | 长度（mm） | 宽度（mm） |
| TEC-03102-30x6x3.25 | 31 | 3.8 | 2.2 | 67 | 4.6 | 1.37 | 30 | 6 |
| TEC-03102-30x6x3.3 | 31 | 3.8 | 2.7 | 66 | 5.7 | 1.11 | 30 | 6 |
| TEC-03104-30x6x3.3 | 31 | 3.8 | 4.3 | 66 | 8.9 | 0.71 | 30 | 6 |
| TEC-06102-30x5.7x3.1 | 61 | 7.4 | 2 | 67 | 8.1 | 3 | 30 | 5.7 |
| TEC-06503-30x7x2.55 | 65 | 7.9 | 3.4 | 67 | 15 | 1.85 | 30 | 7 |
| TEC-06302-38x7.6x3.04 | 63 | 7.6 | 2.4 | 67 | 10 | 2.59 | 38 | 7.6 |
| TEC-03102-30x8x3.8 | 31 | 3.8 | 2.9 | 67 | 6.1 | 1.03 | 30 | 8 |
| TEC-07102-30x8x2.9 | 71 | 8.6 | 2.7 | 67 | 12.7 | 2.6 | 30 | 8 |
| TEC-06502-8x40x3 | 65 | 7.9 | 2.4 | 67 | 10.7 | 2.59 | 8 | 40 |
| TEC-05304-30x9.8x3.1 | 53 | 6.4 | 4.2 | 67 | 15.1 | 1.22 | 30 | 9.8 |
| TEC-01704-10x10x3.1 | 17 | 2.1 | 4.1 | 68 | 4.7 | 0.4 | 10 | 10 |
| TEC-03101-10x10x3 | 31 | 3.8 | 1.4 | 68 | 2.9 | 2.2 | 10 | 10 |
| TEC-06303-60x10x3.7 | 63 | 7.6 | 3.4 | 67 | 14.4 | 1.81 | 60 | 10 |
| TEC-04901-12x12x2.9 | 49 | 5.9 | 1.5 | 67 | 5 | 3.15 | 12 | 12 |
| TEC-03102-15x15x4 | 31 | 3.8 | 2.5 | 66 | 5.3 | 1.19 | 15 | 15 |
| TEC-03102-15x15x3.8 | 31 | 3.8 | 2.8 | 66 | 5.9 | 1.07 | 15 | 15 |
| TEC-04904-15x15x3.1 | 49 | 5.9 | 4.2 | 67 | 13.9 | 1.13 | 15 | 15 |
| TEC-04804-15x15x3.32 | 48 | 5.8 | 4.3 | 66 | 13.7 | 1.1 | 15 | 15 |
| TEC-04902-18x18x4 | 49 | 5.9 | 2.4 | 67 | 7.8 | 2.02 | 18 | 18 |
| TEC-04902-20x20x4 | 49 | 5.9 | 2.1 | 66 | 6.8 | 2.32 | 20 | 20 |
| TEC-04903-20x20x3.6 | 49 | 5.9 | 3.1 | 66 | 10.1 | 1.55 | 20 | 20 |
| TEC-07102-20x20x4 | 71 | 8.6 | 2.3 | 66 | 11 | 3 | 20 | 20 |
| TEC-07103-20x20x3.5 | 71 | 8.6 | 3.3 | 66 | 16 | 2.07 | 20 | 20 |
| TEC-06311-20x40x3.05 | 63 | 7.6 | 11.2 | 67 | 47.3 | 0.55 | 20 | 40 |
| TEC-06311-40x20x3.05 | 63 | 7.6 | 11.2 | 67 | 47.3 | 0.55 | 40 | 20 |
| TEC-07102-23x23x4 | 71 | 8.6 | 2.3 | 66 | 11 | 3 | 23 | 23 |
| TEC-07103-23x23x3.5 | 71 | 8.6 | 3.3 | 66 | 16 | 2.07 | 23 | 23 |
| TEC-04903-25x25x4.2 | 49 | 5.9 | 3.9 | 67 | 12.9 | 1.22 | 25 | 25 |
| TEC-07102-30x30x4 | 71 | 8.6 | 2.3 | 66 | 11 | 3 | 30 | 30 |
| TEC-07103-30x30x3.7 | 71 | 8.6 | 3.3 | 66 | 16 | 2.07 | 30 | 30 |
| TEC-07103-30x30x4 | 71 | 8.6 | 3.6 | 66 | 17.4 | 1.9 | 30 | 30 |
| TEC-12701-30x30x4.55 | 127 | 15.4 | 1.3 | 67 | 11.4 | 9.25 | 30 | 30 |
| TEC-12702-30x30x4.2 | 127 | 15.4 | 2 | 67 | 17.4 | 6.08 | 30 | 30 |
| TEC-12702-30x30x4.07 | 127 | 15.4 | 2.2 | 67 | 18.9 | 5.6 | 30 | 30 |
| TEC-12703-30x30x3.7 | 127 | 15.4 | 3.4 | 66 | 28.9 | 3.65 | 30 | 30 |
| TEC-12704-30x30x3.4 | 127 | 15.4 | 4.2 | 66 | 36.2 | 2.92 | 30 | 30 |
| TEC-12702-40x40x4.2 | 127 | 15.4 | 2.8 | 66 | 24.1 | 4.38 | 40 | 40 |
| TEC-12703-40x40x3.9 | 127 | 15.4 | 3.4 | 66 | 28.9 | 3.65 | 40 | 40 |
| TEC-12704-40x40x3.4 | 127 | 15.4 | 4.2 | 66 | 36.2 | 2.92 | 40 | 40 |
| TEC-12704-40x40x4 | 127 | 15.4 | 4.8 | 66 | 41.1 | 2.57 | 40 | 40 |
| TEC-12705-40x40x3.65 | 127 | 15.4 | 5.6 | 66 | 48 | 2.2 | 40 | 40 |
| TEC-12706-40x40x3.95 | 127 | 15.4 | 6.6 | 67 | 55.9 | 1.89 | 40 | 40 |
| TEC-12707-40x40x4 | 127 | 15.4 | 7.4 | 67 | 62.9 | 1.68 | 40 | 40 |
| TEC-12708-40x40x3.6 | 127 | 15.4 | 8.8 | 67 | 74.9 | 1.41 | 40 | 40 |
| TEC-12716-40x40x3.2 | 127 | 15.4 | 16.3 | 66 | 139 | 0.76 | 40 | 40 |
| TEC-06303-40x20x3.6 | 63 | 7.6 | 3 | 3.4 | 22.8 | 1.98 | 40 | 20 |
🔷Peltier Heater Installation and Usage Recommendations
1. Assembly pressure: 0.5 kg (0.25 kg/cm²) is recommended. It is recommended to apply thermal grease (thermal conductivity > 3 W/m·K) evenly to both surfaces, with a thickness of 0.05–0.1 mm.
2. Heat Sink Requirements for the Hot End: With a low power consumption of 8 W, a small 25 × 25 × 10 mm extruded aluminum heat sink is sufficient for most scenarios; for space-constrained applications, copper foil or graphite thermal film can be used to dissipate heat to the device enclosure.
3. Power Supply Requirements: Maximum voltage is 5.8 V. We recommend direct power supply via a 5 V/2 A USB power adapter or power bank, eliminating the need for an additional power supply design. For more stable temperature control, we recommend using a 5 V/2 A or higher LDO voltage regulator.
4. Lead Wires: The standard configuration includes 26 AWG silicone-coated wires, which fully meet the 1.4 A current requirement.
5. Current Limitation: Do not exceed 1.4A; it is recommended to connect a 1.5A self-resetting fuse in series.
6. Condensation Prevention: During deep cooling (cold end < 0°C), fill the area around the cold end with desiccant or add an insulating layer.
7. Storage Conditions: Temperature < 120°C, humidity < 60% Rh.
8. Maximum Temperature: Must not exceed 138°C; soldering temperature < 280°C, duration < 5 seconds.
The TEC1-03101 is a miniature semiconductor cooling module designed for ultra-low-power, high-efficiency deep cooling. With dimensions of just 15×15 mm, it is one of the lowest-power, highest-efficiency miniature TECs currently available on the market, specifically engineered for battery-powered applications with extremely limited space. 🟧 Price List Contact Customer Service 🟦 Certifications Contact Customer Service ⬜ Product PDF Spec Contact Customer Service 🟪 Contact customer Contact Customer Service 🟨 MOQ:1 Pcs 🟥 Fast Delivery:2-15 Days 🟩 Source Factory：Online Factory Video 🟫 Multiple Payment Methods：T/T|PayPal|Alipay ⬛ Pre|After Service：+86 13377785035|xyy@kkg.tw
The TEC1-03102 is a miniature semiconductor cooling module designed for ultra-low-power, high-efficiency precision temperature control. With dimensions of just 15×15 mm, it achieves an excellent balance between deep cooling and extremely low power consumption within an ultra-compact package, making it the ideal temperature control core for battery-powered portable devices. 🟧 Price List Contact Customer Service 🟦 Certifications Contact Customer Service ⬜ Product PDF Spec Contact Customer Service 🟪 Contact customer Contact Customer Service 🟨 MOQ:1 Pcs 🟥 Fast Delivery:2-15 Days 🟩 Source Factory：Online Factory Video 🟫 Multiple Payment Methods：T/T|PayPal|Alipay ⬛ Pre|After Service：+86 13377785035|xyy@kkg.tw
The TEC1-03103 is a miniature semiconductor cooling module designed for low-power, high-efficiency precision temperature control. With dimensions of just 15 × 15 mm, it delivers balanced cooling performance within a compact package, making it an ideal choice for applications seeking a balance between system compatibility and cooling capacity. 🟧 Price List Contact Customer Service 🟦 Certifications Contact Customer Service ⬜ Product PDF Spec Contact Customer Service 🟪 Contact customer Contact Customer Service 🟨 MOQ:1 Pcs 🟥 Fast Delivery:2-15 Days 🟩 Source Factory：Online Factory Video 🟫 Multiple Payment Methods：T/T|PayPal|Alipay ⬛ Pre|After Service：+86 13377785035|xyy@kkg.tw
The TEC1-03104 is a miniature semiconductor cooling module designed for medium-power, high-efficiency precision temperature control. With dimensions of just 15 × 15 mm, it delivers balanced cooling performance in a compact package, making it an ideal choice for cost-effective, compact temperature control equipment. 🟧 Price List Contact Customer Service 🟦 Certifications Contact Customer Service ⬜ Product PDF Spec Contact Customer Service 🟪 Contact customer Contact Customer Service 🟨 MOQ:1 Pcs 🟥 Fast Delivery:2-15 Days 🟩 Source Factory：Online Factory Video 🟫 Multiple Payment Methods：T/T|PayPal|Alipay ⬛ Pre|After Service：+86 13377785035|xyy@kkg.tw
The TEC1-03105 is a miniature semiconductor cooling module designed for medium-power cooling and high-density temperature control. With dimensions of just 15 × 15 mm, it delivers powerful cooling performance within an extremely compact footprint, making it the ideal temperature control core for high-performance, compact devices. 🟧 Price List Contact Customer Service 🟦 Certifications Contact Customer Service ⬜ Product PDF Spec Contact Customer Service 🟪 Contact customer Contact Customer Service 🟨 MOQ:1 Pcs 🟥 Fast Delivery:2-15 Days 🟩 Source Factory：Online Factory Video 🟫 Multiple Payment Methods：T/T|PayPal|Alipay ⬛ Pre|After Service：+86 13377785035|xyy@kkg.tw
The TEC1-04902 is a miniature semiconductor cooling module that balances coverage of moderate temperature differences with low-power operation. Measuring just 15 × 15 mm, it is specifically designed for portable devices with extremely limited space but certain requirements for cooling depth. 🟧 Price List Contact Customer Service 🟦 Certifications Contact Customer Service ⬜ Product PDF Spec Contact Customer Service 🟪 Contact customer Contact Customer Service 🟨 MOQ:1 Pcs 🟥 Fast Delivery:2-15 Days 🟩 Source Factory：Online Factory Video 🟫 Multiple Payment Methods：T/T|PayPal|Alipay ⬛ Pre|After Service：+86 13377785035|xyy@kkg.tw
