The TEC1-03104 is a miniature semiconductor cooling module designed for medium-power, high-efficiency precision temperature control. With dimensions of just 15 × 15 mm, it delivers balanced cooling performance in a compact package, making it an ideal choice for cost-effective, compact temperature control equipment. 🟧 Price List Contact Customer Service 🟦 Certifications Contact Customer Service ⬜ Product PDF Spec Contact Customer Service 🟪 Contact customer Contact Customer Service 🟨 MOQ:1 Pcs 🟥 Fast Delivery:2-15 Days 🟩 Source Factory：Online Factory Video 🟫 Multiple Payment Methods：T/T|PayPal|Alipay ⬛ Pre|After Service：+86 13377785035|xyy@kkg.tw

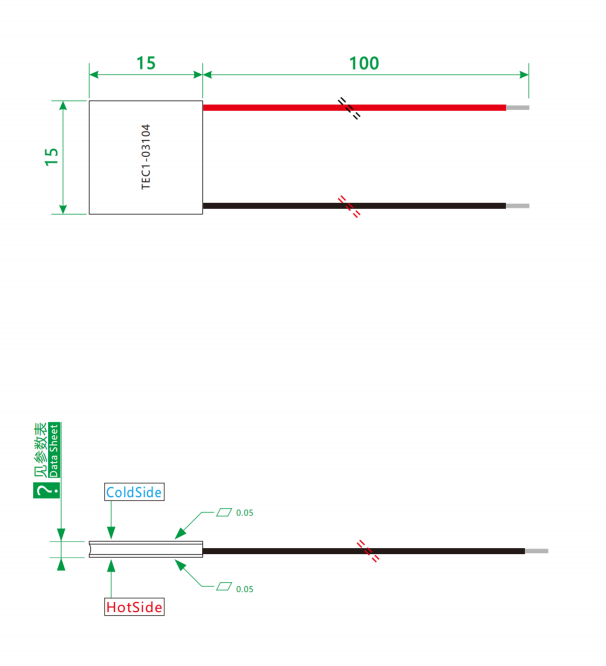

🔷TEC Peltier Module Product Drawing
🔷Peltier Heater Cooler Basic Performance Spec
| Type Mode | Chip Model | ΔTmax (°C) | ACR (Ω) | Umax (V) | Imax (A) | Pmax (W) | Size (mm) |
|---|---|---|---|---|---|---|---|
| TEC1-03104 | K10 | 60 | 0.72 | 3.7 | 4.0 | 15 | 15×15×3.0 |
| TEC1-03104 | K14 | 65 | 0.72 | 3.7 | 4.0 | 15 | 15×15×3.4 |
| TEC1-03104 | K18 | 70 | 0.72 | 3.7 | 4.0 | 15 | 15×15×3.8 |
🔷Advanced TEC Additional Performance Spec
| Parameter | Specification |
|---|---|
| Substrate Material | 96% alumina (0.76 mm) + oxygen-free copper (0.2 mm), sintered process |
| Lead Wire Specification | Silicone wire, 24 AWG, L = 100 mm |
| Terminal Specification | Not included as standard; available upon request |
| Assembly Pressure | 0.5 kg (0.25 kg/cm²) |
| Packaging Standard | Polystyrene (PS) foam box |
| Sealant Material | 704 silicone rubber sealant |
| Maximum Temperature Resistance | Bismuth-tin eco-friendly solder, melting point 138°C |
| Storage Environment | Temperature < 120°C, Humidity < 60% Rh |

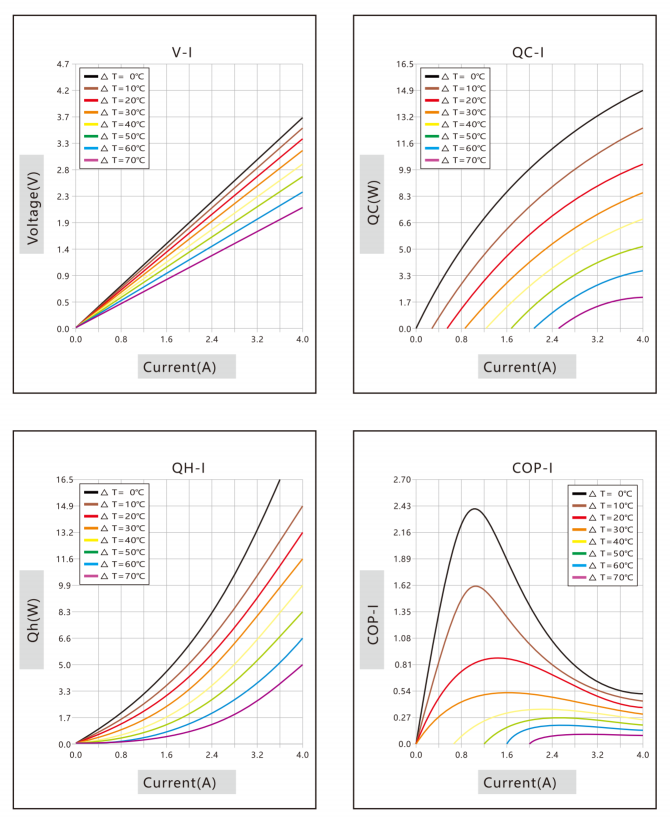

🔷Thermoelectric Cooling Devices Performance Curve
🔷Peltier Elements Product Overview
The TEC1-03104 is a miniature semiconductor cooling module designed for medium-power, high-efficiency precision temperature control. With dimensions of just 15 × 15 mm, it delivers balanced cooling performance in a compact package, making it an ideal choice for cost-effective, compact temperature control equipment.
This product is available in three crystal configurations—K10, K14, and K18—with thicknesses of 3.0 mm, 3.4 mm, and 3.8 mm, respectively, corresponding to maximum cooling temperature differences of 60°C, 65°C, and 70°C (under conditions where the hot-end temperature Th = 40°C). It operates at a maximum voltage of just 3.7V, a maximum current of 4A, a maximum cooling power of 15W, and an internal resistance of 0.72Ω.
Compared to the 15×15mm TEC1-03105 (5A/19W/0.58Ω/60–70°C), the TEC1-03104 features a 20% reduction in current (4A vs. 5A) and and its power output is reduced by 21% (15W vs. 19W), while maintaining the same maximum temperature difference of 70°C. This results in less stringent requirements for the power supply, leads, and heat dissipation system, leading to lower system integration complexity and cost.
Compared to the 15×15mm TEC1-04901 (1.4A/8W/3.23Ω/60–70°C/5.8V), the TEC1-03104 delivers nearly twice the power (15W vs. 8W) and offers greater cooling capacity, while retaining the advantage of ultra-low 3.7V drive voltage.
Compared to the 15×15mm TEC1-03101 (1.4A/5W/2.06Ω/55–65°C/3.7V), the TEC1-03104 delivers three times the power (15W vs. 5W) and has a higher maximum temperature difference (70°C vs. 65°C), making it suitable for applications with higher thermal loads.
This product is the “golden ratio” model in the 15×15mm series, offering a balanced combination of low voltage, moderate current, and well-rounded performance.
🔷Thermoelectric Controller Operation Principle
The TEC1-03104 is a miniature semiconductor cooling module designed for medium-power, high-efficiency precision temperature control. With dimensions of just 15 × 15 mm, it delivers balanced cooling performance in a compact package, making it an ideal choice for cost-effective, compact temperature control equipment.
This product is available in three crystal configurations—K10, K14, and K18—with thicknesses of 3.0 mm, 3.4 mm, and 3.8 mm, respectively, corresponding to maximum cooling temperature differences of 60°C, 65°C, and 70°C (under conditions where the hot-end temperature Th = 40°C). It operates at a maximum voltage of just 3.7V, a maximum current of 4A, a maximum cooling power of 15W, and an internal resistance of 0.72Ω.
Compared to the 15×15mm TEC1-03105 (5A/19W/0.58Ω/60–70°C), the TEC1-03104 features a 20% reduction in current (4A vs. 5A) and and its power output is reduced by 21% (15W vs. 19W), while maintaining the same maximum temperature difference of 70°C. This results in less stringent requirements for the power supply, leads, and heat dissipation system, leading to lower system integration complexity and cost.
Compared to the 15×15mm TEC1-04901 (1.4A/8W/3.23Ω/60–70°C/5.8V), the TEC1-03104 delivers nearly twice the power (15W vs. 8W) and offers greater cooling capacity, while retaining the advantage of ultra-low 3.7V drive voltage.
Compared to the 15×15mm TEC1-03101 (1.4A/5W/2.06Ω/55–65°C/3.7V), the TEC1-03104 delivers three times the power (15W vs. 5W) and has a higher maximum temperature difference (70°C vs. 65°C), making it suitable for applications with higher thermal loads.
This product is the “golden ratio” model in the 15×15mm series, offering a balanced combination of low voltage, moderate current, and well-rounded performance.
