TEC1-09705 is a compact 30×30mm semiconductor cooling module (TEC / thermoelectric cooling module) that operates based on the Peltier effect. 🟧 Price List Contact Customer Service 🟦 Certifications Contact Customer Service ⬜ Product PDF Spec Contact Customer Service 🟪 Contact customer Contact Customer Service 🟨 MOQ:1 Pcs 🟥 Fast Delivery:2-15 Days 🟩 Source Factory：Online Factory Video 🟫 Multiple Payment Methods：T/T|PayPal|Alipay ⬛ Pre|After Service：+86 13377785035|xyy@kkg.tw

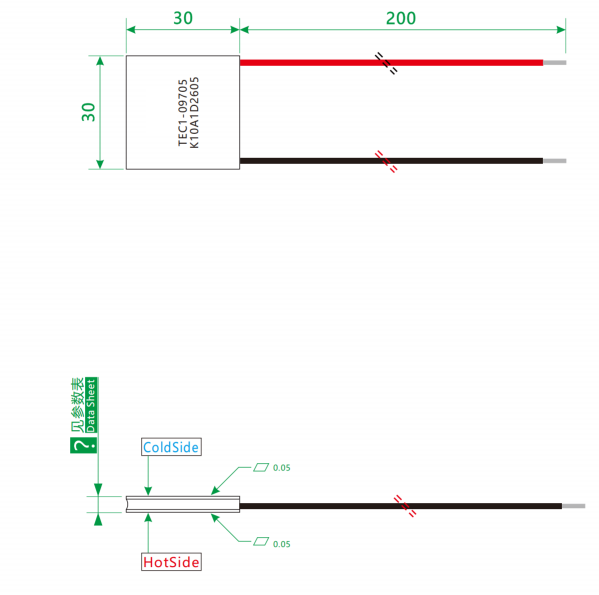

🔷Thermoelectric Generator Product Drawing
🔷Thermoelectric Cooler Performance Basis Spec
| Type mode | In APE | ΔTmax (°C) | AC Rohm (Ω) | Umax (V) | Imax (A) | Pmax (W) | Size (mm) |
| TEC1-09705 | K10 | 60 | 1.87 | 12 | 5 | 60 | 30×30×3.4 |
| K12 | 65 | 1.87 | 12 | 5 | 60 | 30×30×3.6 | |
| K14 | 70 | 1.87 | 12 | 5 | 60 | 30×30×3.8 |
🔷Peltier Module Addition Performance Spec
| Item | Specification |
| Substrate Specification | 96% Alumina 0.76 + Oxygen-free Copper 0.4 Sintering Process |
| Lead Specification | Special Silicone Wire 20AWG / L=200mm |
| Terminal Specification | Standard product without terminals, can be added upon request |
| Assembly Pressure | 2.3kg / (0.25kg/CM²) |
| Packaging Standard | Polystyrene (PS) Foam Box Packaging |
| Sealing Material | 704 Silicone Rubber Seal |
| Maximum Temperature Resistance | Bi-Sn Eco-friendly Solder, Melting Point 138°C |
| Storage Environment | Temperature < 120°C, Humidity < 60%Rh |

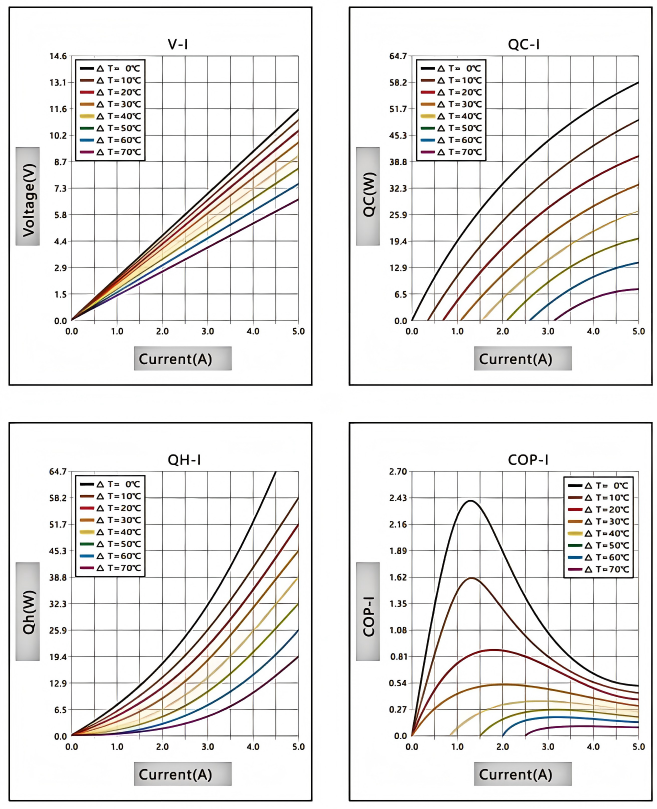

🔷TEC Cooler Performance Curve
🔷Thermoelectric Cooler Peltier Product Overview
TEC1-09705 is a compact 30×30mm semiconductor cooling module (TEC / thermoelectric cooling module) that operates based on the Peltier effect. Also known as an electronic cooling module, it is a solid-state temperature control device that requires no compressor or refrigerant. Its core function is to drive the directed transfer of heat using direct current, enabling cooling or heating in applications requiring a small footprint and low power consumption.
🔷Peltier Cooling Module Product Features
1. Universal and Stable: Standard specifications of 12V/5A/60W ensure strong compatibility with a wide range of conventional temperature-controlled devices.
2. Flexible Selection: Available in three models—K10, K12, and K14—with a wide temperature range of 60–70°C to meet various cooling needs.
3. Excellent Thermal Conductivity: Ceramic + oxygen-free copper sintering process ensures efficient heat transfer, reliable insulation, and durability.
4. Durable and Moisture-Resistant: Silicone seal protection combined with eco-friendly solder ensures resistance to high and low temperatures and aging.
5. Portable and Easy to Install: Compact and ultra-thin 30×30mm dimensions with flexible flexible wiring for convenient installation.
6. Silent Temperature Control: No mechanical parts or consumables; operates silently and supports precise bidirectional temperature control for both heating and cooling.
🔷Peltiers Product Selection
The TEC1-04902 is a 30x30mm standard-size semiconductor cooling module designed for a low current of 2.2A, with a maximum temperature difference of approximately 65–70°C and a cooling capacity of approximately 8–10W. 🟧 Price List Contact Customer Service 🟦 Certifications Contact Customer Service ⬜ Product PDF Spec Contact Customer Service 🟪 Contact customer Contact Customer Service 🟨 MOQ:1 Pcs 🟥 Fast Delivery:2-15 Days 🟩 Source Factory：Online Factory Video 🟫 Multiple Payment Methods：T/T|PayPal|Alipay ⬛ Pre|After Service：+86 13377785035|xyy@kkg.tw
The TEC1-04903 is a 30x30mm standard-size semiconductor cooling module designed for a low current of 3A, with a maximum temperature difference of approximately 65–70°C and a cooling capacity of approximately 12–15W. 🟧 Price List Contact Customer Service 🟦 Certifications Contact Customer Service ⬜ Product PDF Spec Contact Customer Service 🟪 Contact customer Contact Customer Service 🟨 MOQ:1 Pcs 🟥 Fast Delivery:2-15 Days 🟩 Source Factory：Online Factory Video 🟫 Multiple Payment Methods：T/T|PayPal|Alipay ⬛ Pre|After Service：+86 13377785035|xyy@kkg.tw
The TEC1-04904 is a standard 30x30mm semiconductor cooling module designed for a 4A current, with a maximum temperature difference of approximately 65–70°C and a cooling capacity of approximately 15–18W. 🟧 Price List Contact Customer Service 🟦 Certifications Contact Customer Service ⬜ Product PDF Spec Contact Customer Service 🟪 Contact customer Contact Customer Service 🟨 MOQ:1 Pcs 🟥 Fast Delivery:2-15 Days 🟩 Source Factory：Online Factory Video 🟫 Multiple Payment Methods：T/T|PayPal|Alipay ⬛ Pre|After Service：+86 13377785035|xyy@kkg.tw
The TEC1-04905 is a 30x30mm standard-size semiconductor cooling module designed for a 5A current, with a maximum temperature difference of approximately 65–70°C and a cooling capacity of approximately 20–25W. 🟧 Price List Contact Customer Service 🟦 Certifications Contact Customer Service ⬜ Product PDF Spec Contact Customer Service 🟪 Contact customer Contact Customer Service 🟨 MOQ:1 Pcs 🟥 Fast Delivery:2-15 Days 🟩 Source Factory：Online Factory Video 🟫 Multiple Payment Methods：T/T|PayPal|Alipay ⬛ Pre|After Service：+86 13377785035|xyy@kkg.tw
The TEC1-04906 is a 30x30mm standard-size semiconductor cooling module designed for a 6A current, with a maximum temperature difference of approximately 65–70°C and a cooling capacity of approximately 25–30W. 🟧 Price List Contact Customer Service 🟦 Certifications Contact Customer Service ⬜ Product PDF Spec Contact Customer Service 🟪 Contact customer Contact Customer Service 🟨 MOQ:1 Pcs 🟥 Fast Delivery:2-15 Days 🟩 Source Factory：Online Factory Video 🟫 Multiple Payment Methods：T/T|PayPal|Alipay ⬛ Pre|After Service：+86 13377785035|xyy@kkg.tw
The TEC1-04908 is a 30x30mm standard-size semiconductor cooling module designed for an 8A current, with a maximum temperature difference of approximately 65–70°C and a cooling capacity of approximately 35–40W. 🟧 Price List Contact Customer Service 🟦 Certifications Contact Customer Service ⬜ Product PDF Spec Contact Customer Service 🟪 Contact customer Contact Customer Service 🟨 MOQ:1 Pcs 🟥 Fast Delivery:2-15 Days 🟩 Source Factory：Online Factory Video 🟫 Multiple Payment Methods：T/T|PayPal|Alipay ⬛ Pre|After Service：+86 13377785035|xyy@kkg.tw
The TEC1-04910 is a 30x30mm standard-size semiconductor cooling module designed for high current (10A), with a maximum temperature difference of approximately 65–70°C and a cooling capacity of approximately 40–45W. 🟧 Price List Contact Customer Service 🟦 Certifications Contact Customer Service ⬜ Product PDF Spec Contact Customer Service 🟪 Contact customer Contact Customer Service 🟨 MOQ:1 Pcs 🟥 Fast Delivery:2-15 Days 🟩 Source Factory：Online Factory Video 🟫 Multiple Payment Methods：T/T|PayPal|Alipay ⬛ Pre|After Service：+86 13377785035|xyy@kkg.tw
The TEC1-04912 is a 30x30mm standard-size semiconductor cooling module designed for high current (12A), with a maximum temperature difference of approximately 65–70°C and a cooling capacity of up to approximately 45–50W. 🟧 Price List Contact Customer Service 🟦 Certifications Contact Customer Service ⬜ Product PDF Spec Contact Customer Service 🟪 Contact customer Contact Customer Service 🟨 MOQ:1 Pcs 🟥 Fast Delivery:2-15 Days 🟩 Source Factory：Online Factory Video 🟫 Multiple Payment Methods：T/T|PayPal|Alipay ⬛ Pre|After Service：+86 13377785035|xyy@kkg.tw
