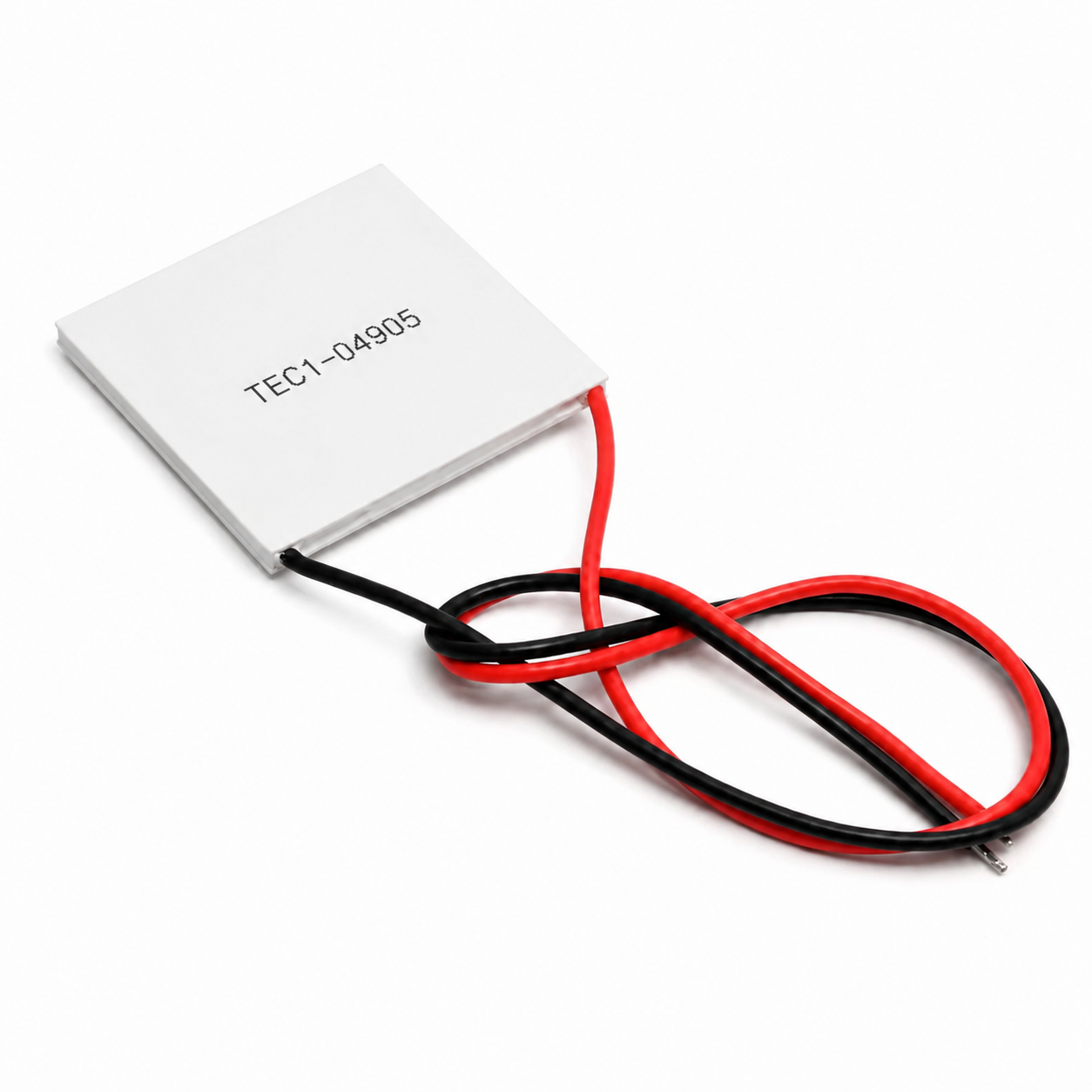

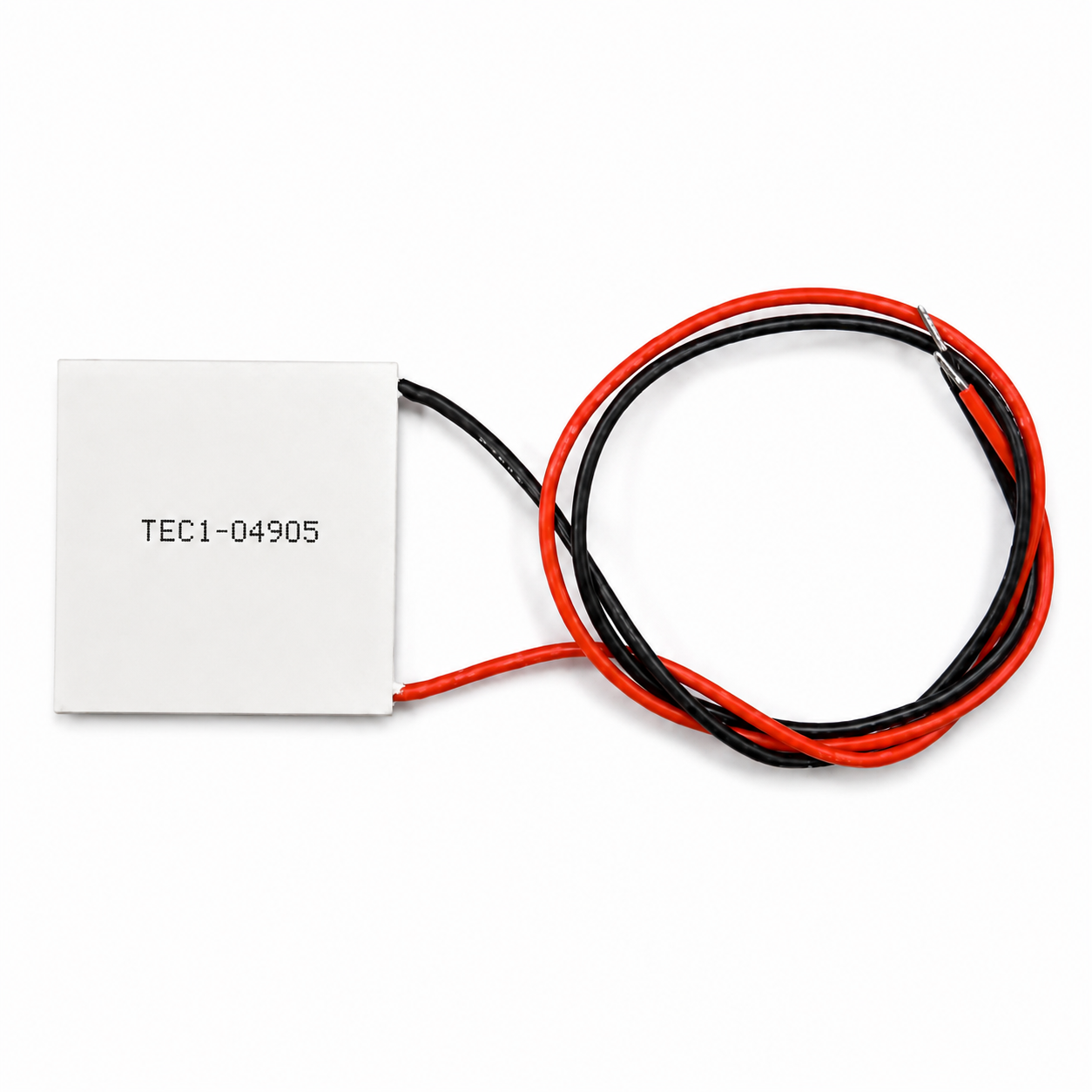

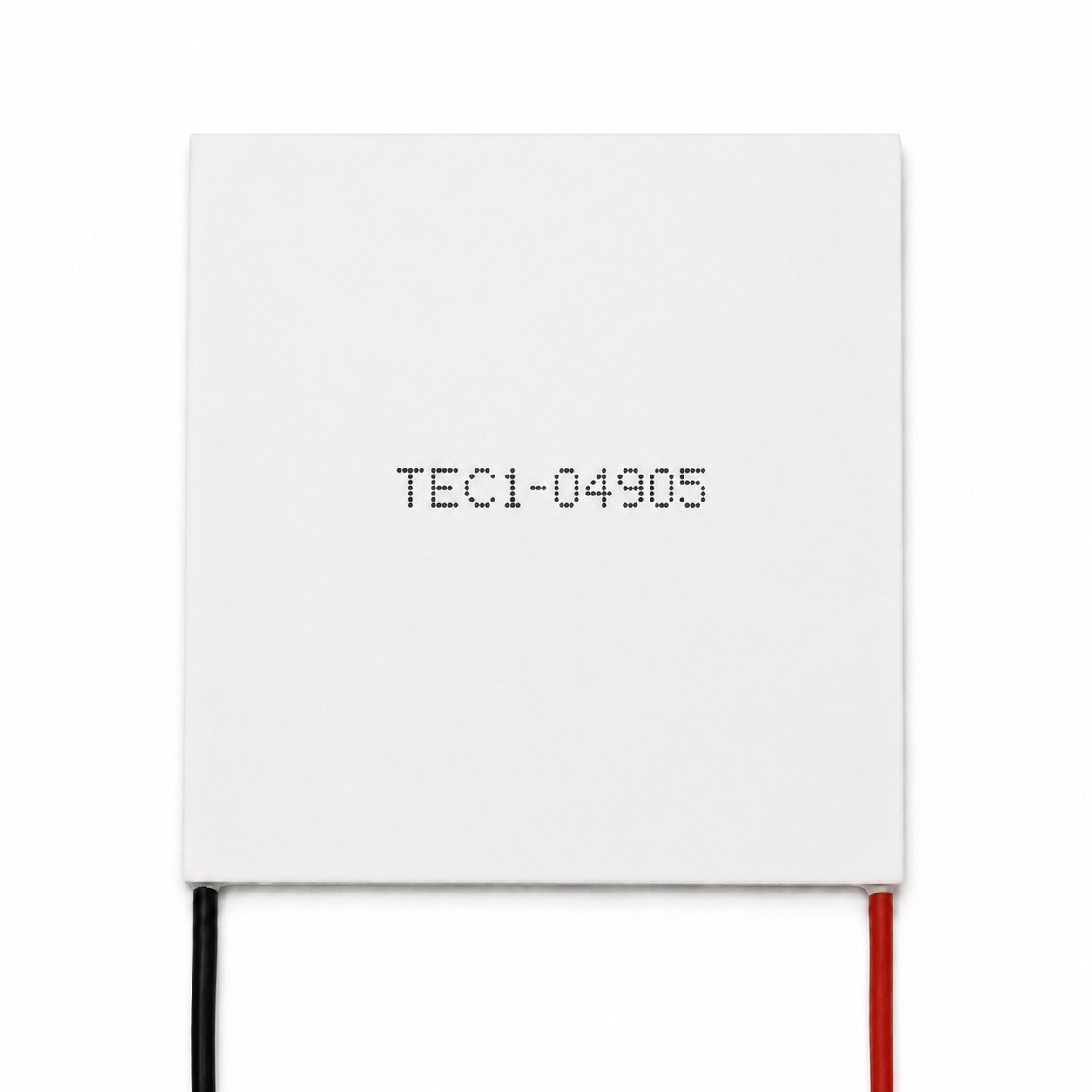

The TEC1-04905 is a 30x30mm standard-size semiconductor cooling module designed for a 5A current, with a maximum temperature difference of approximately 65–70°C and a cooling capacity of approximately 20–25W. 🟧 Price List Contact Customer Service 🟦 Certifications Contact Customer Service ⬜ Product PDF Spec Contact Customer Service 🟪 Contact customer Contact Customer Service 🟨 MOQ:1 Pcs 🟥 Fast Delivery:2-15 Days 🟩 Source Factory：Online Factory Video 🟫 Multiple Payment Methods：T/T|PayPal|Alipay ⬛ Pre|After Service：+86 13377785035|xyy@kkg.tw

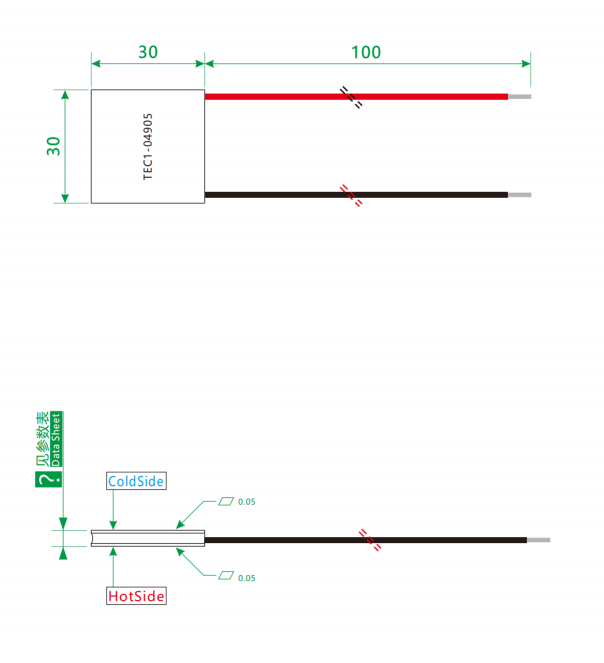

🔷Tec Thermoelectric Cooler Product Drawing
🔷Cooling Module Basic Performance Spec
| Type Model | Chip | ΔTmax (°C) | ACR (Ω) | Umax (V) | Imax (A) | Pmax (W) | Size (mm) |
|---|---|---|---|---|---|---|---|
| TEC1-04905 | K12 | 60 | 0.90 | 5.8 | 5 | 29 | 30×30×3.6 |
| TEC1-04905 | K20 | 65 | 0.90 | 5.8 | 5 | 29 | 30×30×4.4 |
| TEC1-04905 | K28 | 70 | 0.90 | 5.8 | 5 | 29 | 30×30×5.2 |
🔷Thermoelectric Peltier Module Additional Performance Spec
| Parameter | Specification |
|---|---|
| Substrate | 96% alumina 0.76mm + oxygen‑free copper 0.4mm, sintered process |
| Lead Wire | Ultra‑soft silicone wire, 20 AWG, L=200mm |
| Terminals | Not included as standard; can be installed upon request |
| Mounting Pressure | 2.3 kg (0.25 kg/cm²) |
| Packaging | Polystyrene (PS) foam box |
| Sealant | 704 silicone rubber |
| Max. Temperature Resistance | Tin‑lead solder, melting point 138°C |
| Storage Conditions | Temperature < 120°C, Humidity < 60% RH |

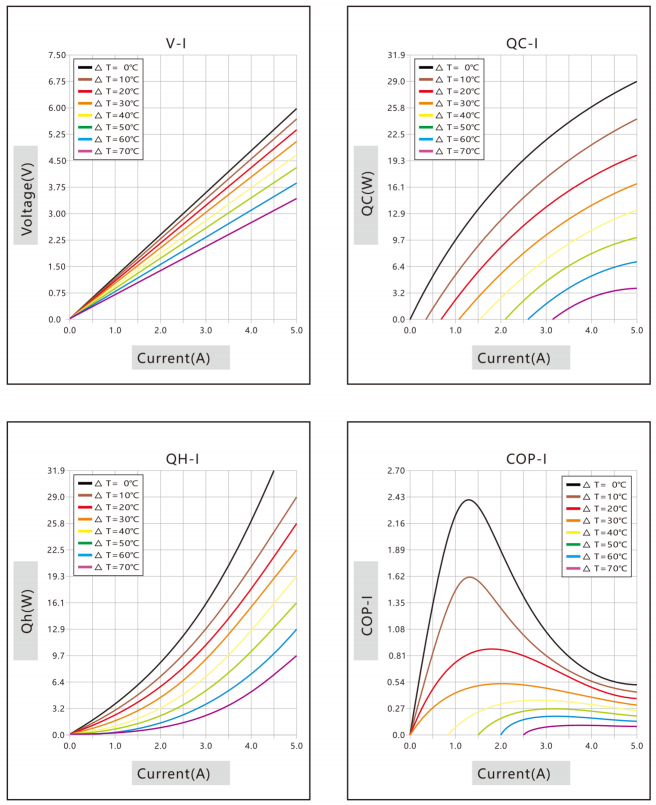

🔷Thermoelectric Cooler Module Performance Curve
🔷TEC Module Product Overview
The TEC1-04905 is a 30x30mm standard-size semiconductor cooling module designed for a 5A current, with a maximum temperature difference of approximately 65–70°C and a cooling capacity of approximately 20–25W. This product is noise-free, vibration-free, and maintenance-free, and can switch between cooling and heating modes by reversing the current direction. With its balanced and practical performance, it is suitable for medium-power, precision temperature control applications such as portable mini-refrigerators, beauty devices, and medical equipment.
🔷TEC Peltier Product Features
1. Quiet and Stable: As a solid-state device, it produces no noise or vibration, operates reliably, and is easy to maintain, making it ideal for applications that require a quiet environment.
2. Flexible Temperature Control: By reversing the current direction, it can switch between cooling and heating modes, offering great flexibility.
3. “Cooling” Experience: In some high-end beauty devices and hair removal devices, it is used to provide a cooling effect upon skin contact, delivering a “cooling” experience that not only enhances comfort but also protects the skin from laser-induced burns. In DIY smartphone coolers, it can also quickly cool down the device.
