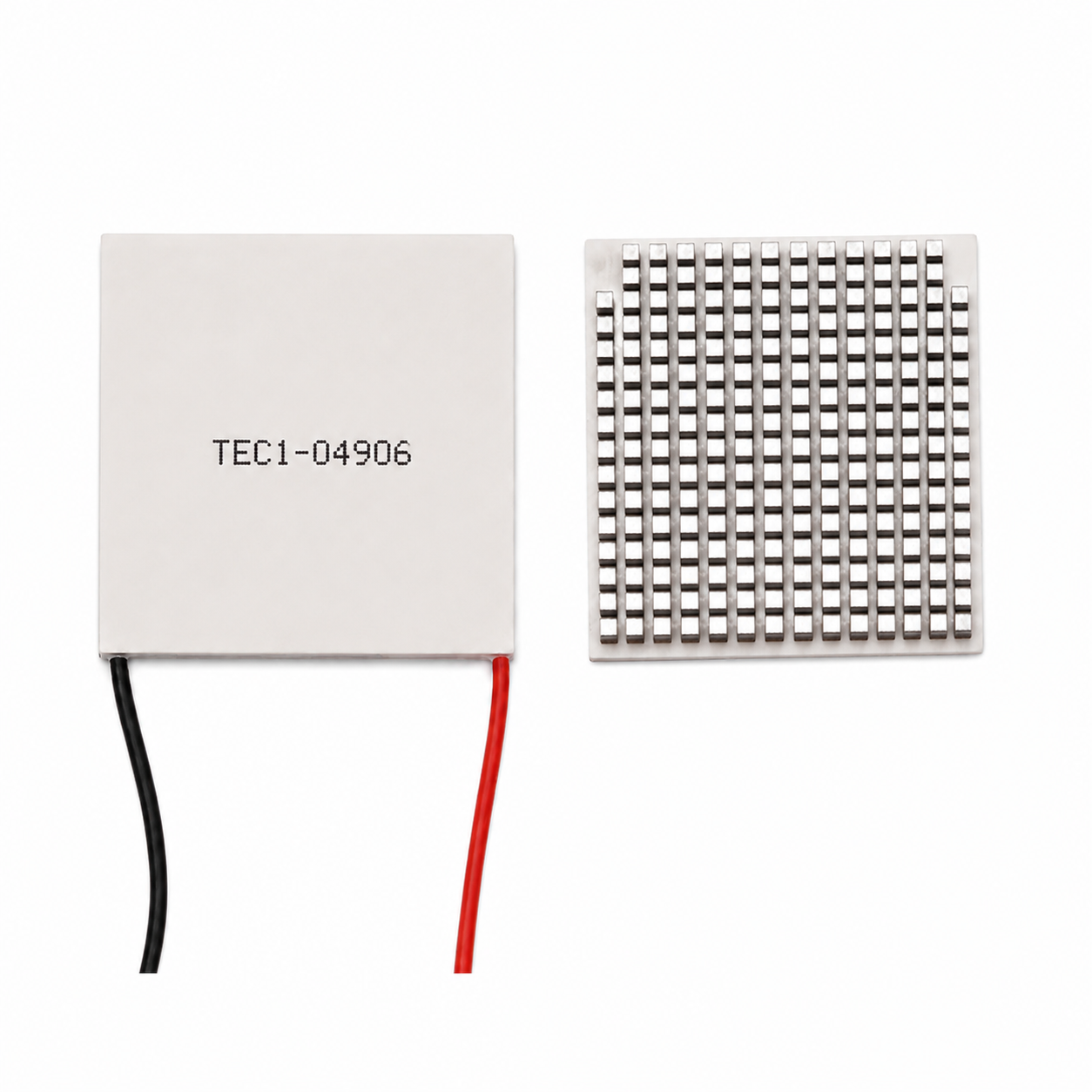

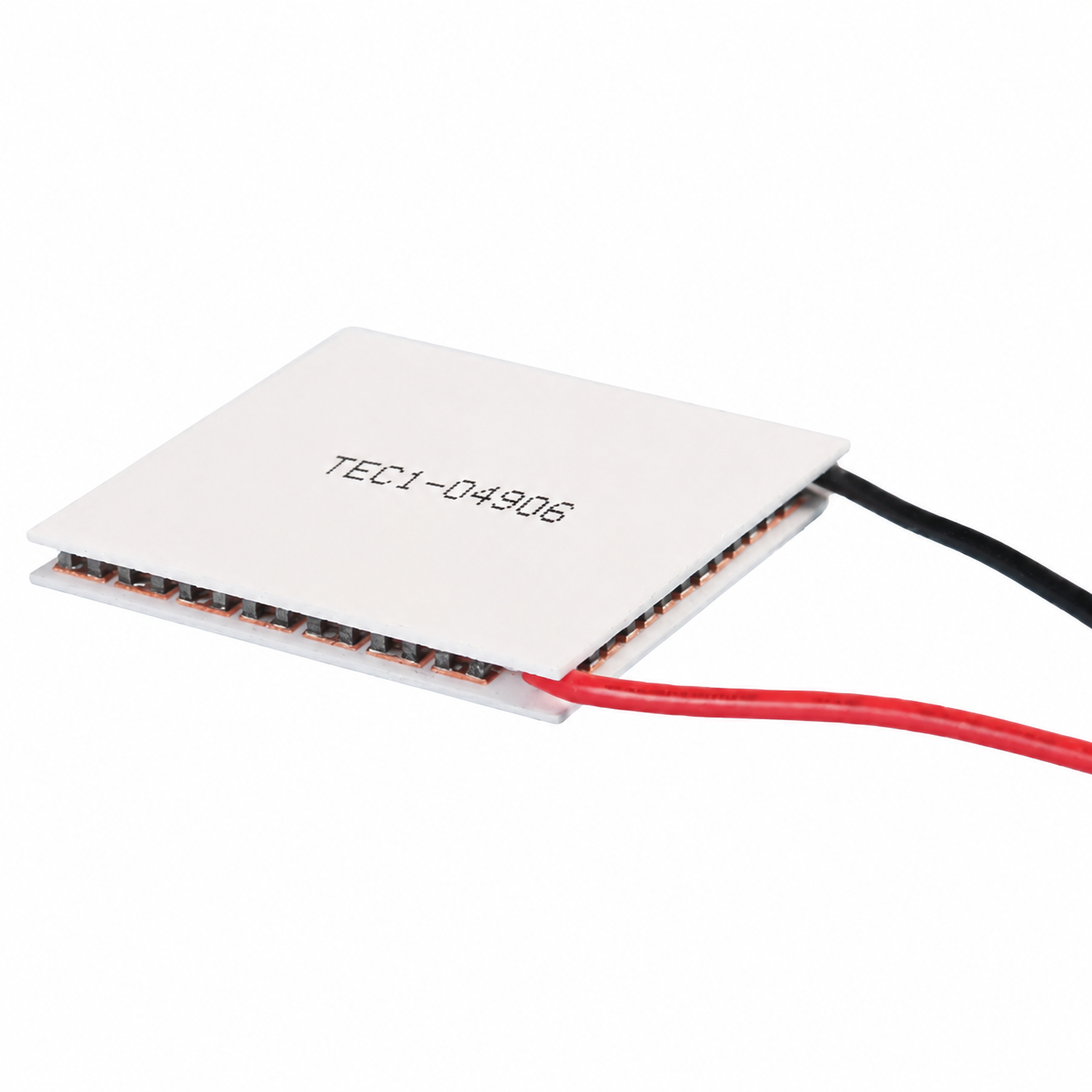

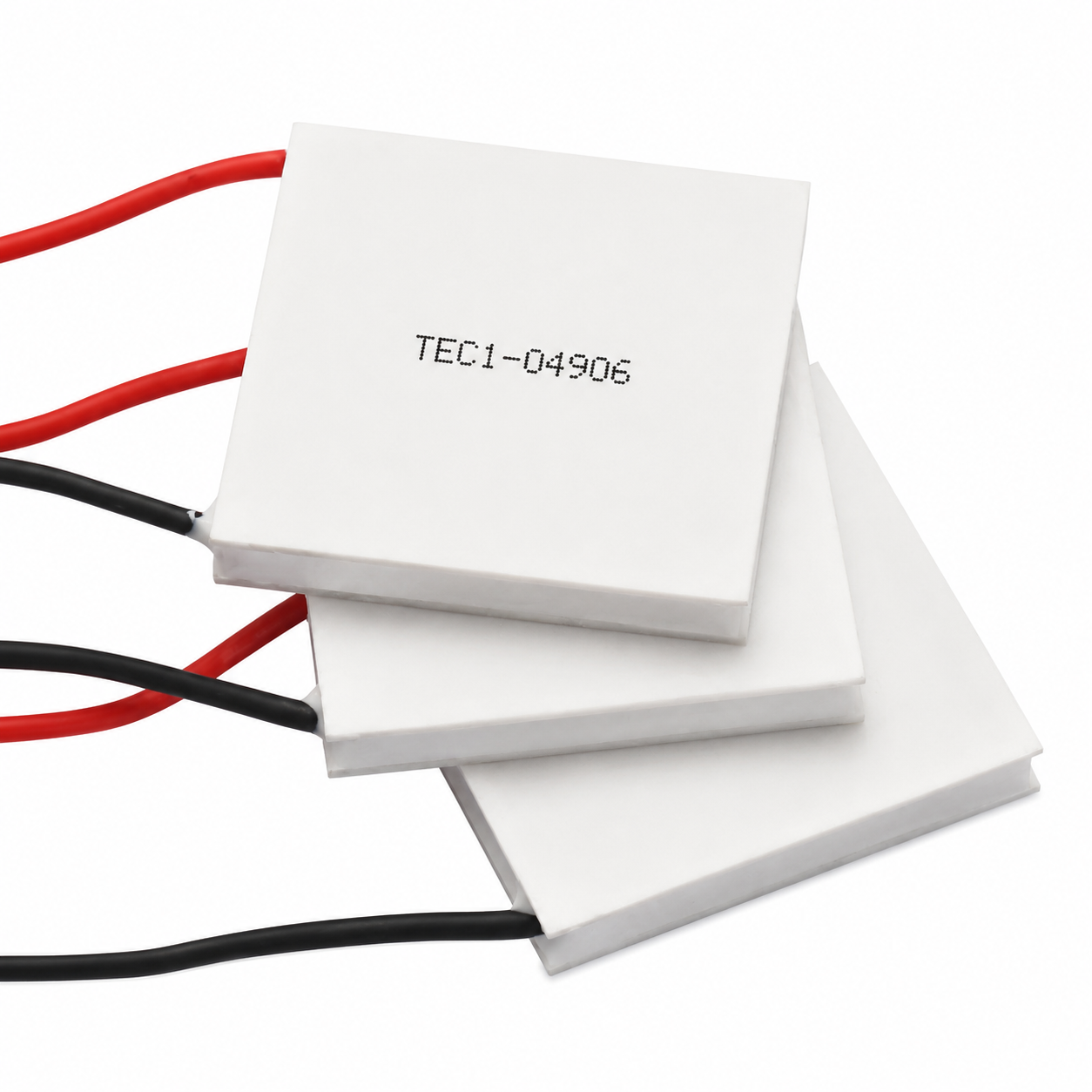

The TEC1-04906 is a 30x30mm standard-size semiconductor cooling module designed for a 6A current, with a maximum temperature difference of approximately 65–70°C and a cooling capacity of approximately 25–30W. 🟧 Price List Contact Customer Service 🟦 Certifications Contact Customer Service ⬜ Product PDF Spec Contact Customer Service 🟪 Contact customer Contact Customer Service 🟨 MOQ:1 Pcs 🟥 Fast Delivery:2-15 Days 🟩 Source Factory：Online Factory Video 🟫 Multiple Payment Methods：T/T|PayPal|Alipay ⬛ Pre|After Service：+86 13377785035|xyy@kkg.tw

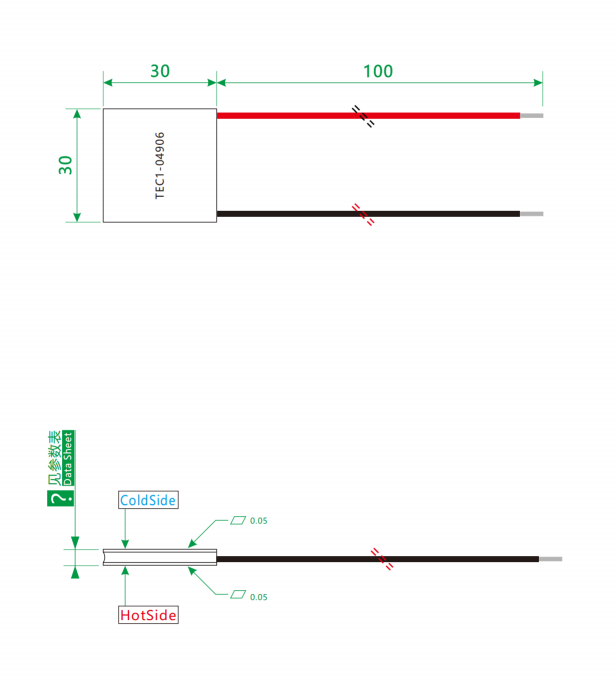

🔷Peltier Module Product Drawing
🔷Cooler with Peltier Basic Performance Spec
| Type Model | Chip | ΔTmax (°C) | ACR (Ω) | Umax (V) | Imax (A) | Pmax (W) | Size (mm) |
|---|---|---|---|---|---|---|---|
| TEC1-04906 | K10 | 60 | 0.75 | 5.8 | 6 | 35 | 30×30×3.4 |
| TEC1-04906 | K18 | 65 | 0.75 | 5.8 | 6 | 35 | 30×30×4.2 |
| TEC1-04906 | K26 | 70 | 0.75 | 5.8 | 6 | 35 | 30×30×5.0 |
🔷Thermoelectric Cooler Peltier Additional Performance Spec
| Parameter | Specification |
|---|---|
| Substrate | 96% alumina 0.76mm + oxygen‑free copper 0.4mm, sintered process |
| Lead Wire | Ultra‑soft silicone wire, 20 AWG, L=200mm |
| Terminals | Not included as standard; can be installed upon request |
| Mounting Pressure | 2.3 kg (0.25 kg/cm²) |
| Packaging | Polystyrene (PS) foam box |
| Sealant | 704 silicone rubber |
| Max. Temperature Resistance | Tin‑lead solder, melting point 138°C |
| Storage Conditions | Temperature < 120°C, Humidity < 60% RH |
🔷Peltier Cooling Module Product Overview
The TEC1-04906 is a 30x30mm standard-size semiconductor cooling module designed for a 6A current, with a maximum temperature difference of approximately 65–70°C and a cooling capacity of approximately 25–30W. This product is noise-free, vibration-free, and maintenance-free, and can switch between cooling and heating modes by reversing the current direction. With balanced and reliable performance, it is suitable for medium-power, precision temperature control applications such as portable mini-refrigerators, beauty devices, and medical equipment.

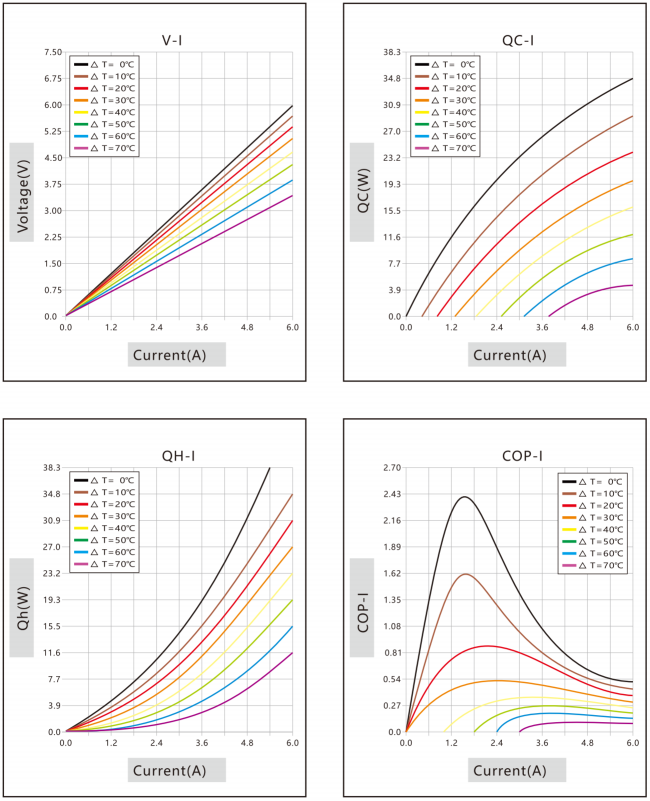

🔷Peltier Cooling Module Performance Curve
🔷Peltier Effect CoolerPeltiers Product Applications
1. High-Performance Portable Cooling Devices: This is its core application. For example, in large-capacity car refrigerators or small portable refrigerators, it offers faster cooling speeds and lower temperatures than low-current cooling pads, making it ideal for road trips and outdoor activities. Even in factory-installed refrigerators in some high-end vehicle models, similar semiconductor cooling solutions are used.
2. Industrial and Professional-Grade Cooling: Thanks to its powerful cooling capacity, it can also meet the thermal management needs of certain professional-grade equipment.
3. Precise Temperature Control for Lasers: In laser equipment, stable and precise temperature control is crucial for output power and wavelength stability. The TEC1-04912 provides efficient temperature control for semiconductor lasers, solid-state lasers, and other devices. For example, in some laser therapy devices or research-grade lasers, TEC cooling modules are installed beneath the laser to ensure stable operation.
4. High-Heat-Generating Electronic Devices: It can be used to provide efficient localized cooling solutions for certain high-heat-generating electronic components and specific industrial equipment.
