The TEC1-04910 is a 30x30mm standard-size semiconductor cooling module designed for high current (10A), with a maximum temperature difference of approximately 65–70°C and a cooling capacity of approximately 40–45W. 🟧 Price List Contact Customer Service 🟦 Certifications Contact Customer Service ⬜ Product PDF Spec Contact Customer Service 🟪 Contact customer Contact Customer Service 🟨 MOQ:1 Pcs 🟥 Fast Delivery:2-15 Days 🟩 Source Factory：Online Factory Video 🟫 Multiple Payment Methods：T/T|PayPal|Alipay ⬛ Pre|After Service：+86 13377785035|xyy@kkg.tw

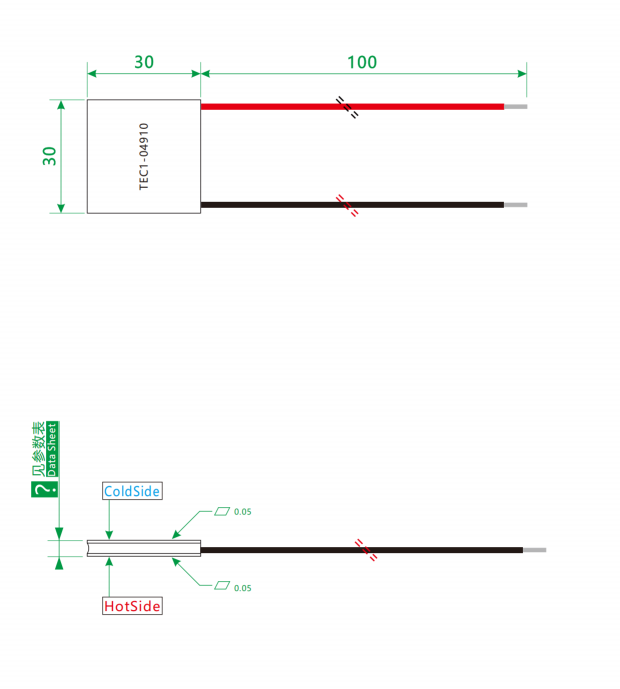

🔷Thermoelectric Power Generator Product Drawing
🔷Peltier Cooling Element Basic Performance Spec
| Type Model | Chip | ΔTmax (°C) | ACR (Ω) | Umax (V) | Imax (A) | Pmax (W) | Size (mm) |
|---|---|---|---|---|---|---|---|
| TEC1-04910 | K10 | 60 | 0.45 | 5.8 | 10 | 58 | 30×30×3.4 |
| TEC1-04910 | K14 | 65 | 0.45 | 5.8 | 10 | 58 | 30×30×3.8 |
| TEC1-04910 | K18 | 70 | 0.45 | 5.8 | 10 | 58 | 30×30×4.2 |
🔷TEC Cooler Additional Performance Spec
| Parameter | Specification |
|---|---|
| Substrate | 96% alumina 0.76mm + oxygen‑free copper 0.4mm, sintered process |
| Lead Wire | Ultra‑soft silicone wire, 18 AWG, L=200mm |
| Terminals | Not included as standard; can be installed upon request |
| Mounting Pressure | 2.3 kg (0.25 kg/cm²) |
| Packaging | Polystyrene (PS) foam box |
| Sealant | 704 silicone rubber |
| Max. Temperature Resistance | Tin‑lead solder, melting point 138°C |
| Storage Conditions | Temperature < 120°C, Humidity < 60% RH |

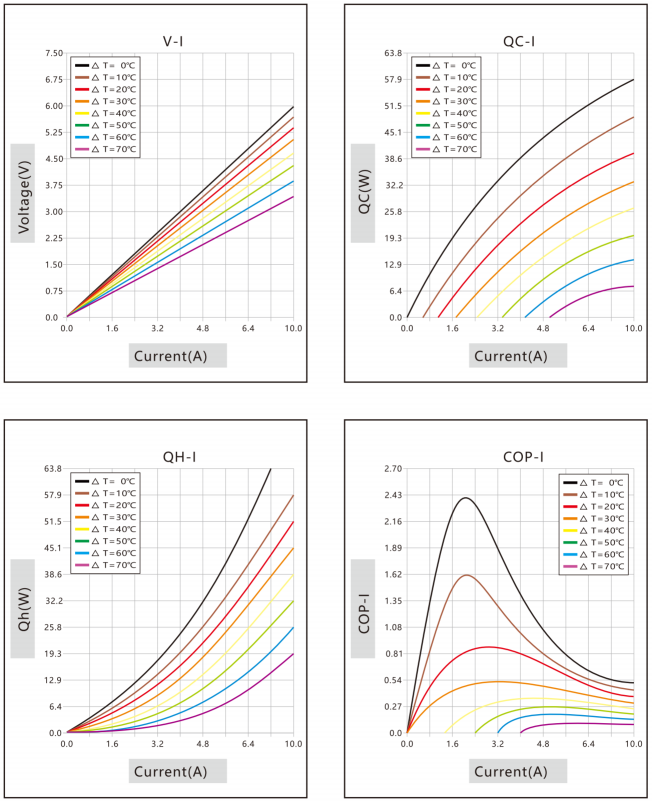

🔷Thermoelectric Generator Modules Performance Curve

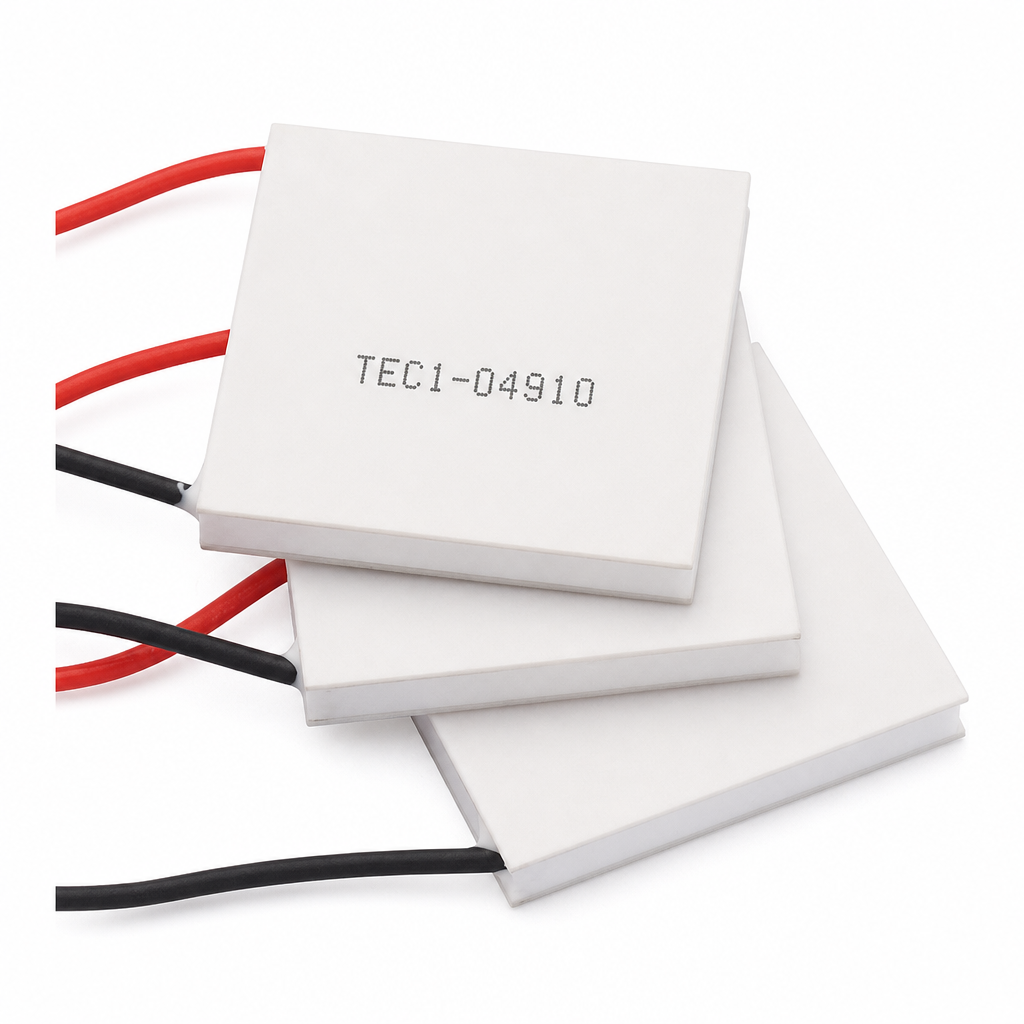

🔷Cooler with Peltier Product Overview
The TEC1-04910 is a 30x30mm standard-size semiconductor cooling module designed for high current (10A), with a maximum temperature difference of approximately 65–70°C and a cooling capacity of approximately 40–45W. This product is noise-free, vibration-free, and maintenance-free, and can switch between cooling and heating modes by reversing the current direction. With its powerful and efficient performance, it is suitable for applications requiring high-efficiency cooling, such as car refrigerators, laser cooling, and high-power electronic equipment.
🔷Thermoelectric Cooler Product Features
1. High-Power Cooling: Featuring a 12A high-current design with a maximum cooling power of 70W, it delivers powerful cooling performance.
2. Wide Temperature Difference Capability: The maximum temperature difference (ΔTmax) ranges from 65 to 70°C, making it suitable for applications requiring a large temperature difference.
3. Compact Design: Features a standard 30x30mm package with a thickness of 3.4–3.8 mm; different thicknesses are available depending on the internal chip.
4. Reliable Performance: Offers the common advantages of semiconductor cooling chips, including noise-free operation, vibration-free operation, maintenance-free operation, and precise temperature control.
5. Flexible Operation: Switching between cooling and heating modes is achieved simply by reversing the current direction.
