The TEC1-04903 is a 30x30mm standard-size semiconductor cooling module designed for a low current of 3A, with a maximum temperature difference of approximately 65–70°C and a cooling capacity of approximately 12–15W. 🟧 Price List Contact Customer Service 🟦 Certifications Contact Customer Service ⬜ Product PDF Spec Contact Customer Service 🟪 Contact customer Contact Customer Service 🟨 MOQ:1 Pcs 🟥 Fast Delivery:2-15 Days 🟩 Source Factory：Online Factory Video 🟫 Multiple Payment Methods：T/T|PayPal|Alipay ⬛ Pre|After Service：+86 13377785035|xyy@kkg.tw

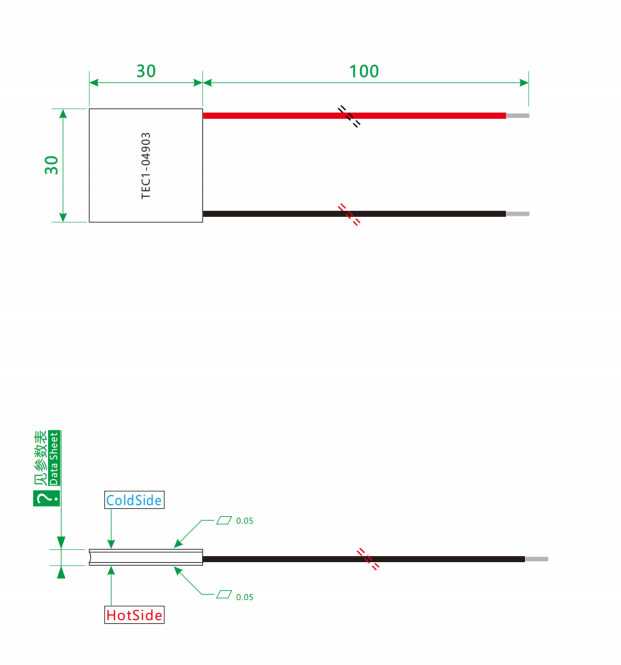

🔷Peltier Element Cooler Product Drawing
🔷Thermoelectric Devices Basic Performance Spec
| Type Model | Chip | ΔTmax (°C) | ACR (Ω) | Umax (V) | Imax (A) | Pmax (W) | Size (mm) |
|---|---|---|---|---|---|---|---|
| TEC1-04903 | K20 | 60 | 1.51 | 5.8 | 3 | 17 | 30×30×4.4 |
| TEC1-04903 | K30 | 65 | 1.51 | 5.8 | 3 | 17 | 30×30×5.4 |
| TEC1-04903 | K40 | 70 | 1.51 | 5.8 | 3 | 17 | 30×30×6.4 |
🔷Thermal Generators Additional Performance Spec
| Parameter | Specification |
|---|---|
| Substrate | 96% alumina 0.76mm + oxygen‑free copper 0.4mm, sintered process |
| Lead Wire | Ultra‑soft silicone wire, 22 AWG, L=200mm |
| Terminals | Not included as standard; can be installed upon request |
| Mounting Pressure | 2.3 kg (0.25 kg/cm²) |
| Packaging | Polystyrene (PS) foam box |
| Sealant | 704 silicone rubber |
| Max. Temperature Resistance | Tin‑lead solder, melting point 138°C |
| Storage Conditions | Temperature < 120°C, Humidity < 60% RH |

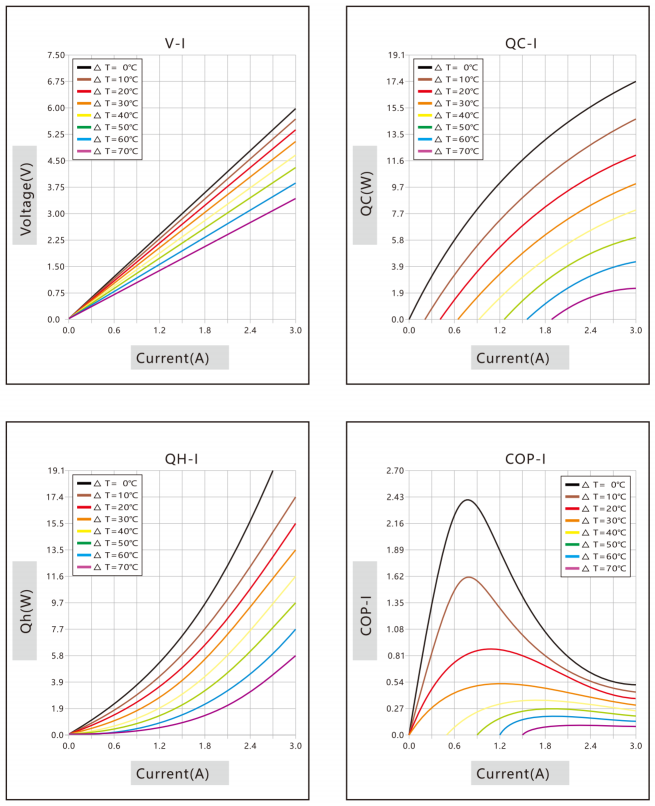

🔷Thermoelectric Controller Performance Curve
🔷Peltier Elements Product Overview
The TEC1-04903 is a 30x30mm standard-size semiconductor cooling module designed for a low current of 3A, with a maximum temperature difference of approximately 65–70°C and a cooling capacity of approximately 12–15W. This product is noise-free, vibration-free, and maintenance-free, and can switch between cooling and heating modes by reversing the current direction. With low power consumption and minimal heat generation, it is suitable for precision temperature control applications with extremely stringent power consumption and space requirements, such as micro-medical devices, precision sensors, and small lasers.
🔷Thermoelectric Cooling Devices Product Show
