The TEC1-04902 is a 30x30mm standard-size semiconductor cooling module designed for a low current of 2.2A, with a maximum temperature difference of approximately 65–70°C and a cooling capacity of approximately 8–10W. 🟧 Price List Contact Customer Service 🟦 Certifications Contact Customer Service ⬜ Product PDF Spec Contact Customer Service 🟪 Contact customer Contact Customer Service 🟨 MOQ:1 Pcs 🟥 Fast Delivery:2-15 Days 🟩 Source Factory：Online Factory Video 🟫 Multiple Payment Methods：T/T|PayPal|Alipay ⬛ Pre|After Service：+86 13377785035|xyy@kkg.tw

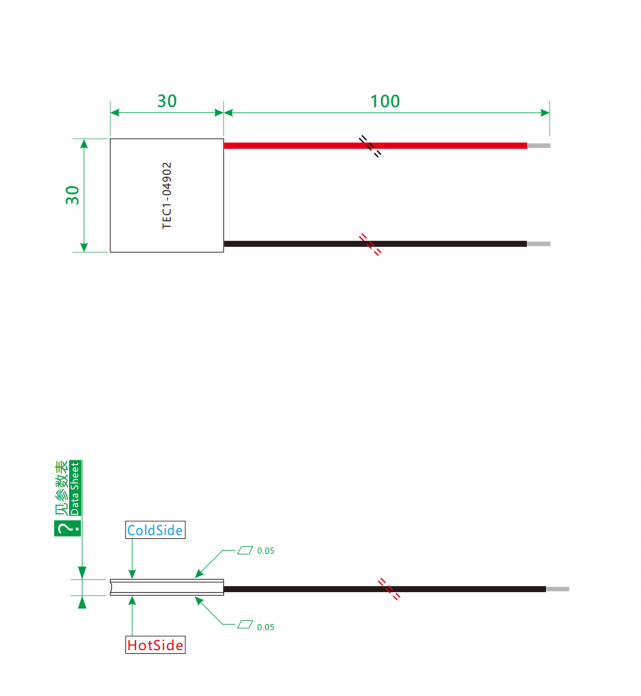

🔷Advanced TEC Product Drawing
🔷Peltier Heater Cooler Basic Performance Spec
| Type Model | Chip | ΔTmax (°C) | R (Ω) | Umax (V) | Imax (A) | Pmax (W) | Size (mm) |
|---|---|---|---|---|---|---|---|
| TEC1-04902 | K26 | 60 | 2.06 | 5.8 | 2.2 | 13 | 30×30×5.0 |
| TEC1-04902 | K34 | 65 | 2.06 | 5.8 | 2.2 | 13 | 30×30×5.8 |
| TEC1-04902 | K42 | 70 | 2.06 | 5.8 | 2.2 | 13 | 30×30×6.6 |
🔷TEC Peltier Module Additional Performance Spec
| Parameter | Specification |
|---|---|
| Substrate | 96% alumina 0.76mm + oxygen‑free copper 0.4mm, sintered process |
| Lead Wire | Ultra‑soft silicone wire, 22 AWG, L=200mm |
| Terminals | Not included as standard; can be installed upon request |
| Mounting Pressure | 2.3 kg (0.25 kg/cm²) |
| Packaging | Polystyrene (PS) foam box |
| Sealant | 704 silicone rubber |
| Max. Temperature Resistance | Tin‑lead solder, melting point 138°C |
| Storage Conditions | Temperature < 120°C, Humidity < 60% RH |

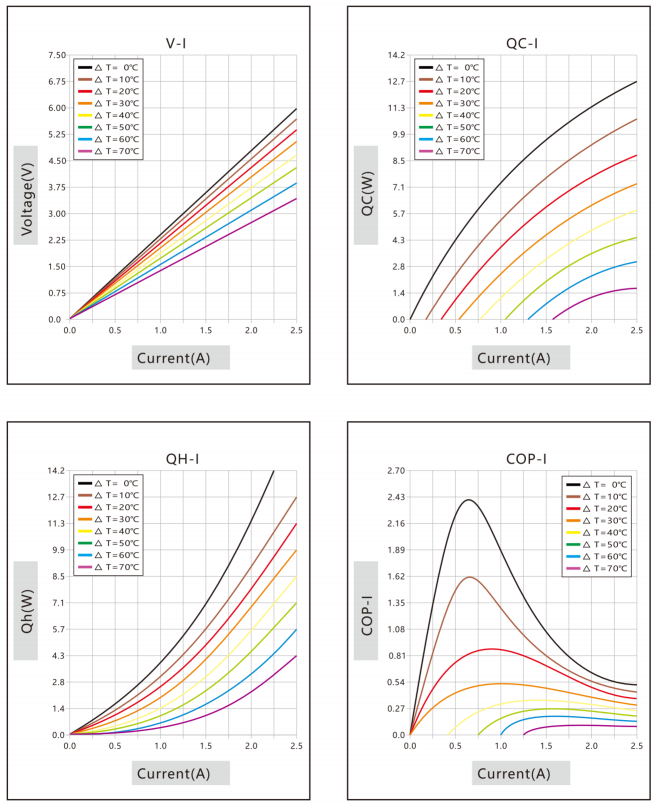

🔷Semiconductor Cooler Performance Curve
🔷Tec Thermoelectric Cooler Product Overview
The TEC1-04902 is a 30x30mm standard-size semiconductor cooling module designed for a low current of 2.2A, with a maximum temperature difference of approximately 65–70°C and a cooling capacity of approximately 8–10W. This product is noise-free, vibration-free, and maintenance-free, and can switch between cooling and heating modes by reversing the current direction. With extremely low power consumption and minimal heat generation, it is suitable for precision temperature control applications with extremely stringent power consumption and space requirements, such as micro-medical devices, precision sensors, and small lasers.
🔷Cooling Module Product Features
1. Basic Electrical Specifications: The maximum current is 2.2A (some products of the same model are rated at 2A), and the maximum voltage is 5.8V. The maximum cooling power is approximately 6.86W–13W; specific values may vary slightly depending on the manufacturer and test conditions.
2. Temperature Control Performance: The maximum temperature difference (ΔTmax) can reach 60–65°C, which is considered average within this product series.
3. Dimensions and Structure: It uses a standard 30x30mm package (other sizes such as 15x15mm and 20x20mm are also available), with thickness varying based on the internal chip configuration; for example, when paired with a K26 chip, the thickness is 5.0mm.
4. Quiet and Stable Operation: As a solid-state heat pump, it operates without noise or vibration, offering high reliability and requiring no maintenance. The operating temperature range is typically -55°C to 83°C.
5. Flexible Temperature Control: By reversing the current direction, the device can switch between cooling and heating modes, offering great flexibility.
6. Fast Response: It quickly reaches the target temperature difference after power-up, making it suitable for applications requiring immediate temperature feedback.
