This model is a Peltier semiconductor cooling chip (TEC, thermoelectric cooler) with a standard square dimensions of 30mm × 30mm. 🟧 Price List Contact Customer Service 🟦 Certifications Contact Customer Service ⬜ Product PDF Spec Contact Customer Service 🟪 Contact customer Contact Customer Service 🟨 MOQ:1 Pcs 🟥 Fast Delivery:2-15 Days 🟩 Source Factory：Online Factory Video 🟫 Multiple Payment Methods：T/T|PayPal|Alipay ⬛ Pre|After Service：+86 13377785035|xyy@kkg.tw

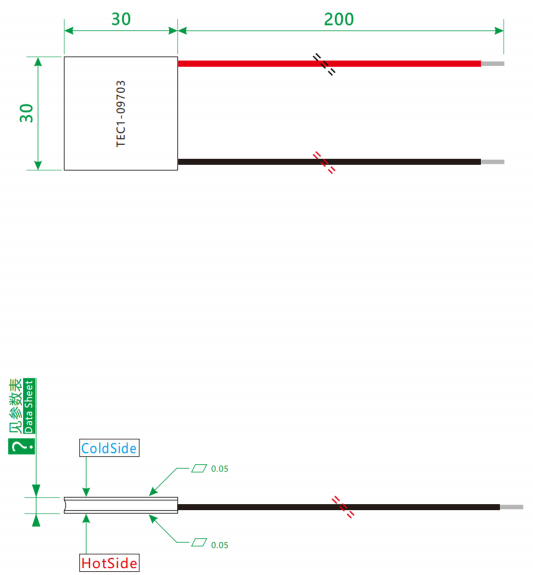

🔷Thermoelectric Generator Product Drawing
🔷Thermoelectric Cooler Basic Performance Spec
| Basic Parameters (Th=40℃) | |||||||
| Product Model | Wafer | Max Temperature Difference ▲Tmax(℃) | Internal Resistance ACRohm(Ω) | Max Voltage Umax(V) | Max Current Imax(A) | Max Power Pmax(W) | Size(mm) |
| TEC1-09703 | K10 | 60 | 3.12 | 12 | 3 | 36 | 30x30x3.4 |
| TEC1-09703 | K18 | 65 | 3.12 | 12 | 3 | 36 | 30x30x4.2 |
| TEC1-09703 | K26 | 70 | 3.12 | 12 | 3 | 36 | 30x30x5.0 |
🔷Peltier Cooler Additional Performance Spec
| Additional Parameters | |
| Item | Specification |
| Substrate Specification | 96% Alumina 0.76 + Oxygen-free Copper 0.4 Sintering Process |
| Lead Specification | Extra Soft Silicone Wire 22AWG / L=200mm |
| Terminal Specification | Standard products have no terminals, can be added according to requirements |
| Assembly Pressure | 2.3kg / (0.25kg/CM²) |
| Packaging Standard | Polystyrene (PS) Foam Box Packaging |
| Sealing Material | 704 Silicone Rubber Seal |
| Max Temperature Resistance | Bismuth-Tin Environmental Protection Solder Melting Point 138℃ |
| Storage Environment | Temperature <120℃, Humidity <60%Rh |

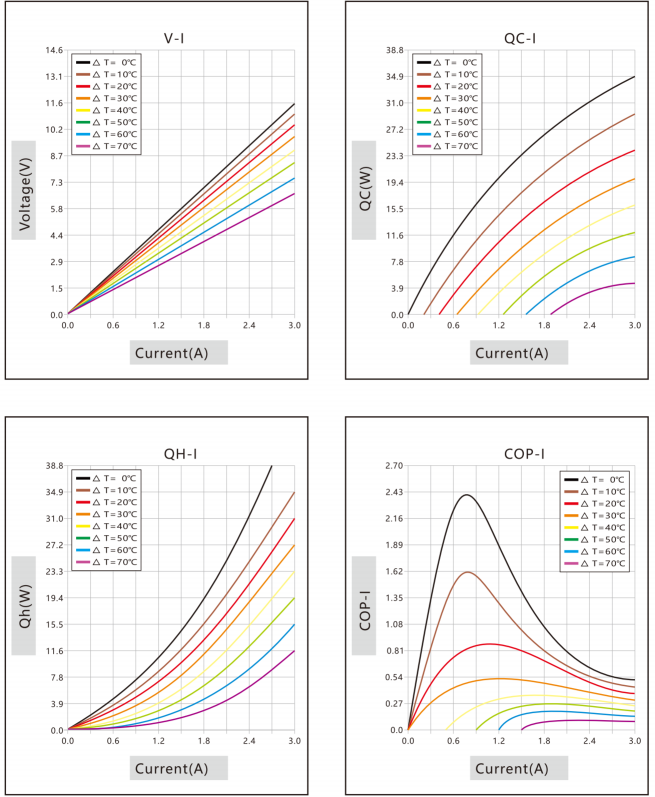

🔷Peltier Module Performance Curve

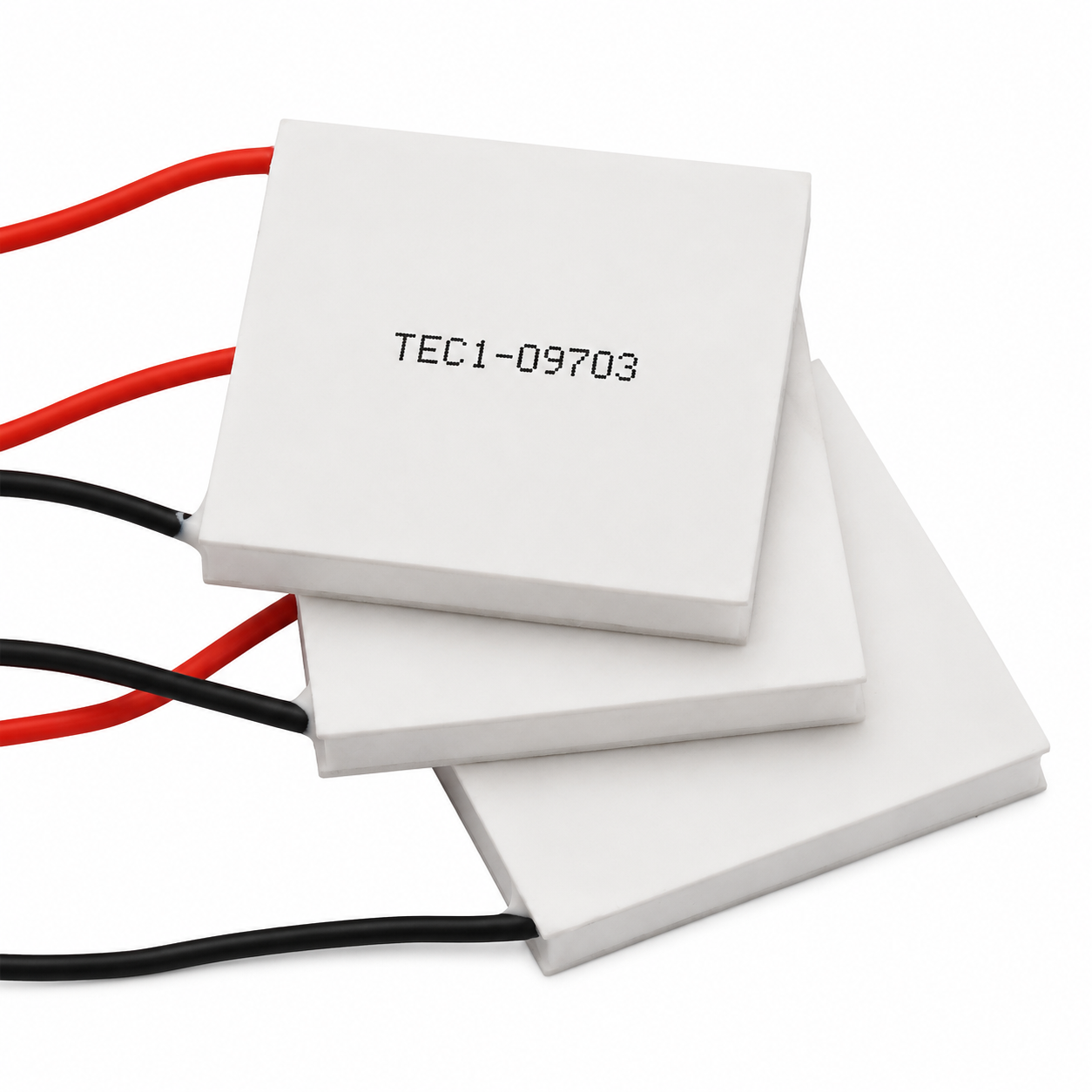

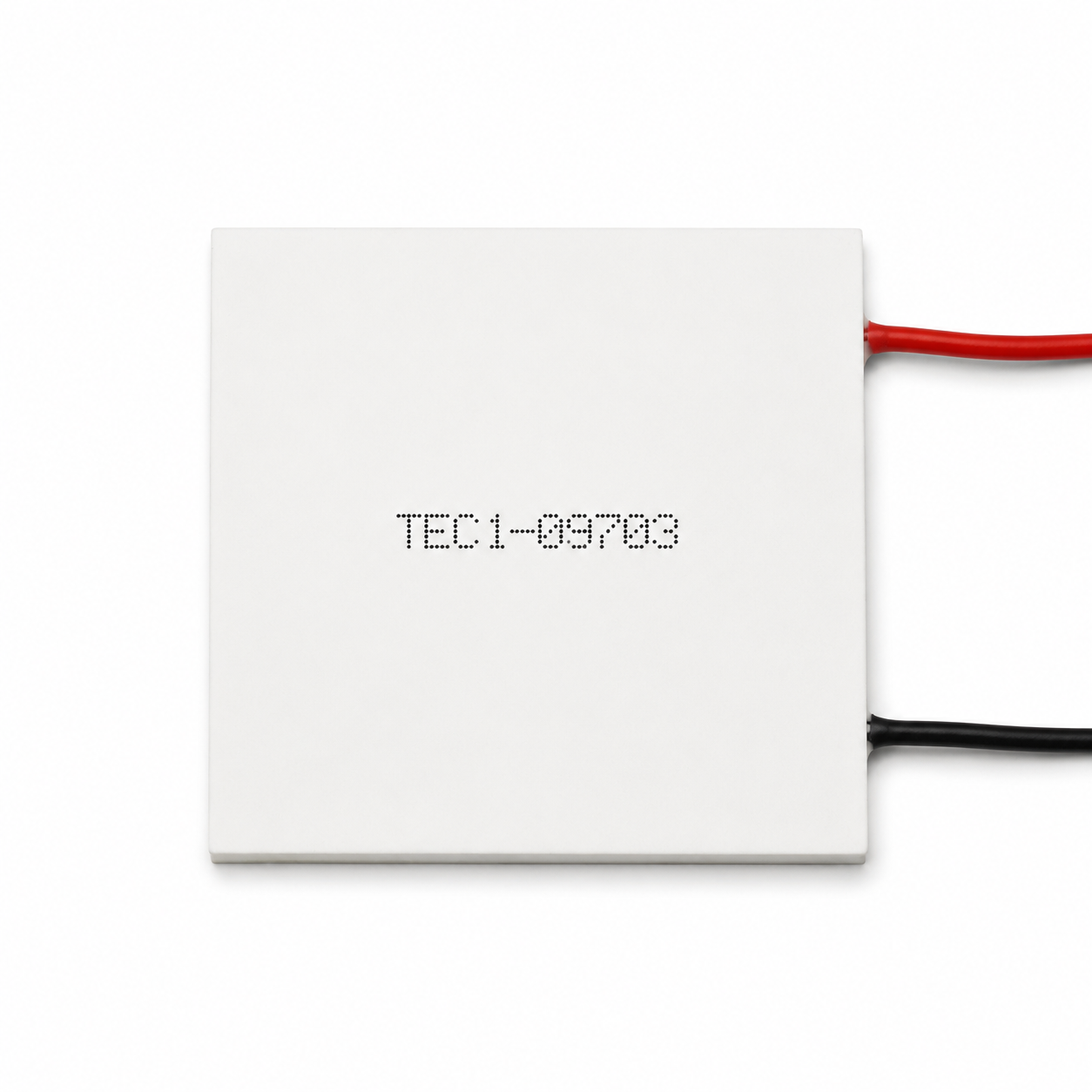

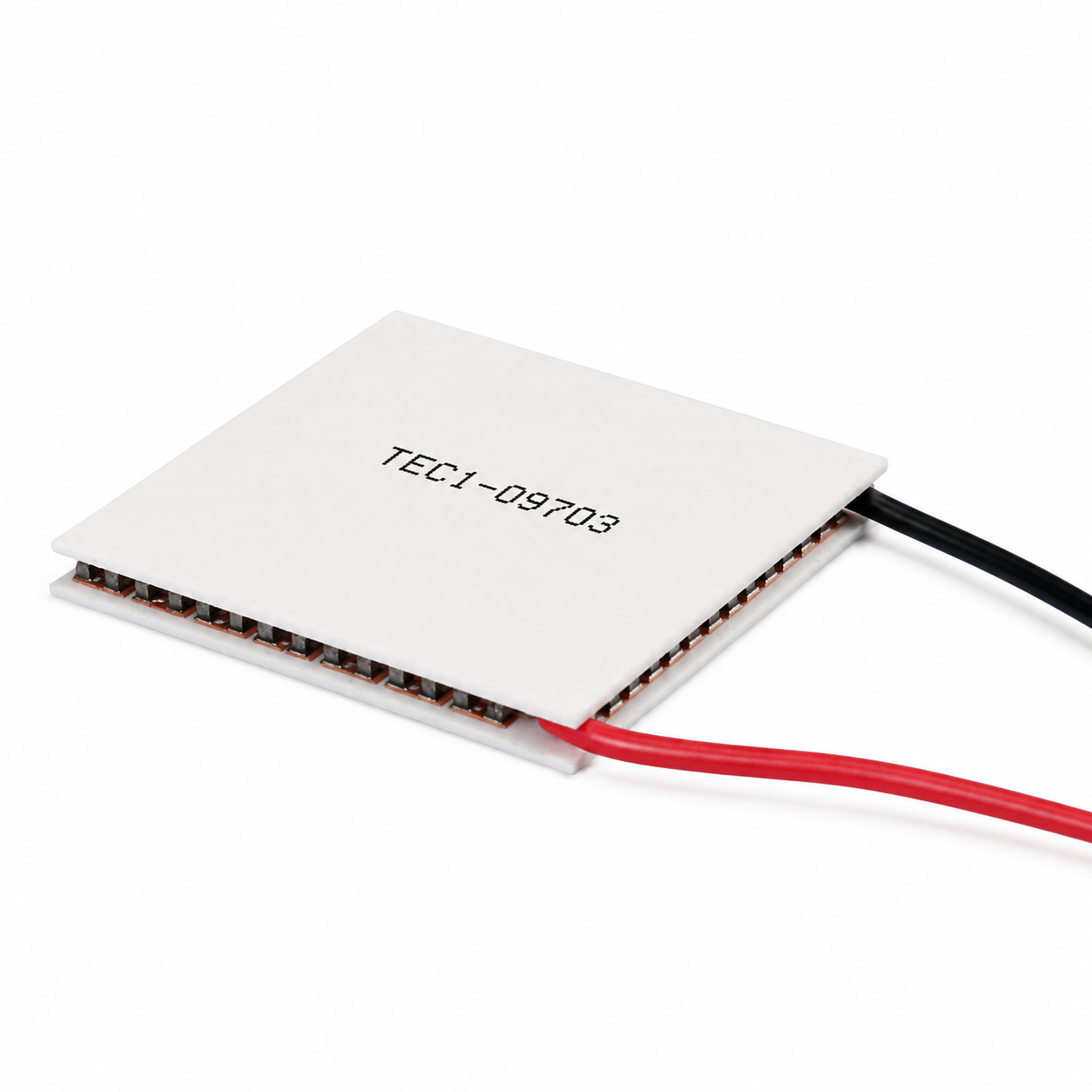

🔷TEC Cooler Product Overview
This model is a Peltier semiconductor cooling chip (TEC, thermoelectric cooler) with a standard square dimensions of 30mm × 30mm. It is rated for operation at 12V DC, with a maximum operating current of 3A and a peak power of 36W. It utilizes the Peltier effect to provide cooling on one side and heat dissipation on the other. It features no mechanical compressor, is noise-free, and has a compact design. By reversing the polarity, users can switch between cooling and heating modes, making it suitable for small, precision temperature-controlled and portable cooling devices.
🔷Peltier Module Cooler Product Applications
1. Cooling heads for beauty devices and hair removal devices
2. Mini car/desktop refrigerators and medication cooling boxes
3. Heat dissipation for laser heads, infrared detectors, and optical instruments
4. Cooling back covers for smartphones and DIY cooling modifications for computers
5. Temperature control for small medical cold therapy devices and laboratory equipment
