TEC1-09702 Dimensions: 30×30 mm, 12V DC power supply, power: 26W, available in three chip specifications, cooling temperature difference: 60–70°C. 🟧 Price List Contact Customer Service 🟦 Certifications Contact Customer Service ⬜ Product PDF Spec Contact Customer Service 🟪 Contact customer Contact Customer Service 🟨 MOQ:1 Pcs 🟥 Fast Delivery:2-15 Days 🟩 Source Factory：Online Factory Video 🟫 Multiple Payment Methods：T/T|PayPal|Alipay ⬛ Pre|After Service：+86 13377785035|xyy@kkg.tw

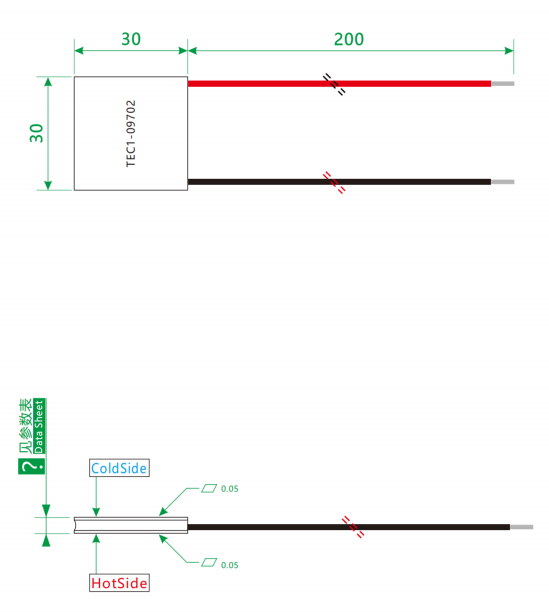

🔷Thermoelectric Peltier Device Product Drawing
🔷Peltier Module Cooler Basic Performance Spec
| Basic Parameters (Th=40℃) | |||||||
| Product Model | Wafer | Max Temperature Difference ▲Tmax(℃) | Internal Resistance ACRohm(Ω) | Max Voltage Umax(V) | Max Current Imax(A) | Max Power Pmax(W) | Size(mm) |
| TEC1-09703 | K10 | 60 | 30x30x3.4 | ||||
| TEC1-09703 | K18 | 65 | 3.12 | 12 | 3 | 36 | 30x30x4.2 |
| TEC1-09703 | K26 | 70 | 30x30x5.0 | ||||
🔷Peltier Module Cooler Additional Performance Spec
| Additional Parameters | |
| Item | Specification |
| Substrate Specification | 96% Alumina 0.76 + Oxygen-free Copper 0.4 Sintering Process |
| Lead Specification | Extra Soft Silicone Wire 22AWG / L=200mm |
| Terminal Specification | Standard products have no terminals, can be added according to requirements |
| Assembly Pressure | 2.3kg / (0.25kg/CM²) |
| Packaging Standard | Polystyrene (PS) Foam Box Packaging |
| Sealing Material | 704 Silicone Rubber Seal |
| Max Temperature Resistance | Bismuth-Tin Environmental Protection Solder Melting Point 138℃ |
| Storage Environment | Temperature <120℃, Humidity <60%Rh |

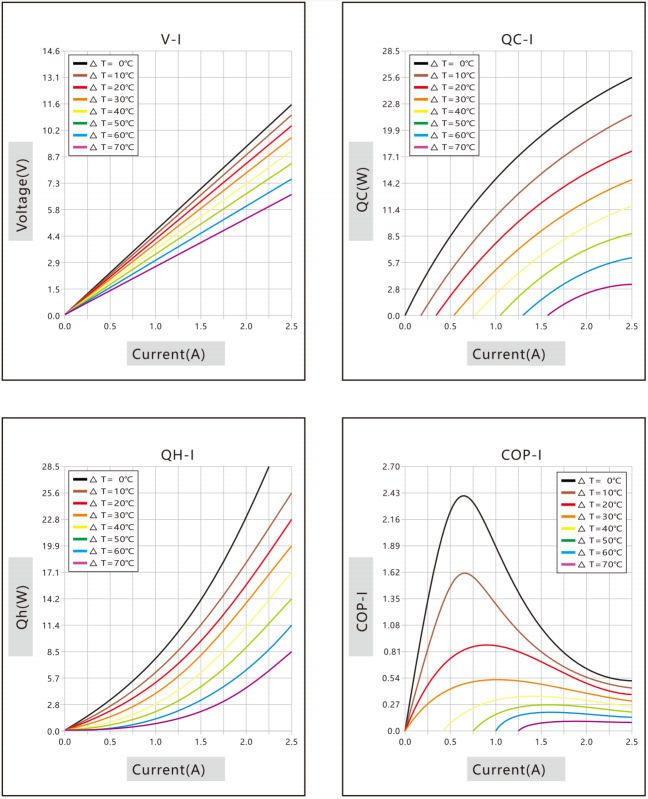

🔷Thermoelectric Cooler Peltier Performance Curve
🔷Peltier Device Cooler Product Overview
TEC1-09702 Dimensions: 30×30 mm, 12V DC power supply, power: 26W, available in three chip specifications, cooling temperature difference: 60–70°C, featuring a ceramic substrate with a hermetically sealed package, it operates silently and vibration-free, capable of both cooling and heating simultaneously. It is commonly used in mini car refrigerators, portable medicine coolers, and beauty ice therapy devices, and can also be used to cool and dissipate heat from laser modules and small electronic devices.
🔷TEC Cooling System Product Show
The TEC1-04902 is a 30x30mm standard-size semiconductor cooling module designed for a low current of 2.2A, with a maximum temperature difference of approximately 65–70°C and a cooling capacity of approximately 8–10W. 🟧 Price List Contact Customer Service 🟦 Certifications Contact Customer Service ⬜ Product PDF Spec Contact Customer Service 🟪 Contact customer Contact Customer Service 🟨 MOQ:1 Pcs 🟥 Fast Delivery:2-15 Days 🟩 Source Factory：Online Factory Video 🟫 Multiple Payment Methods：T/T|PayPal|Alipay ⬛ Pre|After Service：+86 13377785035|xyy@kkg.tw
The TEC1-04903 is a 30x30mm standard-size semiconductor cooling module designed for a low current of 3A, with a maximum temperature difference of approximately 65–70°C and a cooling capacity of approximately 12–15W. 🟧 Price List Contact Customer Service 🟦 Certifications Contact Customer Service ⬜ Product PDF Spec Contact Customer Service 🟪 Contact customer Contact Customer Service 🟨 MOQ:1 Pcs 🟥 Fast Delivery:2-15 Days 🟩 Source Factory：Online Factory Video 🟫 Multiple Payment Methods：T/T|PayPal|Alipay ⬛ Pre|After Service：+86 13377785035|xyy@kkg.tw
The TEC1-04904 is a standard 30x30mm semiconductor cooling module designed for a 4A current, with a maximum temperature difference of approximately 65–70°C and a cooling capacity of approximately 15–18W. 🟧 Price List Contact Customer Service 🟦 Certifications Contact Customer Service ⬜ Product PDF Spec Contact Customer Service 🟪 Contact customer Contact Customer Service 🟨 MOQ:1 Pcs 🟥 Fast Delivery:2-15 Days 🟩 Source Factory：Online Factory Video 🟫 Multiple Payment Methods：T/T|PayPal|Alipay ⬛ Pre|After Service：+86 13377785035|xyy@kkg.tw
The TEC1-04905 is a 30x30mm standard-size semiconductor cooling module designed for a 5A current, with a maximum temperature difference of approximately 65–70°C and a cooling capacity of approximately 20–25W. 🟧 Price List Contact Customer Service 🟦 Certifications Contact Customer Service ⬜ Product PDF Spec Contact Customer Service 🟪 Contact customer Contact Customer Service 🟨 MOQ:1 Pcs 🟥 Fast Delivery:2-15 Days 🟩 Source Factory：Online Factory Video 🟫 Multiple Payment Methods：T/T|PayPal|Alipay ⬛ Pre|After Service：+86 13377785035|xyy@kkg.tw
The TEC1-04906 is a 30x30mm standard-size semiconductor cooling module designed for a 6A current, with a maximum temperature difference of approximately 65–70°C and a cooling capacity of approximately 25–30W. 🟧 Price List Contact Customer Service 🟦 Certifications Contact Customer Service ⬜ Product PDF Spec Contact Customer Service 🟪 Contact customer Contact Customer Service 🟨 MOQ:1 Pcs 🟥 Fast Delivery:2-15 Days 🟩 Source Factory：Online Factory Video 🟫 Multiple Payment Methods：T/T|PayPal|Alipay ⬛ Pre|After Service：+86 13377785035|xyy@kkg.tw
The TEC1-04908 is a 30x30mm standard-size semiconductor cooling module designed for an 8A current, with a maximum temperature difference of approximately 65–70°C and a cooling capacity of approximately 35–40W. 🟧 Price List Contact Customer Service 🟦 Certifications Contact Customer Service ⬜ Product PDF Spec Contact Customer Service 🟪 Contact customer Contact Customer Service 🟨 MOQ:1 Pcs 🟥 Fast Delivery:2-15 Days 🟩 Source Factory：Online Factory Video 🟫 Multiple Payment Methods：T/T|PayPal|Alipay ⬛ Pre|After Service：+86 13377785035|xyy@kkg.tw
The TEC1-04910 is a 30x30mm standard-size semiconductor cooling module designed for high current (10A), with a maximum temperature difference of approximately 65–70°C and a cooling capacity of approximately 40–45W. 🟧 Price List Contact Customer Service 🟦 Certifications Contact Customer Service ⬜ Product PDF Spec Contact Customer Service 🟪 Contact customer Contact Customer Service 🟨 MOQ:1 Pcs 🟥 Fast Delivery:2-15 Days 🟩 Source Factory：Online Factory Video 🟫 Multiple Payment Methods：T/T|PayPal|Alipay ⬛ Pre|After Service：+86 13377785035|xyy@kkg.tw
The TEC1-04912 is a 30x30mm standard-size semiconductor cooling module designed for high current (12A), with a maximum temperature difference of approximately 65–70°C and a cooling capacity of up to approximately 45–50W. 🟧 Price List Contact Customer Service 🟦 Certifications Contact Customer Service ⬜ Product PDF Spec Contact Customer Service 🟪 Contact customer Contact Customer Service 🟨 MOQ:1 Pcs 🟥 Fast Delivery:2-15 Days 🟩 Source Factory：Online Factory Video 🟫 Multiple Payment Methods：T/T|PayPal|Alipay ⬛ Pre|After Service：+86 13377785035|xyy@kkg.tw
