The TEC1-09701 30×30 mm cooling module is a single-stage semiconductor cooling module (also known as a Peltier cooling module or thermoelectric cooling module). 🟧 Price List Contact Customer Service 🟦 Certifications Contact Customer Service ⬜ Product PDF Spec Contact Customer Service 🟪 Contact customer Contact Customer Service 🟨 MOQ:1 Pcs 🟥 Fast Delivery:2-15 Days 🟩 Source Factory：Online Factory Video 🟫 Multiple Payment Methods：T/T|PayPal|Alipay ⬛ Pre|After Service：+86 13377785035|xyy@kkg.tw

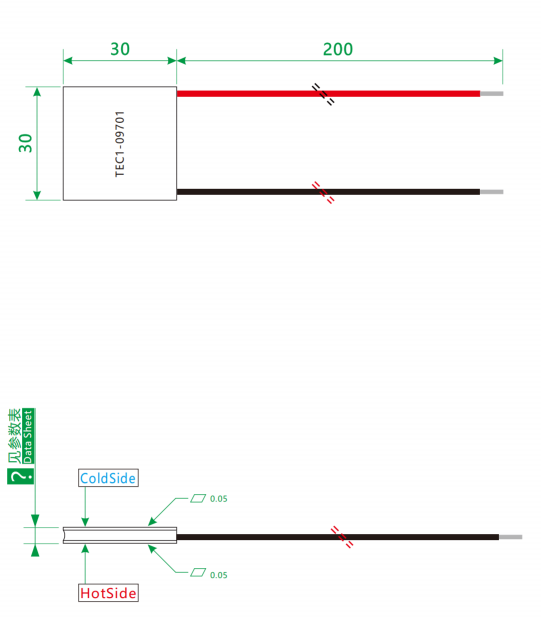

🔷Peltier Device Cooler Product Drawing
🔷Solid State Cooler Basic Performance Spec
| Product Model | In APE | ▲Tmax(℃) | AC Rohm(Ω) | Umax(V) | Imax(A) | Pmax(W) | Size(mm) |
| TEC1-09701 | K20 | 60 | 6.69 | 12 | 1.4 | 17 | 30x30x4.4 |
| K30 | 65 | 6.69 | 12 | 1.4 | 17 | 30x30x5.4 | |
| K40 | 70 | 6.69 | 12 | 1.4 | 17 | 30x30x6.4 |
🔷Peltier Heater Additional Performance Spec
| Specification Item | Specification Details |
| Substrate Specification | 96% Alumina 0.76 + Oxygen-free Copper 0.4 Sintering Process |
| Lead Specification | Special Soft Silicone Wire 22AWG/L=200mm |
| Terminal Specification | Standard Product Without Terminal, Can Be Added According To Demand |
| Assembly Pressure | 2.3kg/ (0.25kg/CM²) |
| Packaging Standard | Polystyrene (PS) Foam Box Packaging |
| Sealant Material | 704 Silicone Rubber Seal |
| Maximum Temperature Resistance | Bismuth Tin Environmental Protection Solder Melting Point 138℃ |
| Storage Environment | Temperature < 120℃ Humidity < 60%Rh |

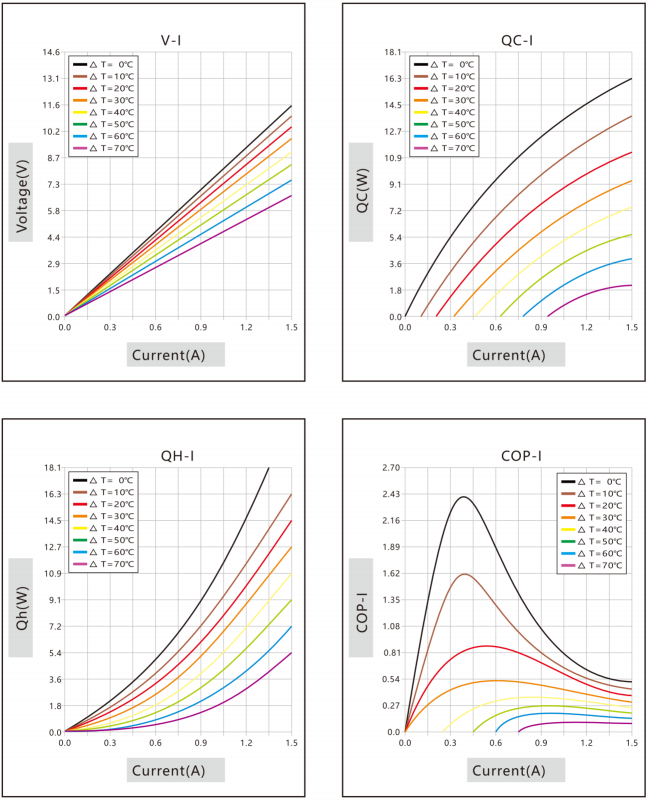

🔷Peltier Element Cooler Performance Curve
🔷Cooler with Peltier Product Overview

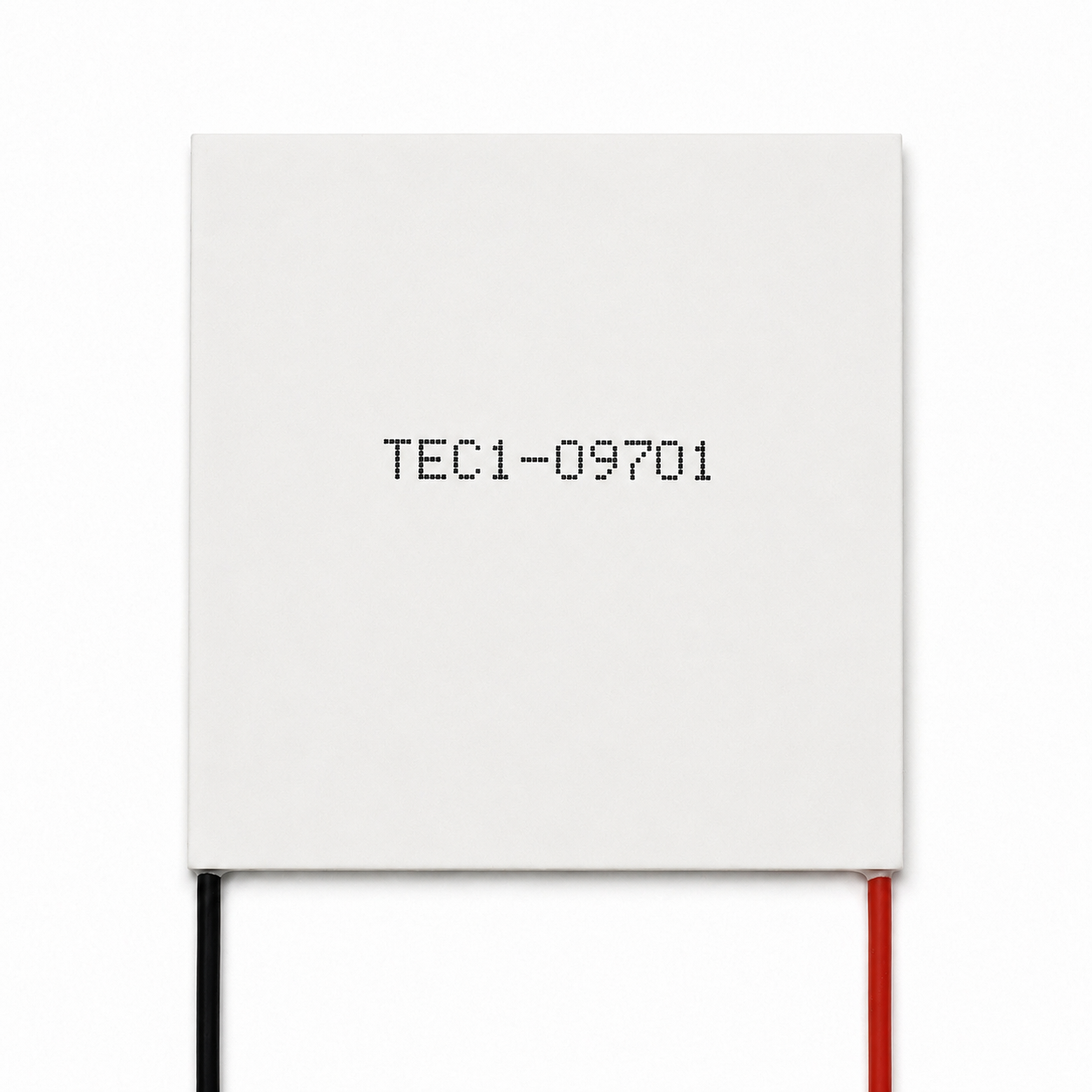

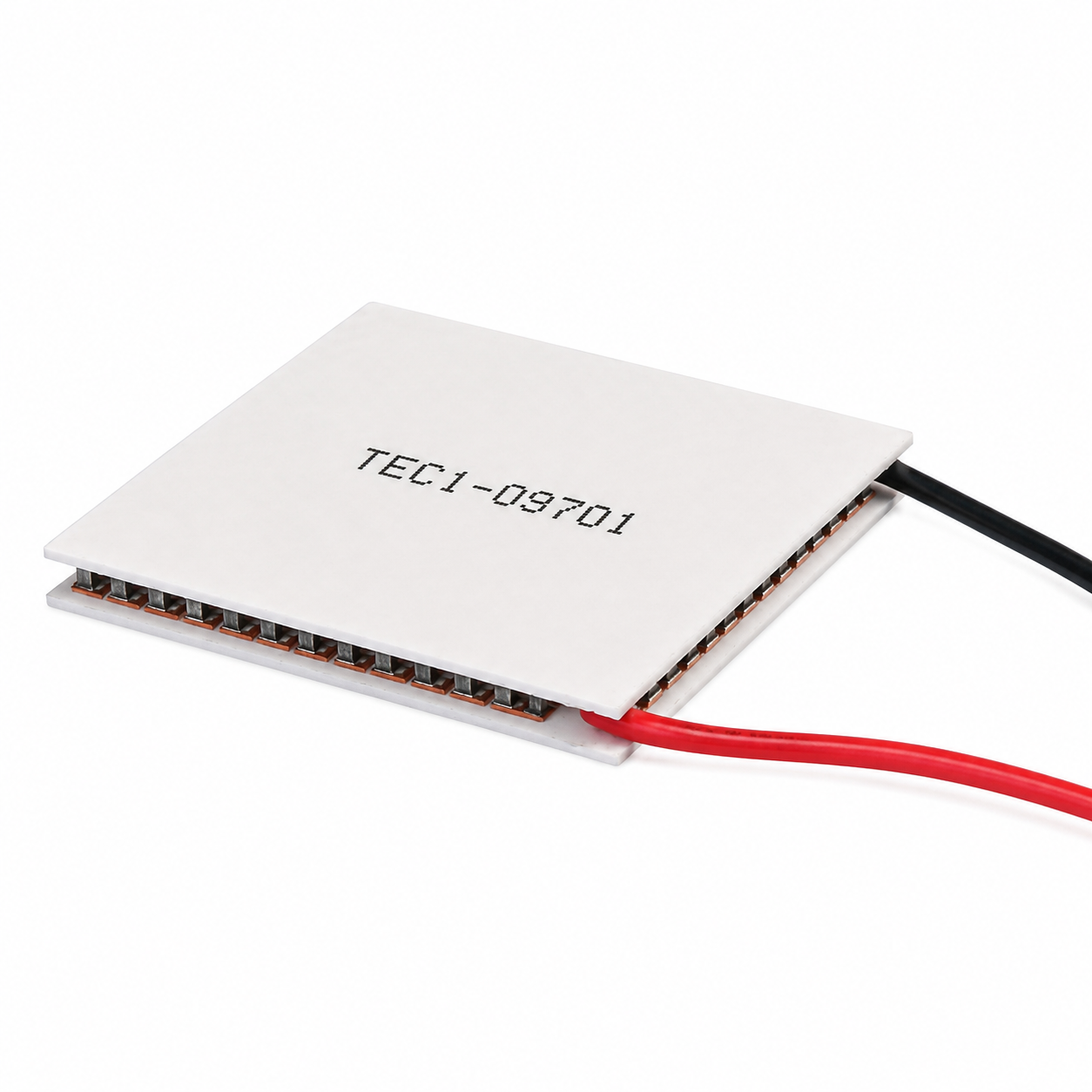

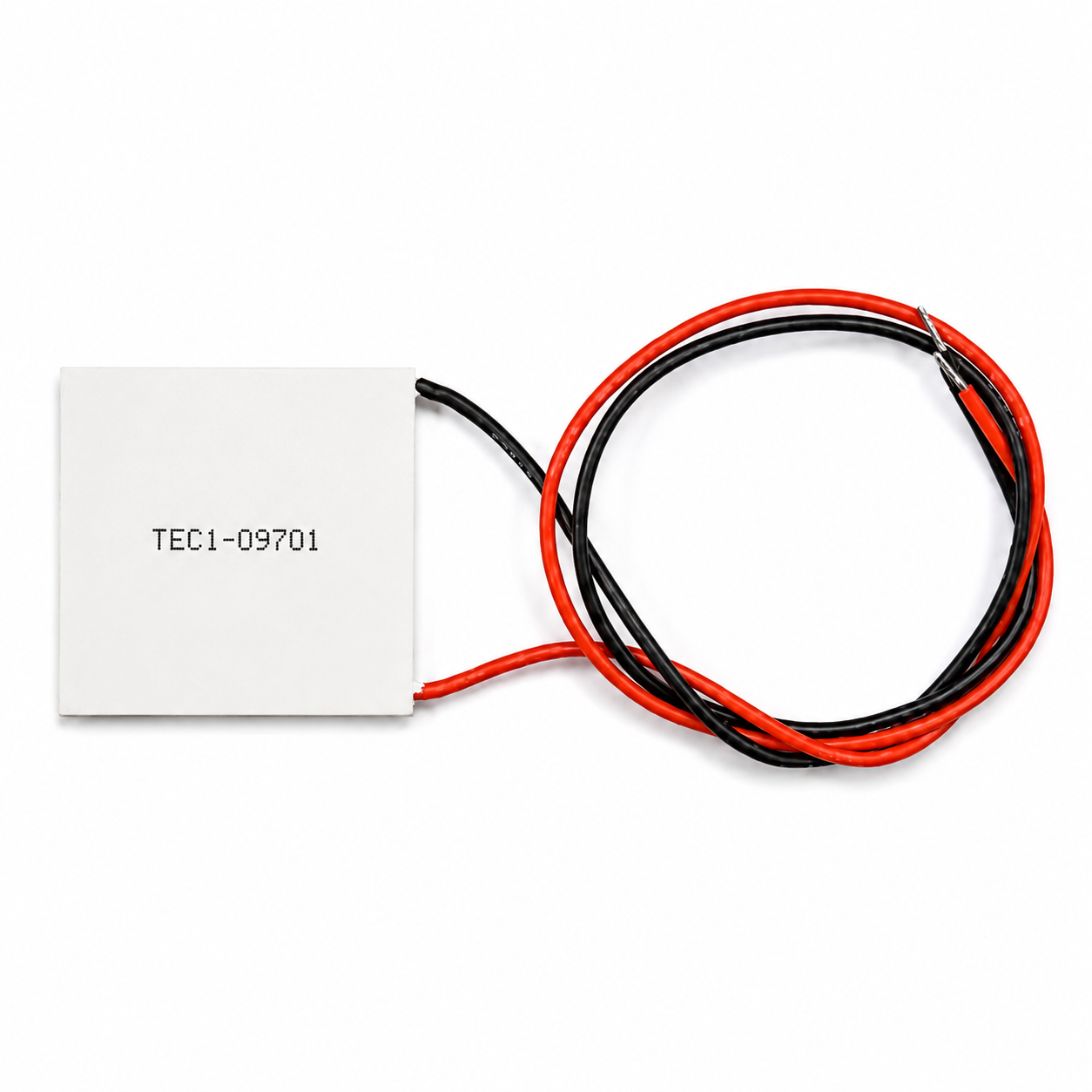

The TEC1-09701 30×30 mm cooling module is a single-stage semiconductor cooling module (also known as a Peltier cooling module or thermoelectric cooling module). As part of the TEC1 series of general-purpose thermoelectric cooling devices, it is widely used in various compact temperature-control applications due to its compact size and stable cooling performance.
🔷Peltier Heater Product Applications
1. Beauty devices: Ice packs, hair removal devices, cooling probes for mole removal
2. Portable refrigeration: Mini refrigerators, insulin and medication coolers, portable temperature-controlled medication storage boxes
3. Optoelectronic Equipment: Laser modules, infrared detectors, heat dissipation and temperature control for night vision lenses
4. Small-Scale Medical and Laboratory Applications: Medical cold therapy heads, micro-testing devices, constant-temperature devices for small laboratory samples
5. Digital DIY: Smartphone cooling back covers, small desktop cooling cups, auxiliary cooling for small computer cases
