This product is a first-generation semiconductor cooling chip (Peltier cooling module) with standard dimensions of 30 mm × 30 mm × 3.5 mm and 71 built-in thermoelectric elements. 🟧 Price List Contact Customer Service 🟦 Certifications Contact Customer Service ⬜ Product PDF Spec Contact Customer Service 🟪 Contact customer Contact Customer Service 🟨 MOQ:1 Pcs 🟥 Fast Delivery:2-15 Days 🟩 Source Factory：Online Factory Video 🟫 Multiple Payment Methods：T/T|PayPal|Alipay ⬛ Pre|After Service：+86 13377785035|xyy@kkg.tw

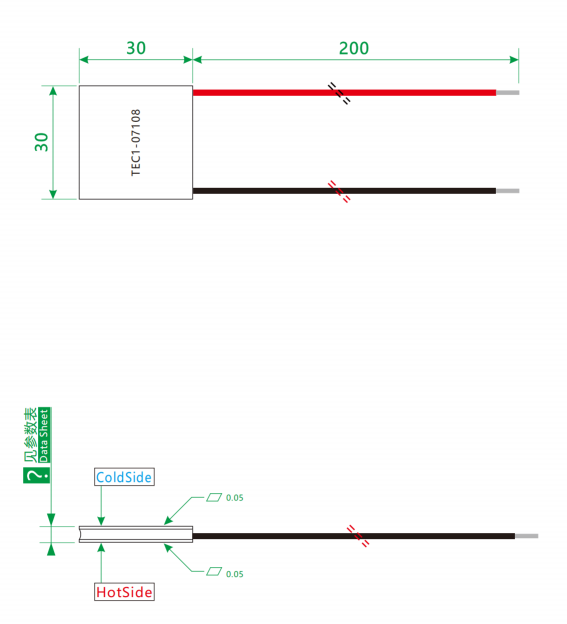

🔷Peltier Element Cooler Product Drawing
🔷TEC Cooler Basic Performance Spec
| TEC1-07108 Thermoelectric Cooler Basic Parameters (Th=40℃) | |||||||
| Product Model | In APE | Max Temperature Difference(℃) | AC Resistance(Ω) | Max Voltage(V) | Max Current(A) | Max Power(W) | Size(mm) |
| TEC1-07108 | K10 | 60 | 0.83 | 8.5 | 8 | 68 | 30x30x3.4 |
| TEC1-07108 | K12 | 65 | 0.83 | 8.5 | 8 | 68 | 30x30x3.6 |
| TEC1-07108 | K14 | 70 | 0.83 | 8.5 | 8 | 68 | 30x30x3.8 |
🔷TEC Peltier Additional Performance Spec
| TEC1-07108 Thermoelectric Cooler Additional Parameters | |
| Parameter Item | Specification |
| Substrate Specification | 96% Alumina 0.76 + Oxygen-free Copper 0.4 Sintering Process |
| Lead Specification | Special Soft Silicone Wire 18AWG/L=200mm |
| Terminal Specification | Standard Product Without Terminals, Can Be Added According To Requirements |

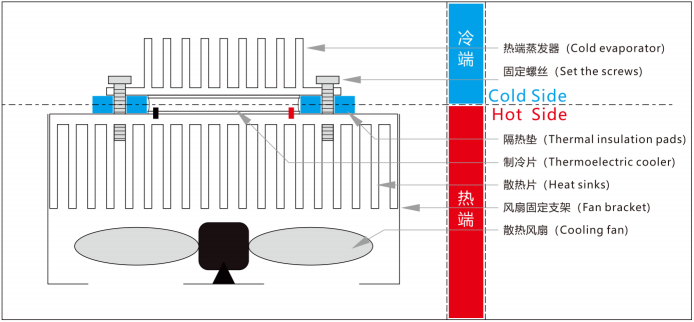

| Assembly Pressure | 2.3kg/ (0.25kg/CM²) |
| Packaging Standard | Polystyrene (PS) Foam Box Packaging |
| Sealing Material | 704 Silicone Rubber Sealing |
| Max Temperature Resistance | Bismuth-tin Environmental Protection Solder Melting Point 138℃ |
| Storage Environment | Temperature < 120℃ Humidity < 60%Rh |

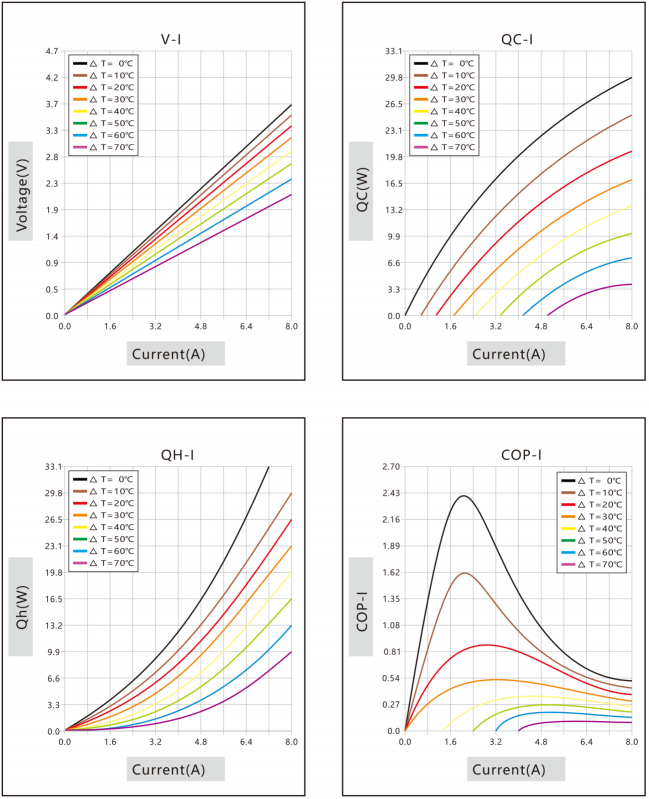

🔷Peltier Heater Performance Curve
🔷Thermoelectric Power Generator Product Overview

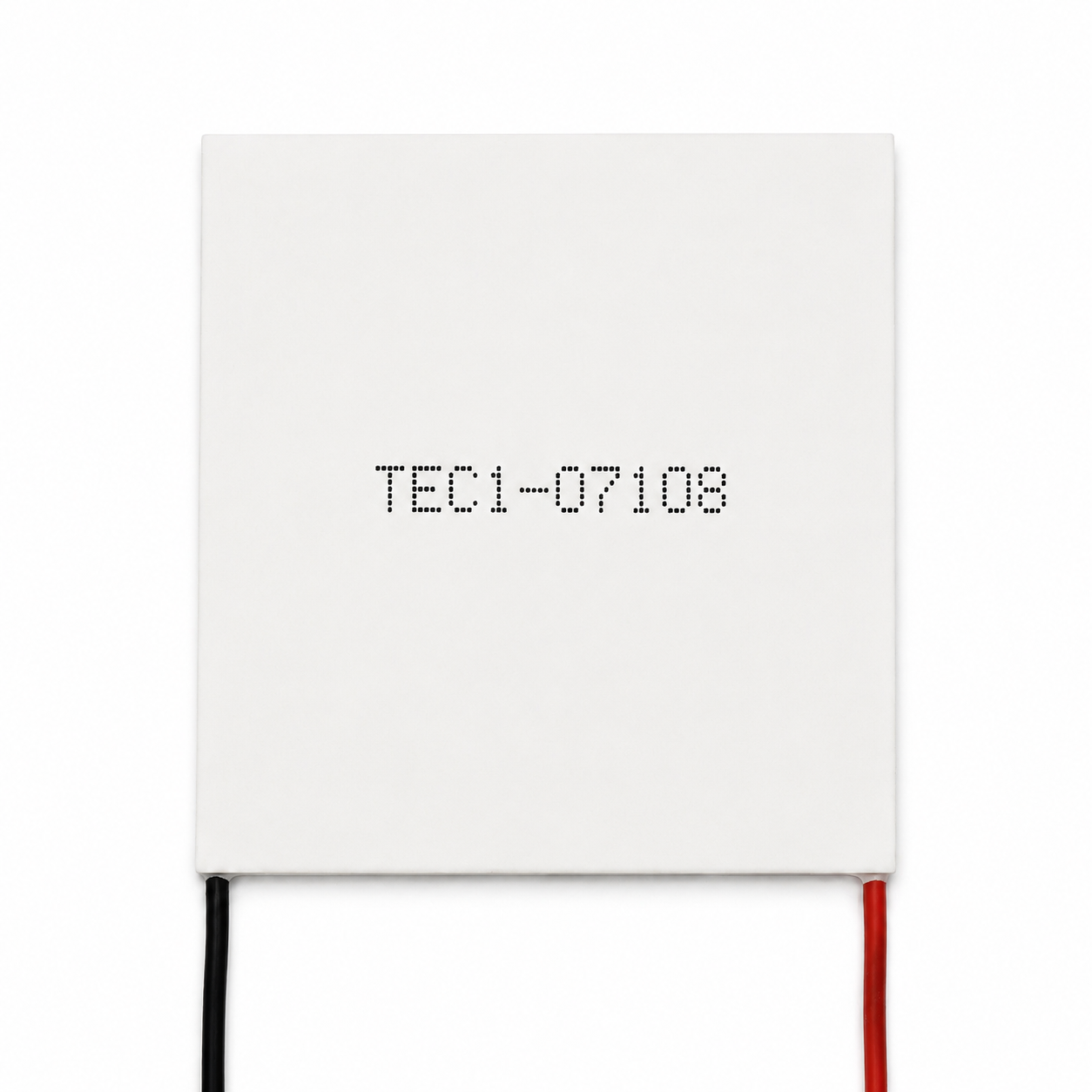

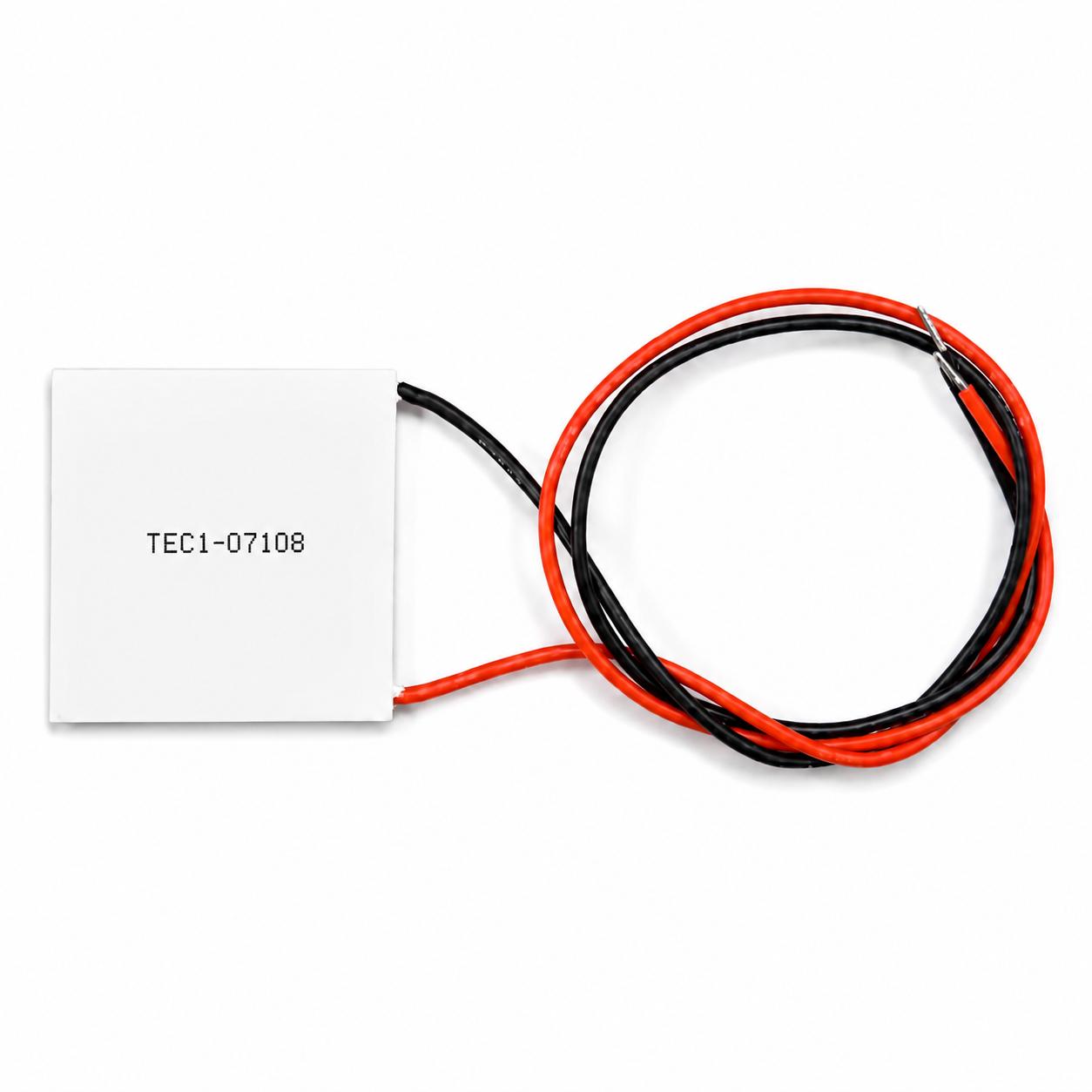

This product is a first-generation semiconductor cooling chip (Peltier cooling module) with standard dimensions of 30 mm × 30 mm × 3.5 mm and 71 built-in thermoelectric elements. It serves as the core component for compact, medium-power constant-temperature cooling. When powered, one side rapidly cools while the other simultaneously dissipates heat; reversing the power supply switches it to heating mode.
