The TEC1-07106 is a standard 30x30mm square semiconductor cooling module (TEC, also known as a Peltier device) belonging to the TEC1-071 series. 🟧 Price List Contact Customer Service 🟦 Certifications Contact Customer Service ⬜ Product PDF Spec Contact Customer Service 🟪 Contact customer Contact Customer Service 🟨 MOQ:1 Pcs 🟥 Fast Delivery:2-15 Days 🟩 Source Factory：Online Factory Video 🟫 Multiple Payment Methods：T/T|PayPal|Alipay ⬛ Pre|After Service：+86 13377785035|xyy@kkg.tw

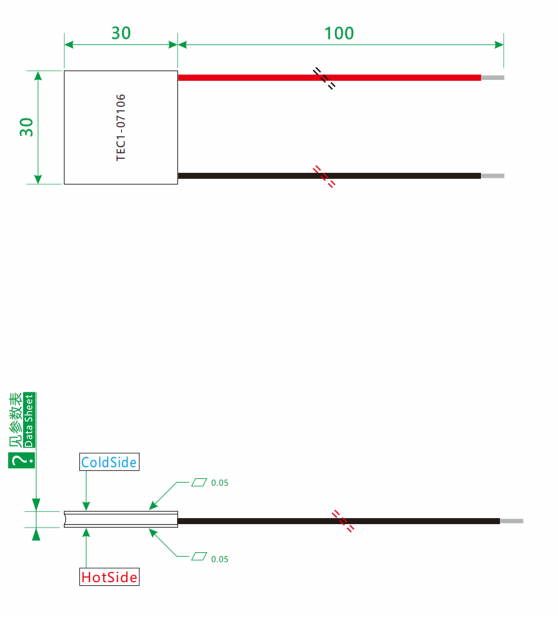

🔷Thermoelectric Peltier Module Product Drawing
🔷Peltier Element Cooler Basic Performance Spec
| Type Model | Chip | ΔTmax (°C) | ACR (Ohm) | Umax (V) | Imax (A) | Pmax (W) | Size (mm) |
|---|---|---|---|---|---|---|---|
| TEC1-07106 | K10 | 60 | 1.11 | 8.5 | 6 | 51 | 30×30×3.4 |
| TEC1-07106 | K14 | 65 | 1.11 | 8.5 | 6 | 51 | 30×30×3.8 |
| TEC1-07106 | K18 | 70 | 1.11 | 8.5 | 6 | 51 | 30×30×4.2 |
🔷Thermal Generators Additional Performance Spec
| Parameter | Specification |
|---|---|
| Substrate | 96% alumina 0.76mm + oxygen‑free copper 0.4mm, sintered process |
| Lead Wire | Ultra‑soft silicone wire, 20 AWG, L=200mm |
| Terminals | Not included as standard; can be installed upon request |
| Mounting Pressure | 2.3 kg (0.25 kg/cm²) |
| Packaging | Polystyrene (PS) foam box |
| Sealant | 704 silicone rubber |
| Max. Operating Temperature | Tin‑lead solder, melting point 138°C |
| Storage Conditions | Temperature < 120°C, Humidity < 60% RH |

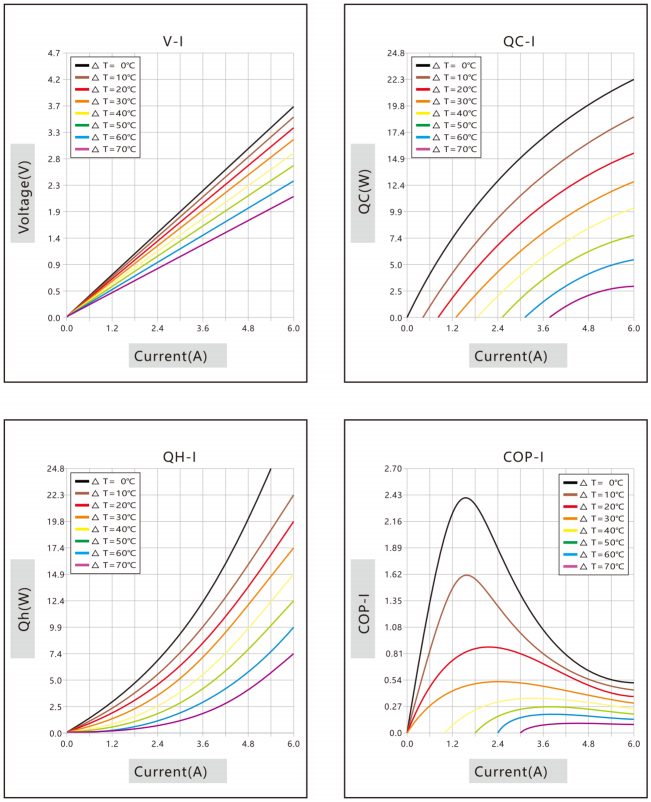

🔷Tec Thermoelectric Cooler Performance Curve
🔷Thermoelectric Generation Product Overview

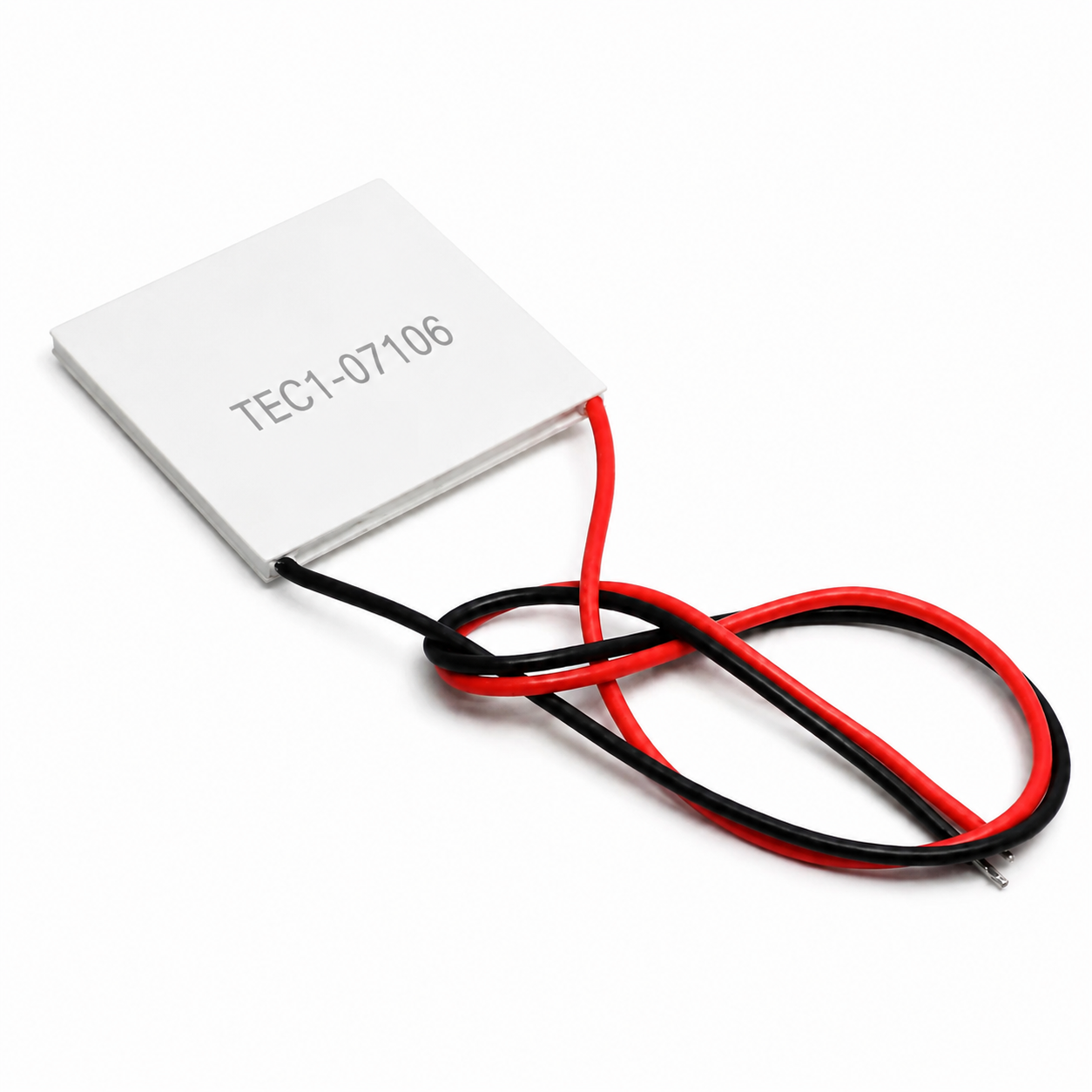

The TEC1-07106 is a standard 30x30mm square semiconductor cooling module (TEC, also known as a Peltier device) belonging to the TEC1-071 series. It utilizes the “Peltier effect” to provide cooling or heating when powered. Its key features include a compact size, silent operation, vibration-free performance, and the fact that it does not rely on refrigerants, making it relatively environmentally friendly.
🔷TEC Peltier Module Product Features
Compact size, moderate performance: Its standard 30x30mm dimensions are its core physical characteristic, making it ideal for designs with limited space. With a maximum current of approximately 6A and a voltage of around 8.5V, it delivers a maximum cooling power (Qcmax) of approximately 30W and achieves a maximum temperature difference (ΔTmax) of about 60–68°C under typical conditions. Within the TEC1-071 series, this model offers a well-balanced set of performance characteristics.
Key Advantages of Semiconductor Cooling: Like all TECs, it inherits several core benefits of semiconductor cooling technology: it is noise-free, vibration-free, and wear-free, with reliable operation and simple maintenance. Additionally, it offers great flexibility by switching between cooling and heating modes simply by reversing the current direction. Furthermore, it uses no refrigerants, making it environmentally friendly.

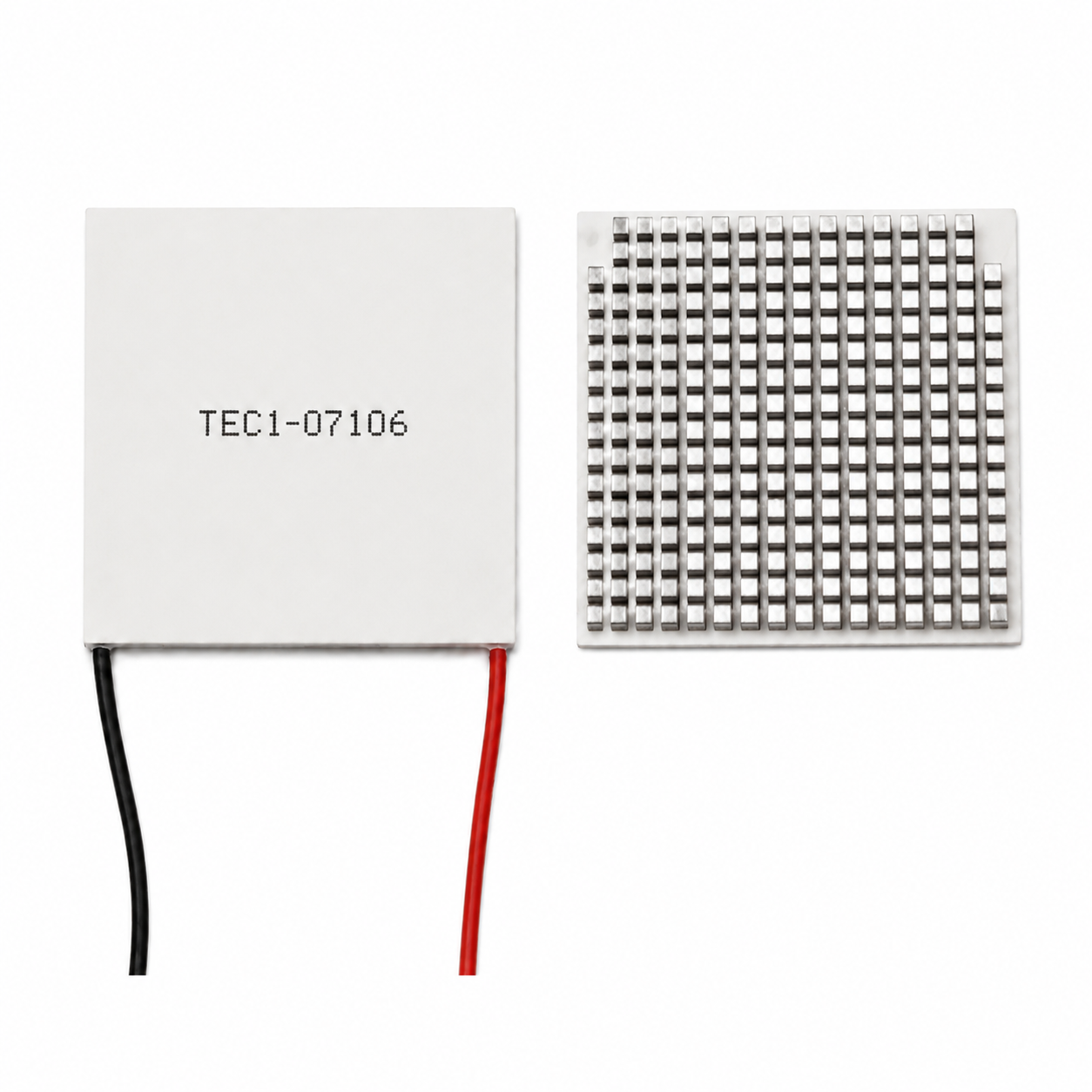

Reliable Materials and Manufacturing Processes: Structurally, it features a 96% alumina ceramic substrate and is sealed with 704 silicone rubber, ensuring excellent electrical insulation and sealing. The internal semiconductor grains (such as K10/K14/K18) are connected using 138°C solder, guaranteeing reliability at operating temperatures.
