The TEC1-07106 is a 25x25mm standard-size semiconductor cooling module. It is designed for a 6A current, with a maximum temperature difference of approximately 65–68°C and a cooling capacity of approximately 30W. 🟧 Price List Contact Customer Service 🟦 Certifications Contact Customer Service ⬜ Product PDF Spec Contact Customer Service 🟪 Contact customer Contact Customer Service 🟨 MOQ:1 Pcs 🟥 Fast Delivery:2-15 Days 🟩 Source Factory：Online Factory Video 🟫 Multiple Payment Methods：T/T|PayPal|Alipay ⬛ Pre|After Service：+86 13377785035|xyy@kkg.tw

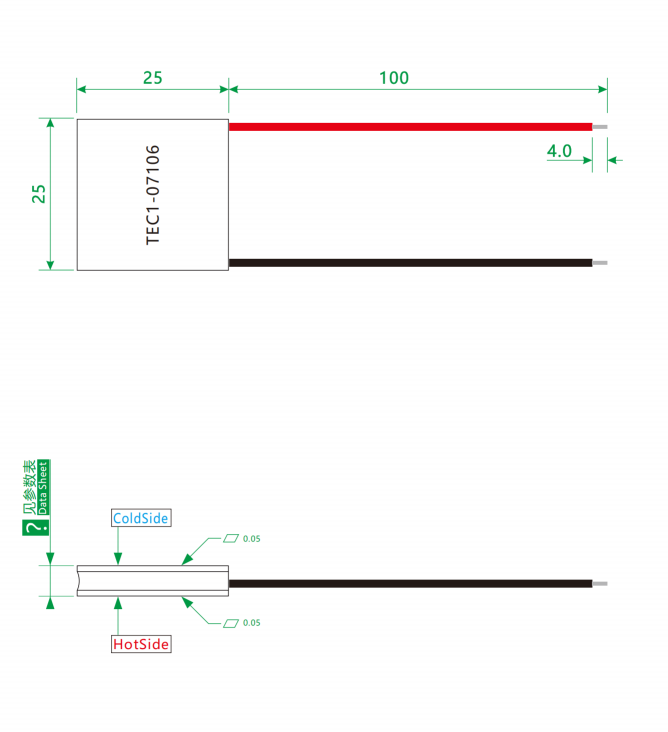

🔷Thermoelectric Peltier Module Product Drawing
🔷Thermoelectric Cooler Module Basic Performance Spec
| Type Model | Chip | ΔTmax (°C) | ACR (Ω) | Umax (V) | Imax (A) | Pmax (W) | Size (mm) |
|---|---|---|---|---|---|---|---|
| TEC1-07106 | K10 | 60 | 1.11 | 8.5 | 6 | 51 | 25×25×3.4 |
| TEC1-07106 | K12 | 65 | 1.11 | 8.5 | 6 | 51 | 25×25×3.6 |
| TEC1-07106 | K14 | 70 | 1.11 | 8.5 | 6 | 51 | 25×25×3.8 |
🔷TEC Module Additional Performance Spec
| Parameter | Specification |
|---|---|
| Substrate | 96% alumina 0.76mm + oxygen‑free copper 0.4mm, sintered process |
| Lead Wire | Silicone wire, 22 AWG, L=100mm |
| Terminals | Not included as standard; can be installed upon request |
| Mounting Pressure | 1.5 kg (0.25 kg/cm²) |
| Packaging | Polystyrene (PS) foam box |
| Sealant | 704 silicone rubber |
| Max. Temperature Resistance | Tin‑lead solder, melting point 138°C |
| Storage Conditions | Temperature < 120°C, Humidity < 60% RH |

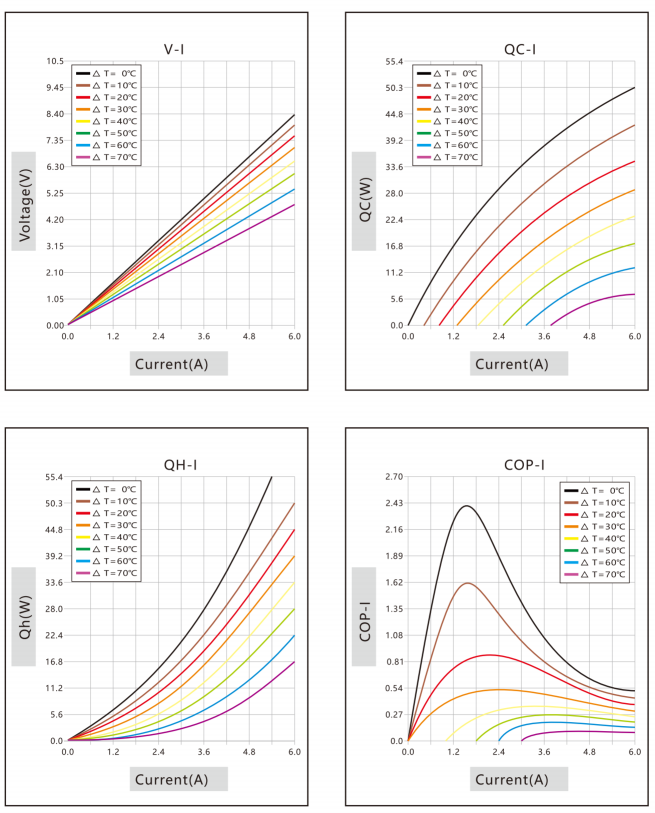

🔷TEC Peltier Performance Curve
🔷Peltier Heater Product Overview
The TEC1-07106 is a 25x25mm standard-size semiconductor cooling module. It is designed for a 6A current, with a maximum temperature difference of approximately 65–68°C and a cooling capacity of approximately 30W. This product is noise-free, vibration-free, and maintenance-free, and can switch between cooling and heating modes by reversing the current direction. With its balanced and robust performance, it is suitable for medium-power, precision temperature control applications such as car refrigerators, laser cooling, and DIY hot/cold cup projects.

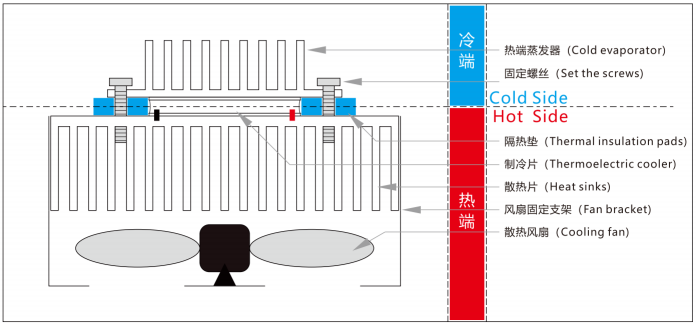

🔷Thermo Cooler Product Structure
