The TEC1-04903 is a 25×25mm semiconductor cooling module designed for a low current of 3A, with a maximum temperature difference of approximately 65–70°C and a cooling capacity of approximately 12–15W. 🟧 Price List Contact Customer Service 🟦 Certifications Contact Customer Service ⬜ Product PDF Spec Contact Customer Service 🟪 Contact customer Contact Customer Service 🟨 MOQ:1 Pcs 🟥 Fast Delivery:2-15 Days 🟩 Source Factory：Online Factory Video 🟫 Multiple Payment Methods：T/T|PayPal|Alipay ⬛ Pre|After Service：+86 13377785035|xyy@kkg.tw

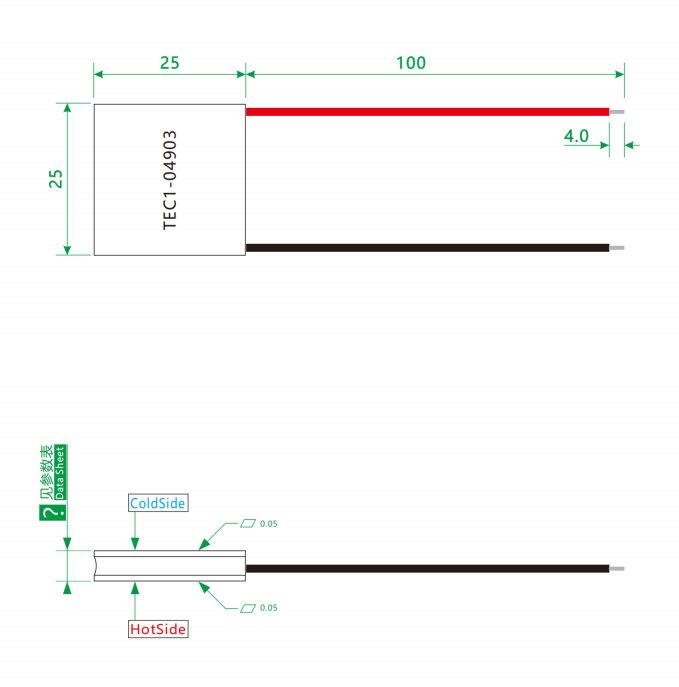

🔷Thermoelectric Peltier Product Drawing
🔷TEG Module Basic Performance Spec
| Type Model | Chip | ΔTmax (°C) | R (Ω) | Umax (V) | Imax (A) | Pmax (W) | Size (mm) |
|---|---|---|---|---|---|---|---|
| TEC1-04903 | K12 | 60 | 1.51 | 5.8 | 3 | 17 | 25×25×3.6 |
| TEC1-04903 | K24 | 65 | 1.51 | 5.8 | 3 | 17 | 25×25×4.8 |
| TEC1-04903 | K36 | 70 | 1.51 | 5.8 | 3 | 17 | 25×25×6.0 |
🔷Solid State Cooler Additional Performance Spec
| Parameter | Specification |
|---|---|
| Substrate | 96% alumina 0.76mm + oxygen‑free copper 0.4mm, sintered process |
| Lead Wire | Silicone wire, 24 AWG, L=100mm |
| Terminals | Not included as standard; can be installed upon request |
| Mounting Pressure | 1.5 kg (0.25 kg/cm²) |
| Packaging | Polystyrene (PS) foam box |
| Sealant | 704 silicone rubber |
| Max. Temperature Resistance | Tin‑lead solder, melting point 138°C |
| Storage Conditions | Temperature < 120°C, Humidity < 60% RH |

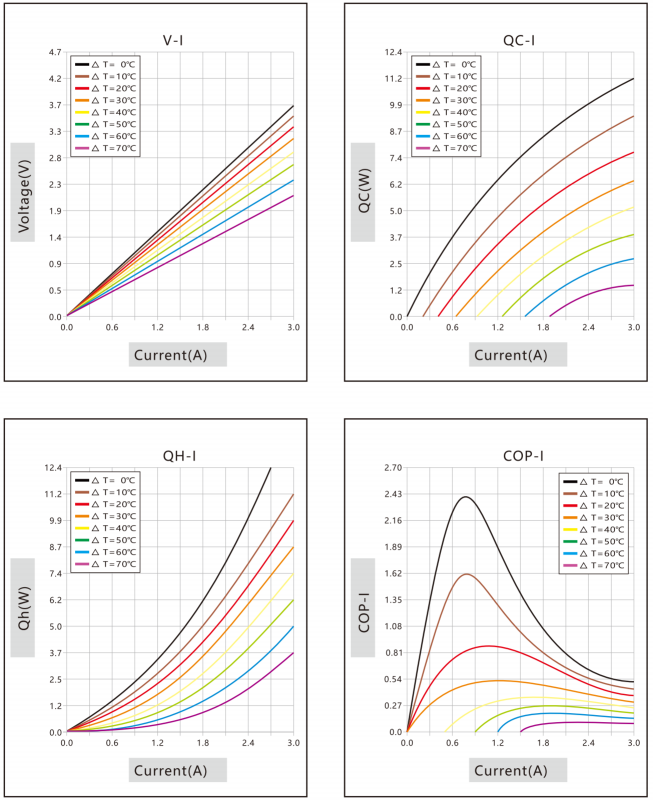

🔷Thermoelectric Power Generator Performance Curve
🔷Element Peltier Product Overview
The TEC1-04903 is a 25×25mm semiconductor cooling module designed for a low current of 3A, with a maximum temperature difference of approximately 65–70°C and a cooling capacity of approximately 12–15W. This product is noise-free, vibration-free, and maintenance-free; it can switch between cooling and heating modes by reversing the current direction. With low power consumption and minimal heat generation, it is suitable for low-power, precision temperature control applications such as miniature medical devices, precision sensors, and small lasers.
