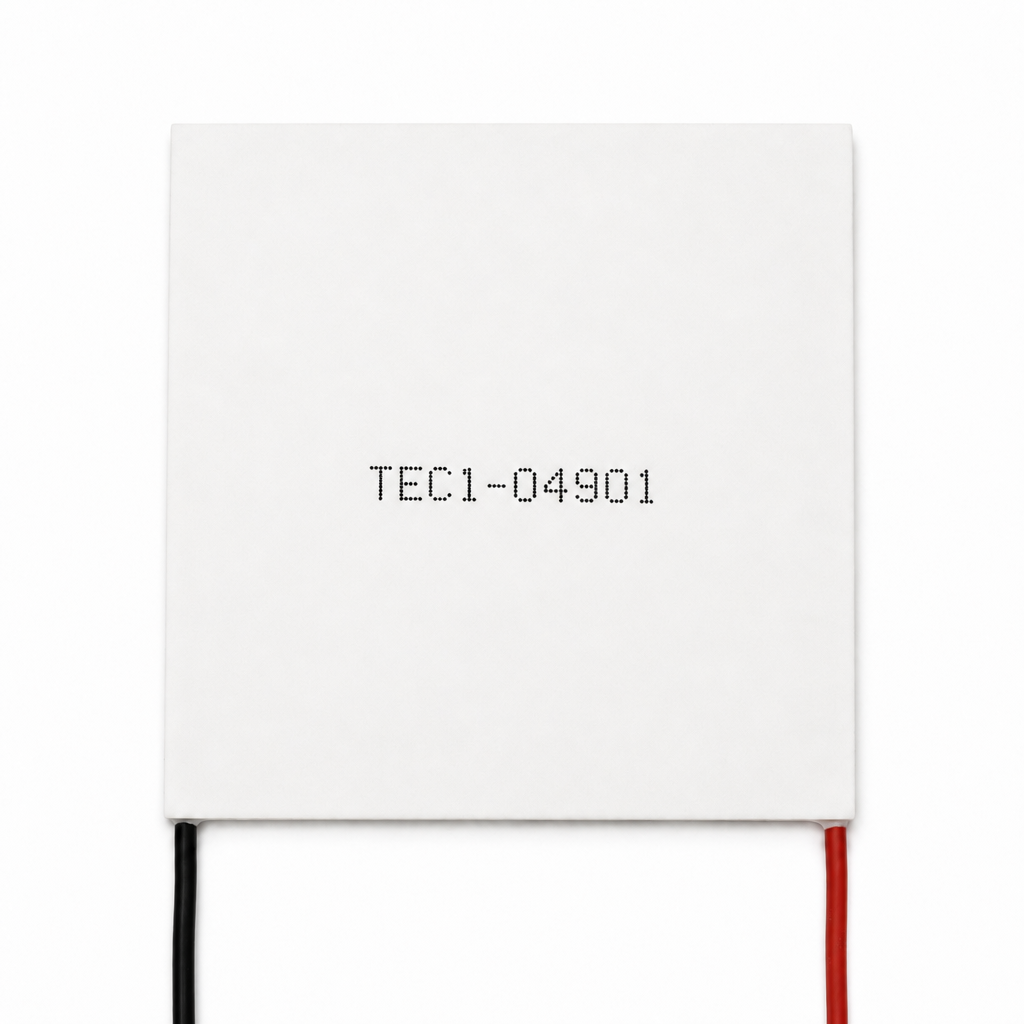

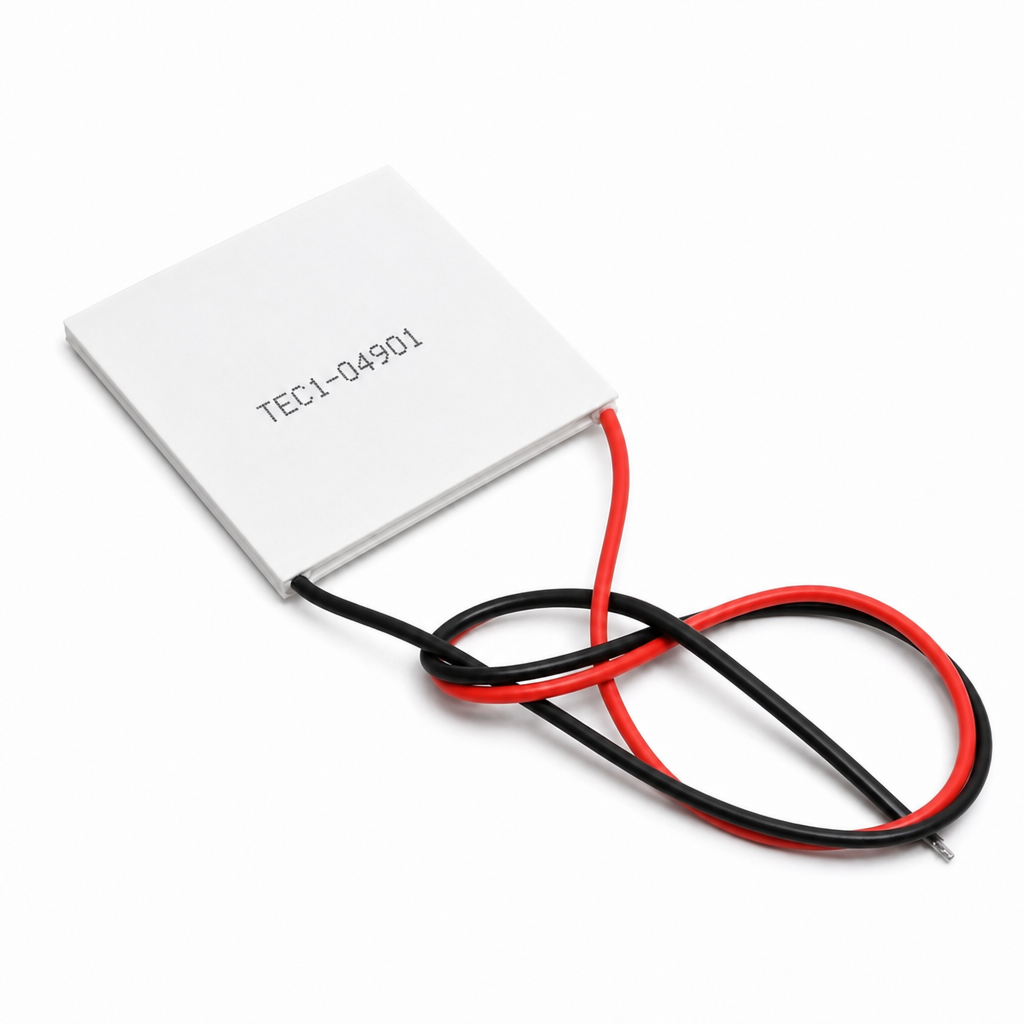

The TEC1-04901 is a 25×25mm ultra-low-power semiconductor cooling module (Peltier device) designed for extremely low current consumption (1.4A), specifically engineered for micro-power precision temperature control applications where power consumption and space are critical considerations. 🟧 Price List Contact Customer Service 🟦 Certifications Contact Customer Service ⬜ Product PDF Spec Contact Customer Service 🟪 Contact customer Contact Customer Service 🟨 MOQ:1 Pcs 🟥 Fast Delivery:2-15 Days 🟩 Source Factory：Online Factory Video 🟫 Multiple Payment Methods：T/T|PayPal|Alipay ⬛ Pre|After Service：+86 13377785035|xyy@kkg.tw

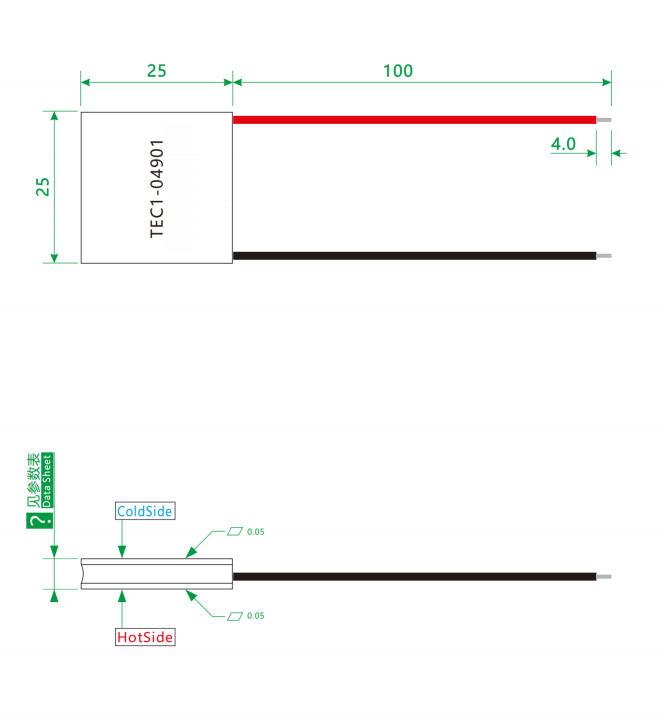

🔷Thermoelectric Power Generator Product Drawing
🔷Solid State Cooler Basic Performance Spec
| Type Model | Chip | ΔTmax (°C) | ACR (Ω) | Umax (V) | Imax (A) | Pmax (W) | Size (mm) |
|---|---|---|---|---|---|---|---|
| TEC1-04901 | K28 | 55 | 3.23 | 5.8 | 1.4 | 8 | 25×25×5.2 |
| TEC1-04901 | K34 | 60 | 3.23 | 5.8 | 1.4 | 8 | 25×25×5.8 |
| TEC1-04901 | K40 | 65 | 3.23 | 5.8 | 1.4 | 8 | 25×25×6.4 |
🔷TEG Module Additional Performance Spec
| Parameter | Specification |
|---|---|
| Substrate | 96% alumina 0.76mm + oxygen‑free copper 0.4mm, sintered process |

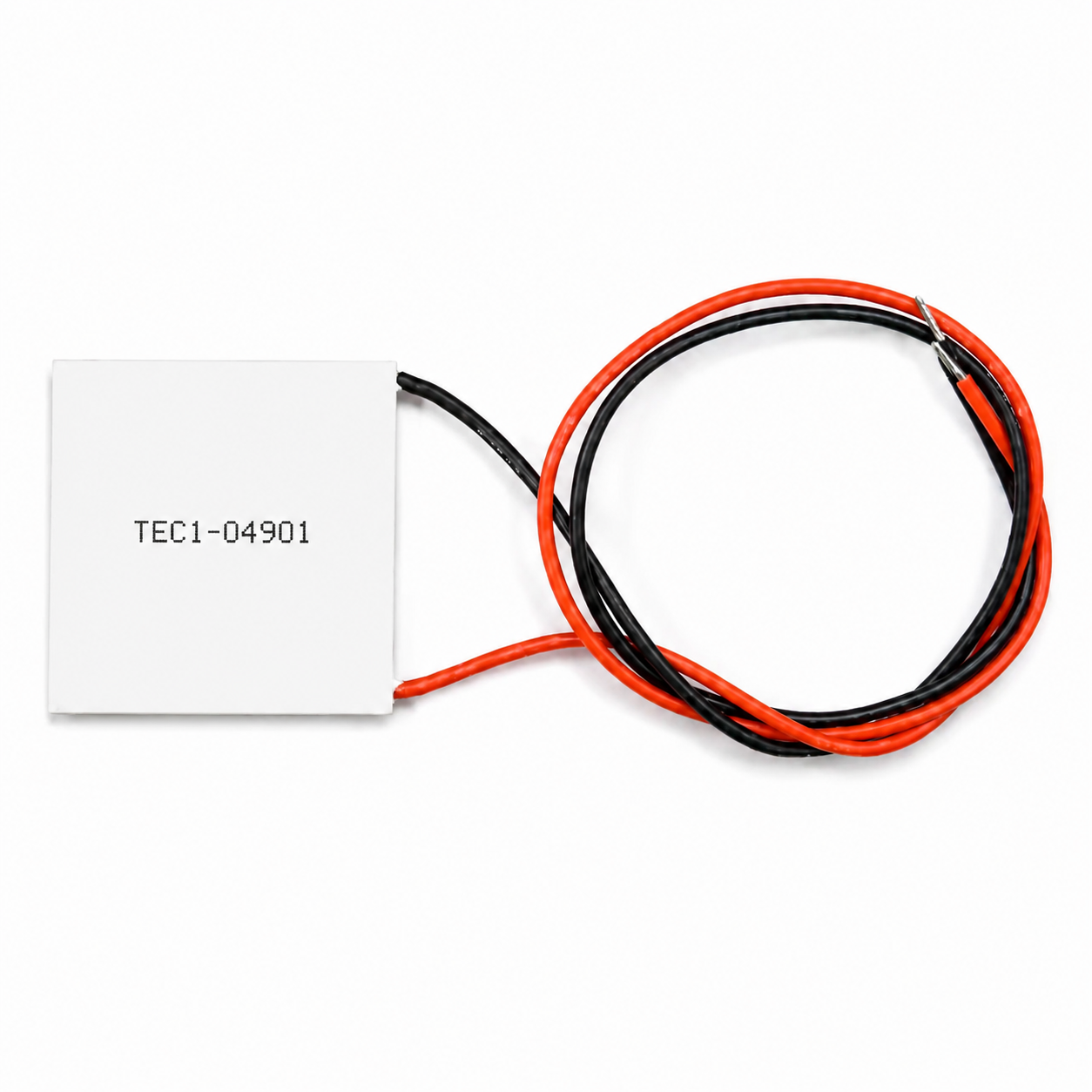

| Lead Wire | Silicone wire, 24 AWG, L=100mm |
| Terminals | Not included as standard; can be installed upon request |
| Mounting Pressure | 1 kg (0.25 kg/cm²) |
| Packaging | Polystyrene (PS) foam box |
| Sealant | 704 silicone rubber |
| Max. Temperature Resistance | Bismuth‑tin eco‑friendly solder, melting point 138°C |
| Storage Conditions | Temperature < 120°C, Humidity < 60% RH |

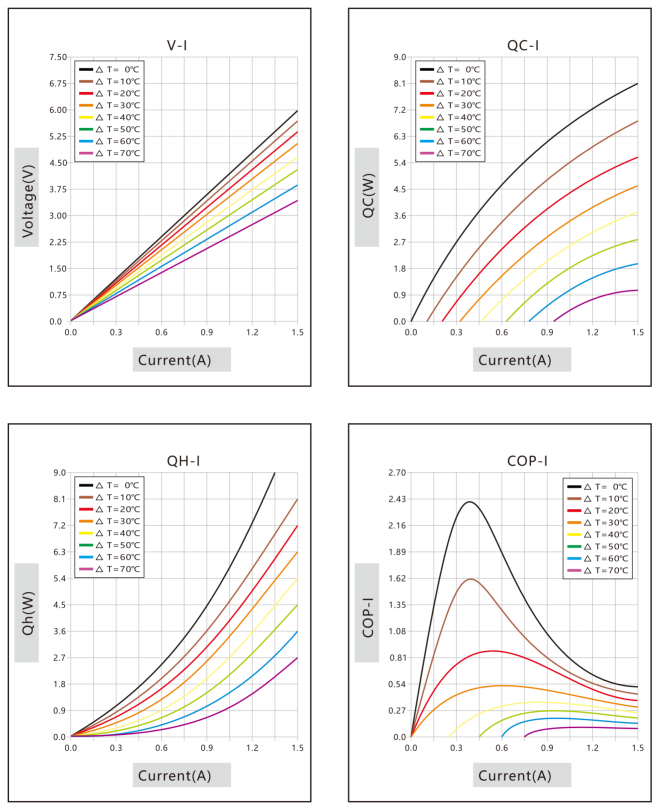

🔷Thermoelectric Peltier Performance Curve
🔷Thermoelectric Module Product Overview
The TEC1-04901 is a 25×25mm ultra-low-power semiconductor cooling module (Peltier device) designed for extremely low current consumption (1.4A), specifically engineered for micro-power precision temperature control applications where power consumption and space are critical considerations. This product has a maximum voltage of 5.8V, a maximum temperature difference of up to 65°C, and a cooling capacity of approximately 8–10W. Its core value lies not in “powerful cooling,” but in providing fast, stable, and low-power localized temperature control—with minimal thermal inertia, it can reach the target temperature difference within a short time after power-up. As a solid-state device, the TEC1-04901 is noise-free, vibration-free, and maintenance-free, and can freely switch between cooling and heating modes simply by reversing the current direction.
🔷Peltier Device Product Features
⚙️ Key Performance Features
Ultra-low-power design: Designed for a low current of approximately 2A, it can be conveniently powered by USB (5V), making it ideal for portable or battery-powered devices.
Practical temperature control capabilities: The maximum temperature difference (ΔTmax) reaches 65–68°C. Although the cooling power is modest (Qcmax approximately 6.86W), it is sufficient to meet the needs of precise localized temperature control.
Compact 25×25mm Package: This is a key feature that distinguishes it from larger models in the same series. Its small size allows for easy integration into space-constrained designs such as smartphone cooling back covers and micro-sensors.
💡 Application and User Experience Features
Plug-and-play, precise temperature control: As a solid-state device, it operates silently, vibration-free, and maintenance-free, with fast response times, making it particularly suitable for scenarios requiring rapid and precise temperature control.
Flexible switching, dual-purpose operation: By reversing the current direction, you can freely switch between cooling and heating modes, increasing design flexibility.
Designed for “Microenvironment” Temperature Control: Its low power consumption and compact size make it ideal for providing stable “microenvironment” temperature management for precision components such as laser projectors, sensors, and IC chips.
Usage Tip: As with all TECs, this product must be equipped with an efficient heat sink or fan on the hot side (heating surface) during operation; otherwise, heat buildup will cause cooling efficiency to drop sharply and may even damage the module.
