The TEC1-04905 is a 25×25mm semiconductor cooling module designed for a 5A current, with a maximum temperature difference of approximately 65–70°C and a cooling capacity of approximately 20–25W. 🟧 Price List Contact Customer Service 🟦 Certifications Contact Customer Service ⬜ Product PDF Spec Contact Customer Service 🟪 Contact customer Contact Customer Service 🟨 MOQ:1 Pcs 🟥 Fast Delivery:2-15 Days 🟩 Source Factory：Online Factory Video 🟫 Multiple Payment Methods：T/T|PayPal|Alipay ⬛ Pre|After Service：+86 13377785035|xyy@kkg.tw

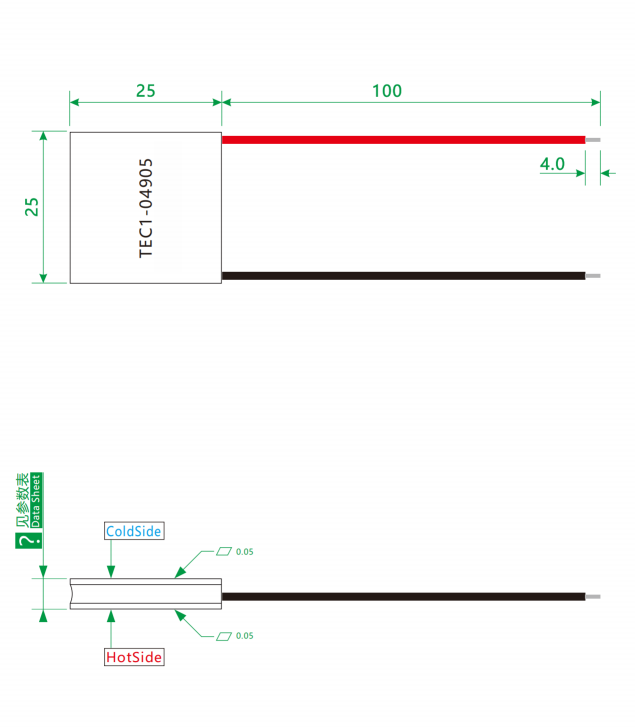

🔷Peltier Module Product Drawing
🔷TEC Cooler Basic Performance Spec
| Type Model | Chip | ΔTmax (°C) | R (Ω) | Umax (V) | Imax (A) | Pmax (W) | Size (mm) |
|---|---|---|---|---|---|---|---|
| TEC1-04905 | K10 | 60 | 0.90 | 5.8 | 5 | 29 | 25×25×3.4 |
| TEC1-04905 | K16 | 65 | 0.90 | 5.8 | 5 | 29 | 25×25×4.0 |
| TEC1-04905 | K22 | 70 | 0.90 | 5.8 | 5 | 29 | 25×25×4.6 |
🔷Thermoelectric Cooler Peltier Additional Performance Spec
| Parameter | Specification |
|---|---|
| Substrate | 96% alumina 0.76mm + oxygen‑free copper 0.4mm, sintered process |
| Lead Wire | Silicone wire, 22 AWG, L=100mm |
| Terminals | Not included as standard; can be installed upon request |
| Mounting Pressure | 1.5 kg (0.25 kg/cm²) |
| Packaging | Polystyrene (PS) foam box |
| Sealant | 704 silicone rubber |
| Max. Temperature Resistance | Tin‑lead solder, melting point 138°C |
| Storage Conditions | Temperature < 120°C, Humidity < 60% RH |

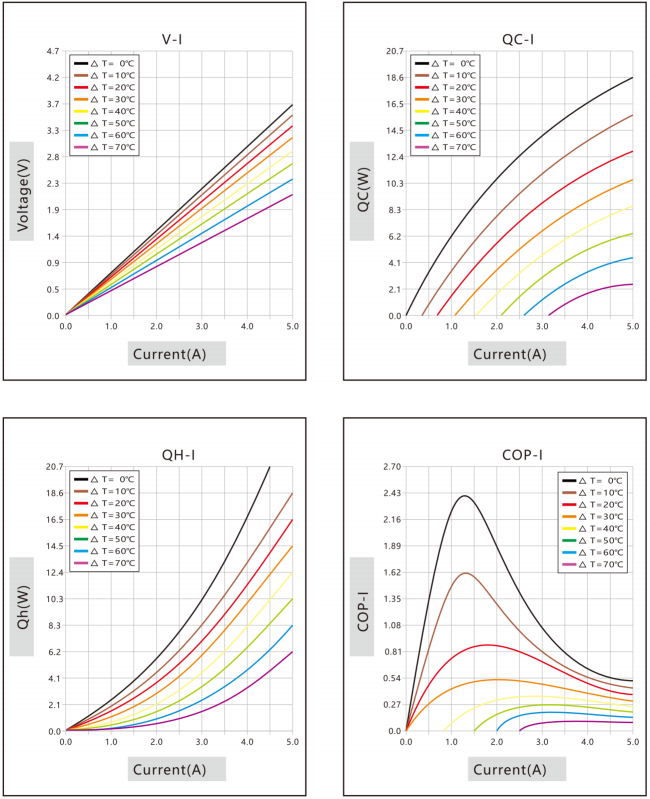

🔷Peltier Cooling Module Performance Curve

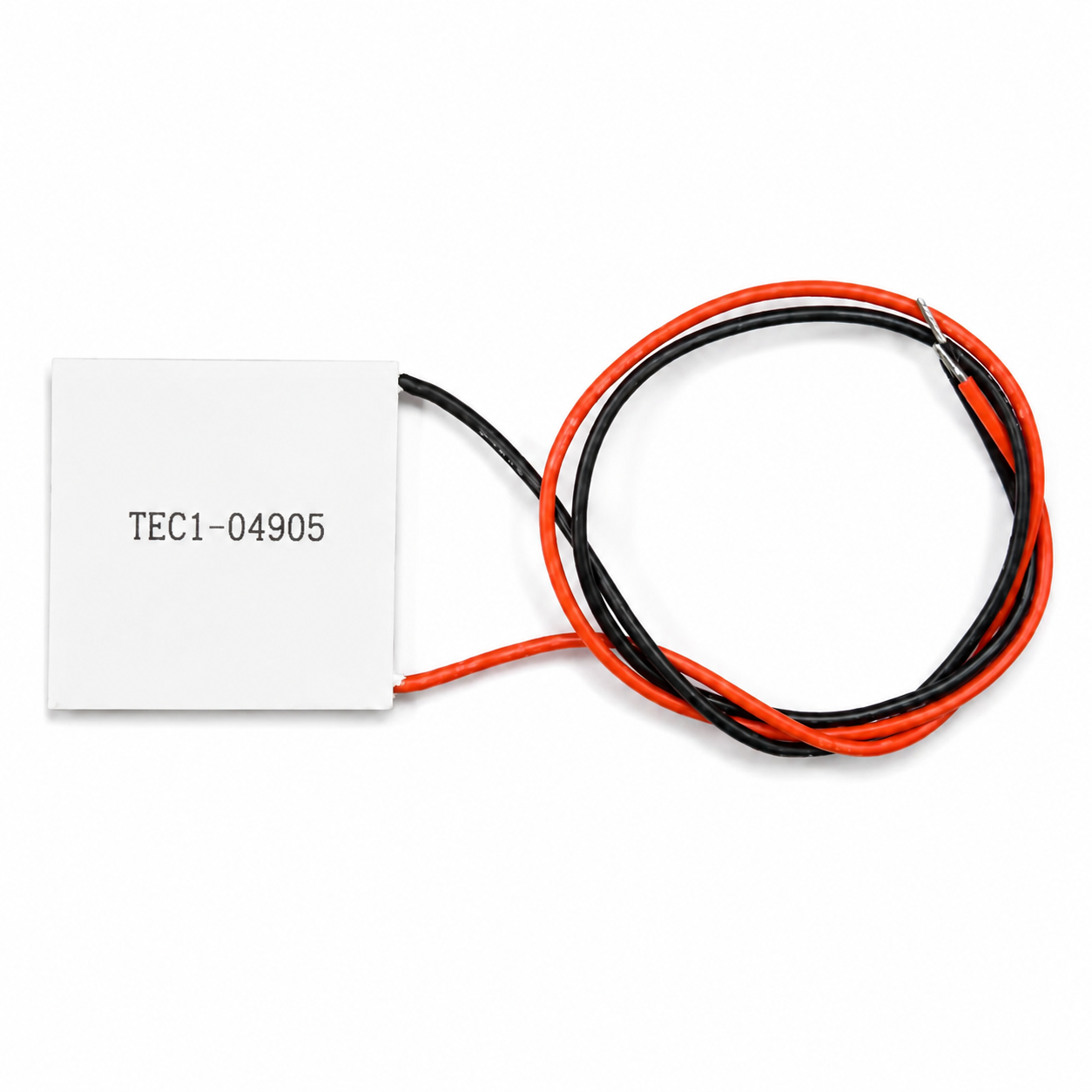

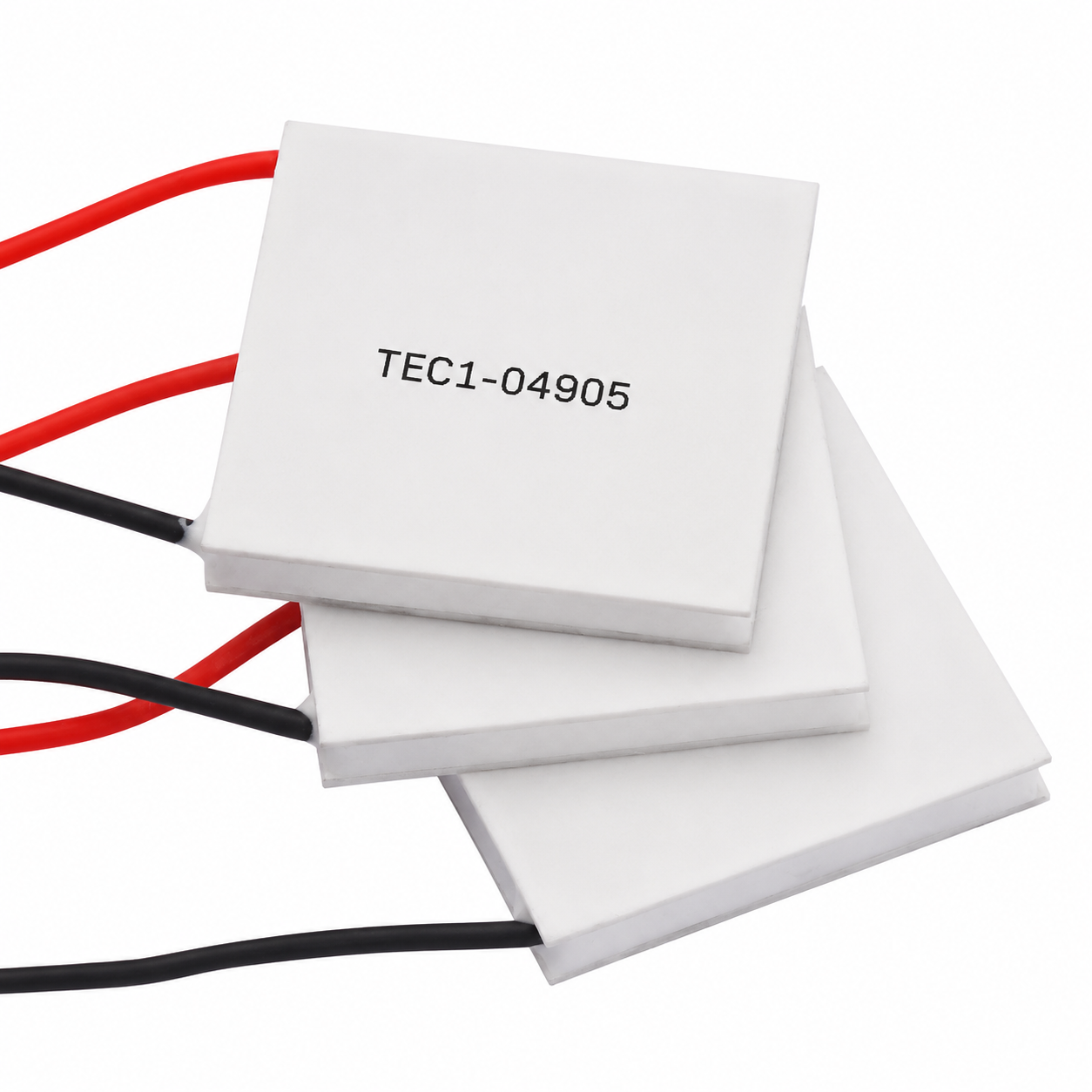

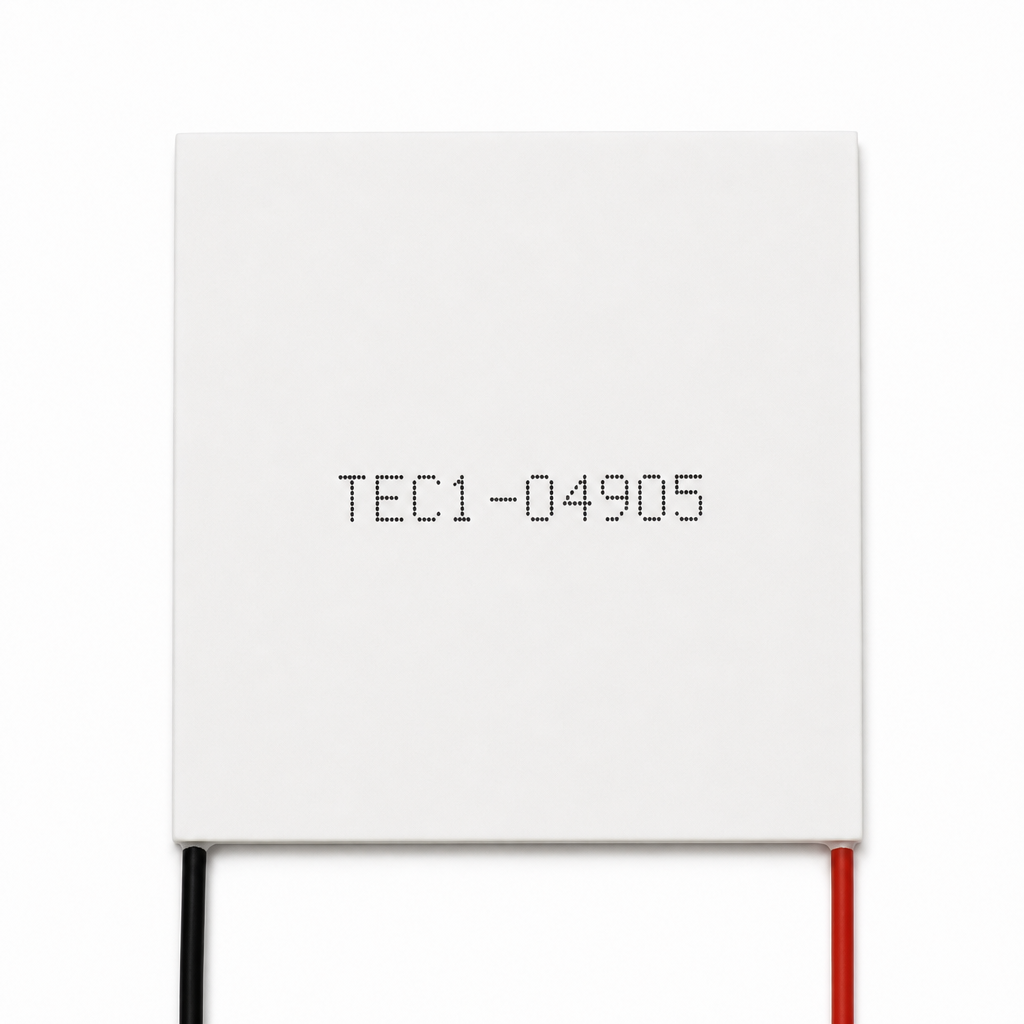

🔷Peltier Effect CoolerPeltiers Product Overview
The TEC1-04905 is a 25×25mm semiconductor cooling module designed for a 5A current, with a maximum temperature difference of approximately 65–70°C and a cooling capacity of approximately 20–25W. This product is noise-free, vibration-free, and maintenance-free, and can switch between cooling and heating modes by reversing the current direction. With its balanced performance, it is suitable for medium-power, precision temperature control applications such as portable mini-refrigerators, beauty devices, and medical equipment.
🔷Cooler with Peltier Product Applications
Medical and Beauty Equipment: This is one of its core applications. For example, it is commonly used in high-end beauty devices, where rapid cooling creates a “cooling sensation” that soothes the skin and shrinks pores. In professional settings, it is also used in medical devices that require precise temperature control (accurate to ±0.1°C), such as portable insulin coolers and PCR instruments.
Electronic Device Cooling: It is often used for localized cooling of heat-generating components such as CPUs and sensors, making it particularly suitable for compact electronic devices with limited space. Some DIY enthusiasts also use it to create cooling back covers for smartphones or tablets to enhance the user experience during activities like gaming.
Portable Refrigeration and Consumer Products: In the consumer sector, it is often integrated into mini-refrigerators and car refrigerators to provide cooling in small spaces. Additionally, in some creative applications, it is used to enable precise temperature control in products such as temperature-controlled coffee mugs.
Industrial and Research Applications: It plays an equally important role in industrial and research settings, where it can be used in temperature control modules for scientific instruments or to dissipate heat from critical components in automotive electronics and communications equipment.
