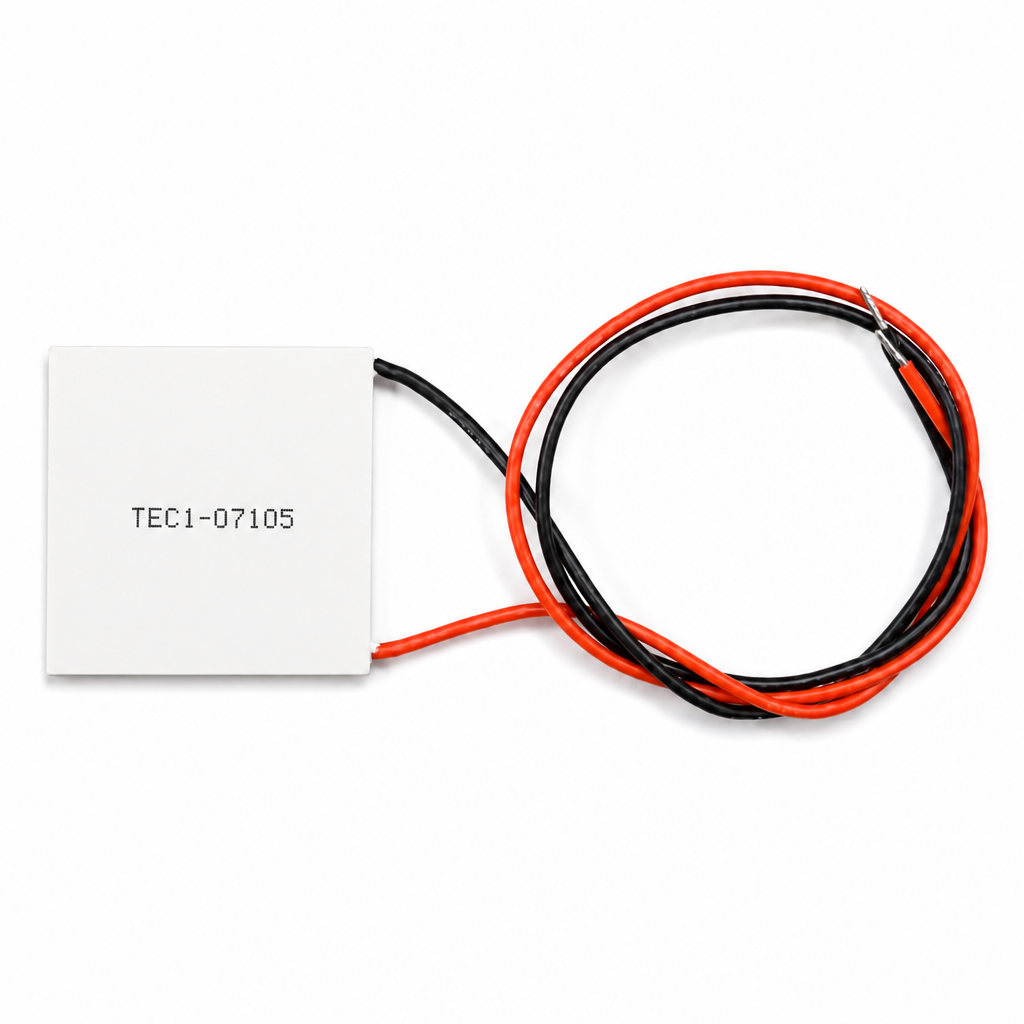

TEC1-07105 is a 25x25mm semiconductor cooling module designed for a 5A current, with a maximum temperature difference of approximately 65–70°C and a cooling capacity of approximately 25W. 🟧 Price List Contact Customer Service 🟦 Certifications Contact Customer Service ⬜ Product PDF Spec Contact Customer Service 🟪 Contact customer Contact Customer Service 🟨 MOQ:1 Pcs 🟥 Fast Delivery:2-15 Days 🟩 Source Factory：Online Factory Video 🟫 Multiple Payment Methods：T/T|PayPal|Alipay ⬛ Pre|After Service：+86 13377785035|xyy@kkg.tw

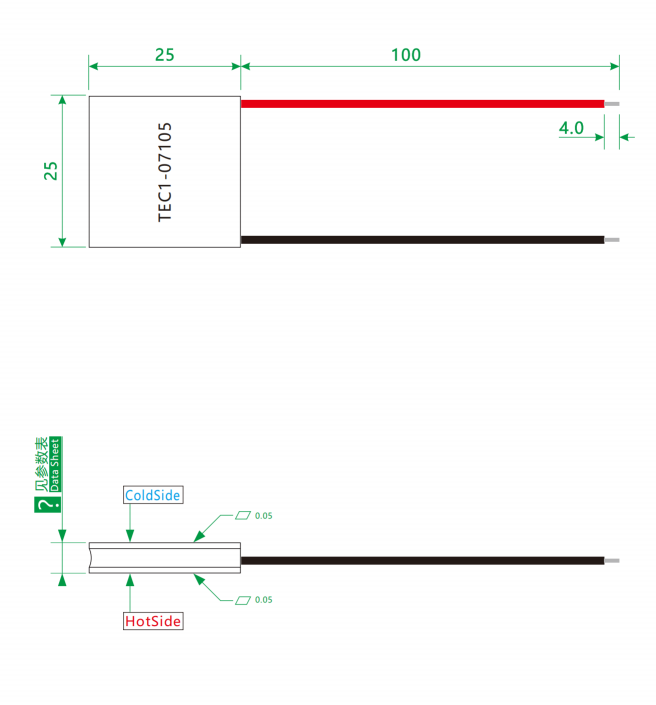

🔷Thermoelectric Generator Modules Product Drawing
🔷Thermoelectric Cooling Element Basic Performance Spec
| Type Model | Chip | ΔTmax (°C) | ACR (Ω) | Umax (V) | Imax (A) | Pmax (W) | Size (mm) |
|---|---|---|---|---|---|---|---|
| TEC1-07105 | K10 | 60 | 1.33 | 8.5 | 5 | 43 | 25×25×3.4 |
| TEC1-07105 | K12 | 65 | 1.33 | 8.5 | 5 | 43 | 25×25×3.6 |
| TEC1-07105 | K14 | 70 | 1.33 | 8.5 | 5 | 43 | 25×25×3.8 |
🔷Thermoelectric Cooling Device Additional Performance Spec
| Parameter | Specification |
|---|---|
| Substrate | 96% alumina 0.76mm + oxygen‑free copper 0.4mm, sintered process |
| Lead Wire | Silicone wire, 22 AWG, L=100mm |
| Terminals | Not included as standard; can be installed upon request |
| Mounting Pressure | 1.5 kg (0.25 kg/cm²) |
| Packaging | Polystyrene (PS) foam box |
| Sealant | 704 silicone rubber |
| Max. Temperature Resistance | Bismuth‑tin eco‑friendly solder, melting point 138°C |
| Storage Conditions | Temperature < 120°C, Humidity < 60% RH |

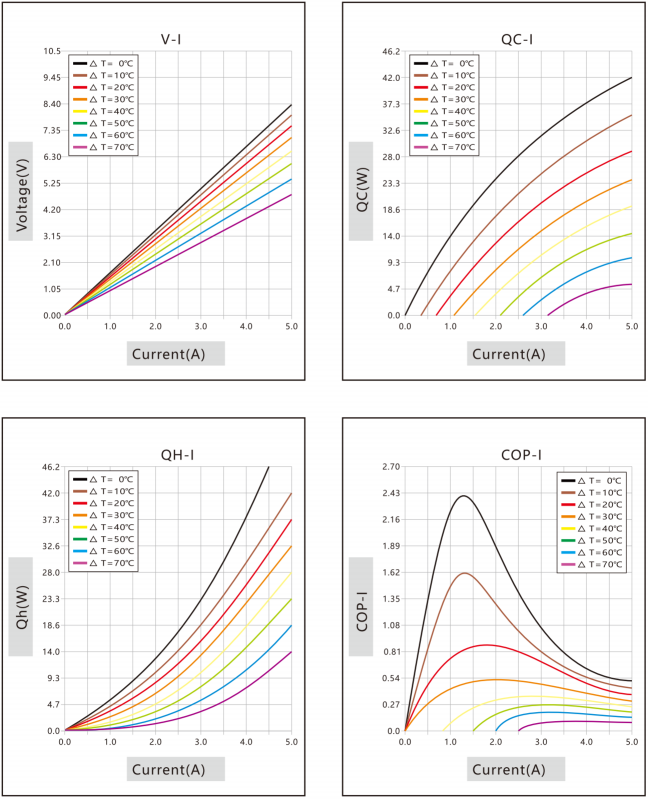

🔷TEC Cooling System Performance Curve

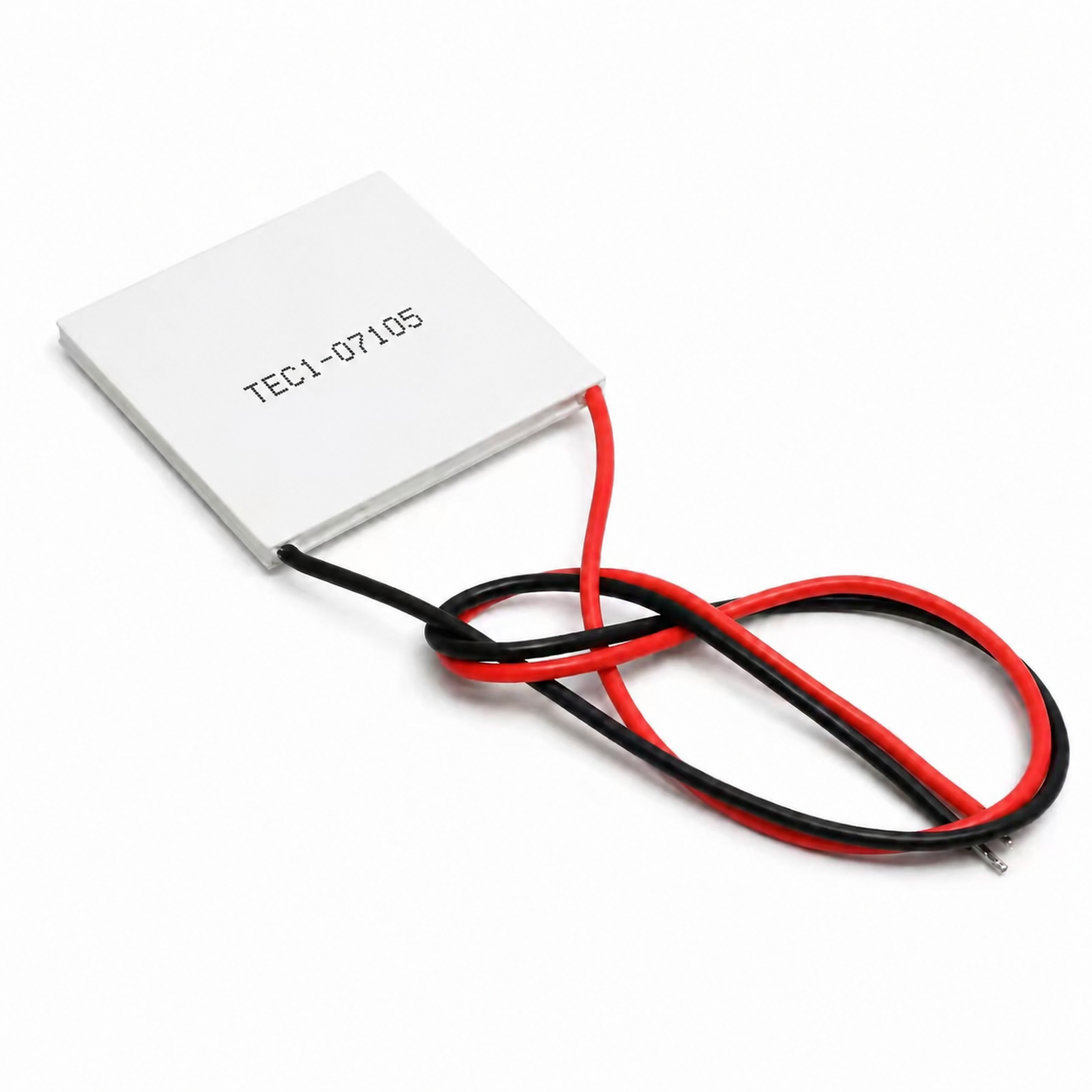

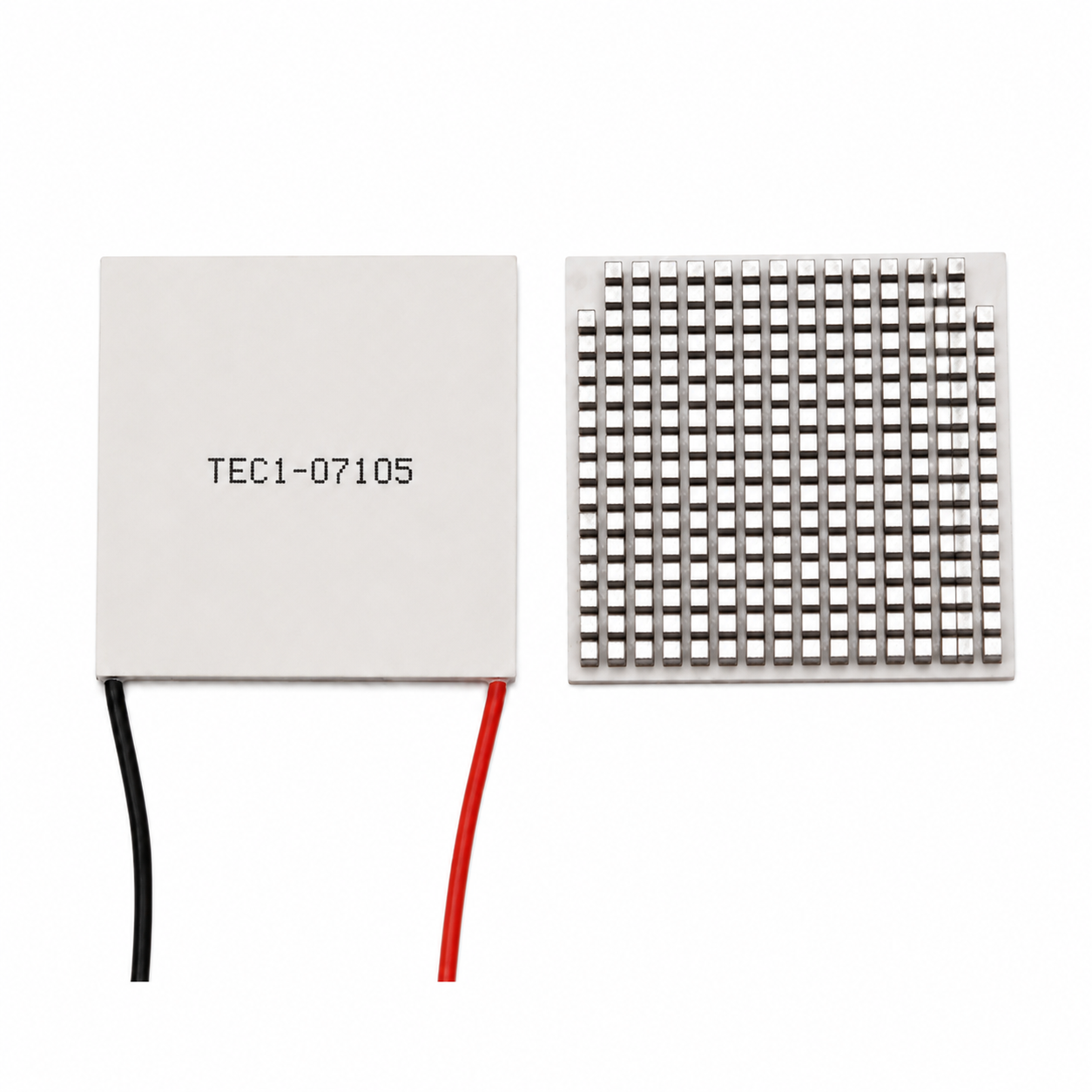

🔷Peltier Cooling Element Product Overview
TEC1-07105 is a 25x25mm semiconductor cooling module designed for a 5A current, with a maximum temperature difference of approximately 65–70°C and a cooling capacity of approximately 25W. This product is noise-free, vibration-free, and maintenance-free, and can switch between cooling and heating modes by reversing the current direction. With its balanced performance, it is suitable for medium-power temperature control applications such as medical equipment, laser cooling, and in-vehicle refrigeration.
🔷Element Peltier Product Features
1. Moderate Power and Current: Designed for a 5A current, with a cooling capacity (Qcmax) ranging from approximately 25W to 32W, it strikes a good balance between power consumption and cooling performance.
2. Excellent Temperature Difference Performance: The maximum temperature difference (ΔTmax) ranges from 65°C to 70°C, meeting a wide range of needs from portable cooling to precise temperature control.
3. Compact 25x25mm package: Compared to common 30x30mm models, the 25x25mm size is more compact, making it suitable for integrated designs with tighter space constraints.
4. Plug-and-play with precise temperature control: As a solid-state device, it is noise-free, vibration-free, and maintenance-free, and allows for precise temperature control by adjusting the current.
5. Flexible Switching, Dual-Function Operation: By reversing the current direction, the device can seamlessly switch between cooling and heating modes.
6. Wide Range of Applications: Thanks to these features, it is widely used in medical equipment, car refrigerators, laser cooling, scientific instruments, and various DIY projects.
