The TEC1-07104 is a single-stage semiconductor cooling module (TEC, also known as a Peltier device) with standard dimensions of 30x30mm. 🟧 Price List Contact Customer Service 🟦 Certifications Contact Customer Service ⬜ Product PDF Spec Contact Customer Service 🟪 Contact customer Contact Customer Service 🟨 MOQ:1 Pcs 🟥 Fast Delivery:2-15 Days 🟩 Source Factory：Online Factory Video 🟫 Multiple Payment Methods：T/T|PayPal|Alipay ⬛ Pre|After Service：+86 13377785035|xyy@kkg.tw

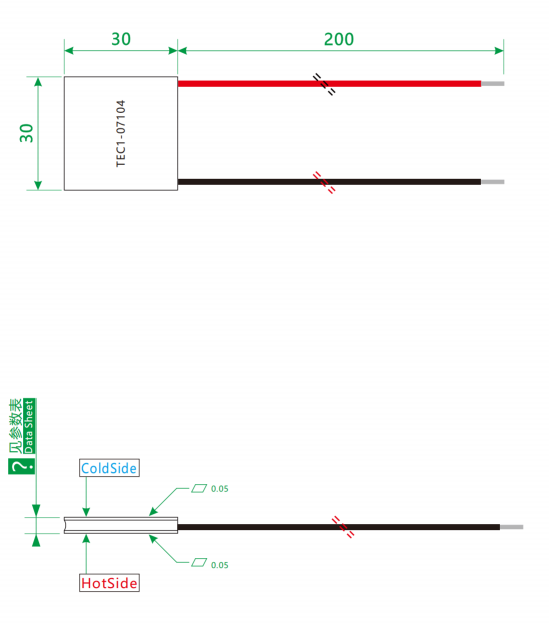

🔷Thermoelectric Peltier Device Product Drawing
🔷Peltier Module Cooler Basic Performance Spec
| Type Model | Chip | ΔTmax (°C) | ACR (Ω) | Umax (V) | Imax (A) | Pmax (W) | Size (mm) |
|---|---|---|---|---|---|---|---|
| TEC1-07104 | K10 | 60 | 1.66 | 8.5 | 4 | 34 | 30×30×3.4 |
| TEC1-07104 | K18 | 65 | 1.66 | 8.5 | 4 | 34 | 30×30×4.2 |
| TEC1-07104 | K26 | 70 | 1.66 | 8.5 | 4 | 34 | 30×30×5.0 |
🔷TEC Module Additional Performance Spec
| Parameter | Specification |
|---|---|
| Substrate | 96% alumina 0.76mm + oxygen‑free copper 0.4mm, sintered process |
| Lead Wire | Ultra‑soft silicone wire, 22 AWG, L=200mm |
| Terminals | Not included as standard; can be installed upon request |
| Mounting Pressure | 2.3 kg (0.25 kg/cm²) |
| Packaging | Polystyrene (PS) foam box |
| Sealant | 704 silicone rubber |
| Max. Temperature Resistance | Tin‑lead solder, melting point 138°C |
| Storage Conditions | Temperature < 120°C, Humidity < 60% RH |

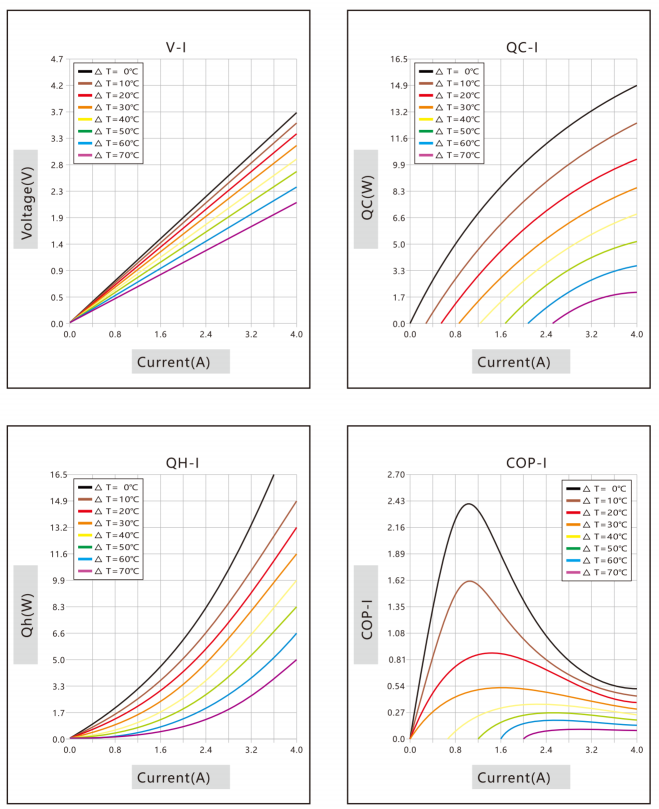

🔷Thermoelectric Peltier Module Performance Curve
🔷Thermoelectric Cooler Product Overview、

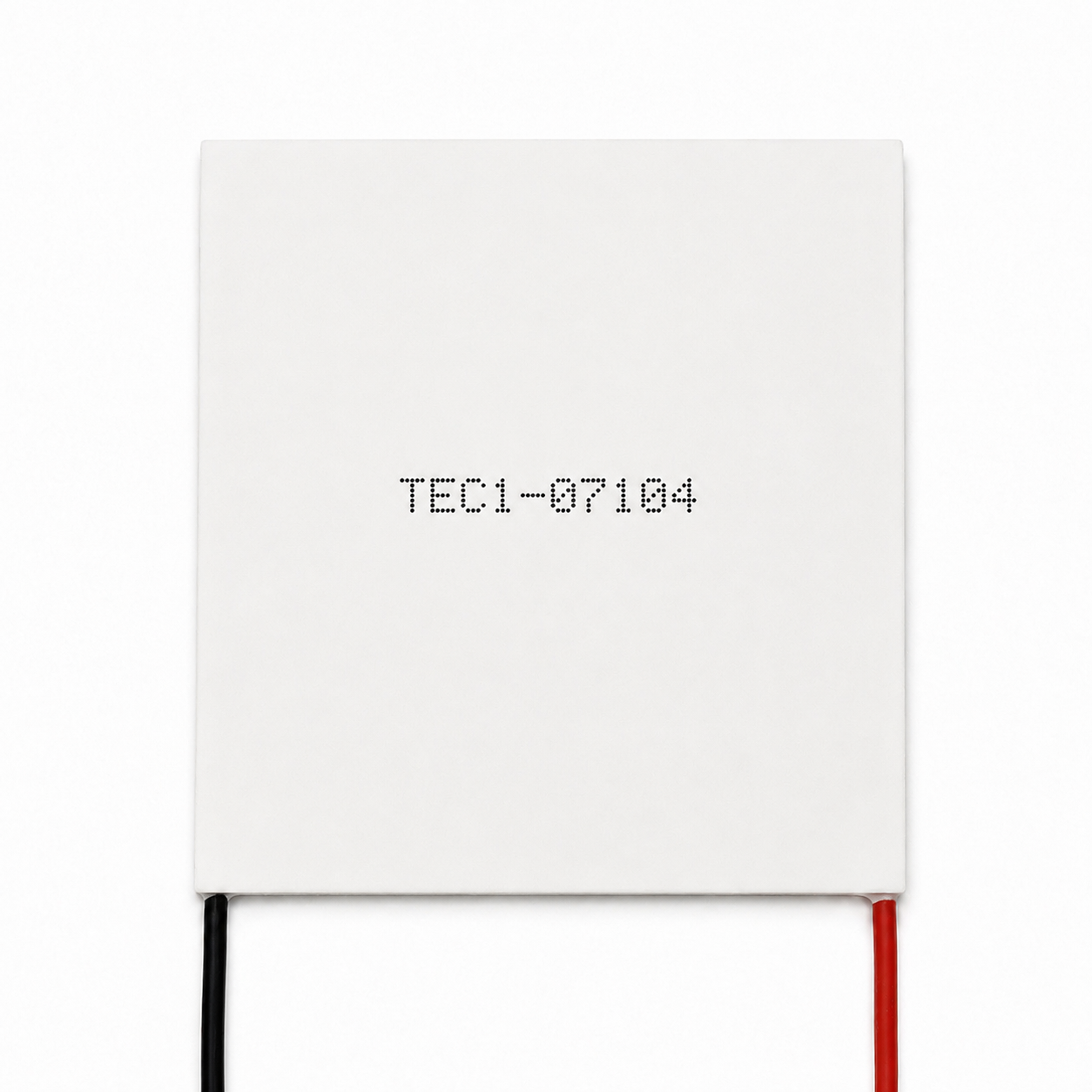

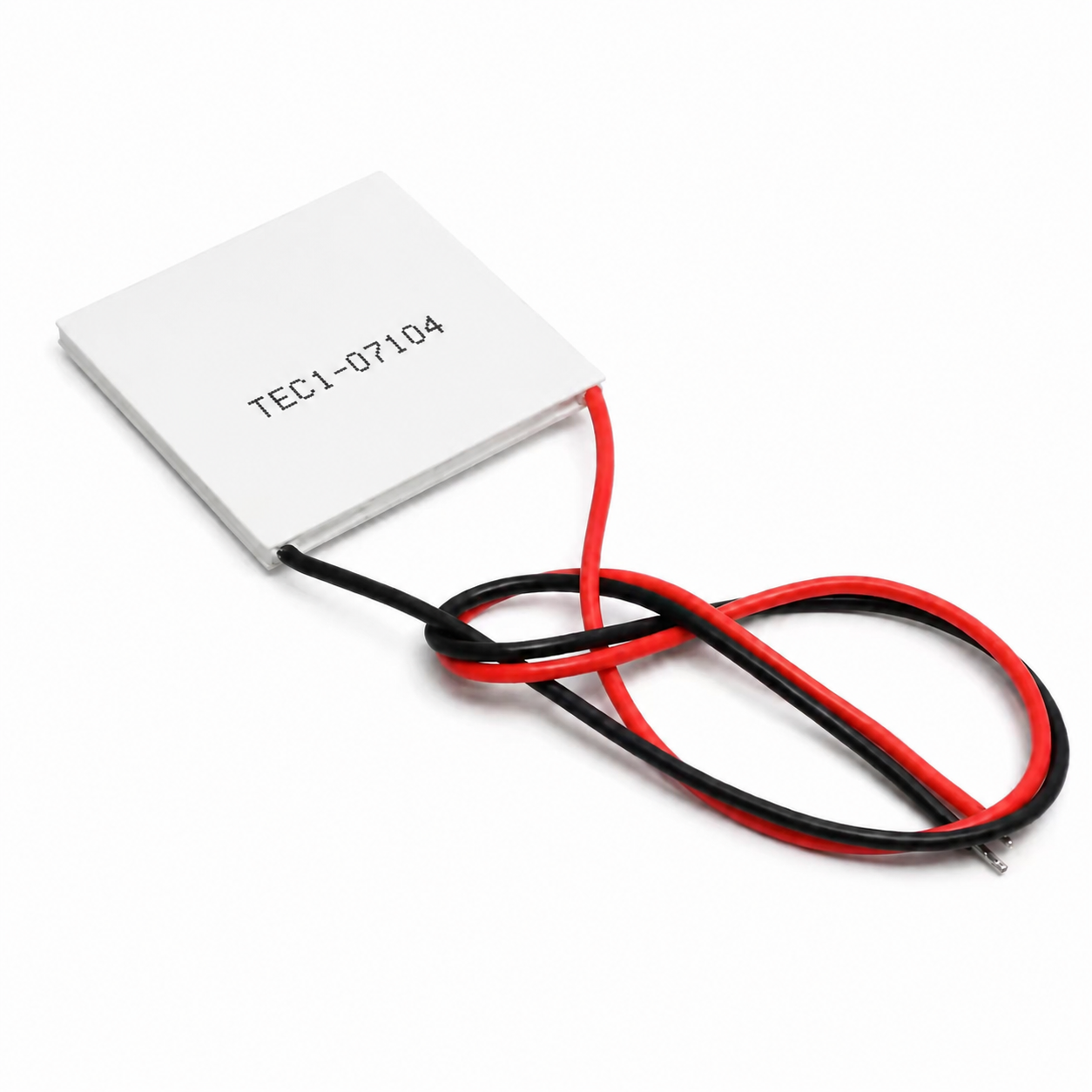

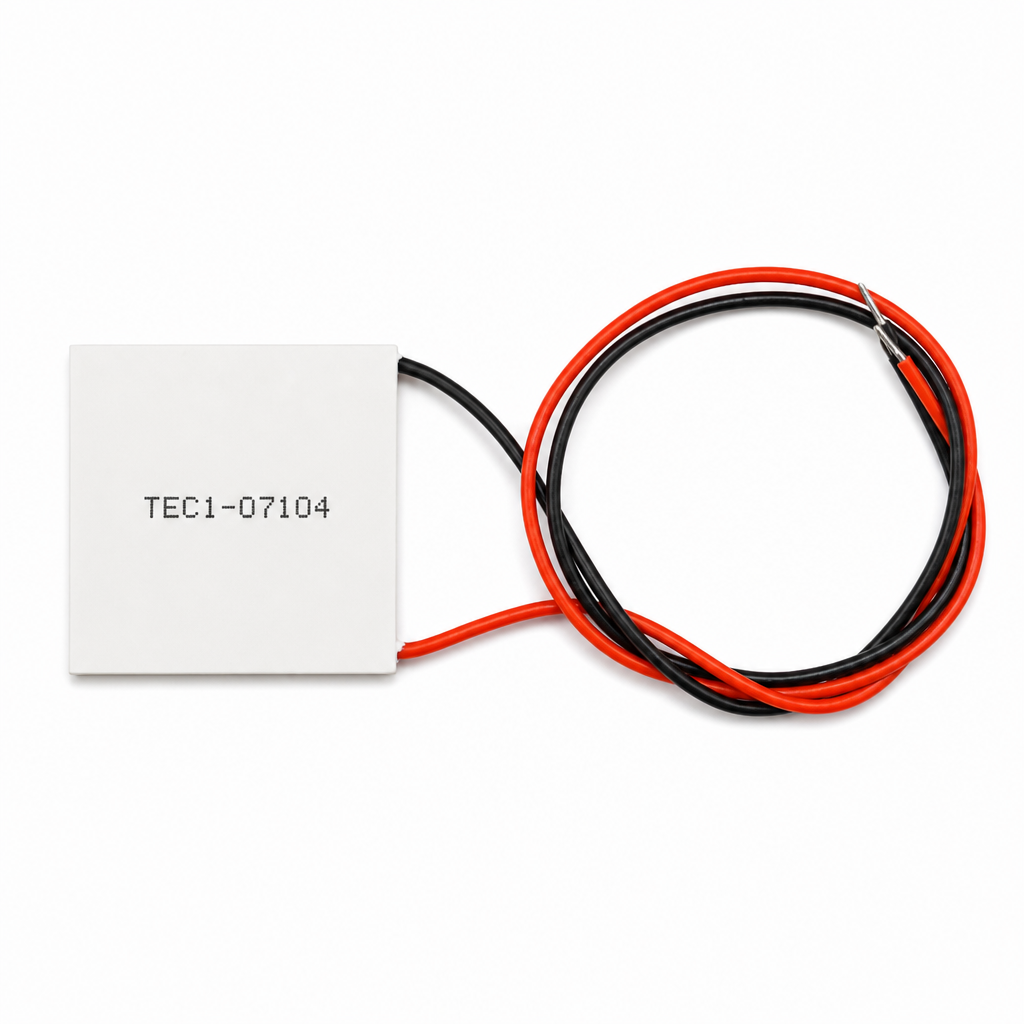

The TEC1-07104 is a single-stage semiconductor cooling module (TEC, also known as a Peltier device) with standard dimensions of 30x30mm. It operates based on the Peltier effect, enabling cooling or heating by reversing the current direction, and is a compact, solid-state heat pump with no moving parts.
🔷Tec Thermoelectric Cooler Product Applications
Small Medical Devices: This is one of its core applications. It is commonly used in portable devices such as beauty devices and hair removal devices that require localized cooling for therapeutic or soothing effects, leveraging its compact size and precise temperature control to provide a comfortable user experience.
Infrared Laser Cooling: In industrial and research applications, it is also used to provide precise temperature management for infrared lasers. A stable temperature is key to ensuring consistent laser output wavelength and power.
Communications and Automotive Electronics: It can be used to protect precision electronic components in communication base stations and automotive control systems, preventing them from failing due to overheating.
Consumer and Home Appliances: It is also found in home appliances designed for portability and quiet operation, such as car refrigerators, water dispensers, and wine coolers.
