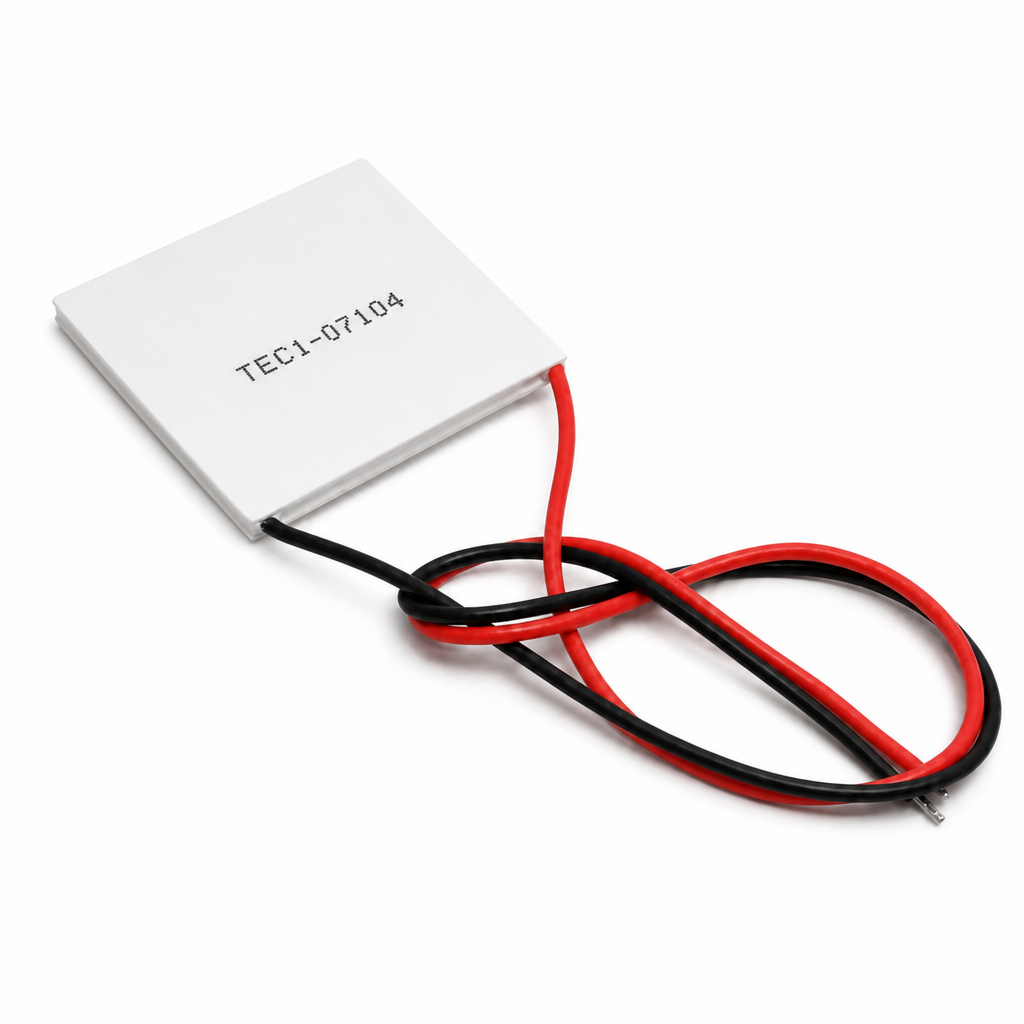

Model TEC1-07104 is a 25x25mm semiconductor cooling plate designed for a 4A current, with a maximum temperature difference of approximately 65–68°C and a cooling capacity of approximately 18–21W. 🟧 Price List Contact Customer Service 🟦 Certifications Contact Customer Service ⬜ Product PDF Spec Contact Customer Service 🟪 Contact customer Contact Customer Service 🟨 MOQ:1 Pcs 🟥 Fast Delivery:2-15 Days 🟩 Source Factory：Online Factory Video 🟫 Multiple Payment Methods：T/T|PayPal|Alipay ⬛ Pre|After Service：+86 13377785035|xyy@kkg.tw

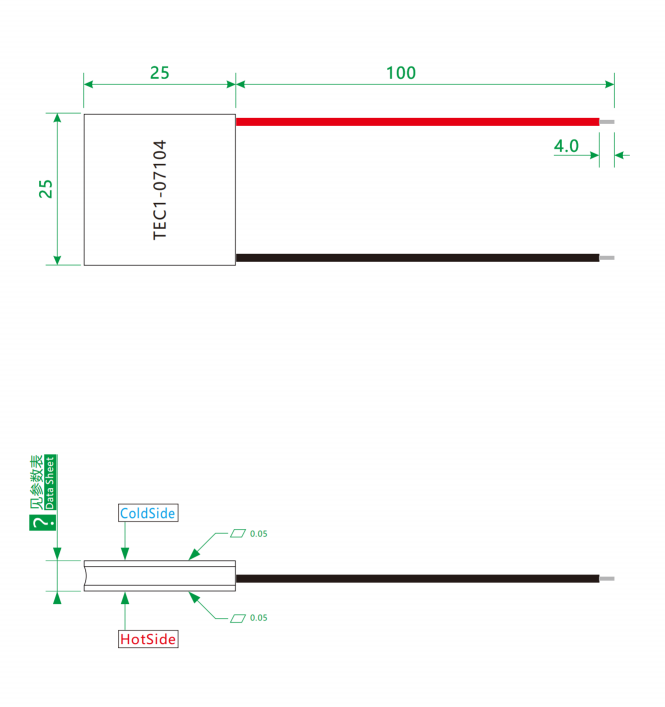

🔷Thermoelectric Power Generator Product Drawing
🔷TEG Module Basic Performance Spec
| Type Model | Chip | ΔTmax (°C) | ACR (Ω) | Umax (V) | Imax (A) | Pmax (W) | Size (mm) |
|---|---|---|---|---|---|---|---|
| TEC1-07104 | K10 | 60 | 1.66 | 8.5 | 4 | 34 | 25×25×3.4 |
| TEC1-07104 | K14 | 65 | 1.66 | 8.5 | 4 | 34 | 25×25×3.8 |
| TEC1-07104 | K18 | 70 | 1.66 | 8.5 | 4 | 34 | 25×25×4.2 |
🔷Thermoelectric Peltier Additional Performance Spec
| Parameter | Specification |
|---|---|
| Substrate | 96% alumina 0.76mm + oxygen‑free copper 0.4mm, sintered process |
| Lead Wire | Silicone wire, 24 AWG, L=100mm |
| Terminals | Not included as standard; can be installed upon request |
| Mounting Pressure | 1.5 kg (0.25 kg/cm²) |
| Packaging | Polystyrene (PS) foam box |
| Sealant | 704 silicone rubber |
| Max. Temperature Resistance | Bismuth‑tin eco‑friendly solder, melting point 138°C |
| Storage Conditions | Temperature < 120°C, Humidity < 60% RH |

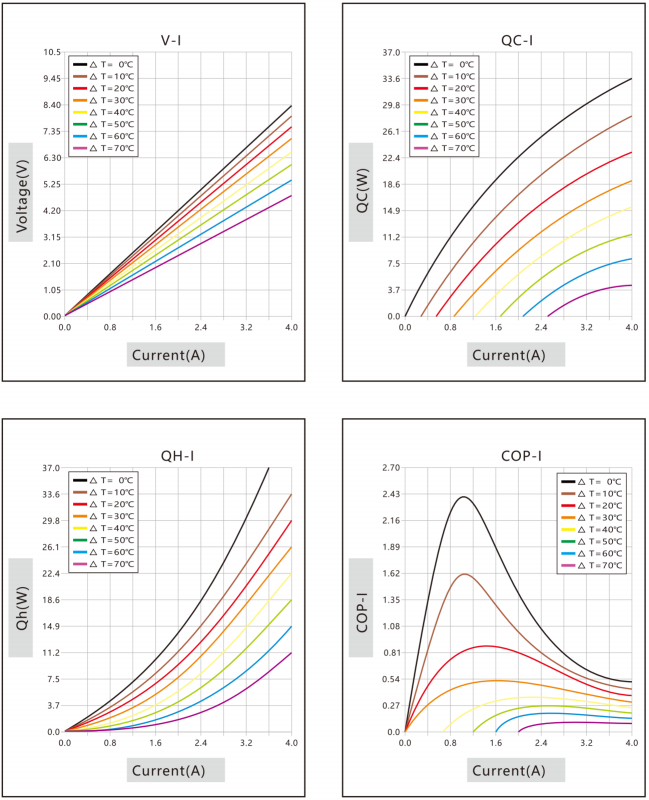

🔷Thermoelectric Module Performance Curve
🔷Solid State Cooler Product Overview
The TEC1-07104 is a 25x25mm semiconductor cooling module designed for a 4A current, with a maximum temperature difference of approximately 65–68°C and a cooling capacity of approximately 18–21W. This product is noise-free, vibration-free, and maintenance-free, and can switch between cooling and heating modes by reversing the current direction. With its balanced performance, it is suitable for medium-power, precision temperature control applications such as beauty devices, medical equipment, and laser cooling.
🔷Peltier Device Product Applications
1. Consumer Electronics: The most typical application is cooling back covers for smartphones. When used in conjunction with a fan, they can quickly dissipate heat from the phone, enhancing the user experience during activities such as gaming. They are also commonly used in beauty devices and hair removal devices, where “cooling” technology improves user comfort.
2. Professional and Industrial Equipment: Because it enables precise temperature control, it is also used in cooling systems for infrared lasers and semiconductor lasers to ensure stable equipment operation. At the same time, it plays a crucial role in cooling critical components in fields such as medical equipment, automotive electronics, and telecommunications equipment.
