The TEC1-07103 is a semiconductor cooling module with standard dimensions of 30x30mm. It features a low-current design of 3A, with a maximum temperature difference of approximately 65–68°C and a cooling capacity of approximately 15–18W. 🟧 Price List Contact Customer Service 🟦 Certifications Contact Customer Service ⬜ Product PDF Spec Contact Customer Service 🟪 Contact customer Contact Customer Service 🟨 MOQ:1 Pcs 🟥 Fast Delivery:2-15 Days 🟩 Source Factory：Online Factory Video 🟫 Multiple Payment Methods：T/T|PayPal|Alipay ⬛ Pre|After Service：+86 13377785035|xyy@kkg.tw

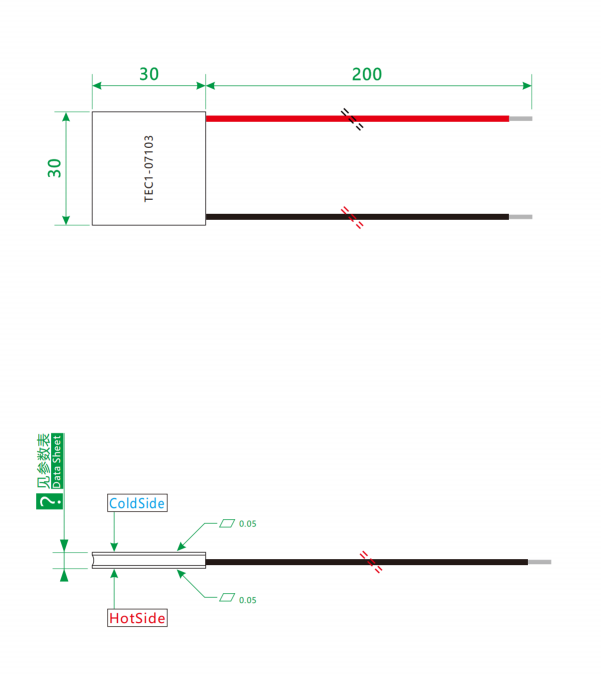

🔷Thermoelectric Generator Product Drawing
🔷Cooler with Peltier Basic Performance Spec
| Type Model | Chip | ΔTmax (°C) | ACR (Ω) | Umax (V) | Imax (A) | Pmax (W) | Size (mm) |
|---|---|---|---|---|---|---|---|
| TEC1-07103 | K12 | 60 | 2.21 | 8.5 | 3 | 26 | 30×30×3.6 |
| TEC1-07103 | K24 | 65 | 2.21 | 8.5 | 3 | 26 | 30×30×4.8 |
| TEC1-07103 | K36 | 70 | 2.21 | 8.5 | 3 | 26 | 30×30×6.0 |
🔷Semiconductor Cooler Additional Performance Spec
| Parameter | Specification |
|---|---|
| Substrate | 96% alumina 0.76mm + oxygen‑free copper 0.4mm, sintered process |
| Lead Wire | Ultra‑soft silicone wire, 22 AWG, L=200mm |
| Terminals | Not included as standard; can be installed upon request |
| Mounting Pressure | 2.3 kg (0.25 kg/cm²) |
| Packaging | Polystyrene (PS) foam box |
| Sealant | 704 silicone rubber |
| Max. Temperature Resistance | Tin‑lead solder, melting point 138°C |
| Storage Conditions | Temperature < 120°C, Humidity < 60% RH |

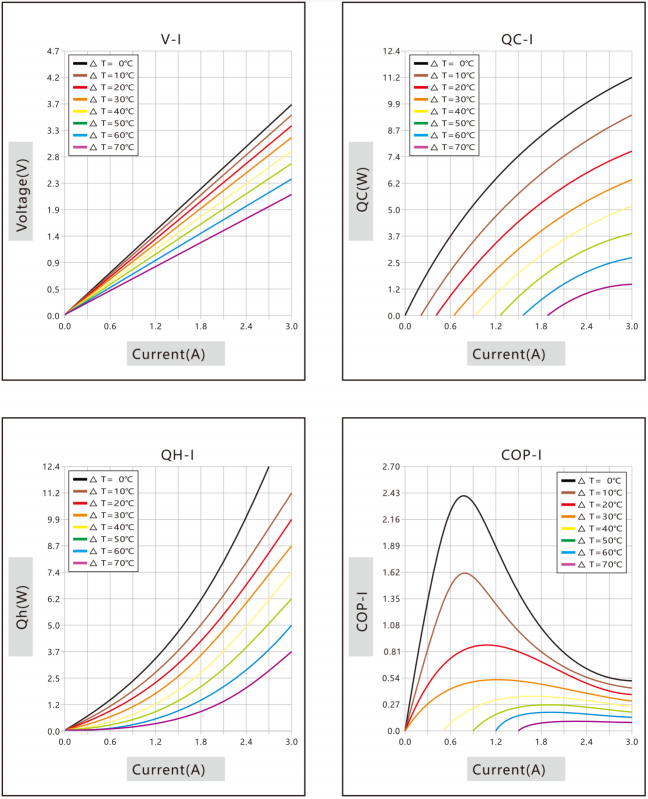

🔷Thermoelectric Peltier Device Performance Curve

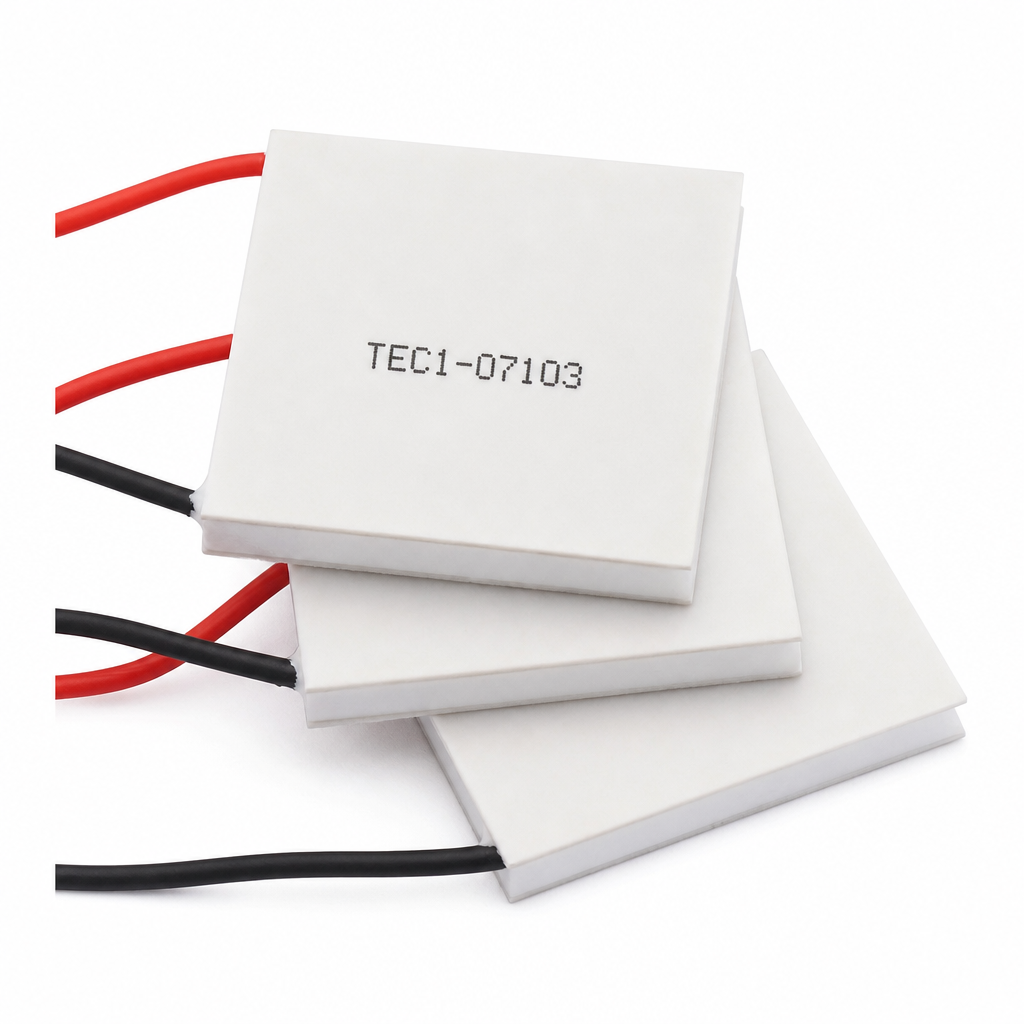

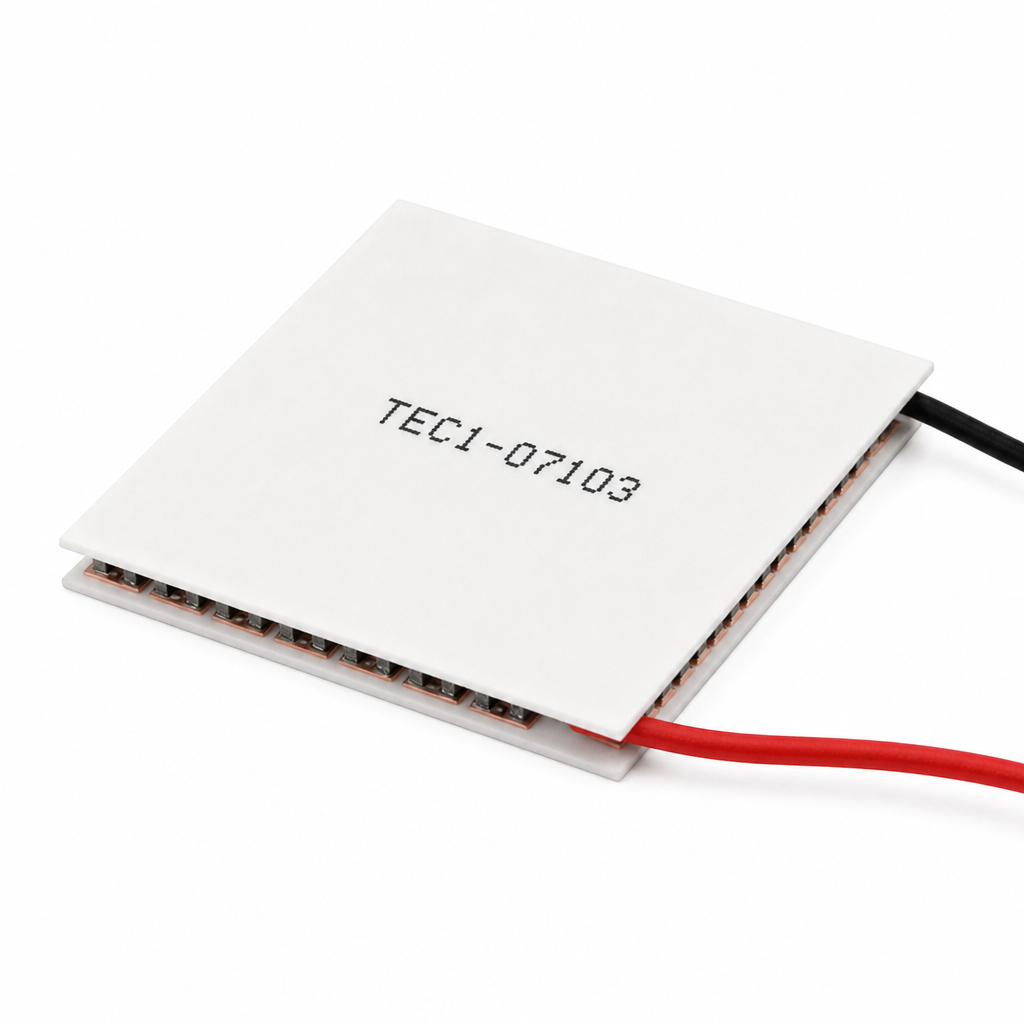

🔷Peltier Heater Product Overview
The TEC1-07103 is a semiconductor cooling module with standard dimensions of 30x30mm. It features a low-current design of 3A, with a maximum temperature difference of approximately 65–68°C and a cooling capacity of approximately 15–18W. This product is noise-free, vibration-free, and maintenance-free. It can switch between cooling and heating modes by reversing the current direction, making it suitable for low-power, precision temperature control applications such as beauty devices, portable mini-refrigerators, and medical equipment.

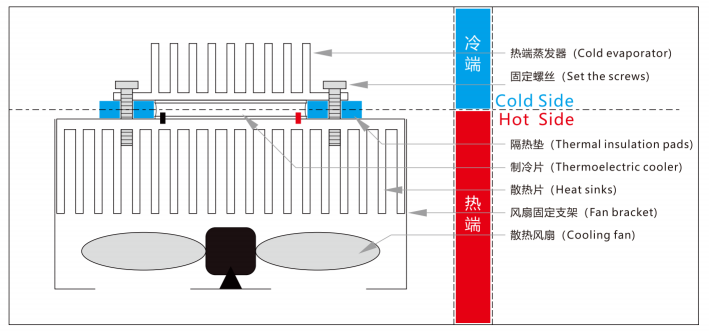

🔷Peltiers Product Structure
