The TEC1-07102 is a semiconductor cooling module with standard dimensions of 30 x 30 mm. It is designed for a low current of 2.2 A, with a maximum temperature difference of approximately 65–68 °C and a cooling capacity of approximately 12–15 W. 🟧 Price List Contact Customer Service 🟦 Certifications Contact Customer Service ⬜ Product PDF Spec Contact Customer Service 🟪 Contact customer Contact Customer Service 🟨 MOQ:1 Pcs 🟥 Fast Delivery:2-15 Days 🟩 Source Factory：Online Factory Video 🟫 Multiple Payment Methods：T/T|PayPal|Alipay ⬛ Pre|After Service：+86 13377785035|xyy@kkg.tw

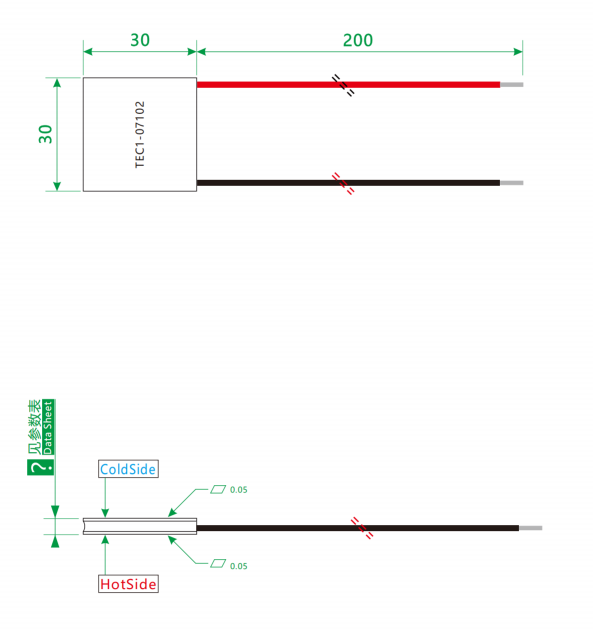

🔷Thermoelectric Peltier Device Product Drawing
🔷TEC Cooler Basic Performance Spec
| Type Model | Chip | ΔTmax (°C) | ACR (Ω) | Umax (V) | Imax (A) | Pmax (W) | Size (mm) |
|---|---|---|---|---|---|---|---|
| TEC1-07102 | K18 | 60 | 3.01 | 8.5 | 2.2 | 19 | 30×30×4.2 |
| TEC1-07102 | K28 | 65 | 3.01 | 8.5 | 2.2 | 19 | 30×30×5.2 |
| TEC1-07102 | K38 | 70 | 3.01 | 8.5 | 2.2 | 19 | 30×30×6.2 |
🔷Peltier Heater Additional Performance Spec
| Parameter | Specification |
|---|---|
| Substrate | 96% alumina 0.76mm + oxygen‑free copper 0.4mm, sintered process |
| Lead Wire | Ultra‑soft silicone wire, 22 AWG, L=200mm |
| Terminals | Not included as standard; can be installed upon request |
| Mounting Pressure | 2.3 kg (0.25 kg/cm²) |
| Packaging | Polystyrene (PS) foam box |
| Sealant | 704 silicone rubber |
| Max. Temperature Resistance | Bismuth‑tin eco‑friendly solder, melting point 138°C |
| Storage Conditions | Temperature < 120°C, Humidity < 60% RH |

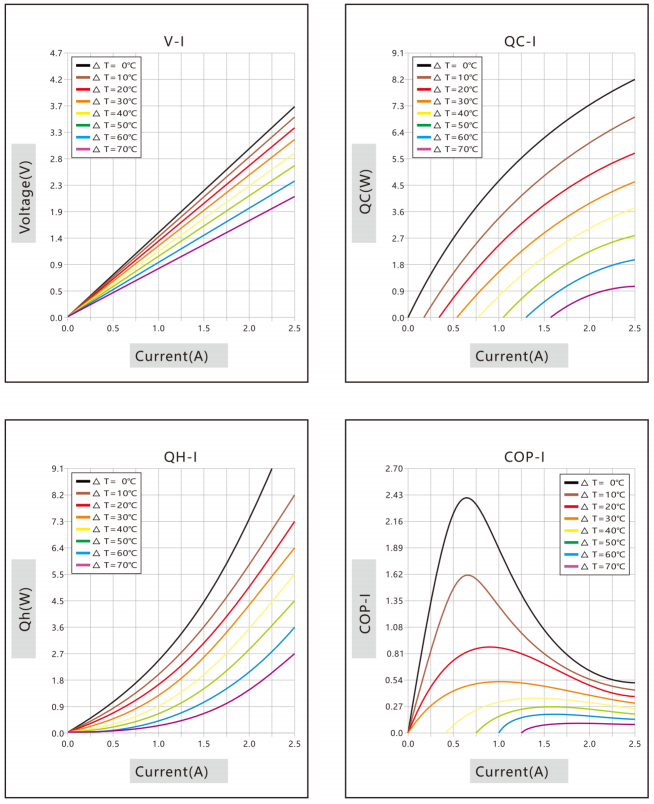

🔷Peltier Element Cooler Performance Curve
🔷Peltier Effect CoolerPeltiers Product Overview
The TEC1-07102 is a semiconductor cooling module with standard dimensions of 30 x 30 mm. It is designed for a low current of 2.2 A, with a maximum temperature difference of approximately 65–68 °C and a cooling capacity of approximately 12–15 W. This product is noise-free, vibration-free, and maintenance-free. It can switch between cooling and heating modes by reversing the current direction, making it suitable for low-power, precision temperature control applications such as precision instruments and small medical devices.
🔷Thermoelectric Peltier Module Product Applications
1. Insulin Cooler: This is one of its most core applications. It is commonly used in DIY or portable insulin coolers, utilizing semiconductor cooling to provide a low-temperature storage environment of 2–8°C for insulin, making it suitable for carrying during short trips. However, please note that due to limitations in heat dissipation and ambient temperature, such solutions are typically used as emergency or short-term alternatives, and their temperature control accuracy still falls short of that of professional medical-grade equipment.
2. Temperature Control for Precision Equipment: In the industrial sector, it is used in small medical instruments, communications equipment, and automotive electronics to provide stable temperature management for precision components, ensuring their operational performance remains unaffected by fluctuations in ambient temperature.
3. Portable Cooling: Integrated into small refrigerators and car refrigerators to provide cooling in compact spaces.
4. Electronic Device Cooling: Used in DIY cooling back covers for smartphones or tablets, it rapidly reduces device heat through active cooling, enhancing the user experience and operational stability.
5. Wearable Cooling: Applied in high-end neck-worn fans, it blows cool air several degrees lower than the ambient temperature, providing greater comfort during outdoor activities.
