The TEC1-07102 is a 25x25mm semiconductor cooling module designed for a low current of 2.2A, with a maximum temperature difference of approximately 65–70°C and a cooling capacity of approximately 10–13W. 🟧 Price List Contact Customer Service 🟦 Certifications Contact Customer Service ⬜ Product PDF Spec Contact Customer Service 🟪 Contact customer Contact Customer Service 🟨 MOQ:1 Pcs 🟥 Fast Delivery:2-15 Days 🟩 Source Factory：Online Factory Video 🟫 Multiple Payment Methods：T/T|PayPal|Alipay ⬛ Pre|After Service：+86 13377785035|xyy@kkg.tw

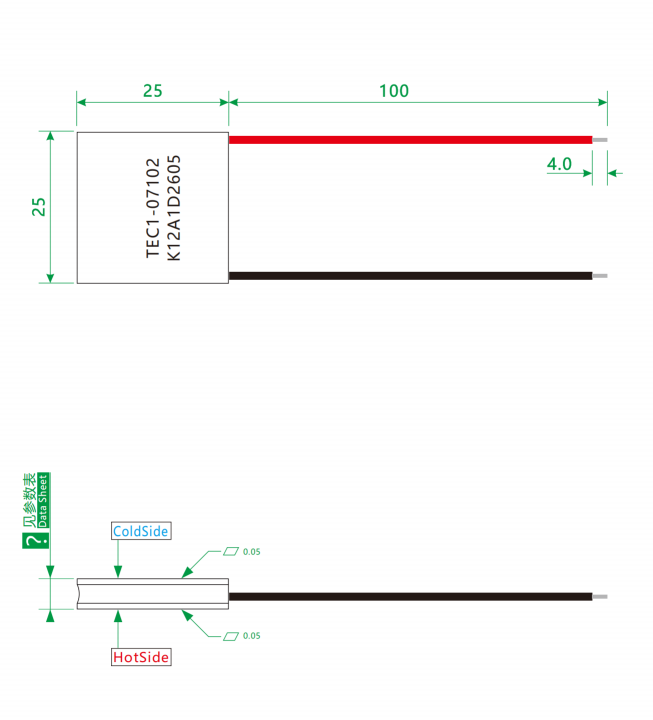

🔷Peltier Cooling Module Product Drawing
🔷Thermoelectric Cooler Peltier Basic Performance Spec
| Type Model | Chip | ΔTmax (°C) | ACR (Ω) | Umax (V) | Imax (A) | Pmax (W) | Size (mm) |
|---|---|---|---|---|---|---|---|
| TEC1-07102 | K12 | 60 | 3.01 | 8.5 | 2.2 | 19 | 25×25×3.6 |
| TEC1-07102 | K20 | 65 | 3.01 | 8.5 | 2.2 | 19 | 25×25×4.4 |
| TEC1-07102 | K28 | 70 | 3.01 | 8.5 | 2.2 | 19 | 25×25×5.2 |
🔷TEC Cooler Additional Performance Spec
| Parameter | Specification |
|---|---|
| Substrate | 96% alumina 0.76mm + oxygen‑free copper 0.4mm, sintered process |
| Lead Wire | Silicone wire, 24 AWG, L=100mm |
| Terminals | Not included as standard; can be installed upon request |
| Mounting Pressure | 1.5 kg (0.25 kg/cm²) |
| Packaging | Polystyrene (PS) foam box |
| Sealant | 704 silicone rubber |
| Max. Temperature Resistance | Tin‑lead solder, melting point 138°C |
| Storage Conditions | Temperature < 120°C, Humidity < 60% RH |

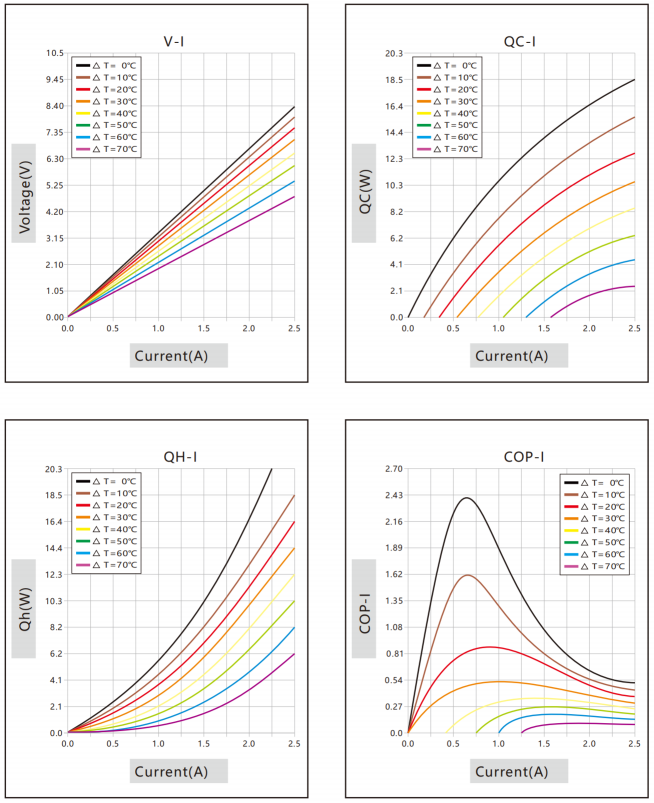

🔷Peltier Module Performance Curve
🔷Peltier Cooler Product Overview
The TEC1-07102 is a 25x25mm semiconductor cooling module designed for a low current of 2.2A, with a maximum temperature difference of approximately 65–70°C and a cooling capacity of approximately 10–13W. This product is noise-free, vibration-free, and maintenance-free, and can switch between cooling and heating modes by reversing the current direction. With extremely low power consumption, it is suitable for precision temperature control applications—such as micro-sensors, precision instruments, and wearable devices—where power consumption and space constraints are critical.
🔷Thermoelectric Cooler Product Features
1. Core Advantages of Solid-State Devices: Noiseless, vibration-free, maintenance-free operation, and high reliability; they also feature extremely fast response times, cooling immediately upon power-up.
2. Dual-Function Design with Flexible Switching: By reversing the current direction, the device can freely switch between cooling and heating modes to meet the needs of different scenarios.
3. Wide Range of Applications, Integrated into Everyday Life: Thanks to its low power consumption and compact size, it is widely used in various scenarios, from small appliances to everyday devices, such as:
4. Portable Cooling Devices: Serves as the core cooling component in mini-refrigerators and car refrigerators.
5. Electronic Cooling Products: Integrated into smartphone cooling cases and tablet coolers to effectively lower device temperatures.
6. Personal Care and Medical Applications: Used for the “cooling” functions in beauty devices and hair removal devices, or as a core module in medical emergency solutions such as insulin coolers.
7. Wearable Device Innovations: Also used in high-end neck fans to actively blow cool air.
