The TEC1-07101 is a 25x25mm semiconductor cooling module designed for ultra-low current operation at 1.4A, with a maximum temperature difference of approximately 65–70°C and a cooling capacity of approximately 8–10W. 🟧 Price List Contact Customer Service 🟦 Certifications Contact Customer Service ⬜ Product PDF Spec Contact Customer Service 🟪 Contact customer Contact Customer Service 🟨 MOQ:1 Pcs 🟥 Fast Delivery:2-15 Days 🟩 Source Factory：Online Factory Video 🟫 Multiple Payment Methods：T/T|PayPal|Alipay ⬛ Pre|After Service：+86 13377785035|xyy@kkg.tw

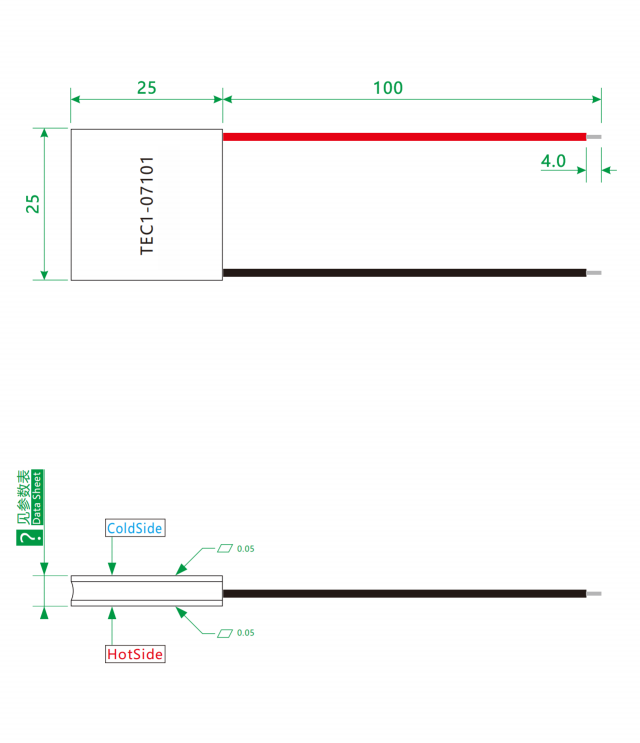

🔷Thermoelectric Generator Product Drawing
🔷Thermoelectric Generator Modules Basic Performance Spec
| Type Model | Chip | ΔTmax (°C) | R (Ω) | Umax (V) | Imax (A) | Pmax (W) | Size (mm) |
|---|---|---|---|---|---|---|---|
| TEC1-07101 | K18 | 60 | 4.74 | 8.5 | 1.4 | 12 | 25×25×4.2 |
| TEC1-07101 | K28 | 65 | 4.74 | 8.5 | 1.4 | 12 | 25×25×5.2 |
| TEC1-07101 | K38 | 70 | 4.74 | 8.5 | 1.4 | 12 | 25×25×6.2 |
🔷Thermo Cooler Additional Performance Spec
| Parameter | Specification |
|---|---|
| Substrate | 96% alumina 0.76mm + oxygen‑free copper 0.4mm, sintered process |
| Lead Wire | Silicone wire, 24 AWG, L=100mm |
| Terminals | Not included as standard; can be installed upon request |
| Mounting Pressure | 1.5 kg (0.25 kg/cm²) |
| Packaging | Polystyrene (PS) foam box |
| Sealant | 704 silicone rubber |
| Max. Temperature Resistance | Tin‑lead solder, melting point 138°C |
| Storage Conditions | Temperature < 120°C, Humidity < 60% RH |

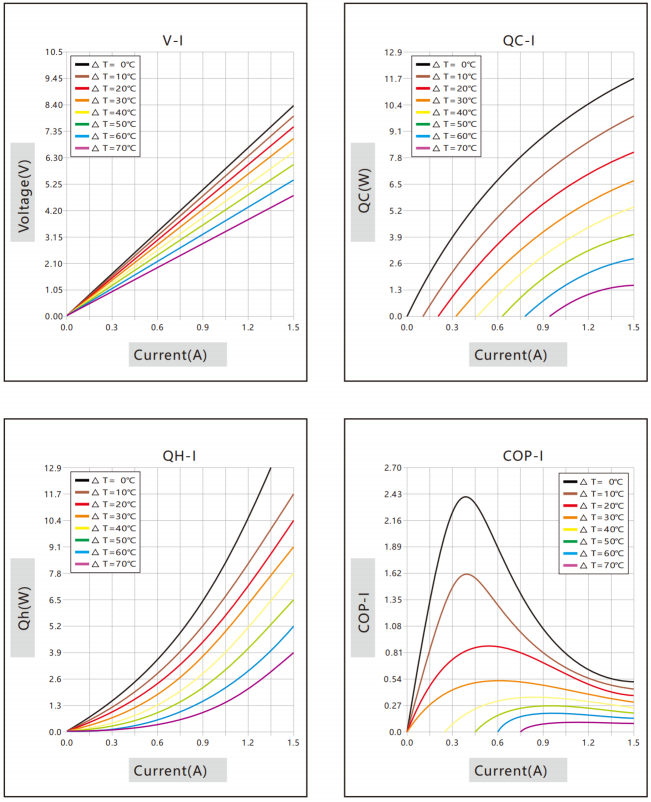

🔷Peltier Heater Performance Curve

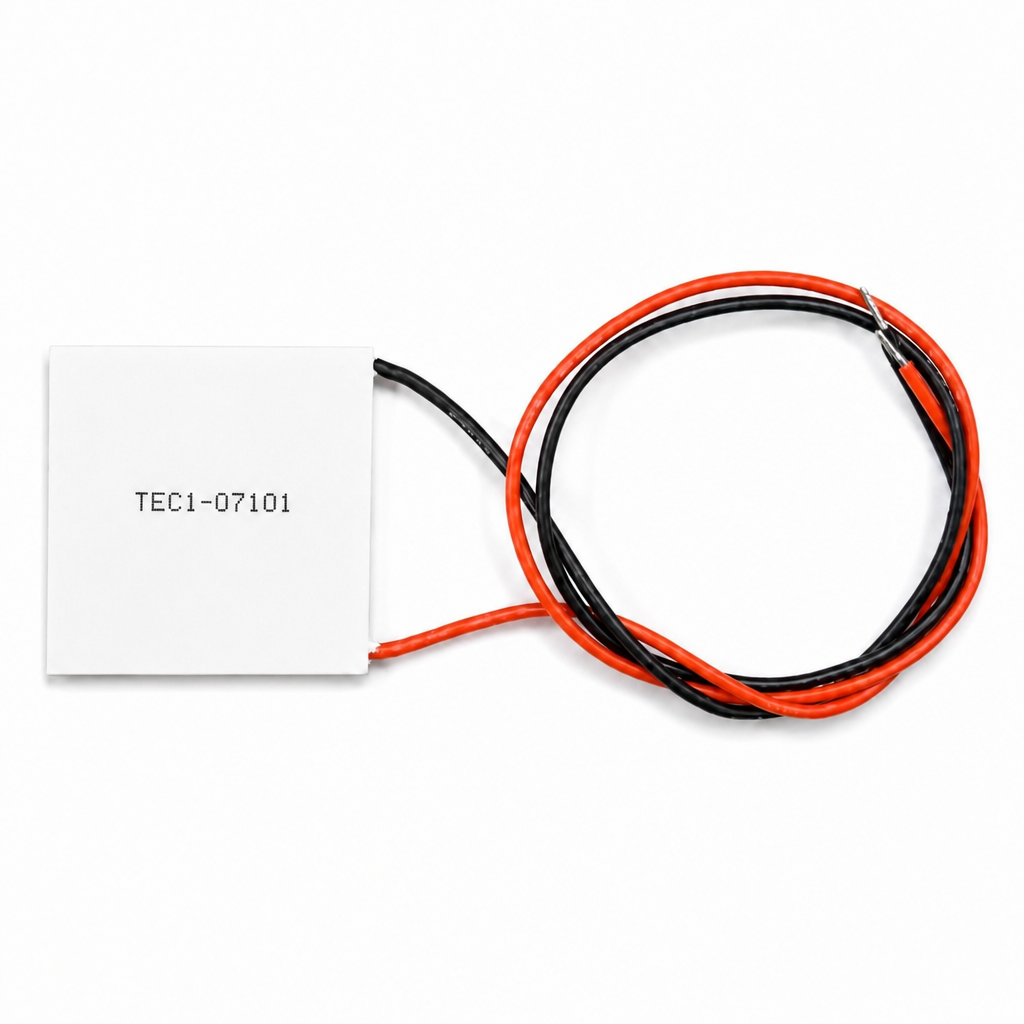

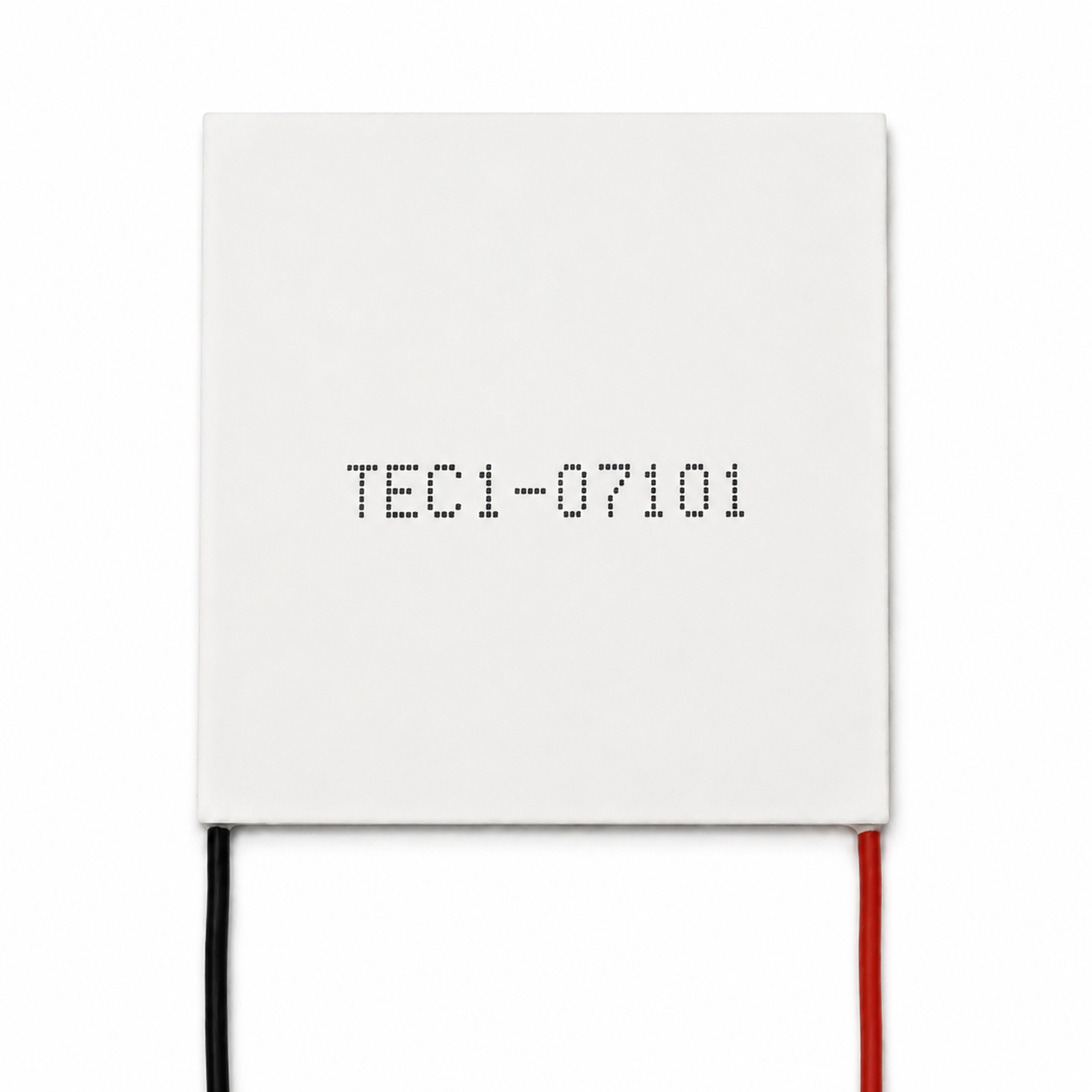

🔷Peltier Heater Product Overview
The TEC1-07101 is a 25x25mm semiconductor cooling module designed for ultra-low current operation at 1.4A, with a maximum temperature difference of approximately 65–70°C and a cooling capacity of approximately 8–10W. This product is noise-free, vibration-free, and maintenance-free; it can switch between cooling and heating modes by reversing the current direction. With extremely low power consumption and minimal heat generation, it is suitable for precision temperature control applications—such as micro-sensors, wearable devices, and precision instruments—where power consumption and space constraints are critical.
🔷TEC Peltier Product Applications
1. Professional and Industrial Equipment: This is one of its core application areas. Due to its extremely low power consumption and precise temperature control, it is often integrated into medical devices, communication base stations, and automotive electronics to provide temperature control for critical components such as precision sensors or small lasers. It is also used to dissipate heat from optical systems in some professional laser projectors.
2. Creative DIY and Portable Projects: For makers and DIY enthusiasts, its low power consumption makes it ideal for creating USB-powered portable devices such as mini-refrigerators and phone cooling cases, delivering an “plug-and-cool” experience. In cutting-edge designs, it is even used as the core component of mini air conditioners.
