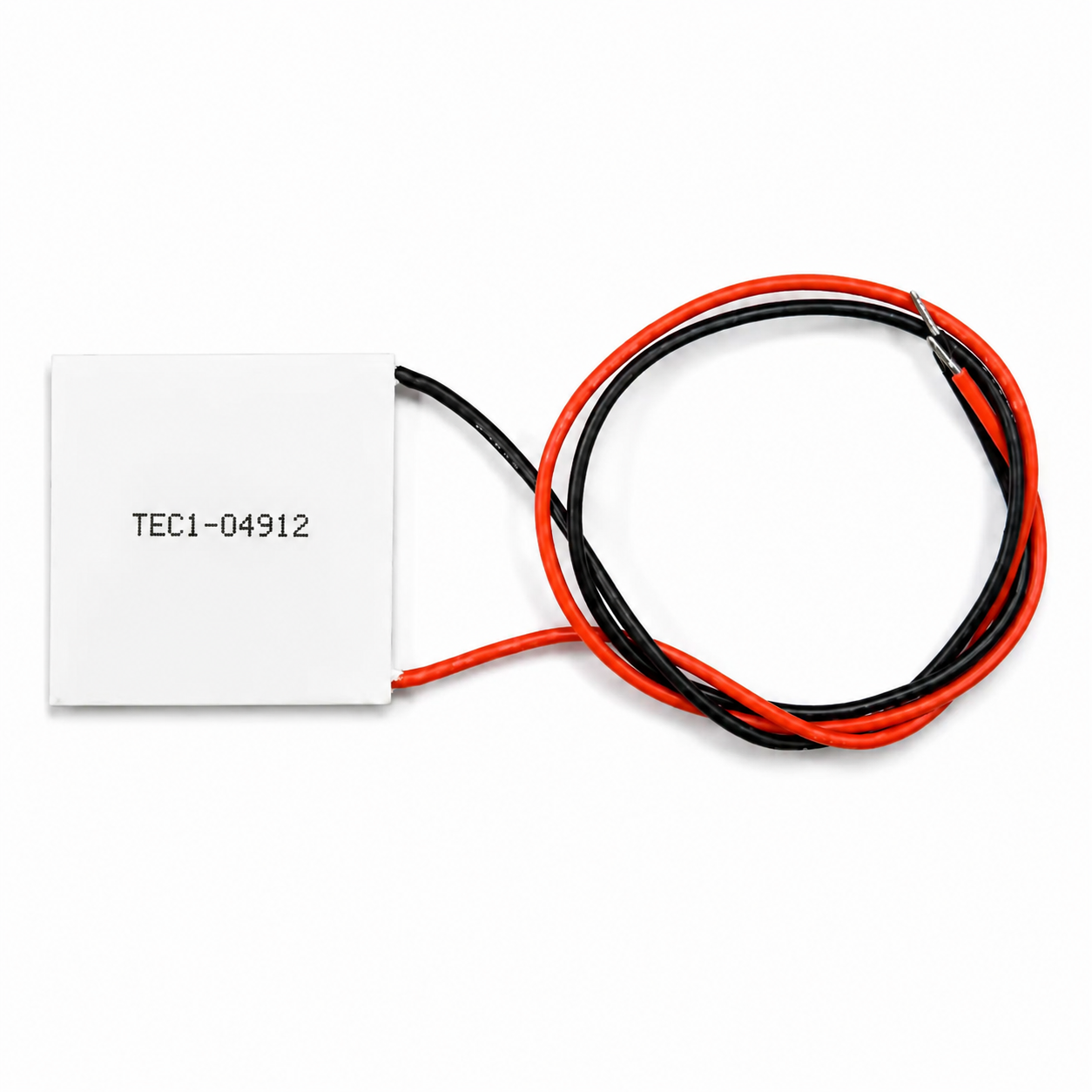

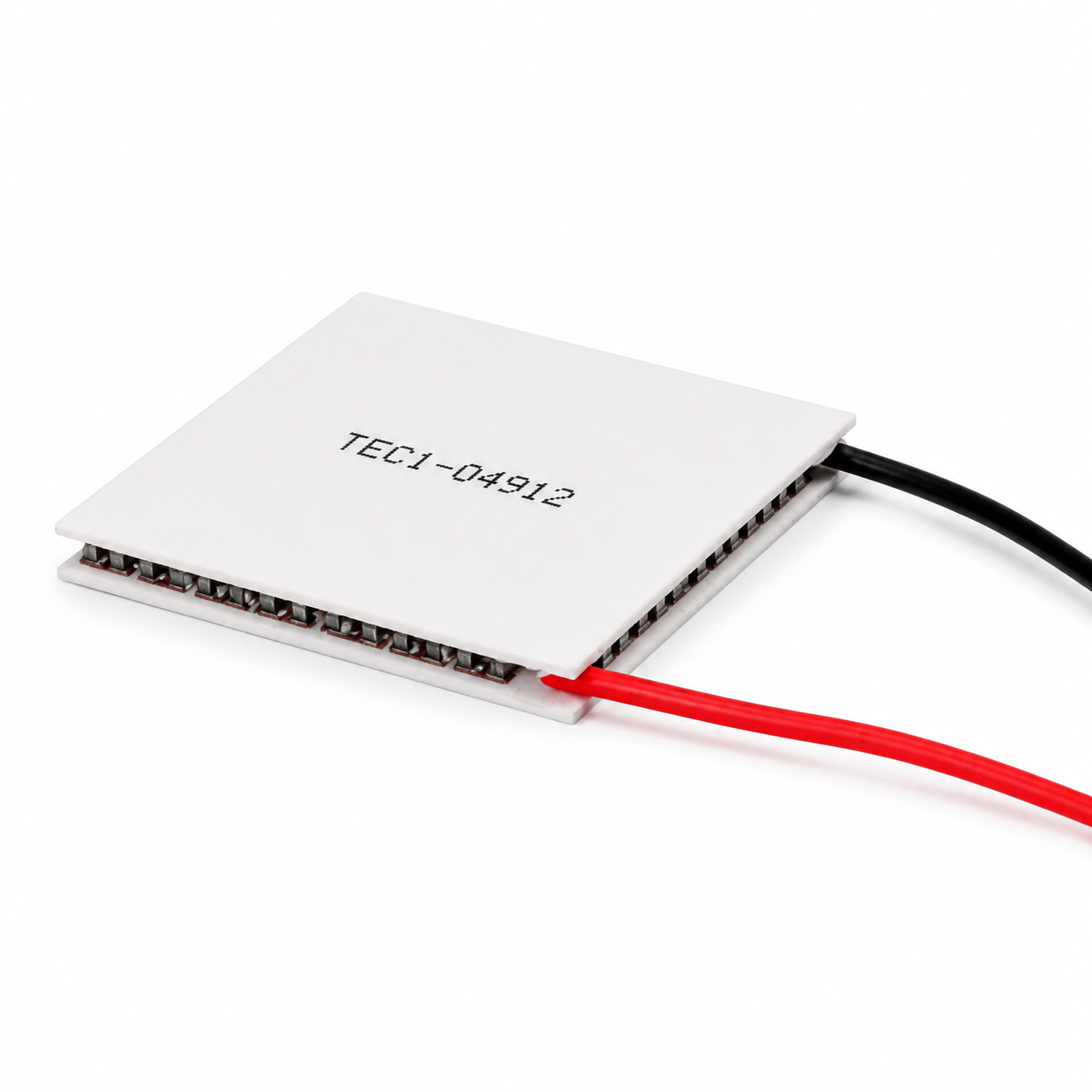

The TEC1-04912 is a 30x30mm standard-size semiconductor cooling module designed for high current (12A), with a maximum temperature difference of approximately 65–70°C and a cooling capacity of up to approximately 45–50W. 🟧 Price List Contact Customer Service 🟦 Certifications Contact Customer Service ⬜ Product PDF Spec Contact Customer Service 🟪 Contact customer Contact Customer Service 🟨 MOQ:1 Pcs 🟥 Fast Delivery:2-15 Days 🟩 Source Factory：Online Factory Video 🟫 Multiple Payment Methods：T/T|PayPal|Alipay ⬛ Pre|After Service：+86 13377785035|xyy@kkg.tw

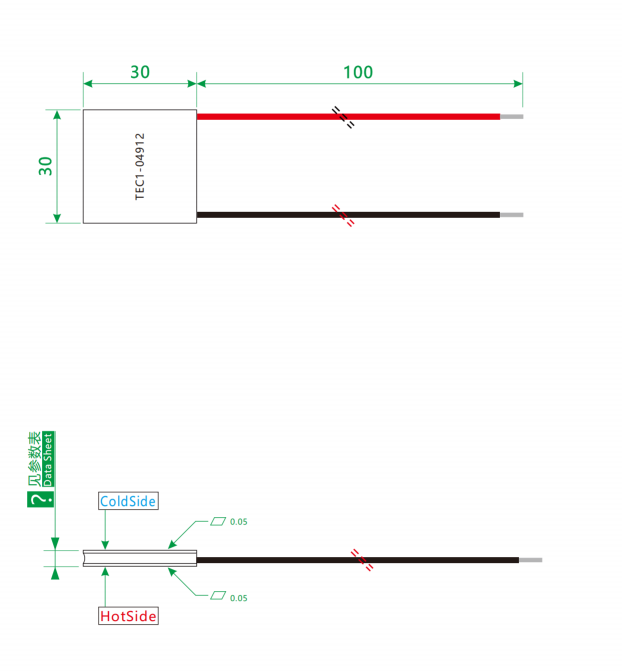

🔷Thermoelectric Peltier Device Product Drawing
🔷TEC Module Basic Performance Spec
| Type Model | Chip | ΔTmax (°C) | ACR (Ω) | Umax (V) | Imax (A) | Pmax (W) | Size (mm) |
|---|---|---|---|---|---|---|---|
| TEC1-04912 | K10 | 60 | 0.38 | 5.8 | 12 | 70 | 30×30×3.4 |
| TEC1-04912 | K12 | 65 | 0.38 | 5.8 | 12 | 70 | 30×30×3.6 |
| TEC1-04912 | K14 | 70 | 0.38 | 5.8 | 12 | 70 | 30×30×3.8 |
🔷Thermoelectric Cooler Module Additional Performance Spec
| Parameter | Specification |
|---|---|
| Substrate | 96% alumina 0.76mm + oxygen‑free copper 0.4mm, sintered process |
| Lead Wire | Ultra‑soft silicone wire, 20 AWG (dual wire), L=200mm |
| Terminals | Not included as standard; can be installed upon request |
| Mounting Pressure | 2.3 kg (0.25 kg/cm²) |
| Packaging | Polystyrene (PS) foam box |
| Sealant | 704 silicone rubber |
| Max. Temperature Resistance | Bismuth‑tin eco‑friendly solder, melting point 138°C |
| Storage Conditions | Temperature < 120°C, Humidity < 60% RH |

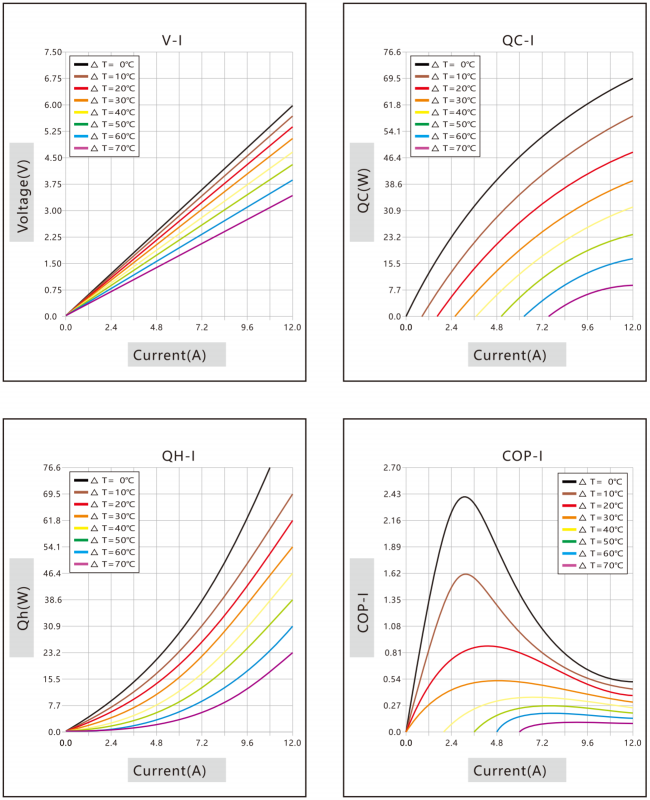

🔷Peltiers Performance Curve
🔷Semiconductor Cooler Product Overview
The TEC1-04912 is a 30x30mm standard-size semiconductor cooling module designed for high current (12A), with a maximum temperature difference of approximately 65–70°C and a cooling capacity of up to approximately 45–50W. This product is noise-free, vibration-free, and maintenance-free, and can switch between cooling and heating modes by reversing the current direction. With its powerful performance, it is suitable for applications requiring efficient cooling, such as car refrigerators, laser cooling, and high-power electronic equipment.
🔷Peltier Cooling Module Product Applications
1. Portable Cooling Devices: These are core components of high-power car refrigerators and portable mini-refrigerators, offering faster cooling speeds and lower temperatures than low-current cooling plates. They are also suitable for small cooling systems such as hot and cold water dispensers that require temperature control.
2. Industrial and Electronic Cooling: Thanks to their compact size and precise temperature control capabilities, they can be used to provide efficient localized cooling for high-power lasers, specific industrial equipment, or electronic components that generate significant heat.
3. High-Power DIY Projects: For enthusiasts who enjoy hands-on projects, they are an ideal choice for building rapid-cooling cups, small chillers, or implementing “water-cooled overclocking” for computers and other devices.
