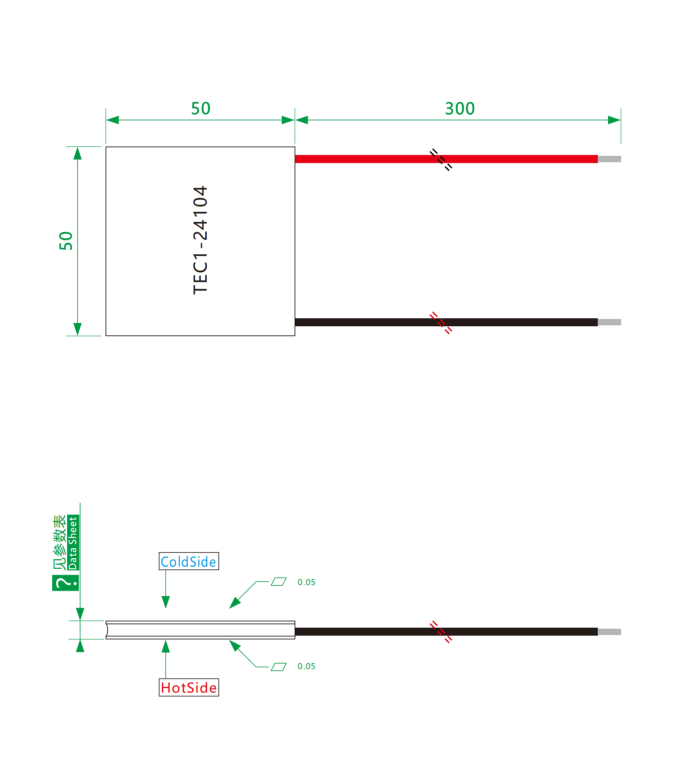

🔷Product Drawing
![]()
🔷Basic Performance Spec
Model: TEC1‑24104
Size: 50*50mm
Type: TEC Cooler / Thermoelectric Peltier Module
This high‑power TEC cooling module belongs to large‑size TEC thermoelectric cooler series, alternative for TEC‑12706, TEC‑12705, TEC‑12704, TEC‑04902, TEC‑09706 thermoelectric peltier parts. It supports stable cooling performance with high temperature difference, works as a reliable 50x50 thermoelectric TEC cooler for high‑load cooling projects.
| Type Mode | Chip | ▲Tmax(°C) | ACR (Ω) | Umax (V) | Imax (A) | Pmax (W) | Size (mm) |
|---|
| TEC1-24104 | K10 | 60 | | | | | 50x50x3.4 |
| TEC1-24104 | K16 | 65 | 5.66 | 29 | 4 | 116 | 50x50x4.0 |
| TEC1-24104 | K22 | 70 | | | | | 50x50x4.6 |
🔷Additional Performance Spec
We provide optional waterproof TEC cooler element surface treatment, low‑voltage working version for special power‑supply demands. Bulk‑order and customized parameters are available for OEM TEC cooling module requirements. Contact our TEC cooler supplier team for custom TEC cooler plate solutions.
| Item | Specification |
|---|
| Substrate Material | 96% Alumina (0.76 mm) + Oxygen‑free Copper (0.4 mm), sintered assembly |
| Lead Wire | Extra‑soft silicone wire, 20 AWG, L = 300 mm |
| Terminal | Standard product without terminals; optional installation available upon request |
| Mounting Pressure | 6.2 kg (0.25 kg/cm²) |
| Packaging Standard | Polystyrene (PS) foam box |
| Sealing Compound | 704 silicone rubber sealant |
| Maximum Temperature Rating | Bismuth‑tin eco‑friendly solder, melting point 138°C |
| Storage Environment | Temperature < 120°C, Humidity < 60% RH |

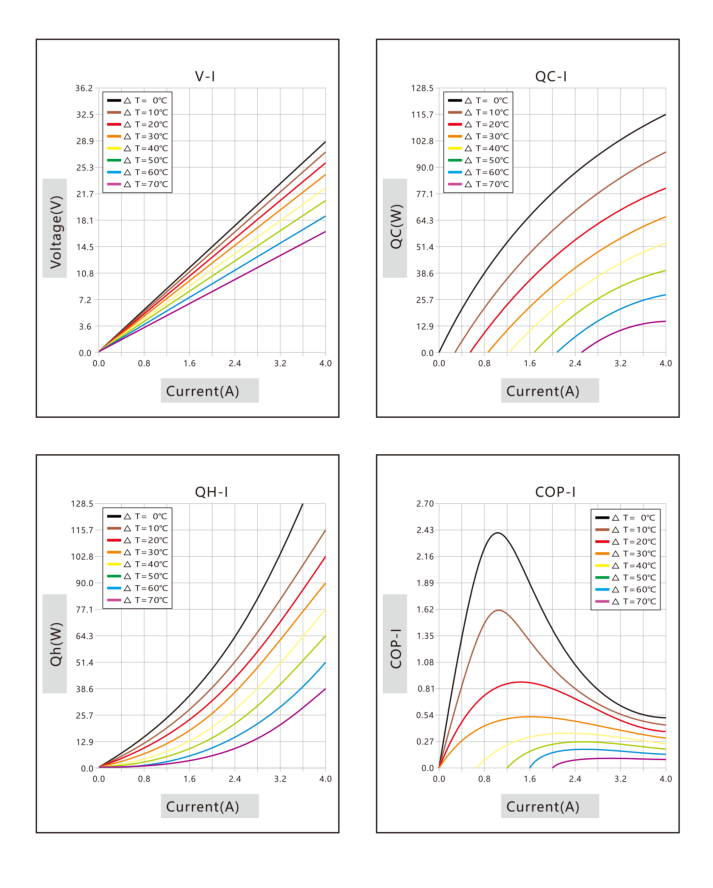

🔷Performance Curve
![]()
🔷Product Overview
Our TEC1‑24104 TEC cooler 50*50mm is a high‑quality thermoelectric peltier cooling element. As one of large‑size TEC thermoelectric cooler, this TEC cooler module is widely supplied by our manufacturer. We support wholesale thermoelectric cooler and customized thermoelectric TEC cooling unit for global buyers.
🔷Product Features
Standard 50*50mm dimension, mature large‑size TEC thermoelectric cooler structure
- High‑temperature‑difference cooling performance, stable high‑power TEC cooling module output
- Optional waterproof TEC cooler element surface for harsh‑environment use
- Compatible with multiple controller systems, available in low‑voltage TEC cooler configuration
- Support OEM & custom TEC cooler plate service, bulk‑order TEC peltier cooler acceptable
- Long service life, no‑vibration, maintenance‑free solid‑state thermoelectric cooling
🔷Product Structure
The TEC1‑24104 TEC cooler module is constructed with two ceramic substrates, thermoelectric pellets, soldered copper conductors and lead wires. The 50*50mm large ceramic plate provides bigger heat‑exchange area compared with 40x40mm TEC cooler. We can adjust internal structure for customized thermoelectric TEC cooling unit upon OEM request.
🔷Work Principle
This TEC cooler works based on the Peltier effect. When DC current flows through the TEC cooler module, one ceramic side absorbs heat (cold side) while the other side releases heat (hot side). By changing the direction of DC power, the cooling and heating sides can be swapped. It is the core working principle of all thermoelectric peltier cooling modules.
