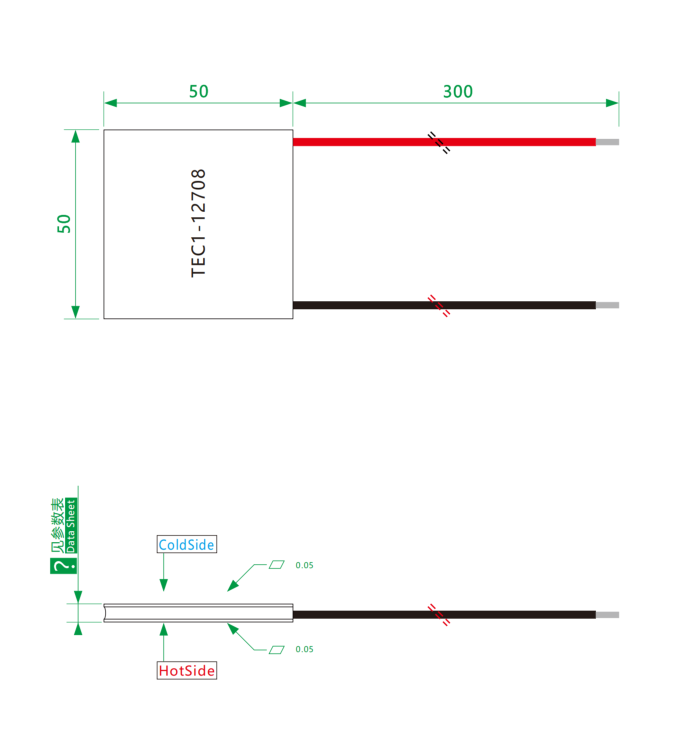

🔷Product Drawing
![]()
🔷Basic Performance Spec
| Type Mode | Chip | ΔTmaxΔTmax (°C) | ACRohmACRohm (Ω) | UmaxUmax (V) | ImaxImax (A) | PmaxPmax (W) | Size (mm) |
|---|
| TEC1-12708 | K10 | 60 | | 15.2 | 8 | 122 | 50x50x3.4 |
| TEC1-12708 | K16 | 65 | 1.48 | | | | 50x50x4.0 |
| TEC1-12708 | K22 | 70 | | | | | 50x50x4.6 |
🔷 Additional Performance Spec
| Item | Specification |
|---|
| Substrate Material | 96% Alumina (0.76 mm) + Oxygen‑free Copper (0.4 mm), sintered assembly |
| Lead Wire | Extra‑soft silicone wire, 18 AWG, L = 300 mm |
| Terminal | Standard product without terminals; optional installation available upon request |
| Mounting Pressure | 6.2 kg (0.25 kg/cm²) |
| Packaging Standard | Polystyrene (PS) foam box |
| Sealing Compound | 704 silicone rubber sealant |
| Maximum Temperature Rating | Bismuth‑tin eco‑friendly solder, melting point 138°C |
| Storage Environment | Temperature < 120°C, Humidity < 60% RH |

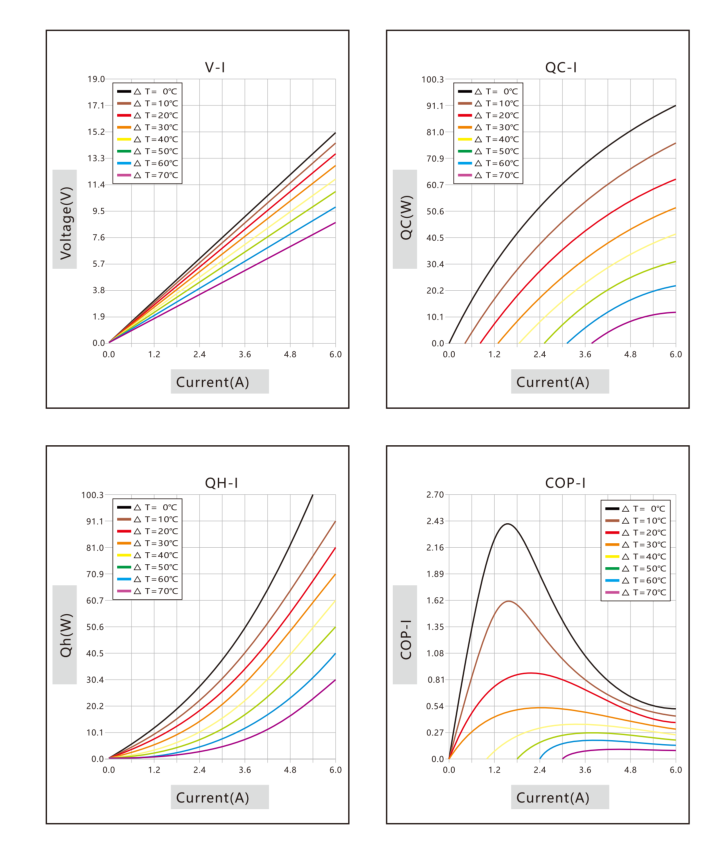

🔷 Performance Curve
![]()
🔷 Product Overview

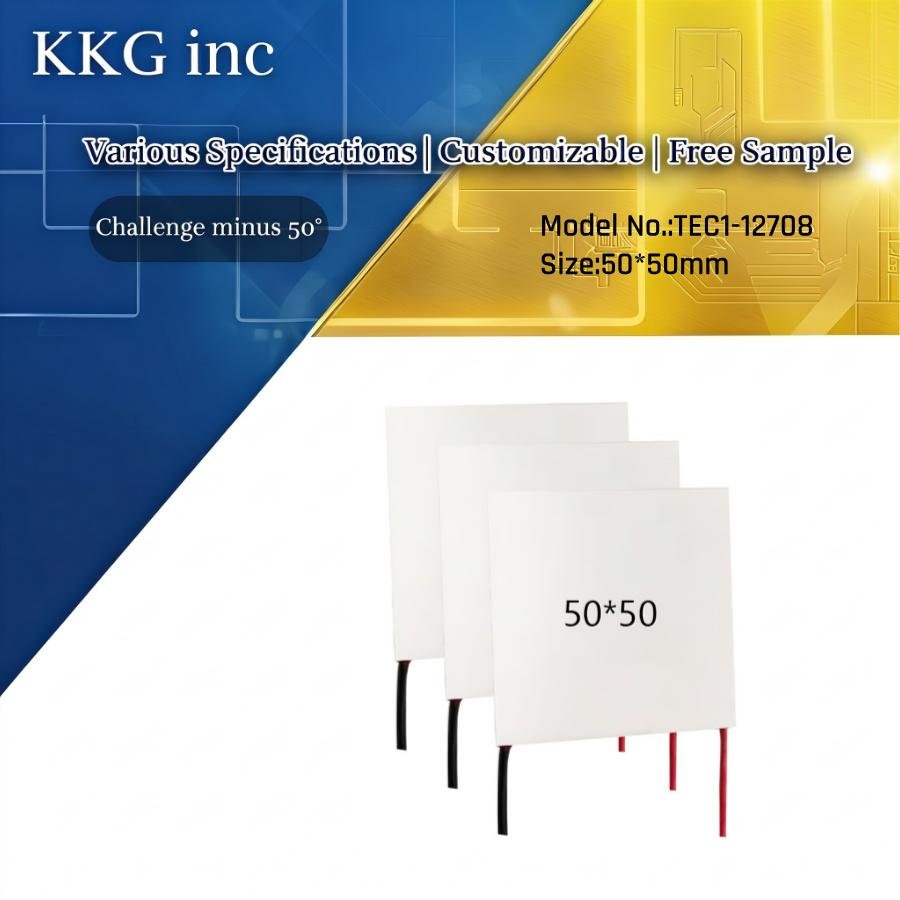

Our TEC1‑12708 50×50mm peltier module cooler is a high performance peltier module cooler built for industrial‑grade solid‑state thermoelectric cooling.
As a reliable 12V peltier module cooler, this large‑size peltier module delivers stable cooling performance without refrigerant.
We are a professional peltier module cooler manufacturer, offering both retail and bulk peltier module cooler supply for global buyers.
🔷 Product Features
High‑power peltier module cooler with 50*50mm large cooling areaHigh temperature difference for efficient heat transferLow noise peltier module cooler, vibration‑free coolingIndustrial peltier module cooler, durable ceramic substrateSupport custom peltier module cooler modification & OEM peltier module cooler serviceOptional 24V upgrade version and waterproof peltier module cooler solution🔷Product Applications
This peltier module cooler is widely used for:
Peltier module cooler for laser equipment temperature control
- Peltier module cooler for industrial chiller
- Peltier module cooler for medical device constant‑temperature cooling
- Peltier module cooler for lab refrigeration & laboratory instrument
- Semiconductor temperature control, small cabinet cooling, beauty equipment cooling
🔷 Product Structure
![]()
🔷Operation Principle
The thermoelectric cooling effect makes this peltier module cooler transfer heat from one ceramic side to another once DC power is supplied. Solid‑state heat pump, no moving parts.
🔷FAQ
Q1: Can I buy this 50*50mm peltier module cooler in bulk?
A: Yes, we are a peltier module cooler supplier, we support wholesale peltier module cooler with competitive bulk price.
Q2: Can you provide OEM service for the peltier module cooler?
A: OEM peltier module cooler and custom peltier module cooler solutions are available, including customized size, voltage, cable and connector.
Q3: Is this high‑power peltier module cooler waterproof?
A: Standard TEC1‑12708 model is non‑waterproof. We can supply waterproof peltier module cooler upon request.
Q4: Can this industrial peltier module cooler work for laser cooling?
A: Absolutely, it is one of the popular choices used as peltier module cooler for laser equipment.
