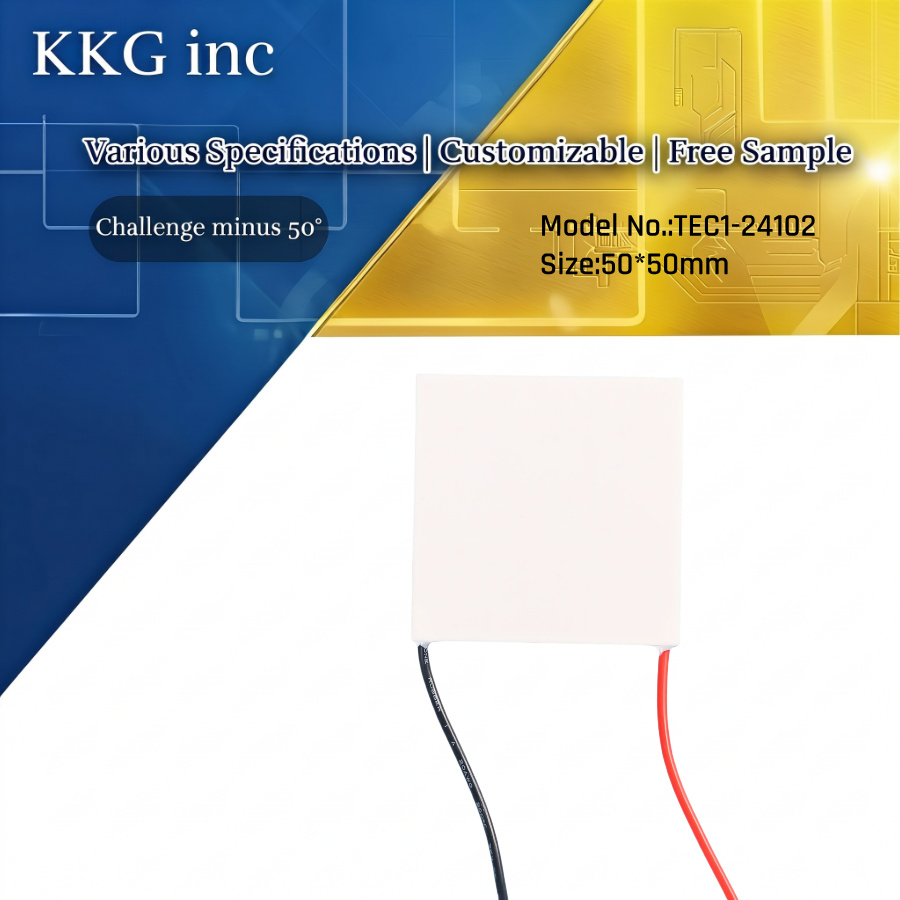

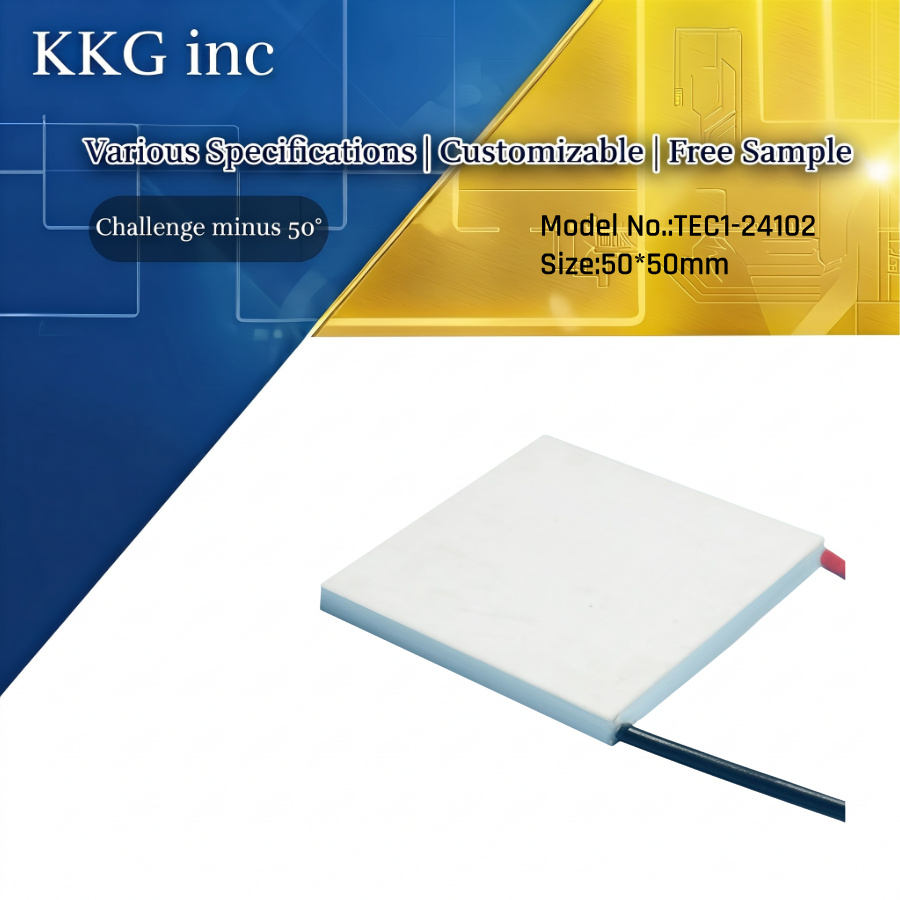

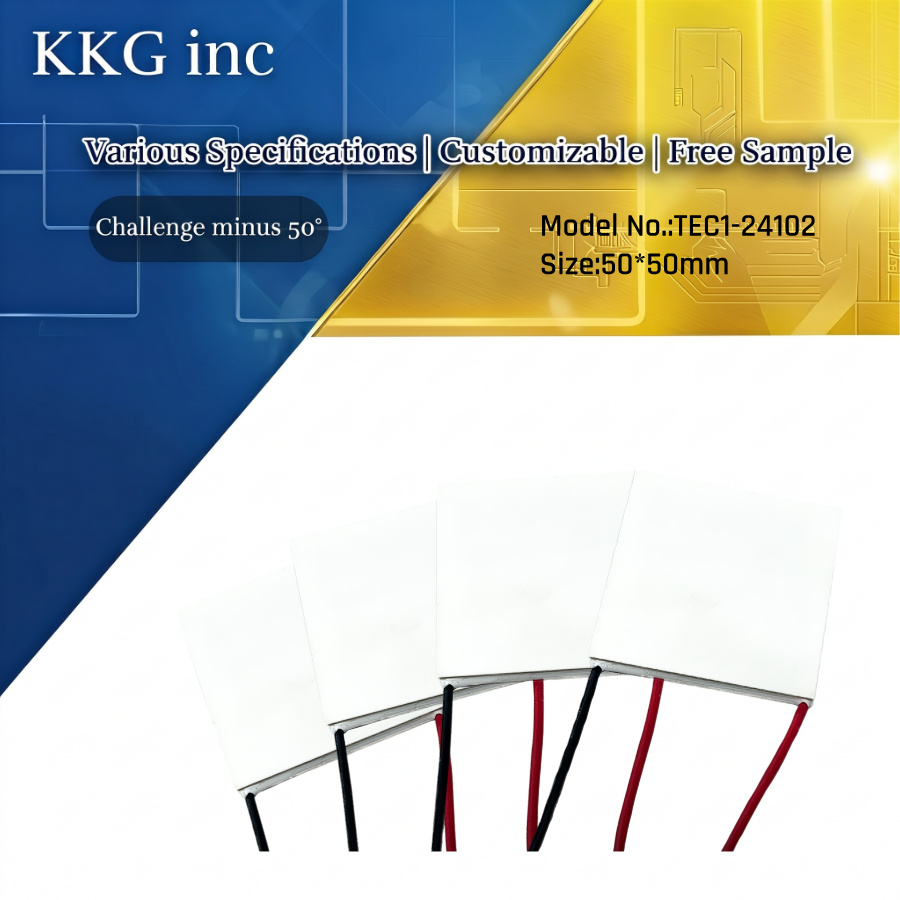

High‑power 50*50mm Thermoelectric Cooler Peltier TEC1‑24102. Wholesale & OEM custom peltier cooling module for industrial chiller, laser, medical temperature control. 🟧 Price List Contact Customer Service 🟦 Product PDF Spec Contact Customer Service ⬜ Certifications Contact Customer Service 🟪 Contact customer Contact Customer Service 🟨 MOQ:1 Pcs 🟥 Fast Delivery:2-15 Days 🟩 Source Factory：Online Factory Video 🟫 Multiple Payment Methods：T/T|PayPal|Alipay ⬛ Pre|After Service：+86 13377785035|xyy@kkg.tw

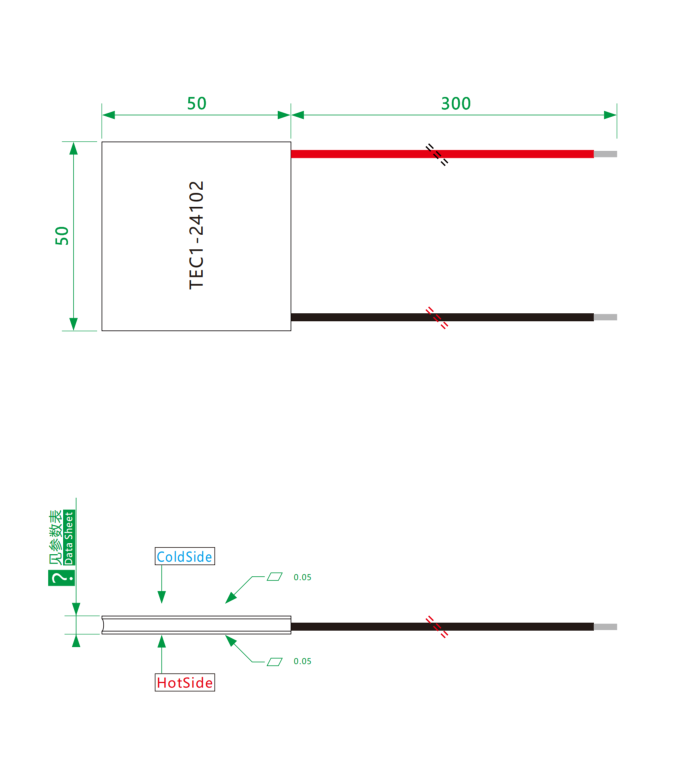

🔷Product Drawing
🔷Basic Performance Spec
| Type Mode | Chip | ΔTmaxΔTmax (°C) | ACRohmACRohm (Ω) | UmaxUmax (V) | ImaxImax (A) | PmaxPmax (W) | Size (mm) |
|---|---|---|---|---|---|---|---|
| TEC1-24102 | K14 | 60 | 10.28 | 29 | 2.2 | 64 | 50x50x3.8 |
| TEC1-24102 | K24 | 65 | 50x50x4.8 | ||||
| TEC1-24102 | K34 | 70 | 50x50x5.8 |
🔷Additional Performance Spec
| Item | Specification |
|---|---|
| Substrate Material | 96% Alumina (0.76 mm) + Oxygen‑free Copper (0.4 mm), sintered assembly |
| Lead Wire | Extra‑soft silicone wire, 20 AWG, L = 300 mm |
| Terminal | Standard product without terminals; optional installation available upon request |
| Mounting Pressure | 6.2 kg (0.25 kg/cm²) |
| Packaging Standard | Polystyrene (PS) foam box |
| Sealing Compound | 704 silicone rubber sealant |
| Maximum Temperature Rating | Bismuth‑tin eco‑friendly solder, melting point 138°C |
| Storage Environment | Temperature < 120°C, Humidity < 60% RH |

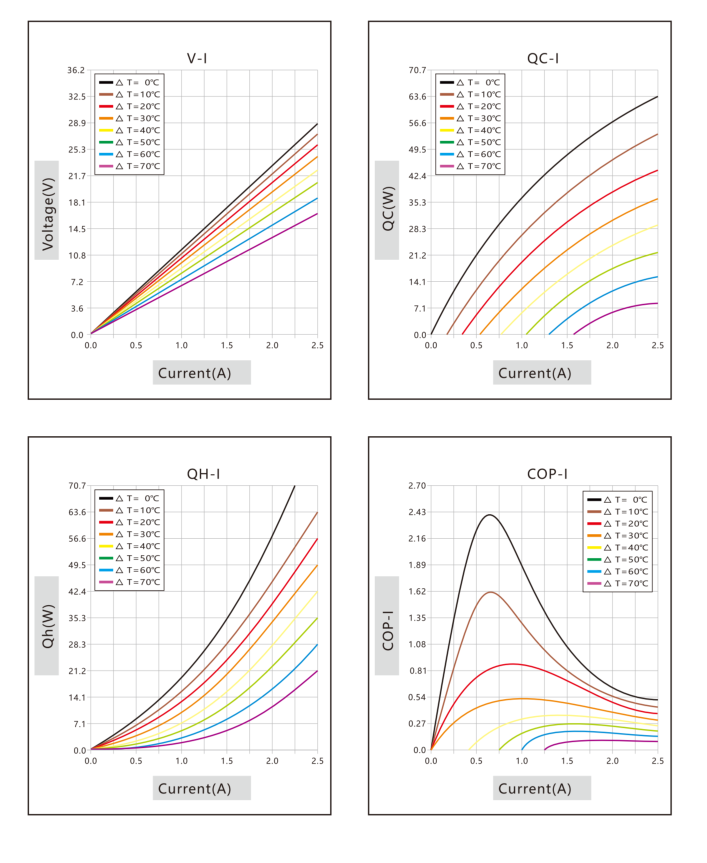

🔷Performance Curve
Our TEC1‑24102 TEC Cooler 50*50mm is a high‑power thermoelectric cooler peltier module. As one of our large‑size peltier elements, this 24V thermoelectric cooling component uses semiconductor thermoelectric refrigeration technology, no refrigerant required.
This 50x50mm thermoelectric cooler peltier is widely supplied to global wholesalers, OEM manufacturers and system engineers, also we provide custom thermoelectric cooler peltier service for special cooling projects.
50*50mm large‑size high‑power thermoelectric cooler peltier
🔷Product Applications
This thermoelectric cooler peltier module fits many industrial and commercial cooling projects:
‑ Thermoelectric cooling for industrial chiller
‑ Peltier module for laser cooling
‑ Thermoelectric cooler peltier for medical equipment
‑ Temperature control for laboratory instruments
‑ Small industrial refrigeration equipment
‑ CPU and electronic component auxiliary cooling
‑ Wine cabinet, car refrigerator and other thermoelectric refrigeration systems

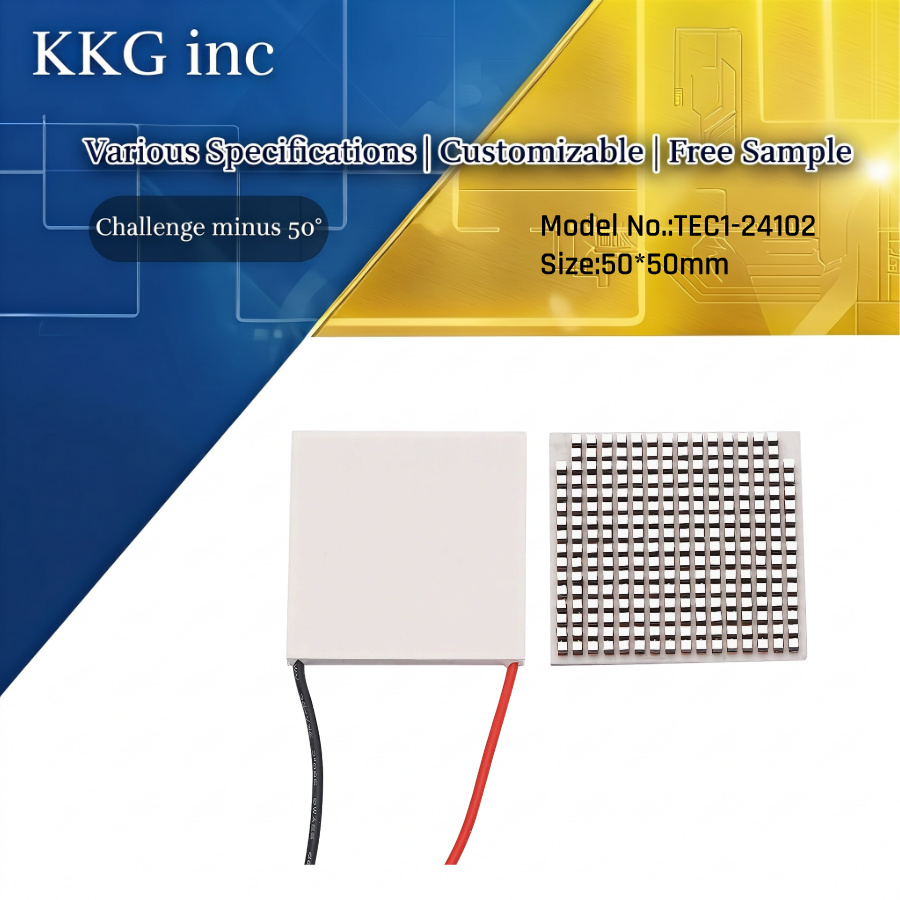

The TEC1‑24102 50*50mm thermoelectric cooler peltier consists of two high‑quality alumina ceramic plates, thermoelectric semiconductor pellets, copper conductive strips and insulated lead wires. All internal welding adopts high‑temperature solder to ensure long‑term reliability.
The thermoelectric cooler peltier works on the Peltier effect. When DC current passes through the semiconductor thermoelectric module, one ceramic side absorbs heat and becomes cold while the opposite side releases heat. By adjusting input current, users can realize accurate heating or cooling, achieve stable semiconductor temperature control without compressors or coolant.
