Explore the TEC1-12715 TEC Cooler 50x50mm, a Peltier effect thermoelectric cooling module for precise temperature control. Contact a thermoelectric element manufacturer for bulk orders, OEM, and custom solutions. 🟧 Price List Contact Customer Service 🟦 Product PDF Spec Contact Customer Service ⬜ Certifications Contact Customer Service 🟪 Contact customer Contact Customer Service 🟨 MOQ:1 Pcs 🟥 Fast Delivery:2-15 Days 🟩 Source Factory：Online Factory Video 🟫 Multiple Payment Methods：T/T|PayPal|Alipay ⬛ Pre|After Service：+86 13377785035|xyy@kkg.tw
| Type Mode | Chip | ▲Tmax(°C) | ACR (Ω) | Umax (V) | Imax (A) | Pmax (W) | Size (mm) |
|---|---|---|---|---|---|---|---|

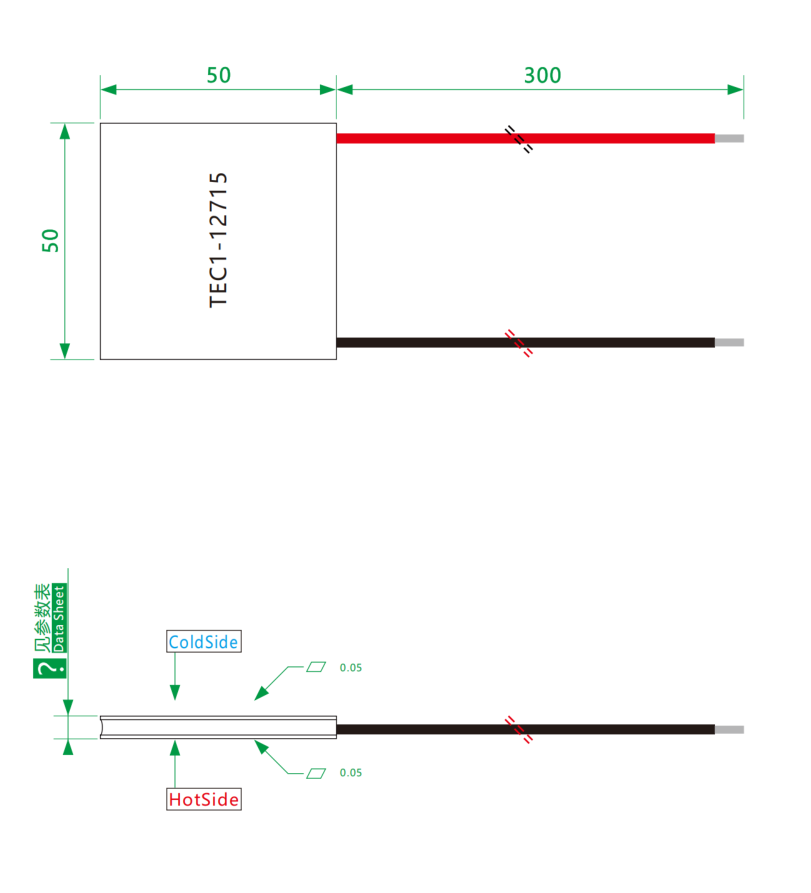

| TEC1-12715 | K10 | 60 | 0.79 | 15.2 | 15 | 228 | 50x50x3.4 |
| TEC1-12715 | K12 | 65 | 50x50x3.6 | ||||
| TEC1-12715 | K14 | 70 | 50x50x3.8 |
| Item | Specification |
|---|---|
| Substrate Material | 96% Alumina (0.76 mm) + Oxygen‑free Copper (0.4 mm), sintered assembly |
| Lead Wire | Extra‑soft silicone wire, 20 AWG, L = 300 mm (dual wires) |
| Terminal | Standard product without terminals; optional installation available upon request |
| Mounting Pressure | 6.2 kg (0.25 kg/cm²) |

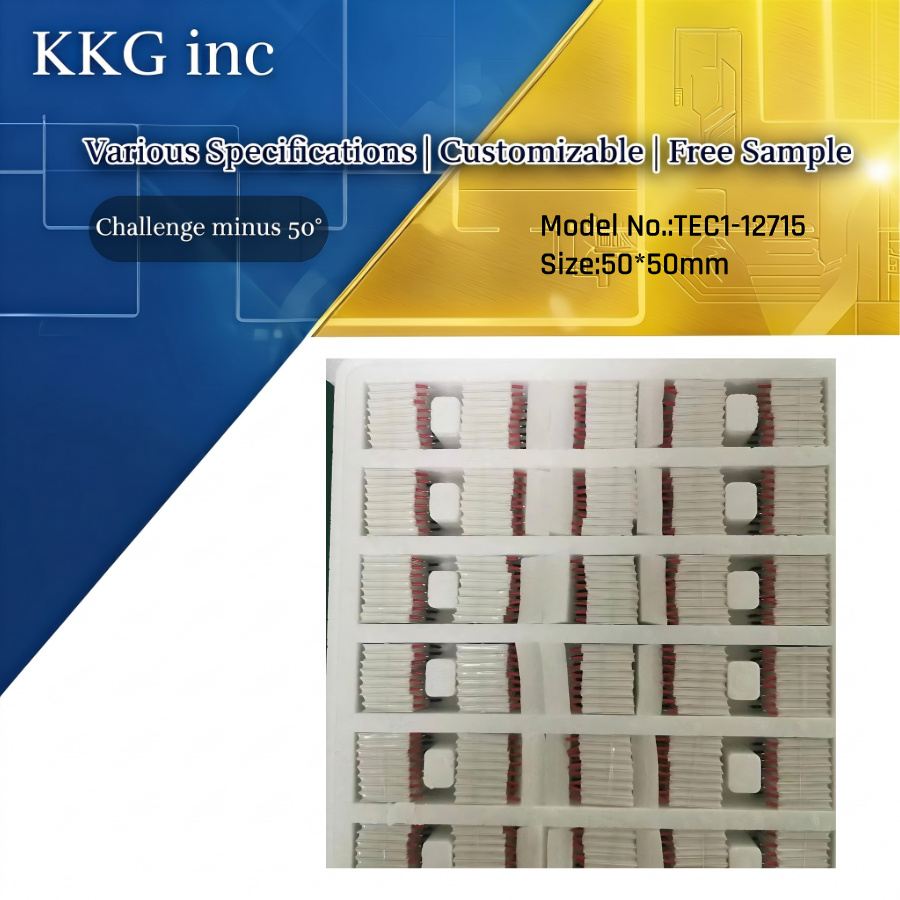

| Packaging Standard | Polystyrene (PS) foam box |
| Sealing Compound | 704 silicone rubber sealant |
| Maximum Temperature Rating | Bismuth‑tin eco‑friendly solder, melting point 138°C |
| Storage Environment | Temperature < 120°C, Humidity < 60% RH |
The TEC1-12715 operates through the Peltier effect. When direct current passes through the internal semiconductor elements, heat is absorbed on one side and released on the opposite side. Reversing the current direction reverses the hot and cold sides.
The module does not eliminate heat; it transfers heat from the cold side to the hot side. Therefore, the hot-side heat sink must dissipate both the heat removed from the cold side and the electrical power consumed by the module.
For reliable operation, engineers should consider current control, heat sink capacity, thermal interface quality, and the target temperature difference.
Q1: What is the TEC1-12715 TEC Cooler?
The TEC1-12715 is a 50x50mm Peltier effect thermoelectric cooling module designed for heat transfer and localized temperature control.
Q2: How do I select a suitable thermoelectric element?
Consider the required cooling capacity, operating voltage, current, temperature difference, hot-side temperature, and available heat dissipation space. Confirm the actual specifications before making a selection.
Q3: Can the TEC1-12715 be used for industrial temperature control?
It may be suitable for certain industrial temperature control applications if its verified performance meets the system's thermal requirements.
Q4: Do you offer OEM or custom thermoelectric elements?
OEM or customized solutions may be discussed based on the project requirements, order quantity, product specifications, and manufacturing feasibility.
Q5: How can I purchase thermoelectric elements in bulk?
Contact our sales team with the required model, dimensions, operating conditions, estimated quantity, and customization requirements. This information helps us evaluate the appropriate product and quotation.
Q6: How can I find a reliable thermoelectric element manufacturer?
Compare product specifications, technical documentation, manufacturing capabilities, quality control procedures, customization support, and communication efficiency before selecting a supplier.
Q7: Can the TEC1-12715 operate continuously?
Continuous operation depends on the module's rated operating conditions, hot-side temperature, heat dissipation design, and temperature cycling requirements. Follow the manufacturer's specifications for reliable use.
