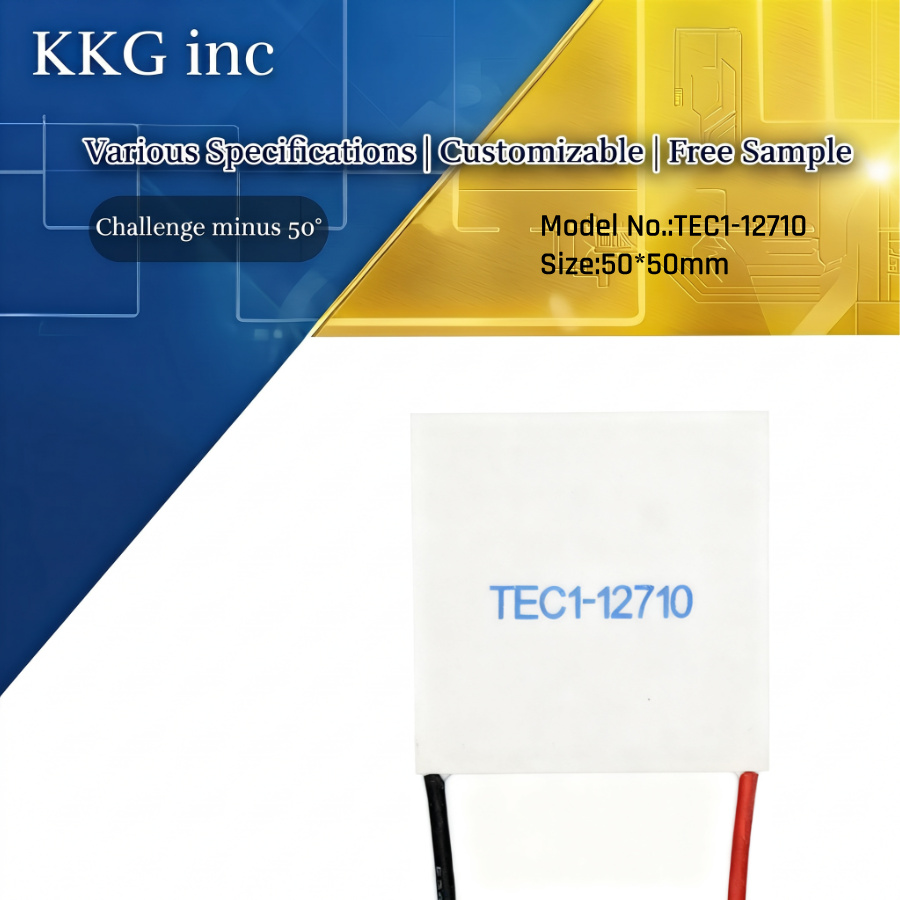

TEC1‑12710 50*50mm high‑power square peltier device cooler. Industrial thermoelectric cooling element for laser, chiller, medical & lab equipment. OEM & wholesale available. 🟧 Price List Contact Customer Service 🟦 Product PDF Spec Contact Customer Service ⬜ Certifications Contact Customer Service 🟪 Contact customer Contact Customer Service 🟨 MOQ:1 Pcs 🟥 Fast Delivery:2-15 Days 🟩 Source Factory：Online Factory Video 🟫 Multiple Payment Methods：T/T|PayPal|Alipay ⬛ Pre|After Service：+86 13377785035|xyy@kkg.tw

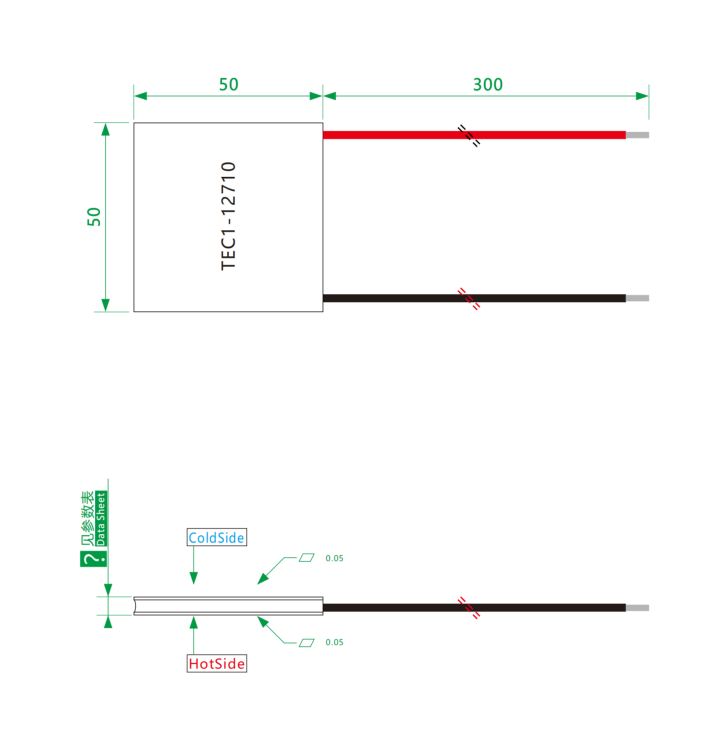

🔷Product Drawing
🔷Product Drawing
| Type Mode | Chip | ▲Tmax(°C) | ACR (Ω) | Umax (V) | Imax (A) | Pmax (W) | Size (mm) |
|---|---|---|---|---|---|---|---|
| TEC1-12710 | K10 | 60 | 1.19 | 15.2 | 10 | 152 | 50x50x3.4 |
| TEC1-12710 | K14 | 65 | 50x50x3.8 | ||||
| TEC1-12710 | K18 | 70 | 50x50x4.2 |
🔷 Additional Performance Spec
| Item | Specification |
|---|---|
| Substrate Material | 96% Alumina (0.76 mm) + Oxygen‑free Copper (0.4 mm), sintered assembly |
| Lead Wire | Extra‑soft silicone wire, 18 AWG, L = 300 mm |
| Terminal | Standard product without terminals; optional installation available upon request |
| Mounting Pressure | 6.2 kg (0.25 kg/cm²) |
| Packaging Standard | Polystyrene (PS) foam box |
| Sealing Compound | 704 silicone rubber sealant |
| Maximum Temperature Rating | Bismuth‑tin eco‑friendly solder, melting point 138°C |
| Storage Environment | Temperature < 120°C, Humidity < 60% RH |

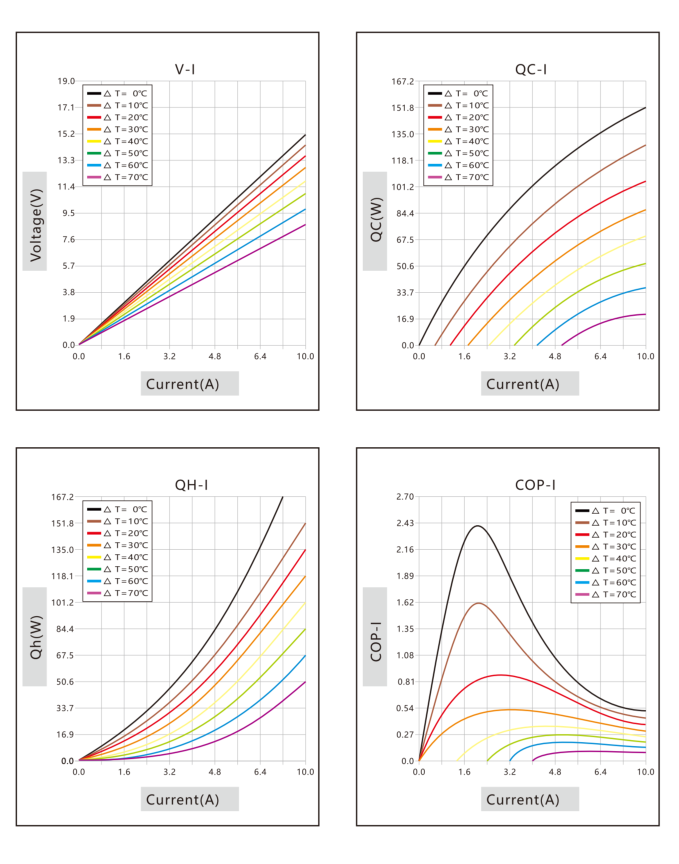

🔷 Performance Curve
🔷 Product Overview
Our TEC1‑12710 TEC Cooler 50*50mm is a high‑quality peltier device cooler, also known as thermoelectric peltier cooling device. As a large‑size square thermoelectric module, this high‑power peltier device cooler is widely supplied as bulk peltier device cooler for global buyers. We are a reliable peltier device cooler supplier offering wholesale peltier cooling device and OEM peltier device cooler service.
🔷 Product Features
🔷Product Applications
This peltier device cooler fits a wide range of temperature‑control projects:
Peltier device cooler for industrial chiller
🔷 Product Structure
🔷Operation Principle
This peltier device cooler works on the Peltier effect. When DC current flows through the thermoelectric module, one ceramic surface absorbs heat (cold side) and the other releases heat (hot side). By reversing the current direction, this thermoelectric peltier cooling device can switch between cooling and heating mode. Good heat dissipation on the hot side is required to achieve the best cooling result.
🔷FAQ
Q1: Can I buy this 50×50mm peltier device cooler in wholesale?
A: Yes, we are a peltier device cooler supplier. Wholesale peltier cooling device & bulk‑order services are available.
Q2: Can you make an OEM peltier device cooler with modified leads or cable length?
A: We provide custom peltier thermoelectric cooling device service, support custom‑size peltier cooling device and customized wire terminals.
Q3: What heat sink do I need for this high‑power peltier device cooler TEC1‑12710?
A: A high‑performance heat sink plus cooling fan is strongly recommended for this high‑current peltier device cooler, otherwise the cooling performance will drop sharply.
