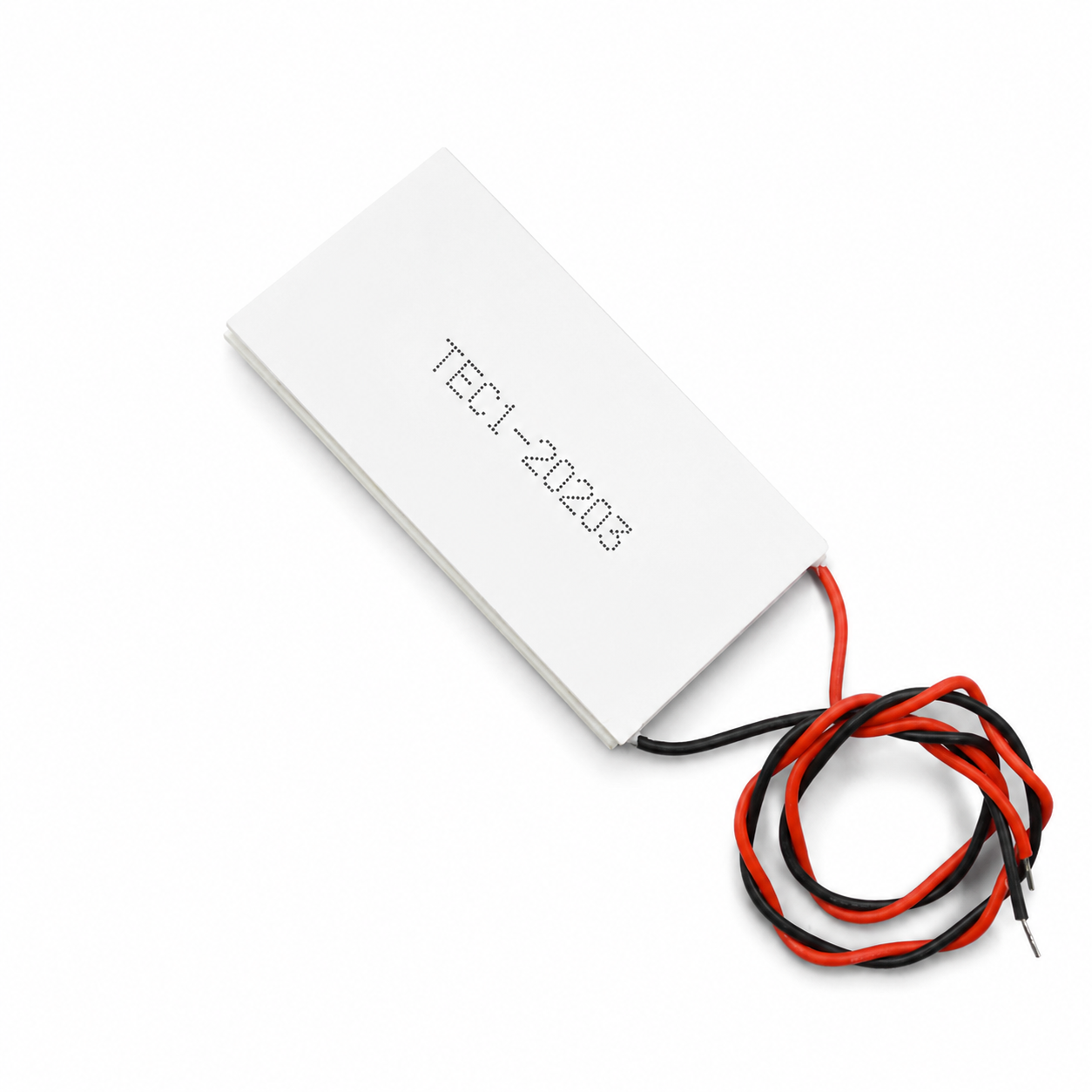

The TEC1-20203 is a semiconductor cooling module designed for ultra-large-area, high-power, industrial-grade precision temperature control. With dimensions of 50 × 100 mm, it is one of the largest models in the series. Featuring an ultra-large, rectangular, symmetrical package design, it provides an exceptionally generous heat exchange area and is optimized for large industrial equipment, ultra-high-power laser modules, medical imaging equipment, industrial analytical instruments, and other equipment requiring large-area temperature control with moderate power requirements. 🟧 Price List Contact Customer Service 🟦 Certifications Contact Customer Service ⬜ Product PDF Spec Contact Customer Service 🟪 Contact customer Contact Customer Service 🟨 MOQ:1 Pcs 🟥 Fast Delivery:2-15 Days 🟩 Source Factory：Online Factory Video 🟫 Multiple Payment Methods：T/T|PayPal|Alipay ⬛ Pre|After Service：+86 13377785035|xyy@kkg.tw

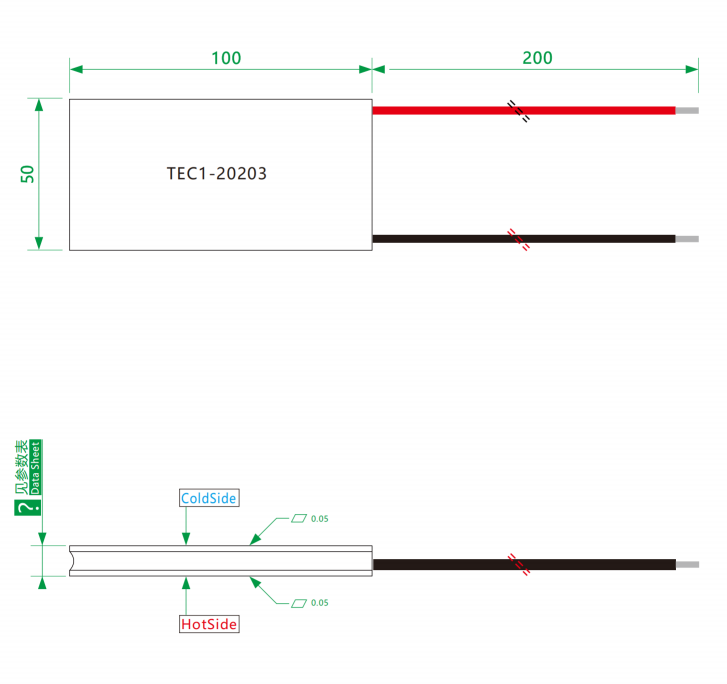

🔷Thermoelectric Generator Modules Product Drawing
🔷Thermo Cooler Basic Performance Spec
| Type Mode | Chip Model | ΔTmax (°C) | ACR (Ω) | Umax (V) | Imax (A) | Pmax (W) | Size (mm) |
|---|---|---|---|---|---|---|---|
| TEC1-20203 | K32 | 60 | 6.24 | 24.0 | 3.0 | 72 | 50×100×5.6 |
| TEC1-20203 | K38 | 65 | 6.24 | 24.0 | 3.0 | 72 | 50×100×6.2 |
| TEC1-20203 | K44 | 70 | 6.24 | 24.0 | 3.0 | 72 | 50×100×6.8 |
🔷Peltier Heater Additional Performance Spec
| Parameter | Specification |
|---|---|
| Substrate Material | 96% alumina (0.76 mm) + oxygen-free copper (0.4 mm), sintered process |
| Lead Wire Specification | Silicone wire, 20 AWG, L = 300 mm |
| Terminal Specification | Not included as standard; available upon request |
| Assembly Pressure | 12.5 kg (0.25 kg/cm²) |
| Packaging Standard | Polystyrene (PS) foam box |
| Sealant Material | 704 silicone rubber sealant |
| Maximum Temperature Resistance | Bismuth-tin eco-friendly solder, melting point 138°C |
| Storage Environment | Temperature < 120°C, Humidity < 60% Rh |
🔷TEC Peltier Performance Curve

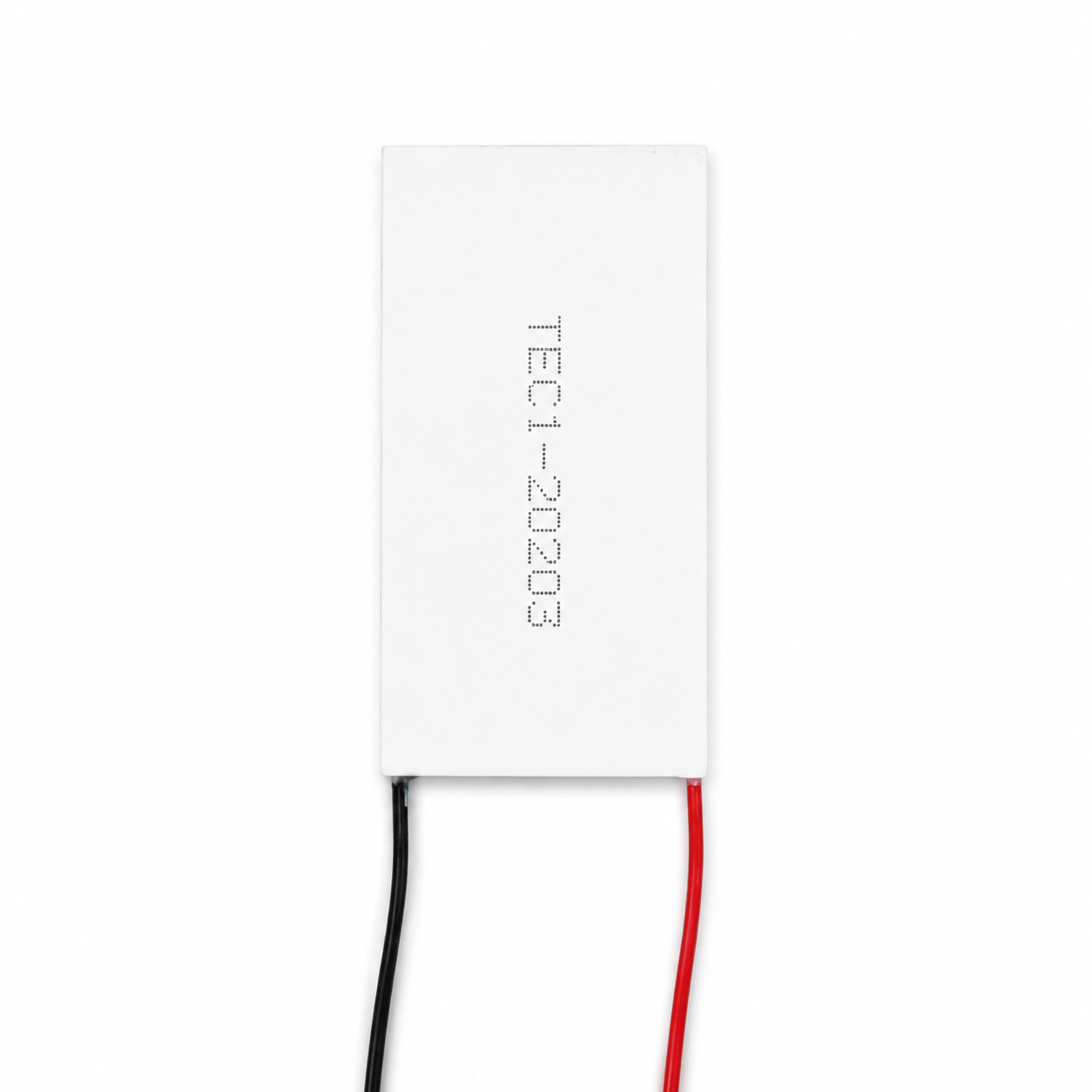

🔷TEC Module Product Overview
The TEC1-20203 is a semiconductor cooling module designed for ultra-large-area, high-power, industrial-grade precision temperature control. With dimensions of 50 × 100 mm, it is one of the largest models in the series. Featuring an ultra-large, rectangular, symmetrical package design, it provides an exceptionally generous heat exchange area and is optimized for large industrial equipment, ultra-high-power laser modules, medical imaging equipment, industrial analytical instruments, and other equipment requiring large-area temperature control with moderate power requirements.
This product is available in three crystal configurations—K32, K38, and K44—with thicknesses of 5.6 mm, 6.2 mm, and 6.8 mm, respectively, corresponding to maximum cooling temperature differences of 60°C, 65°C, and 70°C (under conditions where the hot-end temperature Th = 40°C). It features a maximum voltage of 24.0 V, a maximum current of 3.0 A, a maximum cooling power of 72 W, and an internal resistance of 6.24 Ω.
The extra-large 50×100mm rectangular package allows it to be embedded within large industrial equipment, ultra-high-power laser modules, and similar systems—while ensuring a maximum cooling temperature difference of 70°C and a cooling power of 72W, the 50mm width and 100mm length provide an extremely generous heat exchange area, helping to evenly distribute cooling capacity across the surface of very large loads. This product features a 24V high-voltage, 3.0A current drive design, making it highly compatible with common industrial power supplies (24V) and telecommunications equipment power platforms, eliminating the need for complex power conversion. The 6.24Ω internal resistance provides excellent current control sensitivity, enabling the drive circuit to achieve precise constant-current regulation and thereby deliver stable temperature control. The substrate is manufactured using a sintering process combining 96% alumina ceramic (0.76 mm) and 0.4 mm oxygen-free copper. The relatively thick copper layer ensures uniform heat diffusion across the 100 mm × 50 mm ultra-large surface area, preventing localized hot spots. It comes standard with 20 AWG silicone rubber leads (300 mm in length), capable of safely carrying a 3.0 A current. The 704 silicone rubber perimeter seal provides excellent moisture, dust, and shock resistance. The all-solid-state design ensures precise operation with zero noise and zero vibration. The recommended mounting pressure is up to 12.5 kg (0.25 kg/cm²), ensuring that the extra-large cooling plate is tightly bonded to the heat sink and the surface being cooled, effectively reducing contact thermal resistance and withstanding vibrations and impacts in industrial environments.
This product is typically used in applications such as temperature control for large industrial laser modules, medical imaging equipment, temperature stabilization for industrial analytical instruments, heat dissipation for telecommunications base station equipment, industrial laser processing equipment, and large-scale medical diagnostic equipment. It is the ideal choice for precision temperature control requirements involving extra-large, high-voltage, medium-power applications with extensive spatial coverage.
🔷Thermoelectric Cooler Module Product Applications
1. Temperature Control for Large Industrial Laser Modules
Large industrial semiconductor laser modules generate significant heat during operation, and temperature fluctuations directly affect the stability of output wavelength and power. The TEC1-20203’s 50×100 mm ultra-large surface area is compatible with the packaging of large laser modules, providing uniform temperature control coverage along the 100 mm length. Its 72 W power rating enables rapid response to thermal shocks during laser startup, ensuring the stability of output wavelength and power.
2. Temperature Control for Medical Imaging Equipment
Core sensors and detectors in large medical imaging equipment (such as CT scanners, MRI auxiliary temperature control systems, and PET detectors) require a strictly controlled, constant-temperature environment to ensure imaging quality. The TEC1-20203 provides a large-area, low-noise, vibration-free temperature control solution. Its 50×100 mm surface area can cover large detector arrays, and its 72 W power rating effectively manages heat generated by the detectors themselves. The 24 V operating voltage is compatible with common power supply platforms used in medical equipment.
3. Temperature Control for Large Analytical Instruments
Detectors in scientific instruments such as large spectrophotometers, chromatographs, and thermal analyzers must operate under constant-temperature conditions to reduce dark current and improve the signal-to-noise ratio. The TEC1-20203 provides a stable, constant-temperature environment; its 72W power rating effectively manages the heat generated by the detectors themselves; its extra-large coverage area ensures temperature consistency across all regions of the detector; and its vibration-free, noise-free solid-state operation is well-suited for noise-sensitive laboratory environments.
4. Temperature Control for Communication Base Station Equipment
Critical chips and power modules in large communication base stations and data center switching equipment generate concentrated heat during operation. The TEC1-20203 can be used for active cooling of these critical components. Its 24.0V voltage is fully compatible with the power supply platforms commonly used in communication equipment, and its 50×100 mm surface area covers large heat-generating areas, while its 72W power output meets the thermal management requirements of base station equipment.

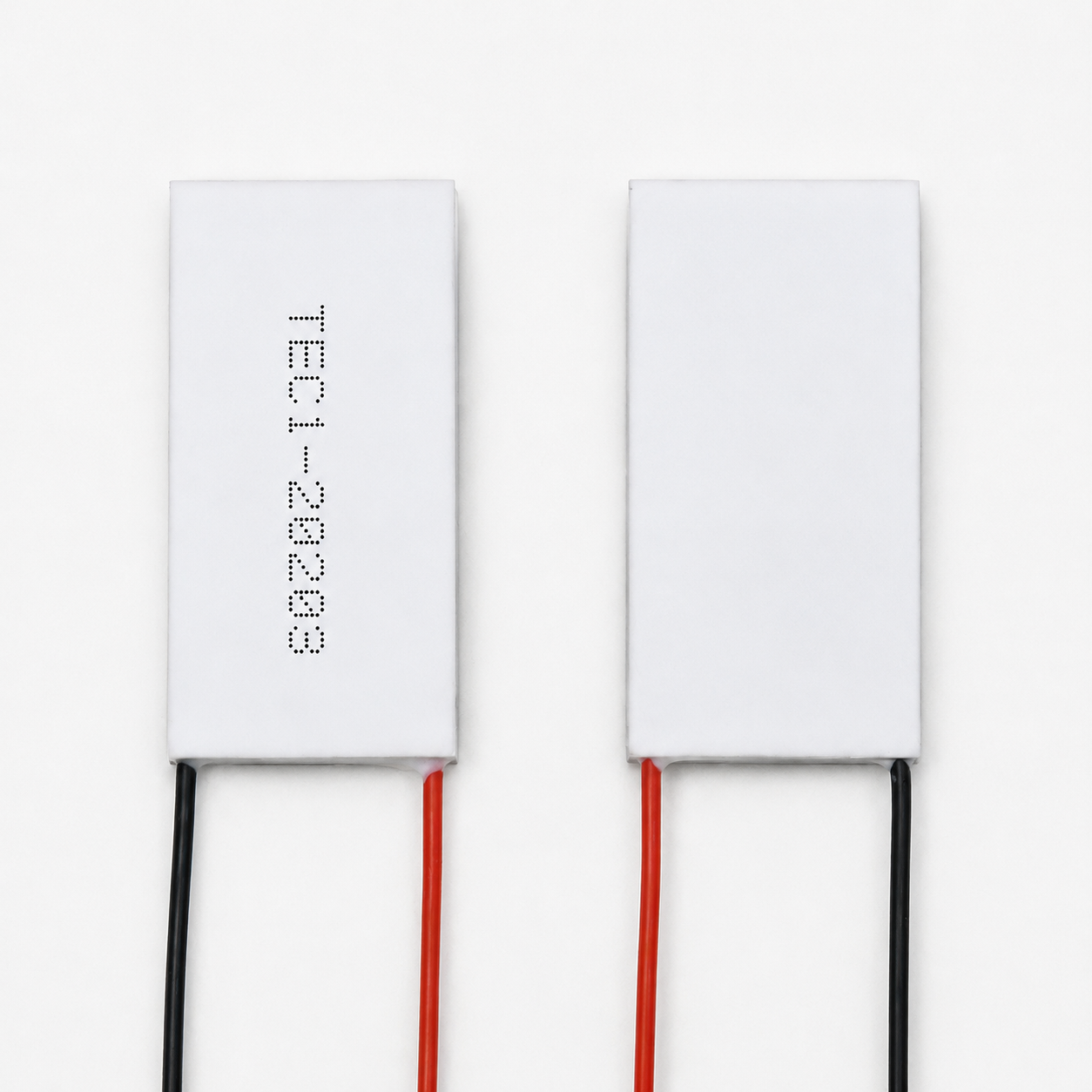

🔷Thermoelectric Peltier Module Product Structure
The TEC1-20220 is the ultimate flagship industrial semiconductor heat sink designed for ultra-large-area, top-tier extreme power density cooling. Measuring 50 × 100 mm, it is one of the largest models in the series. Featuring an extra-large, rectangular, symmetrical package design, it provides an exceptionally generous heat exchange area. Optimized for large-scale industrial equipment operating at extreme power levels, ultra-high-power laser modules, high-performance medical devices, and other applications requiring extensive temperature control over a large area and handling extremely high thermal loads, it is the most powerful, ultimate flagship model in the series. 🟧 Price List Contact Customer Service 🟦 Certifications Contact Customer Service ⬜ Product PDF Spec Contact Customer Service 🟪 Contact customer Contact Customer Service 🟨 MOQ:1 Pcs 🟥 Fast Delivery:2-15 Days 🟩 Source Factory：Online Factory Video 🟫 Multiple Payment Methods：T/T|PayPal|Alipay ⬛ Pre|After Service：+86 13377785035|xyy@kkg.tw
The TEC1-20215 is the ultimate flagship industrial semiconductor heat sink designed for ultra-large-area, top-tier extreme power density cooling. Measuring 50 × 100 mm, it is one of the largest models in the series. Featuring an extra-large, rectangular, symmetrical package design, it provides an exceptionally generous heat exchange area. Optimized for large-scale industrial equipment operating at extreme power levels, ultra-high-power laser modules, high-performance medical devices, and other applications requiring extensive temperature control over a large area and handling extremely high thermal loads, it is the most powerful, ultimate flagship model in the series. 🟧 Price List Contact Customer Service 🟦 Certifications Contact Customer Service ⬜ Product PDF Spec Contact Customer Service 🟪 Contact customer Contact Customer Service 🟨 MOQ:1 Pcs 🟥 Fast Delivery:2-15 Days 🟩 Source Factory：Online Factory Video 🟫 Multiple Payment Methods：T/T|PayPal|Alipay ⬛ Pre|After Service：+86 13377785035|xyy@kkg.tw
The TEC1-20212 is the ultimate flagship industrial semiconductor heat sink designed for ultra-large-area, top-tier extreme power density cooling. Measuring 50 × 100 mm, it is one of the largest models in the series. Featuring an extra-large, rectangular, symmetrical package design, it provides an exceptionally generous heat exchange area. Optimized for large-scale industrial equipment operating at extreme power levels, ultra-high-power laser modules, high-performance medical devices, and other applications requiring extensive temperature control over a large area and handling extremely high thermal loads, it is the most powerful, ultimate flagship model in the series. 🟧 Price List Contact Customer Service 🟦 Certifications Contact Customer Service ⬜ Product PDF Spec Contact Customer Service 🟪 Contact customer Contact Customer Service 🟨 MOQ:1 Pcs 🟥 Fast Delivery:2-15 Days 🟩 Source Factory：Online Factory Video 🟫 Multiple Payment Methods：T/T|PayPal|Alipay ⬛ Pre|After Service：+86 13377785035|xyy@kkg.tw
The TEC1-20210 is a flagship industrial semiconductor cooling module designed for extremely large surface areas and extreme, top-tier power density cooling. Measuring 50 × 100 mm, it is currently one of the largest models in the series. Featuring an extra-large, rectangular, symmetrical package design, it provides an exceptionally generous heat exchange area. Optimized for large-scale industrial equipment requiring extreme power density, ultra-high-power laser modules, high-performance medical devices, and other applications demanding extensive temperature control over a large area and handling extremely high thermal loads, it is the most powerful flagship model in the series. 🟧 Price List Contact Customer Service 🟦 Certifications Contact Customer Service ⬜ Product PDF Spec Contact Customer Service 🟪 Contact customer Contact Customer Service 🟨 MOQ:1 Pcs 🟥 Fast Delivery:2-15 Days 🟩 Source Factory：Online Factory Video 🟫 Multiple Payment Methods：T/T|PayPal|Alipay ⬛ Pre|After Service：+86 13377785035|xyy@kkg.tw
The TEC1-20208 is a flagship industrial semiconductor cooling module designed for extremely large surface areas and extreme, top-tier power density cooling. Measuring 50 × 100 mm, it is currently one of the largest models in the series. Featuring an extra-large, rectangular, symmetrical package design, it provides an exceptionally generous heat exchange area. Optimized for large-scale industrial equipment requiring extreme power density, ultra-high-power laser modules, high-performance medical devices, and other applications demanding extensive temperature control over a large area and handling extremely high thermal loads, it is the most powerful flagship model in the series. 🟧 Price List Contact Customer Service 🟦 Certifications Contact Customer Service ⬜ Product PDF Spec Contact Customer Service 🟪 Contact customer Contact Customer Service 🟨 MOQ:1 Pcs 🟥 Fast Delivery:2-15 Days 🟩 Source Factory：Online Factory Video 🟫 Multiple Payment Methods：T/T|PayPal|Alipay ⬛ Pre|After Service：+86 13377785035|xyy@kkg.tw
The TEC1-20206 is a semiconductor cooling plate designed for ultra-large-area, ultra-high-power industrial-grade precision temperature control. With dimensions of 50 × 100 mm, it is currently one of the largest models in this series. Featuring an ultra-large rectangular symmetrical packaging design, it provides an exceptionally generous heat exchange area and is optimized for equipment requiring ultra-large-area temperature control and extremely high thermal loads, such as large-scale industrial equipment, ultra-high-power laser modules, medical imaging equipment, industrial analytical instruments, and other equipment requiring large-area temperature control and capable of handling extremely high thermal loads. 🟧 Price List Contact Customer Service 🟦 Certifications Contact Customer Service ⬜ Product PDF Spec Contact Customer Service 🟪 Contact customer Contact Customer Service 🟨 MOQ:1 Pcs 🟥 Fast Delivery:2-15 Days 🟩 Source Factory：Online Factory Video 🟫 Multiple Payment Methods：T/T|PayPal|Alipay ⬛ Pre|After Service：+86 13377785035|xyy@kkg.tw
The TEC1-20205 is a semiconductor cooling plate designed for ultra-large-area, ultra-high-power industrial-grade precision temperature control. With dimensions of 50 × 100 mm, it is currently one of the largest models in this series. Featuring an ultra-large rectangular symmetrical packaging design, it provides an exceptionally generous heat exchange area and is optimized for equipment requiring ultra-large-area temperature control and extremely high thermal loads, such as large-scale industrial equipment, ultra-high-power laser modules, medical imaging equipment, industrial analytical instruments, and other equipment requiring large-area temperature control and capable of handling extremely high thermal loads. 🟧 Price List Contact Customer Service 🟦 Certifications Contact Customer Service ⬜ Product PDF Spec Contact Customer Service 🟪 Contact customer Contact Customer Service 🟨 MOQ:1 Pcs 🟥 Fast Delivery:2-15 Days 🟩 Source Factory：Online Factory Video 🟫 Multiple Payment Methods：T/T|PayPal|Alipay ⬛ Pre|After Service：+86 13377785035|xyy@kkg.tw
The TEC1-20204 is a semiconductor cooling plate designed for ultra-large-area, high-power, industrial-grade precision temperature control. With dimensions of 50 × 100 mm, it is one of the largest models in the series. Featuring an ultra-large, rectangular, symmetrical package design, it provides an exceptionally large heat exchange area and is optimized for equipment requiring extensive temperature control and high thermal loads, such as large-scale industrial equipment, ultra-high-power laser modules, medical imaging equipment, industrial analytical instruments, and other equipment requiring extensive temperature control over a large area and handling high thermal loads. 🟧 Price List Contact Customer Service 🟦 Certifications Contact Customer Service ⬜ Product PDF Spec Contact Customer Service 🟪 Contact customer Contact Customer Service 🟨 MOQ:1 Pcs 🟥 Fast Delivery:2-15 Days 🟩 Source Factory：Online Factory Video 🟫 Multiple Payment Methods：T/T|PayPal|Alipay ⬛ Pre|After Service：+86 13377785035|xyy@kkg.tw
