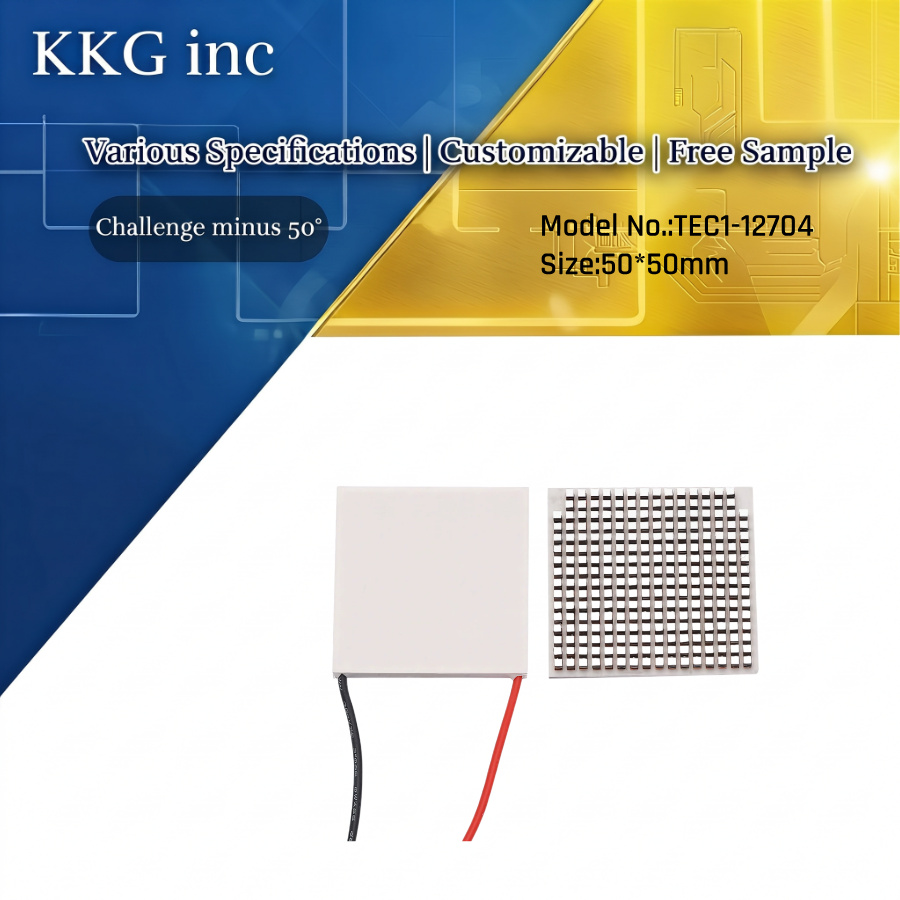

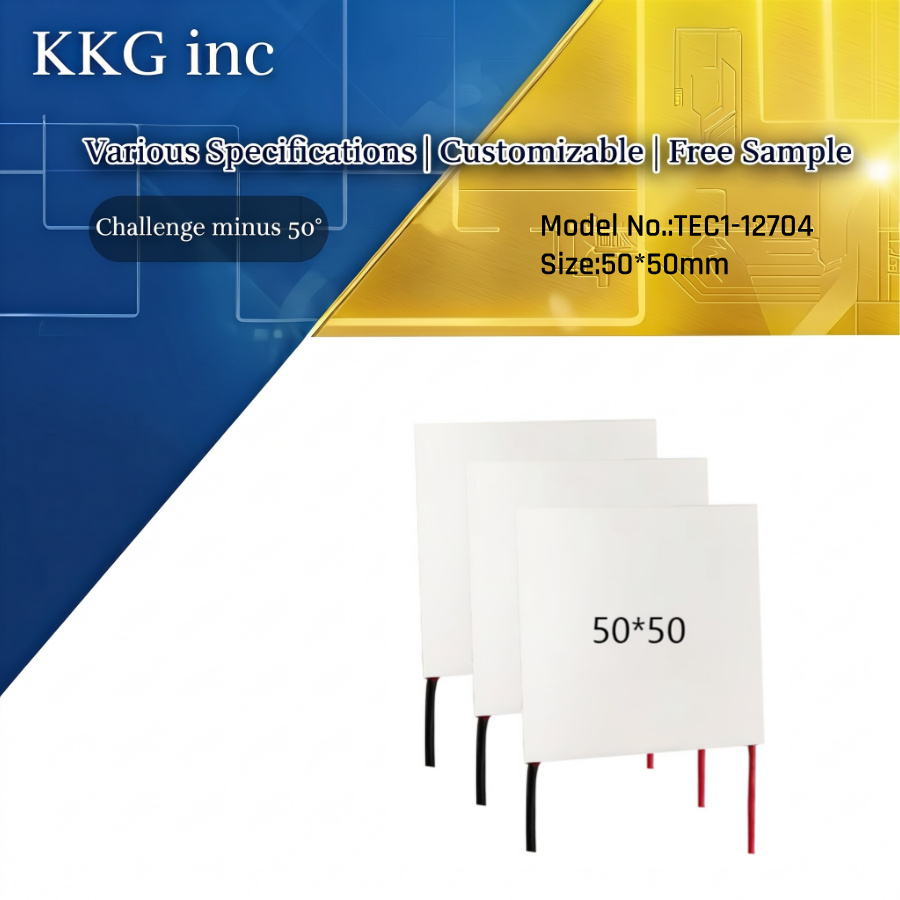

High‑quality TEC1‑12704 thermoelectric peltier device,50*50mm high power TEC cooler. Wholesale & OEM custom peltier module for industrial chiller,laser & semiconductor temperature control. 🟧 Price List Contact Customer Service 🟦 Product PDF Spec Contact Customer Service ⬜ Certifications Contact Customer Service 🟪 Contact customer Contact Customer Service 🟨 MOQ:1 Pcs 🟥 Fast Delivery:2-15 Days 🟩 Source Factory：Online Factory Video 🟫 Multiple Payment Methods：T/T|PayPal|Alipay ⬛ Pre|After Service：+86 13377785035|xyy@kkg.tw

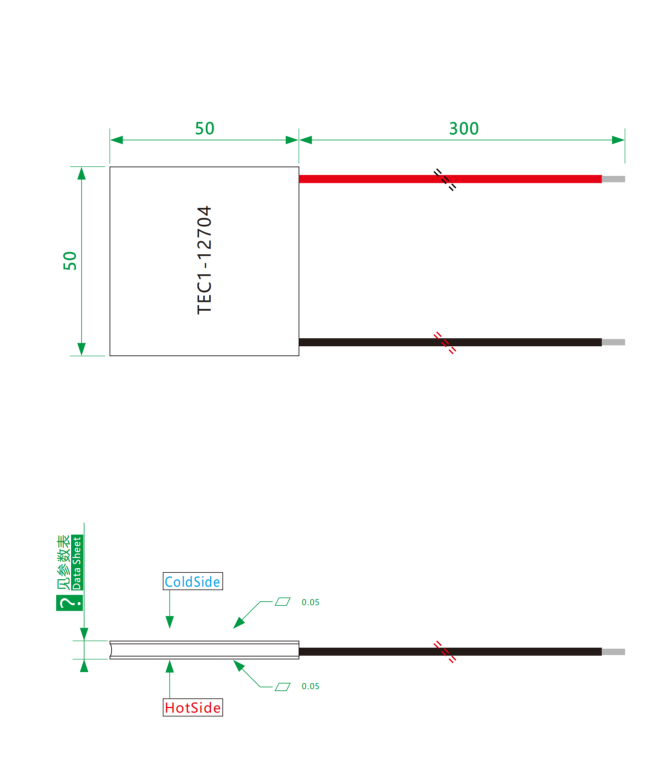

🔷Product Drawing
🔷Basic Performance Spec
| Type Mode | Chip | ▲Tmax(°C) | ACR (Ω) | Umax (V) | Imax (A) | Pmax (W) | Size (mm) |
|---|---|---|---|---|---|---|---|
| TEC1-12704 | K18 | 60 | 2.96 | 15.2 | 4.0 | 61 | 50x50x4.2 |
| TEC1-12704 | K28 | 65 | 50x50x5.2 | ||||
| TEC1-12704 | K38 | 70 | 50x50x6.2 |
🔷 Additional Performance Spec
| Item | Specification |
|---|---|
| Substrate Material | 96% Alumina (0.76 mm) + Oxygen‑free Copper (0.4 mm), sintered assembly |
| Lead Wire | Extra‑soft silicone wire, 20 AWG, L = 300 mm |

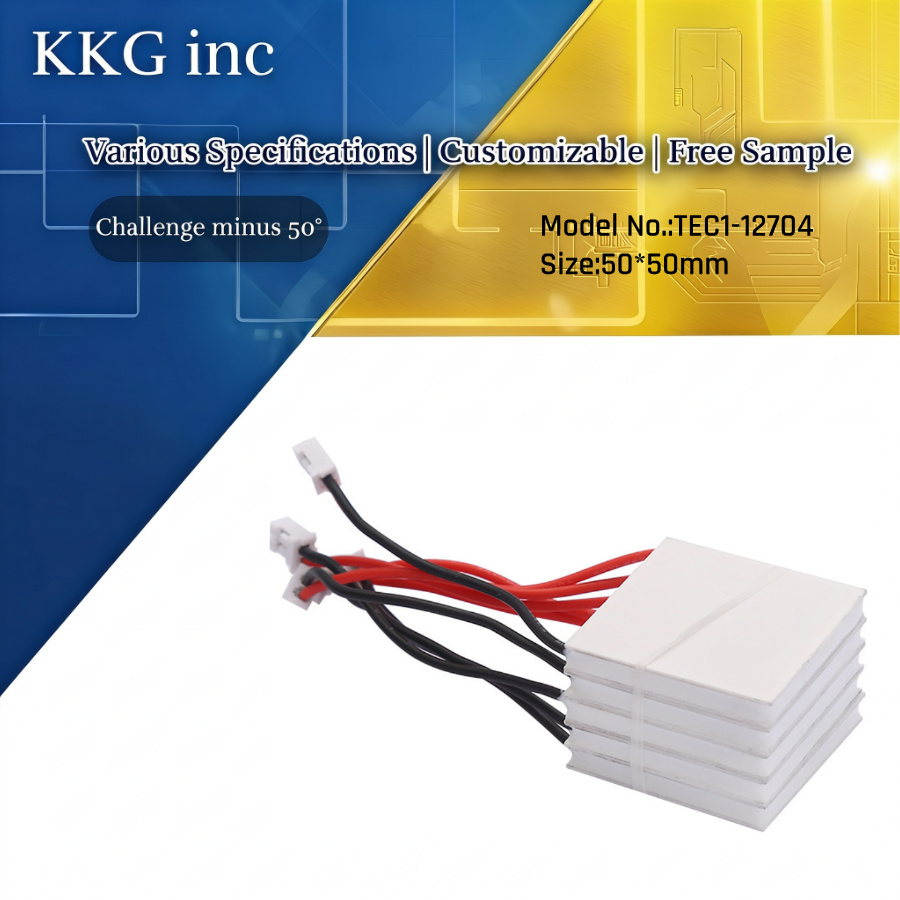

| Terminal | Standard product without terminals; optional installation available upon request |
| Mounting Pressure | 6.2 kg (0.25 kg/cm²) |

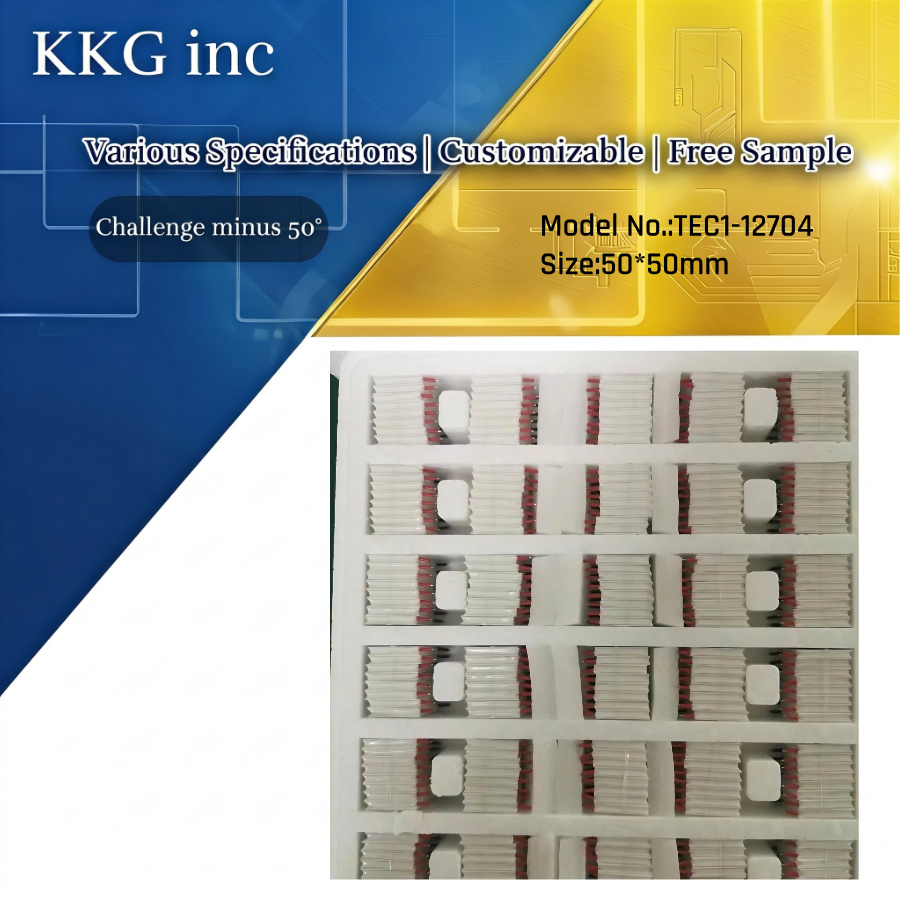

| Packaging Standard | Polystyrene (PS) foam box |
| Sealing Compound | 704 silicone rubber sealant |
| Maximum Temperature Rating | Bismuth‑tin eco‑friendly solder, melting point 138°C |
| Storage Environment | Temperature < 120°C, Humidity < 60% RH |

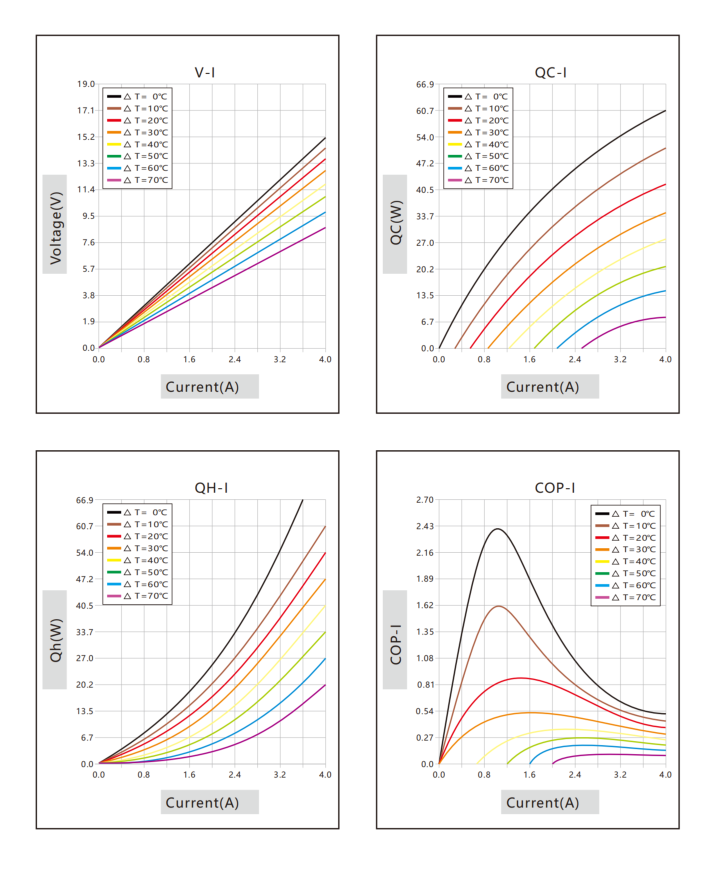

🔷 Performance Curve
🔷 Product Overview
TEC1‑12704 thermoelectric peltier device 50*50mm is a solid‑state thermoelectric cooling module, also known as TEC cooler.
As a reliable large‑size thermoelectric peltier device, it converts electric energy into temperature difference without refrigerant. Our factory supplies wholesale thermoelectric peltier device and accepts OEM & custom thermoelectric peltier device service for global buyers. It is a popular solution for active thermal control projects.
🔷 Product Features
🔷 Product Structure
🔷Operation Principle
The thermoelectric peltier device works based on the Peltier effect.
When DC current flows through the module, one ceramic side absorbs heat and becomes cold, while the other side releases heat and becomes hot. By reversing the direction of DC power, this TEC cooler can switch between cooling and heating mode. For stable cooling performance, the hot side must be equipped with an effective heat‑dissipation system such as a fan heat sink or water‑cooled cold plate.
🔷 FAQ
Q1: Are you a thermoelectric peltier device manufacturer? Can I buy TEC1‑12704 in bulk?
A: Yes, we are a professional thermoelectric peltier device manufacturer. Wholesale thermoelectric peltier device and bulk‑order service are supported.
Q2: Can you provide OEM thermoelectric peltier device service for this 50*50mm TEC cooler?
A: OEM & custom thermoelectric peltier device is available, we can adjust wire length, cable connector, label and provide technical support.
Q3: What heat sink do I need for this high‑power thermoelectric peltier device TEC1‑12704?
A: We recommend an aluminum or copper heat sink with fan or water‑cooling cold plate to take away heat from the hot side, otherwise cooling performance will drop sharply.
Q4: Can this thermoelectric peltier device for laser cooling be used continuously 24 hours a day?
A: Yes, it can run continuously under proper heat‑dissipation condition, do not exceed its max current 4A.
