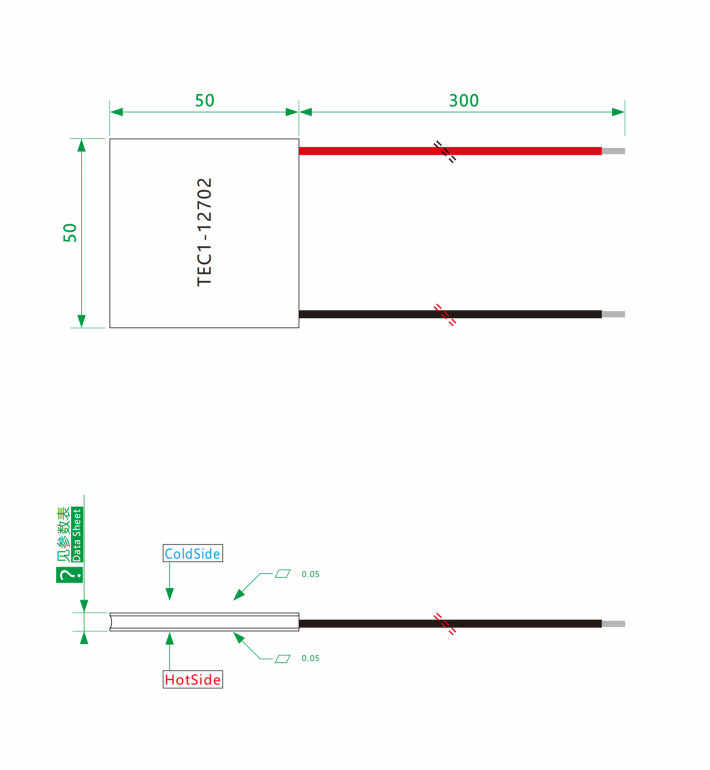

🔷Product Drawing

🔷Basic Performance Spec

🔷Additional Performance Spec

🔷Performance Curve

🔷Product Overview

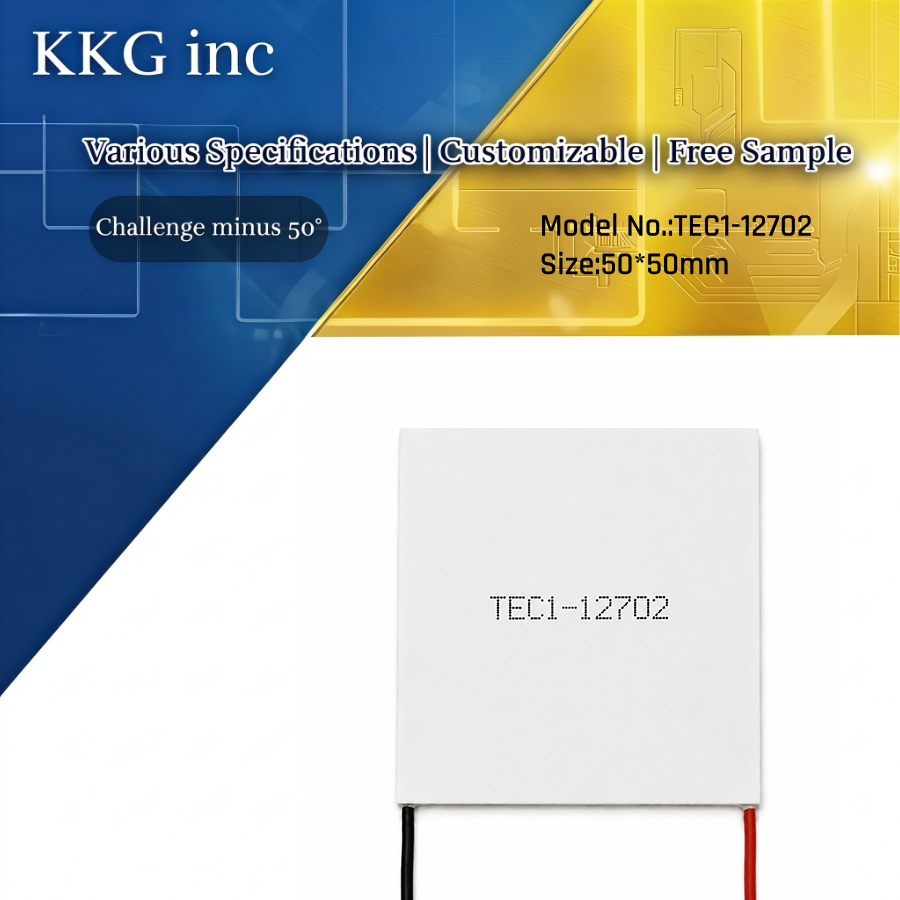

The TEC1-12702 50*50mm Thermoelectric Cooler is a compact Thermoelectric Cooler based on the Peltier thermoelectric cooling principle. With a 50*50mm footprint, it is designed for applications where compact size, controllable cooling and flexible system integration are required.

This 50*50mm thermoelectric cooler can be integrated into different cooling assemblies and temperature control systems. It is suitable for equipment manufacturers, engineering projects and customers looking for a compact thermoelectric cooler module.

For volume projects, OEM and ODM requirements, customers can also discuss customized thermoelectric cooler solutions according to their system requirements.

🔷Product Features

• 50*50mm compact size for space-limited cooling systems

• Peltier-based thermoelectric cooling technology

• No mechanical compressor required

• Suitable for compact temperature control applications

• Easy to integrate into thermoelectric cooling assemblies

• Suitable for OEM and ODM projects

• Available for bulk purchasing and engineering applications

• Suitable for customized thermoelectric cooling solutions

Product Applications

The TEC1-12702 50*50mm Thermoelectric Cooler can be used in various compact cooling and temperature control systems. Typical application areas may include:

• Electronics cooling

• Instrument temperature control

• Sensor cooling

• Optical equipment

• Laboratory equipment

• Small temperature control systems

• Compact thermoelectric cooling assemblies

• Electronic device cooling

• Specialized industrial temperature control equipment


For applications requiring compact thermal management, this 50*50mm thermoelectric cooler can be integrated with a suitable heatsink, cold plate and control system.

🔷Product Structure

🔷Operation Principle / Work Principle

The TEC1-12702 Thermoelectric Cooler operates based on the Peltier effect.

When direct current passes through the thermoelectric semiconductor elements, heat is absorbed on one side of the module and released on the opposite side. By controlling the electrical input and managing the hot-side heat dissipation, the thermoelectric cooler can be used to achieve localized cooling and temperature control.

Compared with traditional compressor-based cooling systems, a thermoelectric cooler has a compact structure and contains no mechanical compressor, making it suitable for compact cooling equipment and temperature control applications.

🔷Product Testing

Each TEC1-12702 50*50mm Thermoelectric Cooler should be evaluated according to the applicable product specifications and testing requirements.

Typical quality control may include:

• Appearance inspection

• Dimensional inspection

• Electrical performance testing

• Resistance testing

• Thermoelectric performance testing

• Reliability-related inspection

• Packaging inspection


For OEM and bulk orders, testing requirements can be discussed according to customer specifications and application requirements.

🔷Product Packaging

The TEC1-12702 50*50mm Thermoelectric Cooler is packaged to help protect the modules during storage, transportation and handling.

For bulk thermoelectric cooler orders, packaging methods can be discussed according to order quantity, transportation requirements and customer requirements.

OEM packaging and customized labeling can also be discussed for qualified OEM and ODM projects.

🔷FAQ

1. What is the TEC1-12702 Thermoelectric Cooler?

The TEC1-12702 is a 50*50mm Thermoelectric Cooler based on the Peltier effect. It can be integrated into cooling and temperature control systems.

2. What is the size of the TEC1-12702?

The product size specified for this model is 50*50mm.

3. What is a thermoelectric cooler used for?

A thermoelectric cooler can be used for localized cooling and temperature control in electronics, instruments, sensors, optical equipment, laboratory equipment and other systems.

4. Can I order thermoelectric coolers in bulk?

Yes. Bulk thermoelectric cooler orders can be discussed according to the required model, quantity and specifications.

5. Do you provide OEM thermoelectric cooler solutions?

OEM and ODM requirements can be discussed according to the customer's product structure, performance requirements and application environment.

6. Can this 5050mm thermoelectric cooler be customized?

For projects with specific requirements, a custom thermoelectric cooler solution can be discussed according to dimensions, electrical parameters, wire requirements, packaging and other specifications.

7. How can I choose the right thermoelectric cooler?

The selection should consider factors such as cooling load, hot-side temperature, required temperature difference, available power supply, installation space and heat dissipation conditions.

8. Where can I buy a thermoelectric cooler?

Customers can contact a thermoelectric cooler supplier, thermoelectric cooler manufacturer or thermoelectric cooler OEM supplier according to their required specifications, quantity and application.
