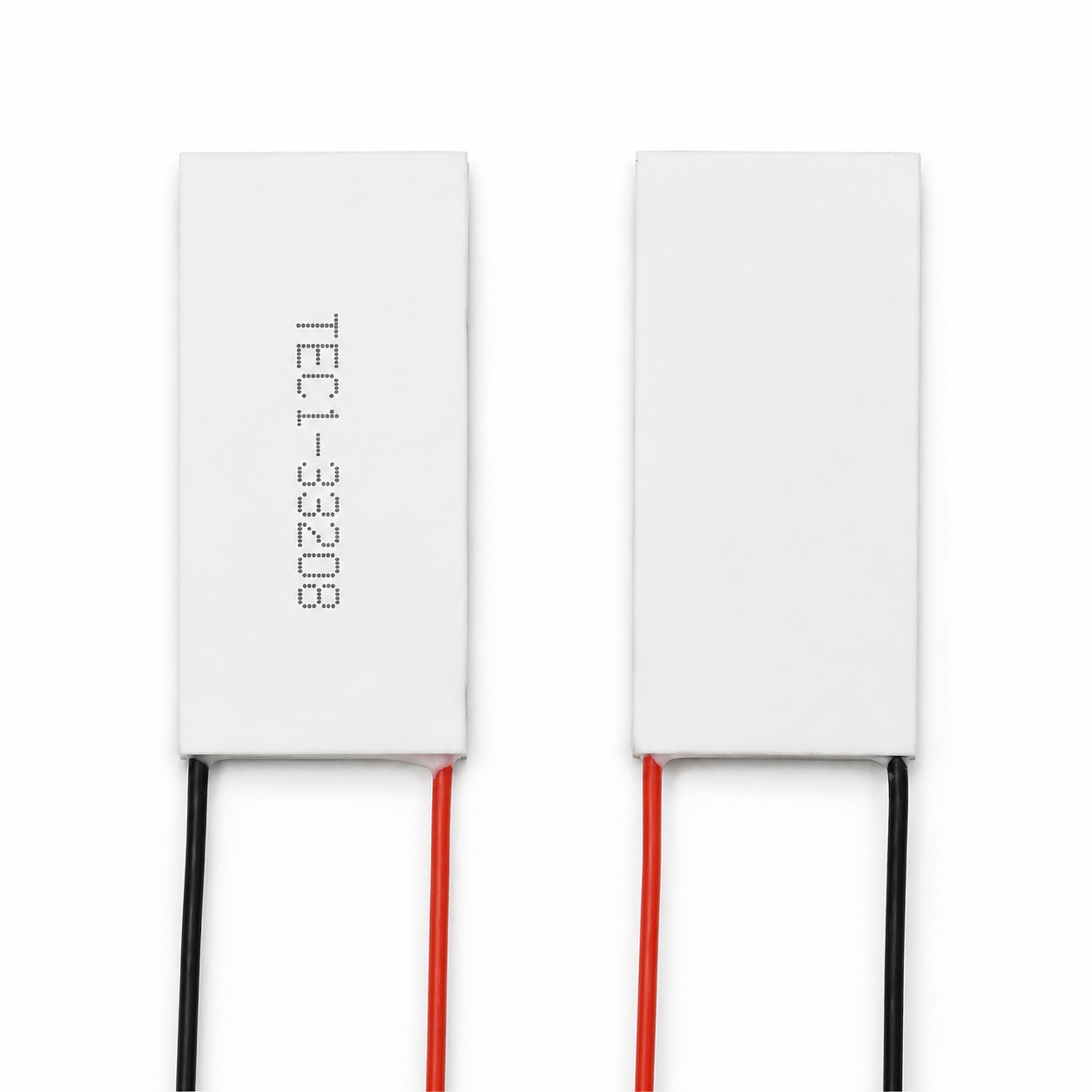

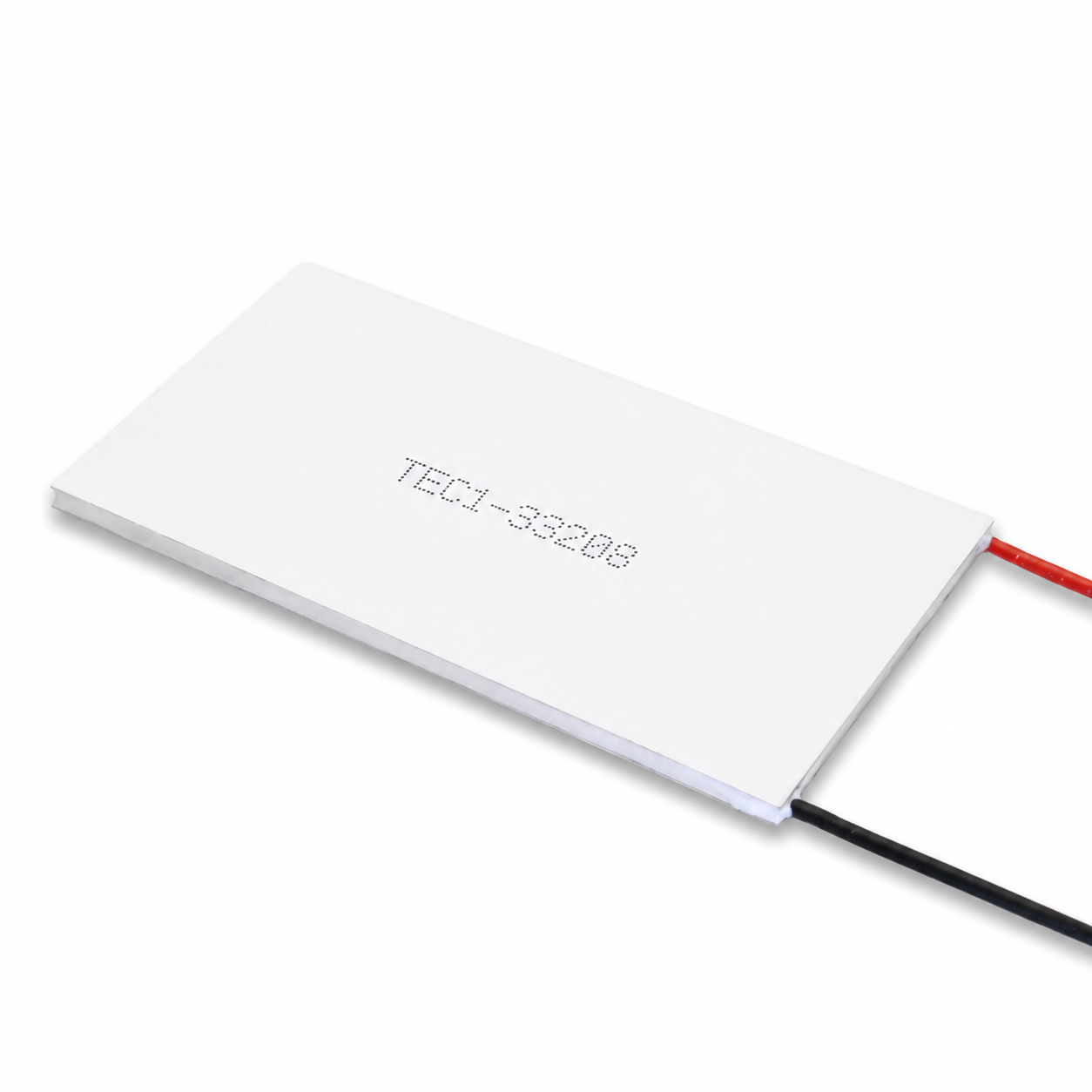

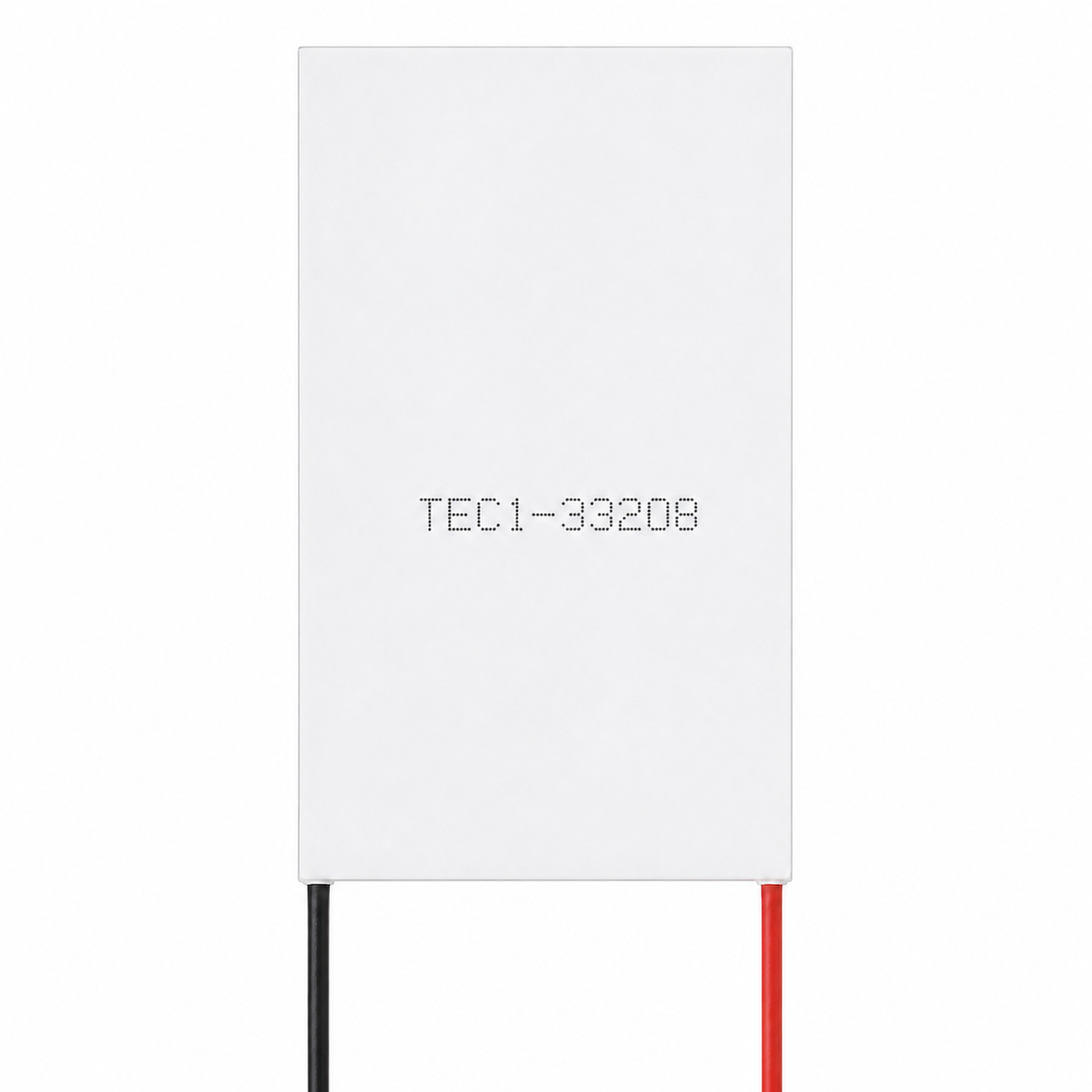

The TEC1-33208 is the ultimate flagship industrial semiconductor cooling module designed for ultra-large-area, extreme-level power density, and high-voltage precision temperature control. Measuring 60 × 120 mm, it is one of the largest models in the series. Featuring an extra-large, rectangular, symmetrical package design, it provides an exceptionally generous heat exchange area. Optimized for top-tier, ultra-high-power industrial equipment, high-power laser modules, high-performance medical devices, and other applications requiring extensive thermal control over large areas and handling extremely high thermal loads, it is the most powerful flagship model in the series. 🟧 Price List Contact Customer Service 🟦 Certifications Contact Customer Service ⬜ Product PDF Spec Contact Customer Service 🟪 Contact customer Contact Customer Service 🟨 MOQ:1 Pcs 🟥 Fast Delivery:2-15 Days 🟩 Source Factory：Online Factory Video 🟫 Multiple Payment Methods：T/T|PayPal|Alipay ⬛ Pre|After Service：+86 13377785035|xyy@kkg.tw
| Type Mode | Chip Model | ΔTmax (°C) | ACR (Ω) | Umax (V) | Imax (A) | Pmax (W) | Size (mm) |
|---|---|---|---|---|---|---|---|
| TEC1-33208 | K10 | 60 | 3.88 | 39.8 | 8.0 | 318 | 60×120×3.4 |
| TEC1-33208 | K18 | 65 | 3.88 | 39.8 | 8.0 | 318 | 60×120×4.2 |
| TEC1-33208 | K26 | 70 | 3.88 | 39.8 | 8.0 | 318 | 60×120×5.0 |
| Parameter | Specification |
|---|---|
| Substrate Material | 96% alumina (0.76 mm) + oxygen-free copper (0.4 mm), sintered process |
| Lead Wire Specification | Silicone wire, 18 AWG, L = 300 mm |
| Terminal Specification | Not included as standard; available upon request |
| Assembly Pressure | 18.0 kg (0.25 kg/cm²) |
| Packaging Standard | Polystyrene (PS) foam box |
| Sealant Material | 704 silicone rubber sealant |
| Maximum Temperature Resistance | Bismuth-tin eco-friendly solder, melting point 138°C |
| Storage Environment | Temperature < 120°C, Humidity < 60% Rh |
The TEC1-33208 is the ultimate flagship industrial semiconductor cooling module designed for ultra-large-area, extreme-level power density, and high-voltage precision temperature control. Measuring 60 × 120 mm, it is one of the largest models in the series. Featuring an extra-large, rectangular, symmetrical package design, it provides an exceptionally generous heat exchange area. Optimized for top-tier, ultra-high-power industrial equipment, high-power laser modules, high-performance medical devices, and other applications requiring extensive thermal control over large areas and handling extremely high thermal loads, it is the most powerful flagship model in the series.

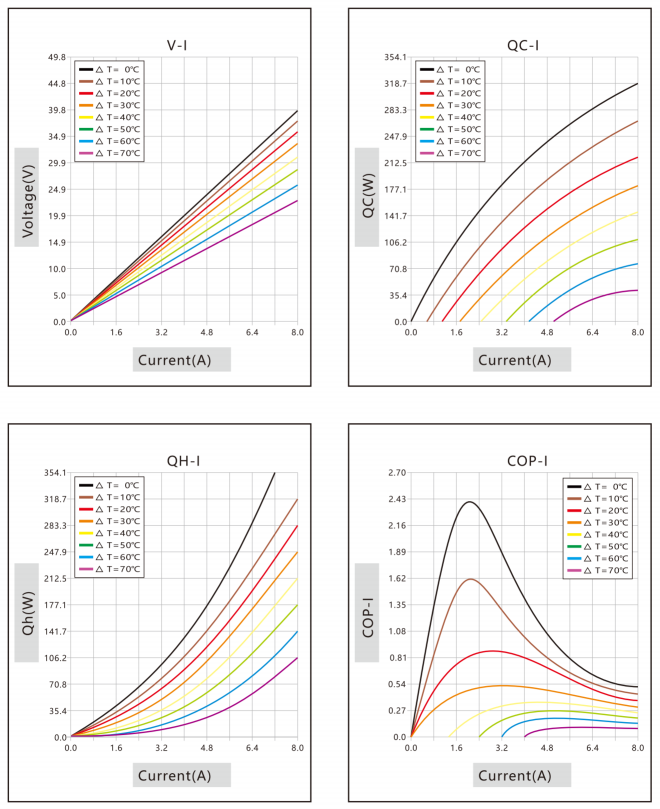

This product is available in three crystal configurations—K10, K18, and K26—with thicknesses of 3.4 mm, 4.2 mm, and 5.0 mm, respectively, corresponding to maximum cooling temperature differences of 60°C, 65°C, and 70°C (under conditions where the hot-end temperature Th = 40°C). It features a maximum voltage of 39.8 V, a maximum current of 8.0 A, a maximum cooling power of 318 W, and an internal resistance of 3.88 Ω.

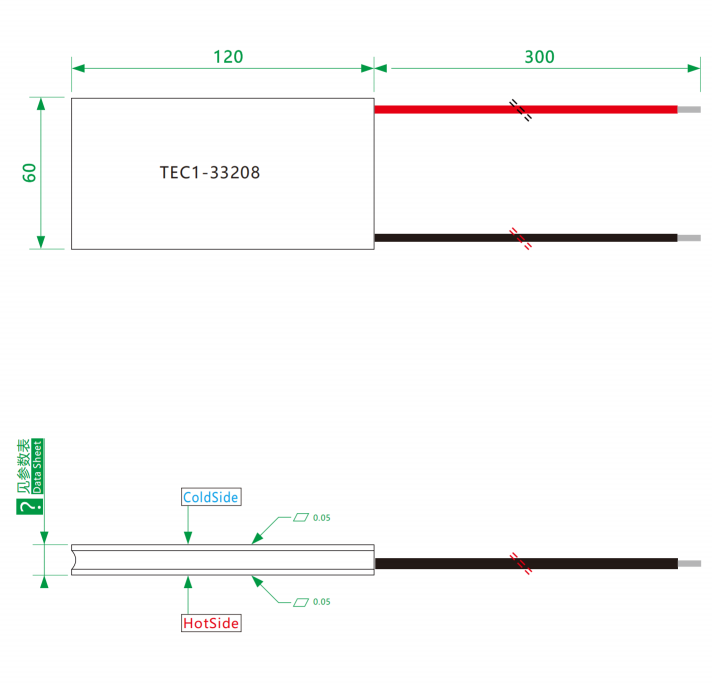

Its extra-large 60 × 120 mm rectangular package allows it to be embedded inside top-tier, high-power industrial equipment and and ultra-high-power laser modules—while ensuring a maximum cooling temperature difference of 70°C and extreme power cooling up to 318W. The 60mm width and 120mm length provide an extremely generous heat exchange area, facilitating uniform heat transfer to the surface of very large-area loads. This product features a drive design rated for an ultra-high voltage of 39.8V and a current of 8.0A, making it highly compatible with common industrial power supplies (40V) and telecommunications equipment power platforms. The low internal resistance of 3.88Ω effectively controls Joule heating losses (I²R ≈ 248.3W) at 8.0A, allowing more electrical energy to be converted into effective cooling capacity and delivering outstanding energy efficiency. The substrate is manufactured using a sintering process that combines 96% alumina ceramic (0.76 mm) with 0.4 mm oxygen-free copper. The relatively thick copper layer ensures uniform heat dissipation across the extra-large 120 mm × 60 mm surface area, preventing localized hot spots. It comes standard with 18 AWG silicone rubber leads (300 mm in length), capable of safely carrying the high current of 8.0 A. The 704 silicone rubber perimeter seal provides excellent moisture, dust, and shock resistance. The all-solid-state structure ensures precision operation with zero noise and zero vibration. The recommended mounting pressure is up to 18.0 kg (0.25 kg/cm²), ensuring that the extra-large cooling plate is tightly bonded to the heat sink and the surface being cooled, effectively reducing contact thermal resistance and withstanding vibrations and impacts in industrial environments.
This product is typically used in applications such as temperature control for top-tier, ultra-high-power, extra-large industrial laser modules; heat dissipation for large industrial equipment; high-performance medical devices; and high-power communication base stations. It is the premier flagship choice for cooling applications requiring extreme power density in extra-large, high-surface-area spaces.
