Product Features of Thermoelectric Cooler

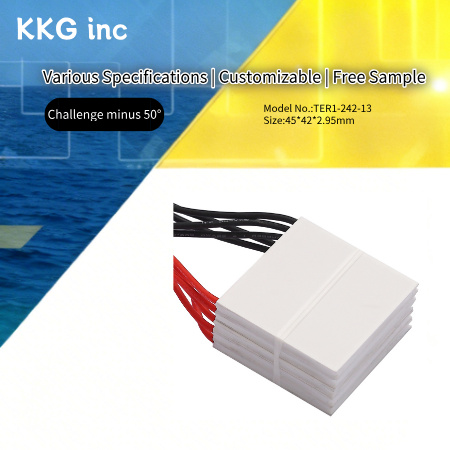

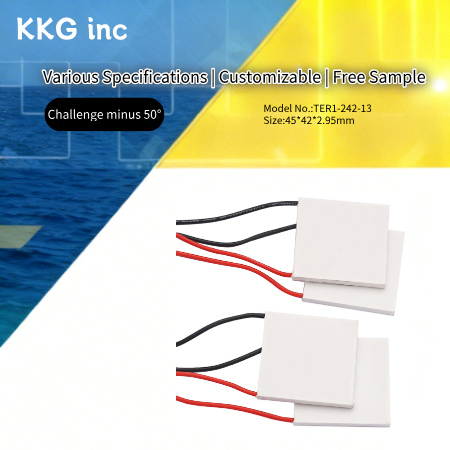

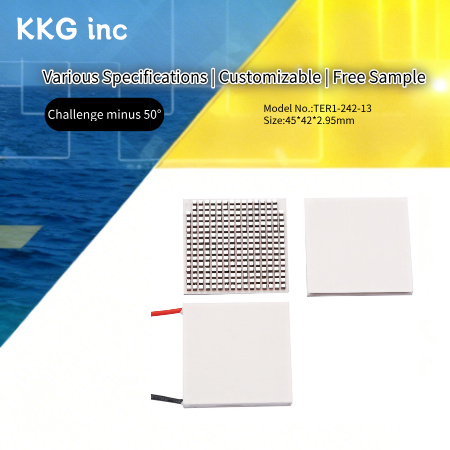

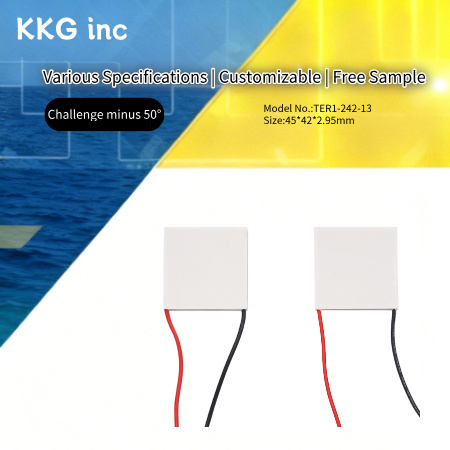

1. Ultra-thin design: With a thickness of just 2.95 mm—significantly thinner than conventional 3.5–5 mm models—it is ideal for integration into devices with extremely limited space and enables a more compact heat exchange design.

2. Large cooling surface area: The 45 × 42 mm panel provides a larger heat exchange surface area. Combined with its ultra-thin profile, this enables higher heat flux density and faster temperature response times (<100 ms).

Low-Temperature Performance: As indicated by the “Challenge minus 50°” designation on KKG products, these modules support deep cooling, achieving temperature differentials down to -50°C. They are suitable for applications requiring forced cooling or high-precision temperature control.

3. High Reliability: Utilizing DBC ceramic substrates and high-temperature solder with no moving parts, these modules offer a lifespan of over 10 years, making them suitable for industrial environments with frequent thermal cycling.

4. Bidirectional Temperature Control: Switching between cooling and heating modes is achieved by reversing the current, supporting precise temperature control to within ±0.1°C.

The Peltier coolers' Case Studies

1. Temperature Control Module for Industrial Laser Marking Machines

Application: Cooling the gain medium of fiber lasers / CO₂ lasers

Function: Uses a 45×45×2.95 mm cooling plate to stabilize the laser crystal temperature within ±0.1°C, preventing thermal lensing and ensuring marking accuracy and beam quality

Advantages: Ultra-thin design allows direct bonding to the crystal heat sink substrate, reducing thermal resistance; large cooling surface area covers the crystal’s heat-generating region, rapidly dissipating heat

2.Portable Blood Cooler

Application: A compact cooler for outdoor emergency medical care and vaccine transport (storage at 2–8°C)

Function: Replaces traditional compressors by stacking multiple 45×45 tec cooler to achieve silent, lightweight low-temperature storage

Advantages: Highly shock-resistant, suitable for transport over rough terrain; precise temperature control via voltage adjustment prevents temperature fluctuations from affecting sample viability

3.Magnetic Cooling Back Clip for Gaming Phones and Laptops

Use Case: Active cooling for high-performance gaming phones and ultrathin laptops

Function: The thermoelectric cooler peltier’s cold side adheres to the phone’s back panel, while the hot side is cooled by a fan, rapidly lowering CPU/GPU core temperatures and preventing throttling

Advantages: Ultra-thin design makes the back clip lightweight and comfortable to hold; the 45×45mm cooling surface covers the phone’s heat-generating core areas for higher cooling efficiency

Selection Guidelines of Peltier Effect Cooler

If the device is sensitive to thickness or volume (e.g., handheld aesthetic devices, ultra-thin cooling modules), the 2.95mm ultra-thin model offers a key advantage.

If high cooling capacity and deep low temperatures are required (e.g., car refrigerators, laser cooling), the 45×45mm large panel provides a higher Qmax (cooling power).

If you prioritize quiet operation or a refrigerant-free solution, these Peltier modules are an ideal alternative to compressor-based systems.
