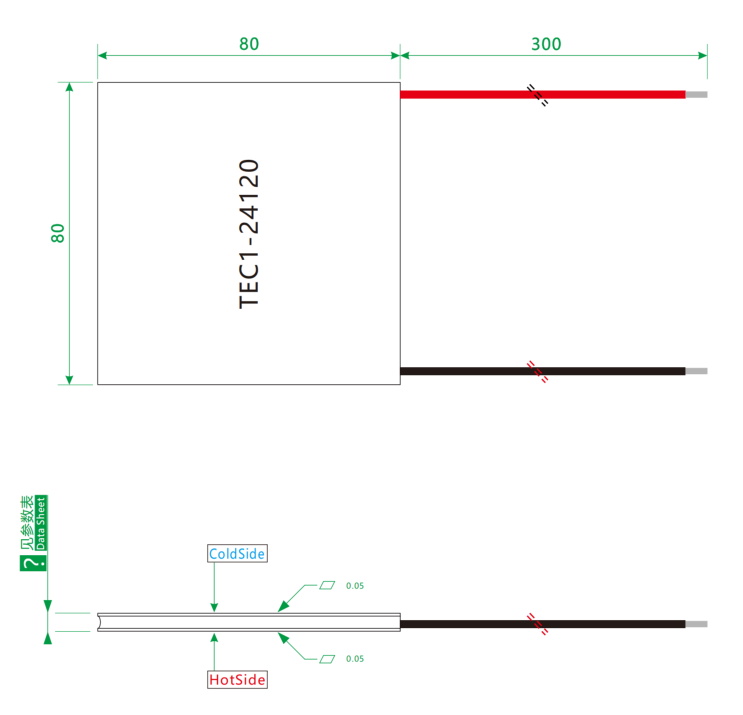

🔷 Product Drawing

🔷 Basic Performance Spec

🔷 Additional Performance Spec

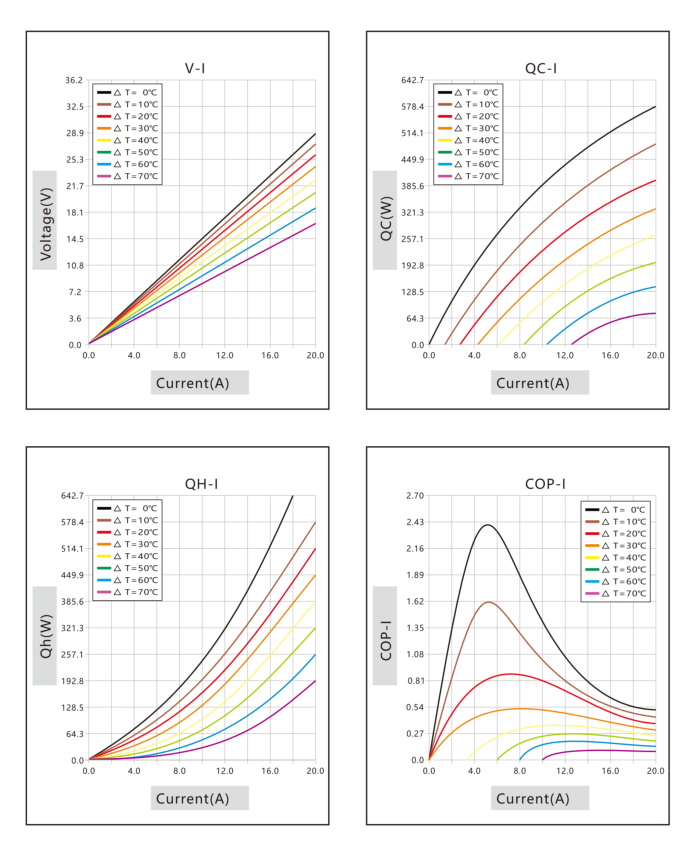

🔷 Performance Curve

🔷 Product Overview

The TEC1-24120 Peltier Module 80x80mm is a square thermoelectric cooling module designed for applications requiring compact solid-state cooling and temperature control.

Unlike traditional compressor-based cooling systems, Peltier modules have no mechanical moving parts and can provide direct electronic temperature control. This makes them suitable for applications where compact size, low vibration, precise temperature regulation, and flexible installation are important.

The 80x80mm module provides a relatively large thermoelectric contact area, making it suitable for integration into cooling assemblies, electronic equipment, laboratory equipment, optical systems, and other temperature-control applications.

As a Peltier Module Assembly supplier and manufacturer, we can also support OEM and customized thermoelectric cooling projects based on specific application requirements.

🔷 Product Features

1. 80x80mm Large Contact Area

The 80x80mm module provides a larger active surface compared with smaller thermoelectric modules, making it suitable for applications requiring a larger thermal contact area.

2. Solid-State Cooling

The Peltier module operates through the thermoelectric effect without mechanical moving components, making it suitable for compact and low-vibration cooling systems.

3. Cooling and Heating

By changing the direction of the electrical current, the thermoelectric module can be used for both cooling and heating applications.

4. Flexible System Integration

The TEC1-24120 can be integrated into different Peltier cooling module assemblies according to the customer's system structure.

5. Suitable for OEM Applications

Module specifications and assembly requirements can be discussed for OEM, ODM, and custom thermoelectric cooling projects.

6. Compact and Reliable Structure

The module can be combined with heat sinks, cold plates, fans, thermal interface materials, and control systems to form a complete thermoelectric cooling solution.

🔷 Product Applications

The TEC1-24120 80x80mm Peltier module can be used in a wide range of thermoelectric cooling and temperature-control systems.

Typical applications include:

• Industrial cooling equipment
• Electronic equipment cooling
• Laboratory temperature control equipment
• Optical equipment cooling
• Laser temperature control
• Semiconductor temperature control
• Instrument cooling
• Medical equipment
• Camera and sensor cooling
• Small temperature-controlled systems
• Portable cooling equipment
• Thermoelectric chillers
• Precision temperature-control equipment
• Custom Peltier cooling systems

For industrial applications, the module can be integrated into a complete thermoelectric module assembly together with heat sinks, fans, cold plates, temperature sensors, and controllers.

🔷 Product Structure

🔷 Operation Principle / Work Principle

The TEC1-24120 operates based on the Peltier effect.

When direct current passes through the semiconductor elements inside the module, heat is absorbed from one ceramic surface and transferred to the opposite surface. Therefore, one side becomes cold while the other side becomes hot.

By reversing the current direction, the hot and cold sides can be switched.

In an actual cooling system, the hot side must be connected to an appropriate heat dissipation solution. A heat sink or water-cooling system can be used to remove the heat from the hot side.

The complete system performance therefore depends on both the Peltier module and the overall Peltier Module Assembly design.

🔷 Product Testing

Each thermoelectric module can be evaluated according to the applicable production and quality-control requirements.

Typical inspection items may include:

• Product dimensions
• Appearance inspection
• Ceramic plate condition
• Wire connection
• Electrical resistance
• Insulation performance
• Thermoelectric performance
• Structural integrity
• Cooling performance

For OEM projects, additional inspection requirements can be discussed according to customer specifications.

🔷 Product Packaging

The TEC1-24120 Peltier modules are packaged to help protect the ceramic plates, wires, and module structure during transportation.

Packaging methods can be adjusted according to:

• Order quantity
• Product size
• Transportation method
• Customer packaging requirements
• OEM requirements

For bulk orders, customized packaging solutions can also be discussed with customers.

🔷 FAQ

Q1: What is the TEC1-24120 Peltier Module?

The TEC1-24120 is an 80x80mm thermoelectric Peltier module designed for cooling, heating, and temperature-control applications.

Q2: What is the size of the TEC1-24120?

The module size is 80x80mm.

Q3: Can the TEC1-24120 be used for custom Peltier module assemblies?

Yes. The module can be integrated into customized thermoelectric cooling systems according to the customer's application requirements.

Q4: Can you provide OEM Peltier Module Assembly solutions?

Yes. OEM and ODM cooperation is available for customers requiring customized thermoelectric cooling modules or complete Peltier cooling assemblies.

Q5: What factors affect the cooling performance?

Cooling performance is affected by input power, hot-side temperature, cold-side heat load, heat dissipation capacity, ambient temperature, thermal interface conditions, and system design.

Q6: Does a Peltier module need a heat sink?

Yes. During cooling operation, the hot side needs to dissipate the absorbed heat plus the electrical input power. An appropriate heat sink or other cooling system is therefore important.

Q7: Can the Peltier module be used for heating?

Yes. By reversing the current direction, the hot and cold sides can be switched, allowing the module to be used for both heating and cooling.

Q8: Do you support custom thermoelectric module assembly?

Yes. We can discuss custom thermoelectric module assembly, including module specifications, wire configuration, dimensions, connectors, and other requirements according to the customer's project.

Q9: Are you a Peltier Module Assembly supplier?

We provide thermoelectric modules and can support OEM, ODM, wholesale, and customized Peltier Module Assembly requirements for different applications.

Q10: How can I select the right Peltier module?

Please provide the required cooling temperature, heat load, hot-side temperature, available voltage, current requirements, module size, and application information. These parameters can be used to evaluate a suitable thermoelectric module.
