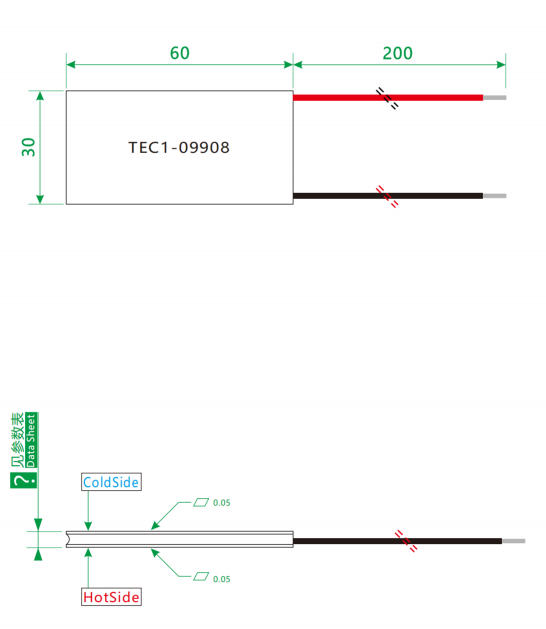

🔷Thermoelectric Cooling Devices Product Drawing

🔷Peltier Elements Basic Performance Spec

🔷Thermoelectric Controller Additional Performance Spec

🔷Thermal Generators Performance Curve

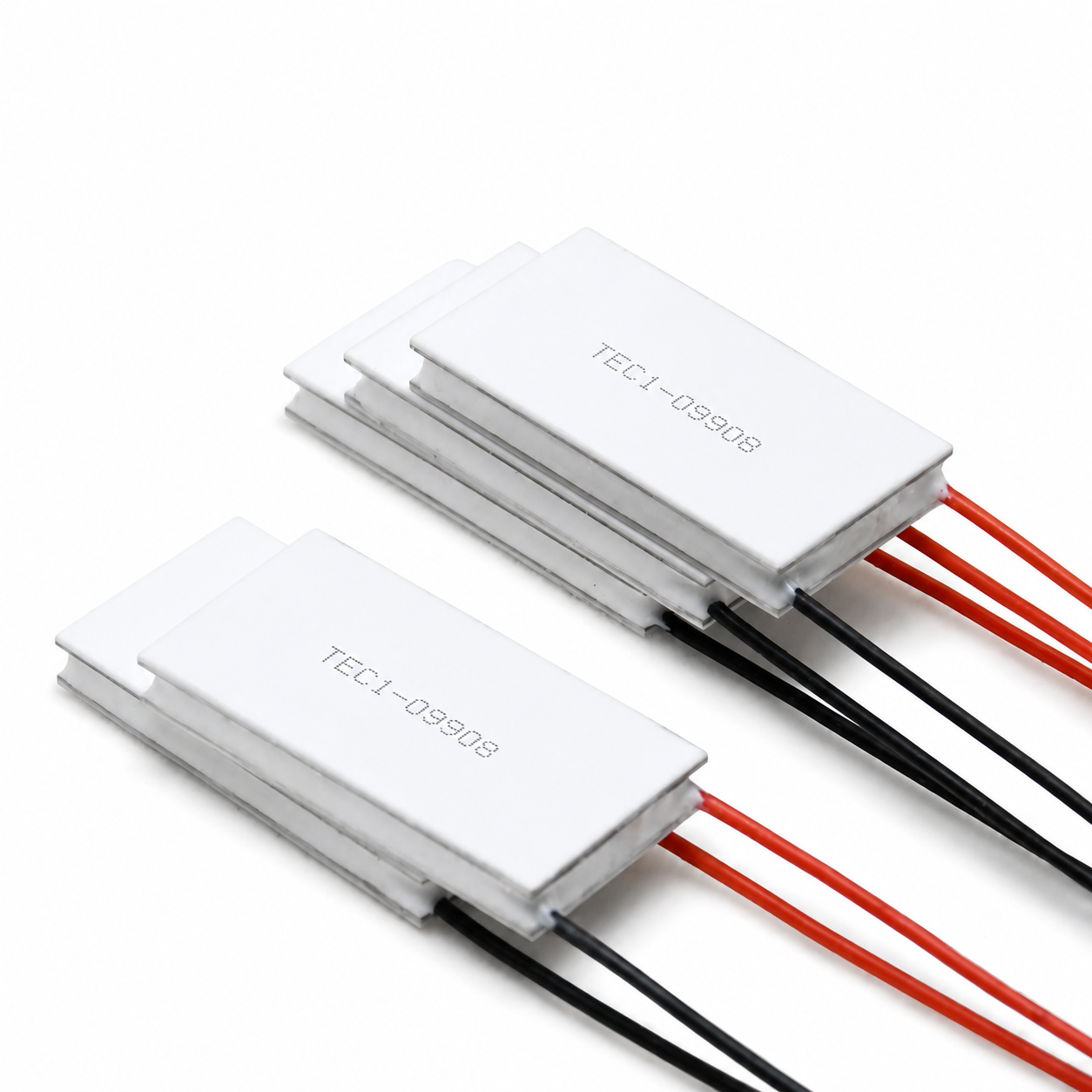

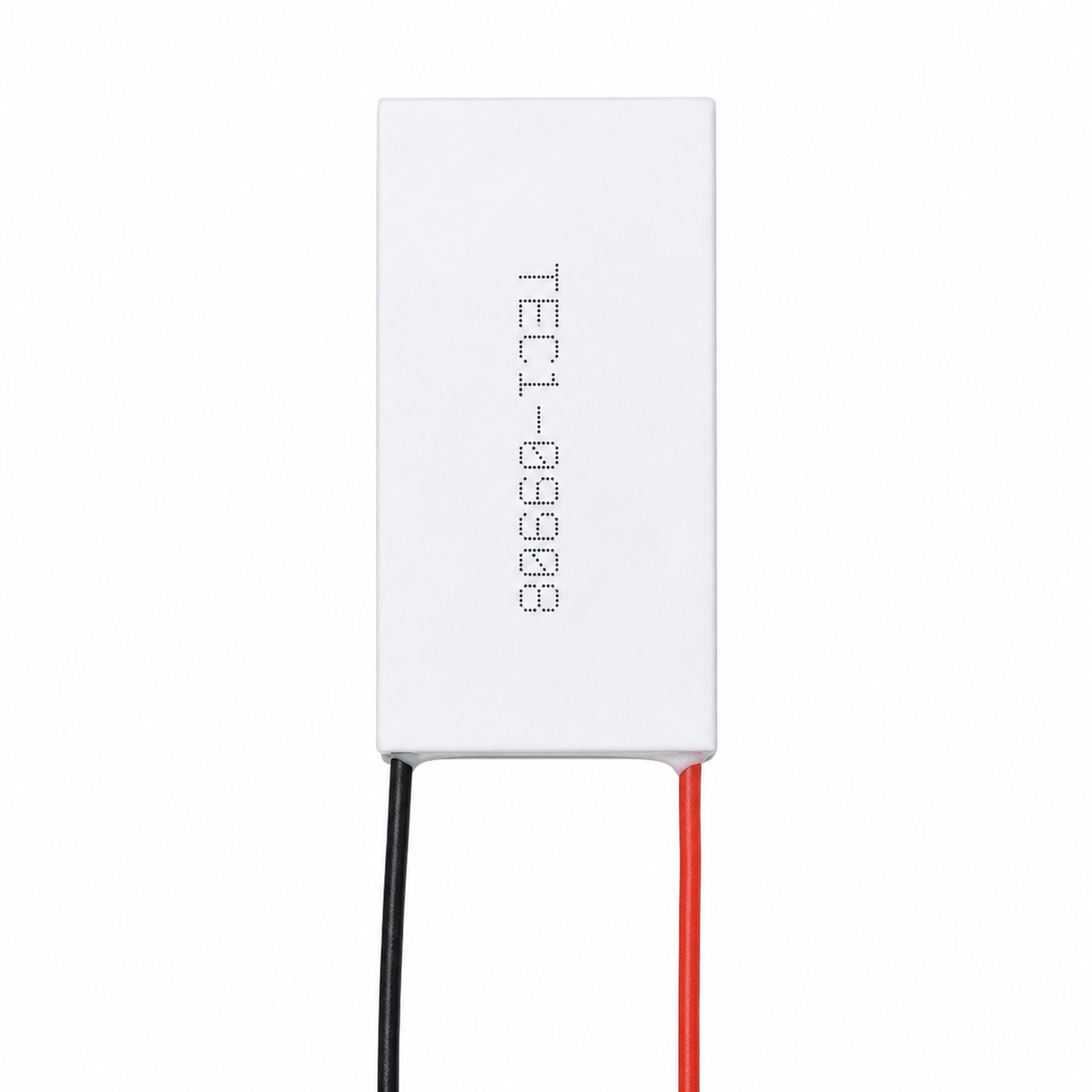

🔷Thermoelectric Devices Product Overview

The TEC1-09908 is a flagship semiconductor cooling module designed for cooling extremely large areas and achieving extreme high power density. Measuring 30 × 60 mm, it features a large, rectangular, symmetrical package design that provides an exceptionally generous heat exchange area. Optimized for applications requiring massive surface-area temperature control and extremely high thermal loads—such as ultra-high-power industrial laser modules, large-scale high-power industrial equipment, and high-performance medical devices—it is the most powerful flagship model in the series.

This product is available in three crystal configurations—K10, K14, and K18—with thicknesses of 3.4 mm, 3.8 mm, and 4.2 mm, respectively, corresponding to maximum cooling temperature differences of 60°C, 65°C, and 70°C (under conditions where the hot-end temperature Th = 40°C). It features a maximum voltage of 12.0 V, a maximum current of 8.0 A, a maximum cooling power of 96 W, and an internal resistance of just 1.17 Ω.

The extra-large 30×60mm rectangular package allows it to be embedded inside extreme ultra-high-power laser modules, large industrial equipment, and similar applications—while ensuring a maximum cooling temperature difference of 70°C and extreme ultra-high-power cooling of 96W, the 30mm width and 60mm length provide an extremely generous heat exchange area, helping to evenly distribute cooling to the surface of very large loads. This product is designed to operate at 12.0 V and 8.0 A, making it highly compatible with common industrial power supplies (12 V) and telecommunications equipment power platforms. With an ultra-low internal resistance of 1.17Ω—the lowest in this series—Joule heat loss (I²R ≈ 74.9W) at a high current of 8.0A is effectively controlled, allowing more electrical energy to be converted into effective cooling capacity and delivering outstanding energy efficiency. The substrate utilizes a sintering process combining 96% alumina ceramic (0.76 mm) and 0.4 mm oxygen-free copper, ensuring uniform heat dissipation across the 60 mm × 30 mm ultra-large surface area. It comes standard with 18 AWG silicone-coated leads (200 mm in length), capable of safely handling the 8.0 A high current. Sealed with 704 silicone rubber around the perimeter, it operates in a fully solid-state, noise-free, and vibration-free manner, ensuring stable and reliable performance.

This product is typically used in applications such as temperature control for extreme ultra-high-power industrial laser modules, heat dissipation for large-scale industrial equipment, high-performance medical devices, and high-power communication base stations. It is the premier flagship choice for extreme ultra-high-power-density cooling requirements in ultra-large-area spaces.

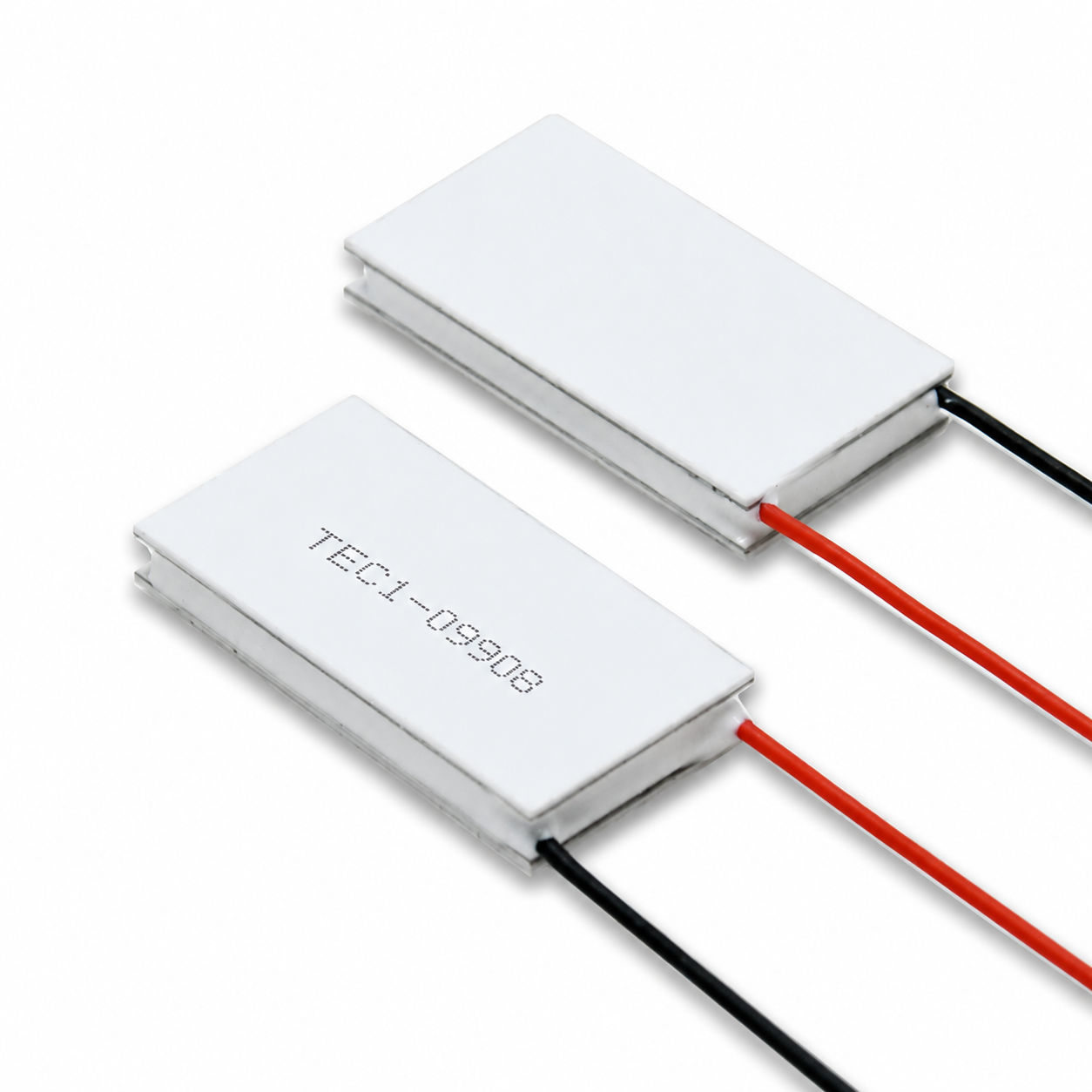

🔷Peltier Element Cooler Product Features

1. Extra-large, symmetrical design with ample heat exchange area

The extra-large 30×60 mm rectangular package provides an extremely generous heat exchange area, making it ideal for large, extreme-high-power temperature-controlled equipment.

2. Extreme-high-power cooling with top-tier performance

With a maximum current of 8.0 A and a maximum power of 96 W, it achieves top-tier power density cooling within its large-area package, making it the most powerful flagship model in the series.

3. Deep cooling capability with a large temperature difference across a vast surface area

It achieves a maximum temperature difference of 70°C at the extreme ultra-high power of 96 W, with the cold end reaching as low as approximately -30°C.

4. Three Chip Options for Flexible Adaptability

Offers three chip configurations: K10 (60°C), K14 (65°C), and K18 (70°C).

5. Ultra-Low Internal Resistance Design for Efficient Power Conversion

With an internal resistance of just 1.17 Ω, this is the model with the lowest internal resistance in the series. At a high current of 8.0 A, Joule heating losses are effectively controlled, allowing more electrical energy to be converted into effective cooling capacity.

6. Ultra-Thin Design, Saves Vertical Space

With a thickness of only 3.4–4.2 mm, it maintains an excellent slim-profile design among extreme ultra-high-power models.

7. Excellent Power Supply Compatibility

With a maximum voltage of 12.0V, it is highly compatible with common industrial power supplies (12V), telecommunications equipment power supplies, and other platforms.

8. High-Quality Substrate with Superior Heat Dissipation Across an Extra-Large Area

A thick copper layer ensures uniform heat distribution and efficient heat dissipation across an extra-large area of 60 mm × 30 mm.

9. Extra-Thick, Long Leads for Safe 8.0A Current Carrying Capacity

Comes standard with 18 AWG silicone-coated wire (200 mm long), meeting the demands of extreme high-current transmission and large-scale equipment wiring.

10. High Adaptability to Assembly Pressure

Recommended assembly pressure of 4.5 kg (0.25 kg/cm²), ensuring tight contact with the large-area heat sink.

11. Sealed Protection, Strong Environmental Adaptability

The 704 silicone rubber seal provides excellent moisture, dust, and shock resistance.

12. Bidirectional Temperature Control, Dual-Function Single Core

Reversing the current polarity activates heating mode, enabling bidirectional temperature regulation.

13. Zero Noise, Zero Vibration, Precision Operation

Fully solid-state construction ensures completely silent and vibration-free operation.

🔷Thermoelectric Generator Product Structure
