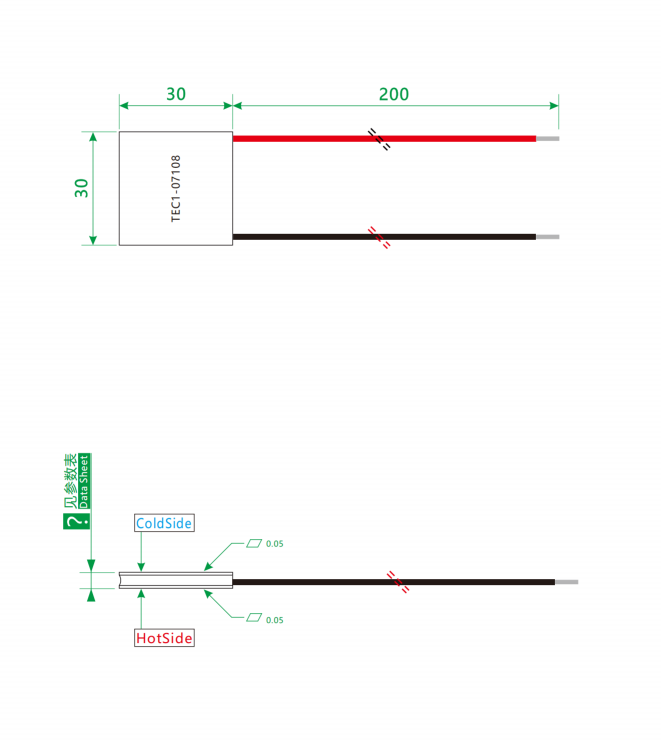

🔷Product Drawing
![]()
🔷Basic Performance Spec
| Product Model | Chip | Max Temp Difference | Internal Resistance | Max Voltage | Max Current | Max Power | Dimensions |
|---|
| Type mode | In APE | ▲Tmax(°C) | ACR (Ω) | Umax (V) | Imax (A) | Pmax (W) | Size (mm) |
| TEC1-07108 | K10 | 60 | 0.83 | 8.5 | 8 | 68 | 30×30×3.4 |
| K12 | 65 | | | | | 30×30×3.6 |
| K14 | 70 | | | | | 30×30×3.8 |
🔷 Additional Performance Spec
| Specification Item | Details |
|---|
| Substrate Specification | 96% alumina (0.76 mm) + oxygen-free copper (0.4 mm), sintered process |
| Lead Wire Specification | Extra-soft silicone wire, 18 AWG, length = 200 mm |
| Terminal Specification | Standard product without terminals (terminals can be added upon request) |
| Assembly Pressure | 2.3 kg (0.25 kg/cm²) |
| Packaging Standard | Polystyrene (PS) foam box packaging |
| Sealing Material | 704 silicone rubber sealant |
| Maximum Temperature Resistance | Bismuth-tin lead-free solder, melting point 138°C |
| Storage Environment | Temperature < 120°C, Humidity < 60% Rh |

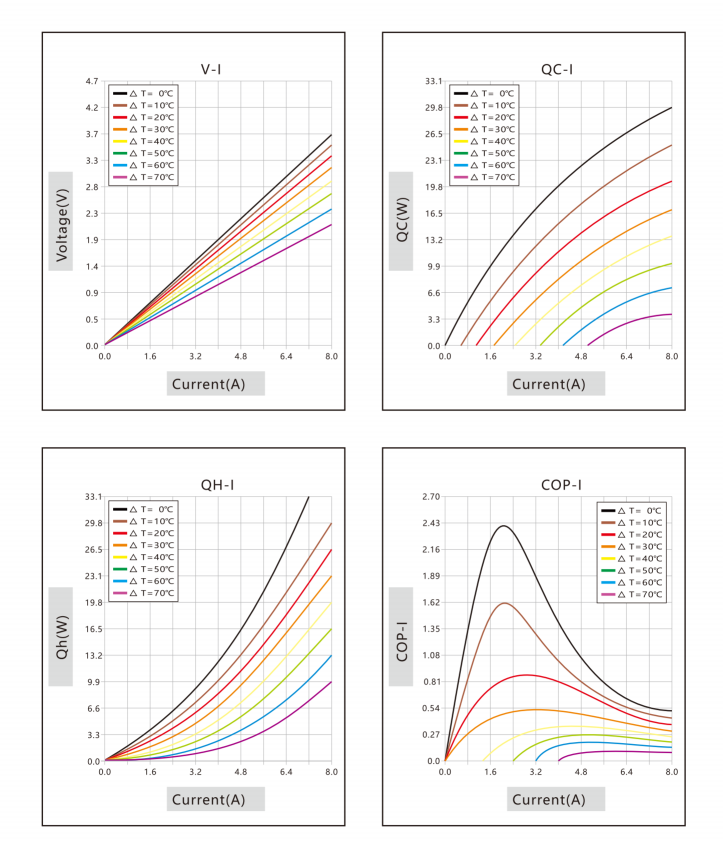

🔷 Performance Curve
![]()
🔷 Product Overview
This Industrial Peltier Cooler 30303.5mm is a high‑reliability thermoelectric refrigeration component, widely matched with peltier module water cooling kit. Different from air‑cooled solutions, water‑cooled heat dissipation greatly improves cooling efficiency. Our unit works perfectly as peltier module water cooling kit for cpu cooling, thermoelectric water cooling kit for industrial temperature control, diy refrigerator peltier water cooling kit and peltier water cooling kit for laser equipment cooling. It is an ideal solid‑state cooling part without refrigerant, noise‑free and maintenance‑free.
🔷 Product Features
- Compact 30303.5mm small size, easy to install into limited‑space water‑cooling refrigeration systems
- Stable cooling performance, support long‑time continuous running for industrial equipment
- Water‑cooling matched design, higher heat dissipation efficiency than air cooling
- Solid‑state refrigeration, no compressor, zero vibration and low noise
- Reversible heating & cooling function by switching power supply polarity
- Support wholesale, OEM and custom service for peltier water cooling kits
🔷Product Applications
CPU & chip precision cooling‑‑peltier module water cooling kit for cpu cooling
Industrial cabinet, laboratory equipment‑‑thermoelectric water cooling kit for industrial temperature control
DIY mini refrigerator, portable chiller‑‑diy refrigerator peltier water cooling kit
Laser module, laser head temperature control‑‑peltier water cooling kit for laser equipment cooling
Medical instrument cooling, beauty equipment temperature control
Small‑size water‑circulation refrigeration system
🔷 Product Structure
![]()
🔷Operation Principle
Based on the Peltier effect (珀尔帖效应). When direct‑current flows through two different semiconductor materials, one ceramic surface absorbs heat (cold side), the other releases heat (hot side). Hot‑side heat is quickly taken away by circulating water from the water cooling kit, so the cold‑side temperature drops continuously to realize precise refrigeration.
🔷FAQ
Q1: Can this 30303.5mm industrial peltier cooler work with a peltier module water cooling kit?
A1: Yes, it is perfectly matched for water‑cooling assembly, recommended for high‑heat‑load cooling projects.
Q2: Is this cooler suitable for laser equipment cooling?
A2: Absolutely. It is a great option for peltier water cooling kit for laser equipment cooling.
Q3: Do you offer OEM service for the full peltier water cooling kit?
A3: Yes, we support wholesale, custom‑sized thermoelectric coolers and full‑kit OEM production.
Q4: Can I use this part to build a diy refrigerator?
A4: Sure. You can combine it with our water‑cooling accessories to make a diy refrigerator peltier water cooling kit.
