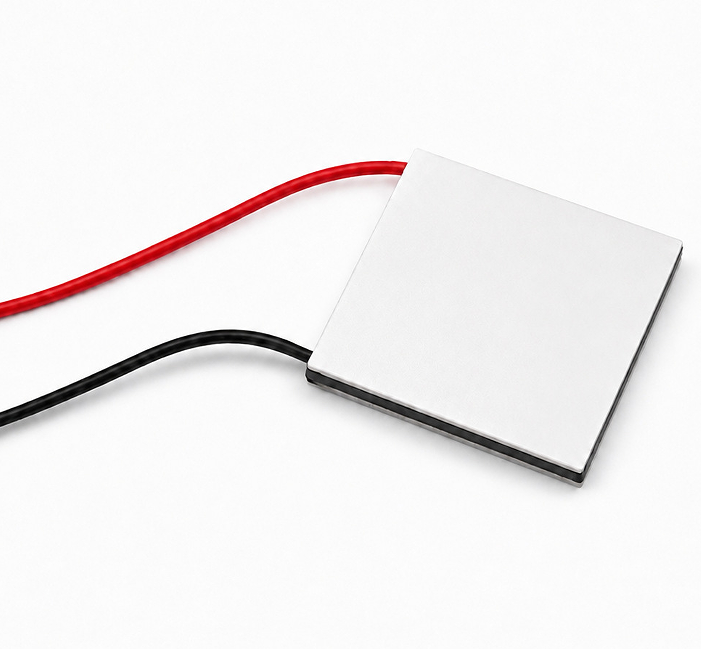

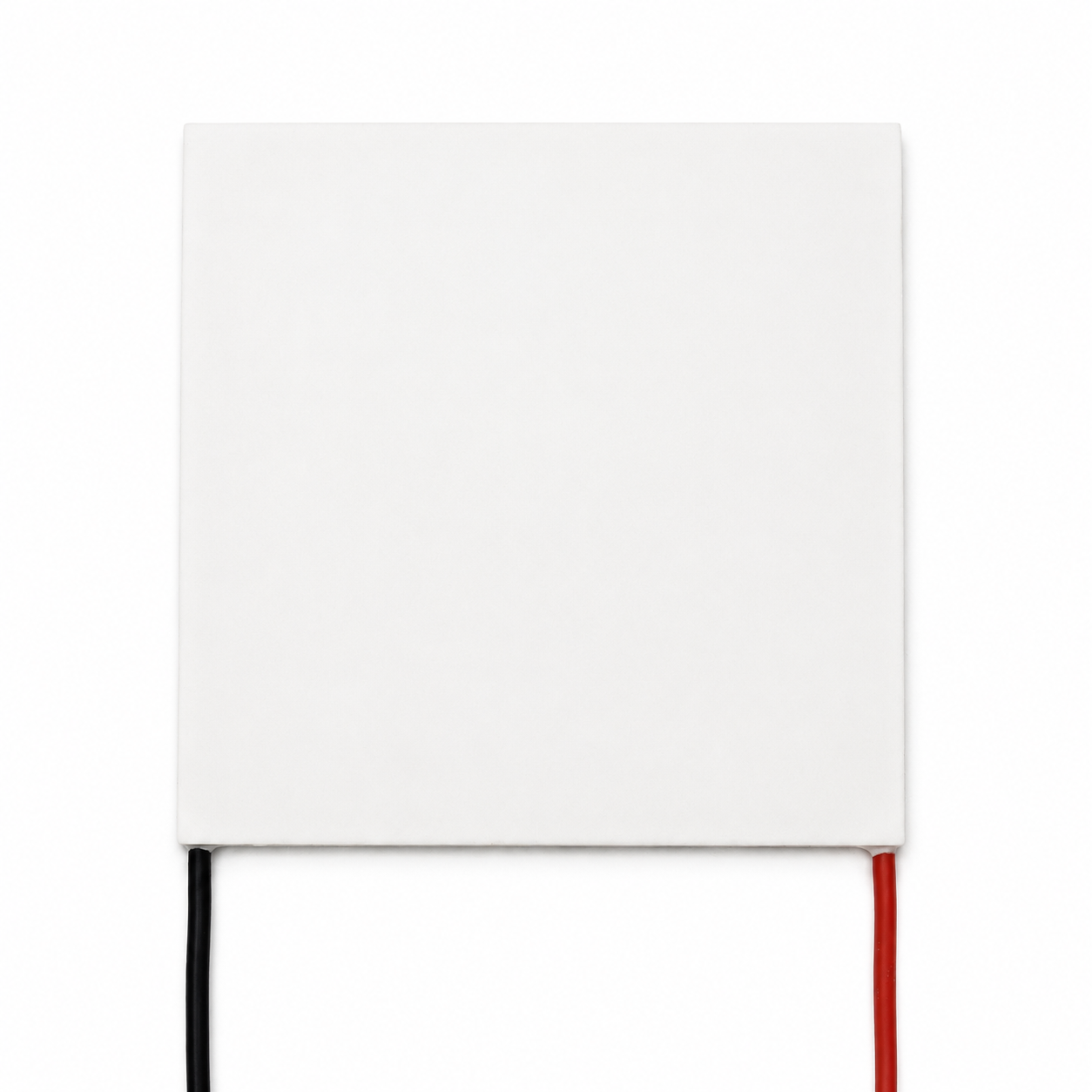

🔷 Product Overview

This 62623.6mm industrial peltier cooler belongs to high‑power thermoelectric modules. It is solid‑state cooling component without refrigerant. Compared with traditional compression refrigeration, thermoelectric modules feature compact structure, no vibration, fast cooling response. Widely used in industrial chiller, laser cooling, semiconductor temperature control, medical cooling and refrigeration equipment. We support wholesale and OEM custom service for global B‑end purchasers.

🔷 Product Features

1. 62×62×3.6mm compact industrial dimension, mature thermoelectric modules process
2. High cooling efficiency, stable performance for long‑time continuous working
3. Alumina ceramic substrate, good insulation performance
4. Bidirectional temperature control: cooling & heating by reversing current direction
5. No compressor, no refrigerant, low noise and zero vibration
6. Support OEM modification, bulk wholesale for project customers

🔷Product Applications

This industrial peltier cooler 62623.6mm thermoelectric modules apply to multiple industry scenarios：
thermoelectric modules for laser cooling：Laser diode, laser instrument constant temperature control
thermoelectric modules for industrial chiller：Small industrial circulating cooling machine
thermoelectric modules for semiconductor temperature control：Chip temperature holding, electronic component heat dissipation
thermoelectric modules for medical cooling：Medical instrument constant temperature equipment
thermoelectric modules for refrigeration equipment：Small‑size precise refrigeration device

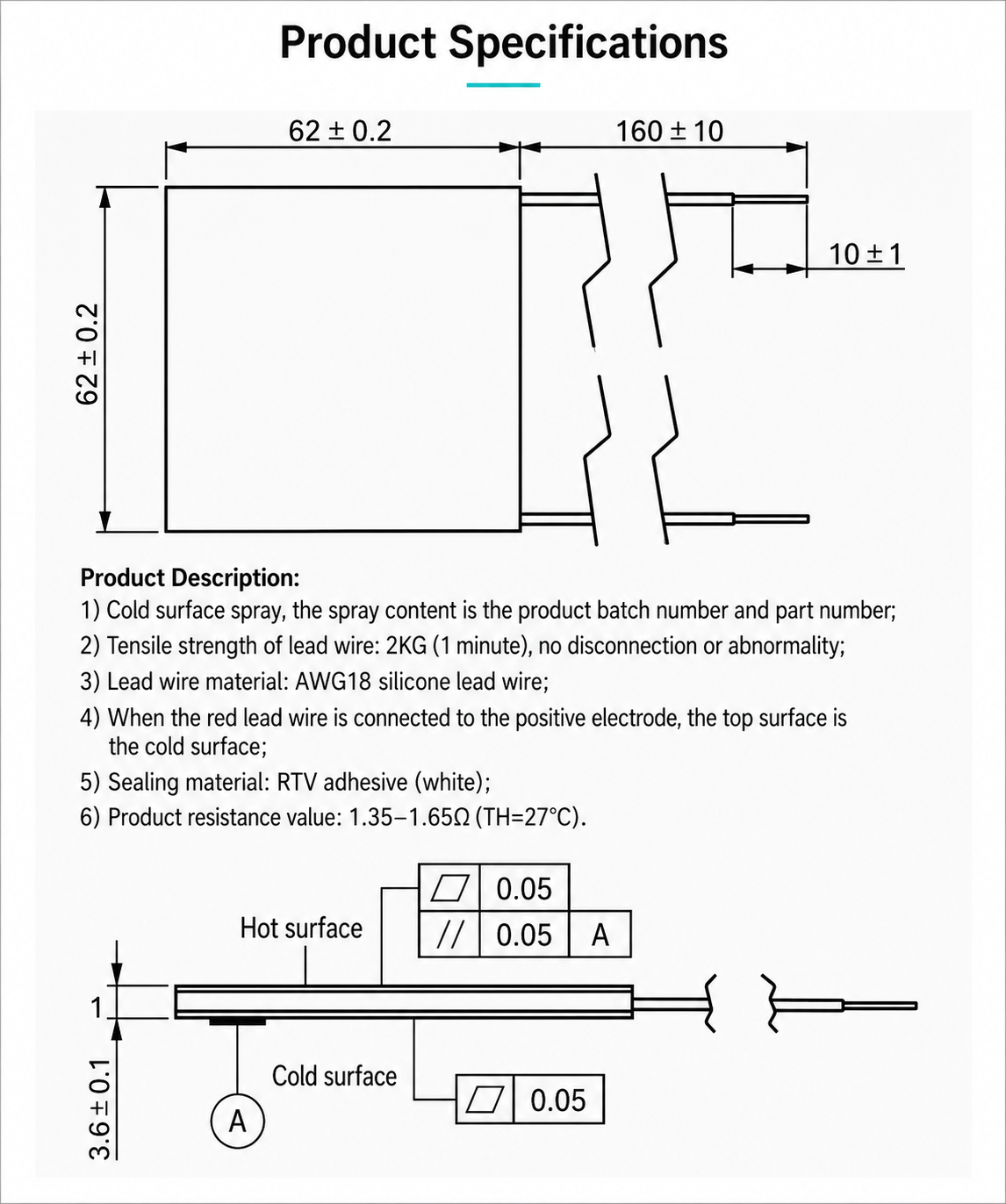

🔷 Product Structure

🔷Operation Principle

Based on Peltier effect of thermoelectric modules. When DC current passes through N‑P thermoelectric pellet pairs, heat will transfer from cold side to hot side. Cold side absorbs heat to realize cooling; hot side releases heat which needs matched heat sink for heat dissipation. Reverse current direction will switch cooling mode to heating mode, realize bidirectional temperature adjustment.

🔷 Product Testing

Every 62*62*3.6mm industrial peltier cooler is 100% fully inspected before shipment, strictly testing all core indicators of thermoelectric modules to ensure high stability and consistency for industrial cooling, laser cooling, semiconductor temperature control and medical cooling applications. We adopt professional industrial testing standards to eliminate defective products and guarantee long-term continuous operation of the equipment.

Core Testing Items:

1. Electrical Performance Test: Accurately detect working voltage, working current, internal resistance and insulation resistance of thermoelectric modules to ensure no short circuit, no open circuit and stable electrical conductivity, meeting industrial-grade power supply requirements.

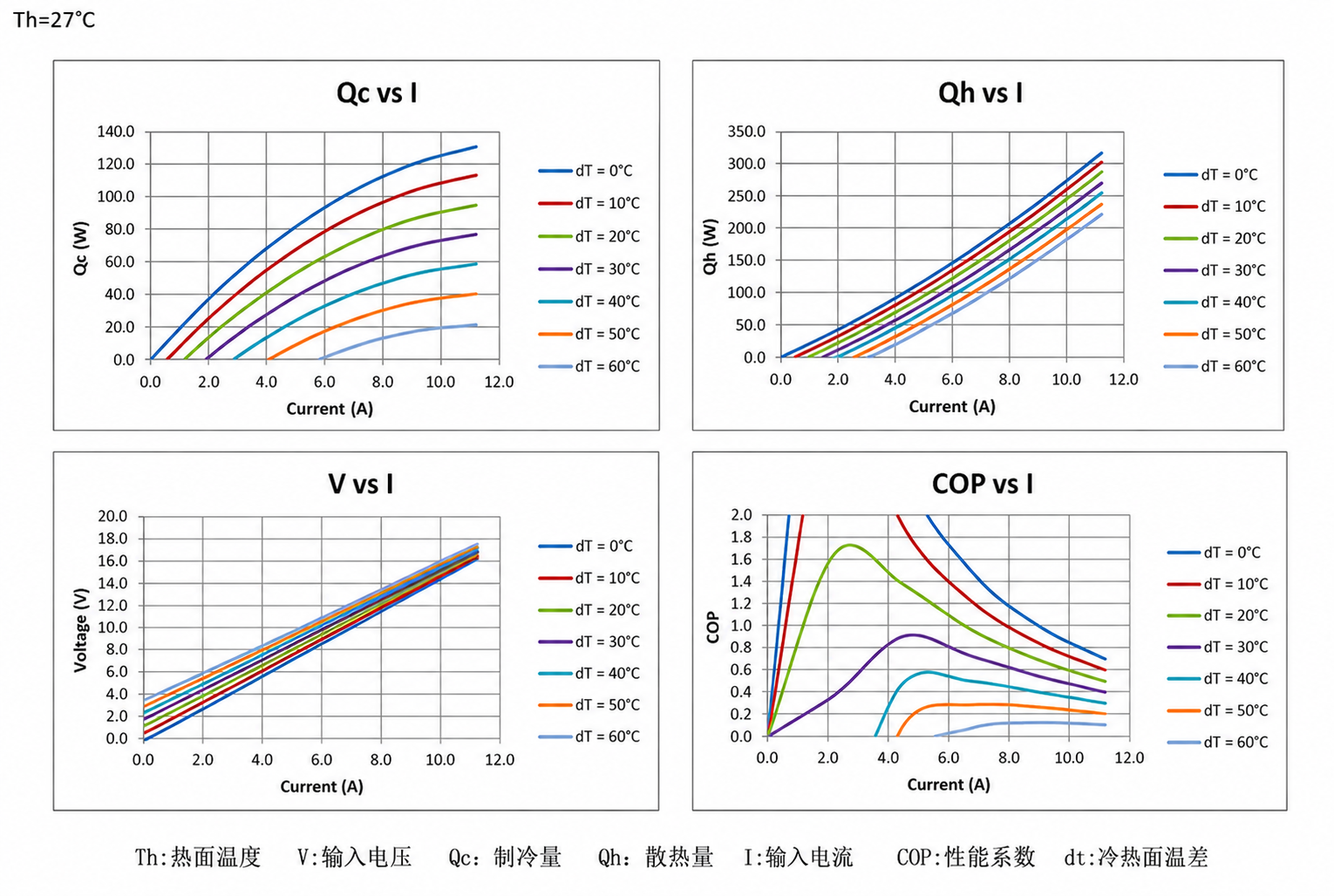

2. Cooling Performance Test: Test the maximum temperature difference, cooling speed and heat load bearing capacity of the peltier cooler under standard working conditions, verify the actual cooling efficiency, and ensure it matches the parameter standards of high-power thermoelectric modules.

3. Structural & Appearance Test: Check the flatness of ceramic substrate, firmness of welding points, integrity of lead wires and overall dimension accuracy (62*62*3.6mm) to avoid cracks, deformation and welding defects.

4. High and Low Temperature Cycle Test: Simulate extreme working environments of -40℃ to +80℃ to test the structural stability and performance durability of the thermoelectric modules, ensuring adaptability for long-term industrial on-site use.

5. Aging Test: Conduct continuous power-on aging test for hours to screen out products with unstable performance, effectively reducing the failure rate of thermoelectric modules in refrigeration equipment and precision temperature control systems.

🔷 Product Packaging

🔷FAQ

Q1: What heat sink should I match for this 62623.6mm industrial peltier cooler thermoelectric modules?
A: Must equip high‑efficiency heat sink plus fan for hot‑side heat dissipation. Poor heat dissipation will greatly reduce cooling performance and shorten service life of thermoelectric modules.

Q2: Can you provide OEM custom thermoelectric modules service?
A: Yes, we support OEM custom, including wire length, resistance parameter, surface treatment, special dimension for project. Wholesale order is welcome for B‑end buyers.

Q3: What is the main failure cause of thermoelectric modules?
A: Over‑current operation, bad hot‑side heat dissipation, mechanical stress and improper soldering operation are the main failure reasons. Please follow spec sheet for application.
