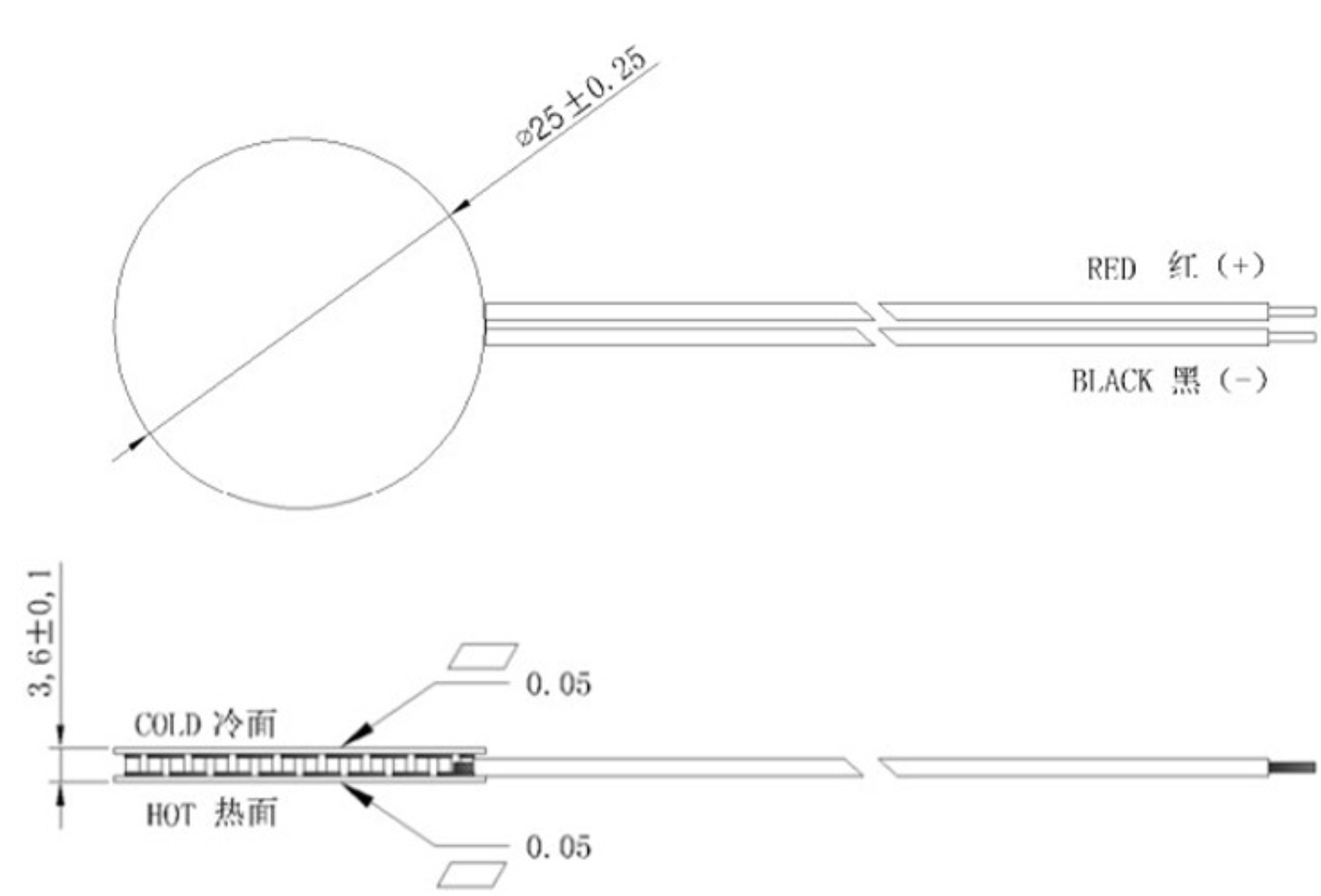

🔷Product Drawing

🔷Basic Performance Spec

🔷Performance Curve

🔷Product Overview

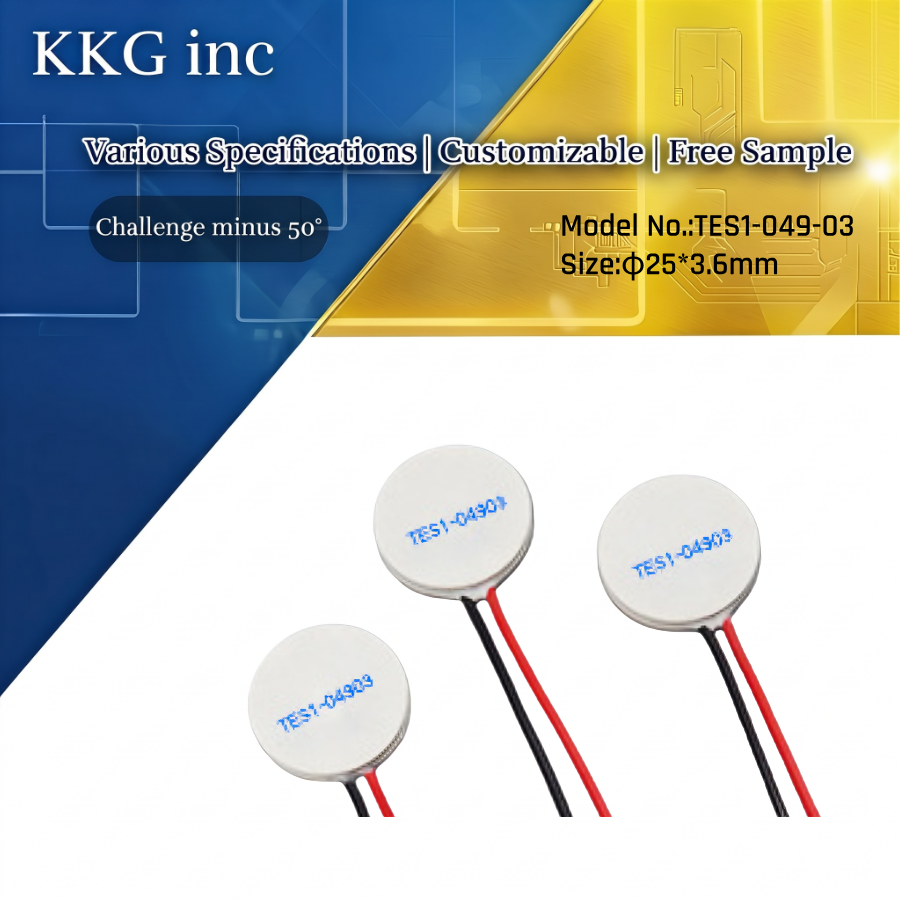

The Circle Thermoelectric Cooler Peltier is a circular thermoelectric cooling module developed for compact thermal management systems.

Unlike conventional rectangular TEC modules, the circular design can be integrated into equipment where a round mounting area or localized cooling surface is required. The module operates without compressors, refrigerants or mechanical moving components, making it suitable for applications that require compact size, reliable operation and accurate temperature control.

As an experienced Thermoelectric Cooler manufacturer, we provide standard and customized TEC solutions for OEM customers, equipment manufacturers, distributors and engineering projects.

The module can be customized in terms of size, voltage, current, wire configuration, connector and thermal performance to match different system requirements.

🔷Product Features

1. Circular Compact Design

The circular structure provides flexible installation possibilities for equipment with round mounting areas or limited internal space.

2. Precise Temperature Control

Thermoelectric cooling technology allows accurate control of the temperature of the target component or localized area.

3. No Mechanical Moving Parts

The module operates through semiconductor thermoelectric technology without compressors or mechanical moving parts, helping reduce vibration and mechanical wear.

4. Heating and Cooling Function

By reversing the polarity of the DC power supply, the hot and cold sides can be switched, allowing the same module to provide both cooling and heating.

5. Customizable Configuration

The module can be customized according to application requirements, including:

• Diameter

• Thickness

• Voltage

• Current

• Cooling capacity

• Temperature difference

• Lead wire length

• Wire specification

• Connector type

• Ceramic configuration

6. OEM & ODM Support，OEM与ODM支持

Our thermoelectric cooler factory supports customized TEC modules for prototype development, small-batch production and volume OEM requirements.

🔷Product Applications

The Circle Thermoelectric Cooler Peltier can be used in various thermal management applications where compact and localized cooling is required.

Laser Cooling

Thermoelectric cooling modules can help maintain the operating temperature of laser components and optical devices.

Semiconductor Temperature Control

TEC modules can be integrated into semiconductor equipment requiring precise thermal management.

Optical Equipment

The compact structure is suitable for temperature stabilization of optical components and sensitive optical systems.

Medical Equipment

Thermoelectric cooling technology can be applied to temperature-sensitive medical and analytical equipment.

Laboratory Equipment

TEC modules can provide localized cooling and temperature control for laboratory instruments.

Electronic Equipment

The module can be used for localized cooling of electronic components and temperature-sensitive circuits.

Analytical Instruments

Thermoelectric temperature control can help maintain stable operating conditions for analytical and measurement equipment.

Industrial Temperature Control

The module can be integrated into industrial cooling and temperature-control systems requiring compact thermal management solutions.

🔷Product Structure

The Circle Thermoelectric Cooler Peltier is primarily composed of thermoelectric semiconductor elements, ceramic plates, electrical connections and external wiring.

Main Structure

Ceramic Plate

Provides electrical insulation and a stable thermal transfer surface.

Semiconductor Elements

The semiconductor couples are the core components responsible for thermoelectric heat transfer.

Electrical Connection

The internal electrical circuit connects the thermoelectric semiconductor elements to the external power supply.

Lead Wires

Lead wires can be configured according to the customer's installation requirements.

Thermal Interface

The ceramic surface transfers heat between the TEC module and the cooling/heating target.

🔷Operation Principle / Work Principle

The Circle Thermoelectric Cooler Peltier works based on the Peltier effect.

When DC current passes through the semiconductor elements inside the module, heat is absorbed on one side and released on the opposite side. As a result, one surface becomes cold while the other surface becomes hot.

The basic heat-transfer process can be described as:

DC Power → Semiconductor Elements → Heat Absorption → Heat Transfer → Heat Dissipation

By reversing the direction of the DC current, the hot and cold sides are reversed, allowing the module to operate as either a cooler or a heater.

For this reason, proper hot-side heat dissipation is essential. If heat cannot be removed effectively, the cold-side temperature and cooling capacity will be affected.

🔷FAQ

Q1: What is a Circle Thermoelectric Cooler Peltier?

A Circle Thermoelectric Cooler Peltier is a circular thermoelectric cooling module that uses the Peltier effect to transfer heat from one side to the other. It is designed for compact and localized temperature-control applications.

Q2: Are you a Thermoelectric Cooler manufacturer?

Yes. As a Thermoelectric Cooler manufacturer, we provide thermoelectric cooling modules for OEM, ODM, wholesale and customized applications.

Q3: Can the circular TEC module be customized?

Yes. We can customize the module according to diameter, thickness, voltage, current, cooling capacity, wire length, connector and other application requirements.

Q4: Can you provide a custom thermoelectric cooler?

Yes. Our custom thermoelectric cooler solutions are available for different equipment and thermal-management requirements. Customers can provide their target temperature, heat load, power supply and installation dimensions for engineering evaluation.

Q5: What voltage can the TEC module use?

The operating voltage depends on the selected TEC design. Different voltage and current configurations can be developed according to the customer's system requirements.

Q6: Can the TEC module provide both cooling and heating?

Yes. Reversing the polarity of the DC power supply reverses the hot and cold sides, allowing the module to provide both cooling and heating.

Q7: What cooling method should be used?

The hot side needs to dissipate the heat generated during operation. Depending on the cooling load, an air-cooled heatsink or liquid cooling system can be selected.

Q8: Can you provide TEC modules for laser cooling?

Yes. Thermoelectric cooling modules can be customized for laser cooling, optical equipment and other applications requiring precise temperature control.

Q9: Do you support OEM and ODM orders?

Yes. We support OEM and ODM requirements, including customized dimensions, electrical specifications, wires, connectors and packaging.

Q10: What information is needed for a custom TEC module?

For a customized thermoelectric cooler, it is recommended to provide:

• Target cold-side temperature
• Hot-side temperature
• Required cooling capacity
• Input voltage
• Maximum current
• Available installation space
• Module diameter and thickness
• Wire and connector requirements
• Expected order quantity
  Based on these parameters, the appropriate TEC configuration can be evaluated.

🔷Why Choose Us as Your Thermoelectric Cooler Manufacturer

As a professional Thermoelectric Cooler manufacturer, we focus on providing reliable thermoelectric cooling solutions for different industries and equipment manufacturers.

Our Capabilities

Standard TEC Modules

A range of thermoelectric cooling modules for different cooling requirements.

Custom TEC Modules

Customized dimensions and electrical/thermal specifications according to project requirements.

OEM & ODM Service

Support for equipment manufacturers and long-term B2B projects.

Engineering Support

Technical evaluation based on cooling capacity, temperature requirements and installation conditions.

Bulk Supply

Suitable for distributors, wholesalers and volume OEM customers.
