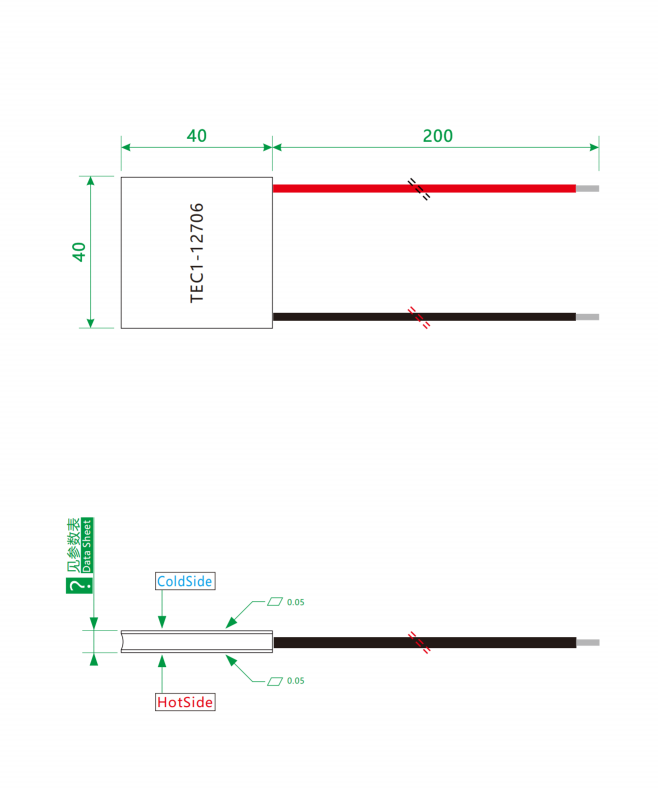

🔷Product Drawing
![]()
🔷Basic Performance Spec
| Product Model | Chip | Max Temp Difference | Internal Resistance | Max Voltage | Max Current | Max Power | Dimensions |
|---|
| Type mode | In APE | ▲Tmax(°C) | ACR (Ω) | Umax (V) | Imax (A) | Pmax (W) | Size (mm) |
| TEC1-12706 | K10 | 60 | | | | | 40×40×3.4 |
| K14 | 65 | 1.98 | 15.2 | 6 | 91 | 40×40×3.8 |
| K18 | 70 | | | | | 40×40×4.2 |
🔷 Additional Performance Spec
| Specification Item | Details |
|---|
| Substrate Specification | 96% alumina (0.76 mm) + oxygen-free copper (0.4 mm), sintered process |
| Lead Wire Specification | Extra-soft silicone wire, 20 AWG, length = 200 mm |
| Terminal Specification | Standard product without terminals (terminals can be added upon request) |
| Assembly Pressure | 4 kg (0.25 kg/cm²) |
| Packaging Standard | Polystyrene (PS) foam box packaging |
| Sealing Material | 704 silicone rubber sealant |
| Maximum Temperature Resistance | Bismuth-tin lead-free solder, melting point 138°C |
| Storage Environment | Temperature < 120°C, Humidity < 60% Rh |
🔷 Performance Curve
TEC12706 Peltier Cooler For Military is high‑reliability thermoelectric cooling component for harsh environment. Suitable for strict military scene. Price List Contact Customer Service for industrial chiller thermoelectric cooling, laser cooling peltier module, semiconductor temperature control solution related matching consultation.
🔷 Product Features
- Military‑grade high stability ceramic substrate, anti‑vibration & anti‑shock
- Low thermal fatigue, long service life for continuous operation
- Compact solid‑state cooling, no refrigerant, fast temperature response
- Support bulk order, OEM modification and custom adjustment. Price List Contact Customer Service for peltier module supplier, wholesale thermoelectric cooler, OEM TEC module, custom peltier cooling plate business demand.
- 🔷Product Applications
- Military electronic cabinet temperature control 军用电子机柜温控
- Laser device cooling 激光器件制冷
- Semiconductor component thermal management
- Special industrial chiller core cooling element
Price List Contact Customer Service for scene‑based application scheme support.

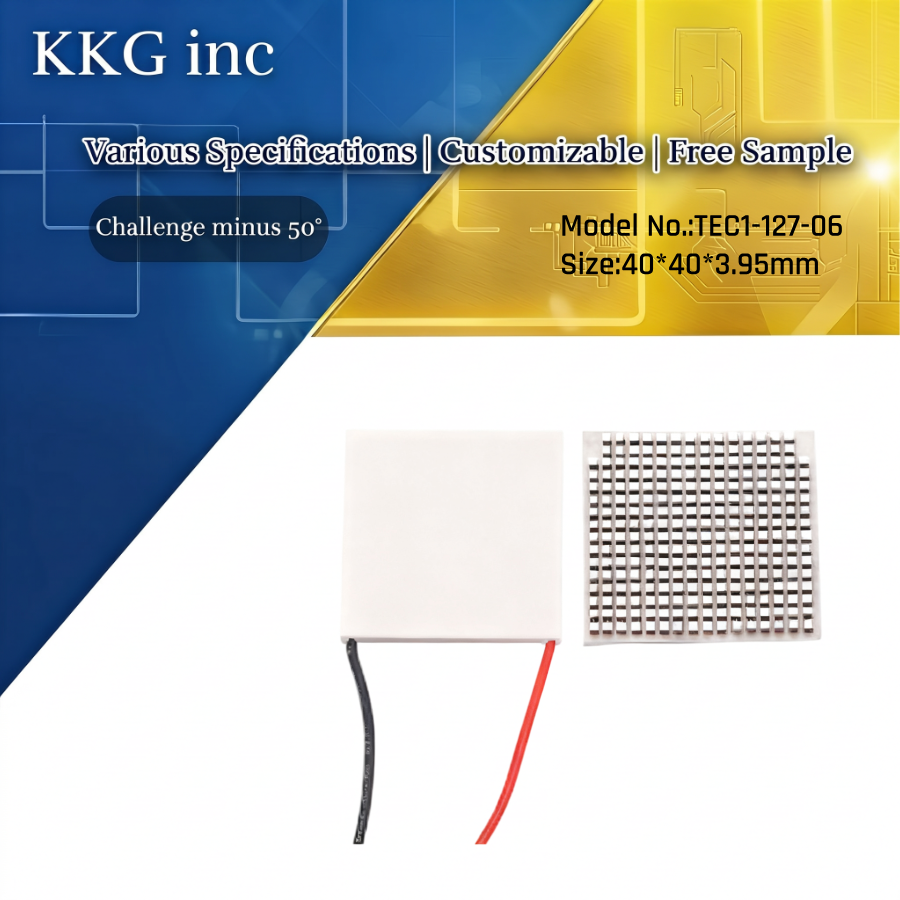

🔷 Product Structure
![]()
🔷Operation Principle/ Work Principle
Based on Peltier effect, DC input realizes one‑side cooling and the other‑side heating. Adjust current to control cooling power. For system matching suggestion, Price List Contact Customer Service.
🔷FAQ
Q1: Can TEC12706 military peltier cooler be used for laser cooling system?
A1: Yes, it fits laser cooling scene. Price List Contact Customer Service for laser cooling peltier module parameter matching suggestion.
Q2: Do you support wholesale and OEM service for TEC12706?
A2: We support wholesale thermoelectric cooler, OEM TEC module and custom peltier cooling plate. Price List Contact Customer Service to send your requirement.
Q3: How can I get quotation and price list?
A3: Please Price List Contact Customer Service, tell us your quantity and application scenario, we will send formal quotation quickly.
Q4: Is this product suitable for semiconductor temperature control solution?
A4: Yes, this military grade TEC12706 works well for semiconductor temperature control solution, send your technical requirement via Price List Contact Customer Service.
Q5: Can it be used as core part of industrial chiller thermoelectric cooling?
A5: It can serve as core cooling element for special industrial chiller thermoelectric cooling. Contact us for thermal design suggestion.
