KKG's TEC Purchasing Guide

Whether you're upgrading an existing design or developing a new cooling solution, choosing the correct 40×40mm (or custom-sized) thermoelectric cooler (Peltier module) is critical to performance, reliability, and cost. This guide breaks down all key factors to confirm before placing your order.

Core Factors to Confirm Before Purchase

1. Solid State Cooler's Physical Dimensions: The Foundation of Compatibility

The first and most critical check is size matching.

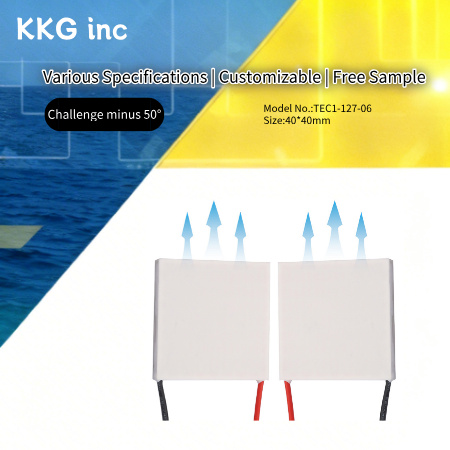

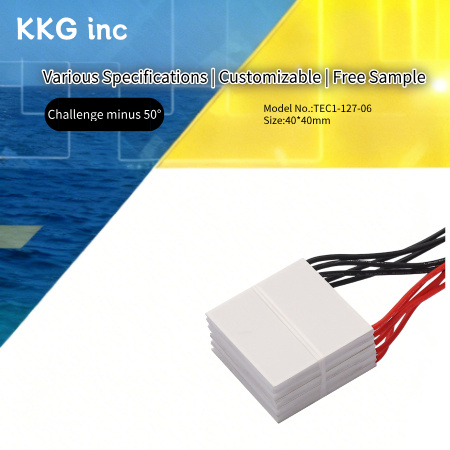

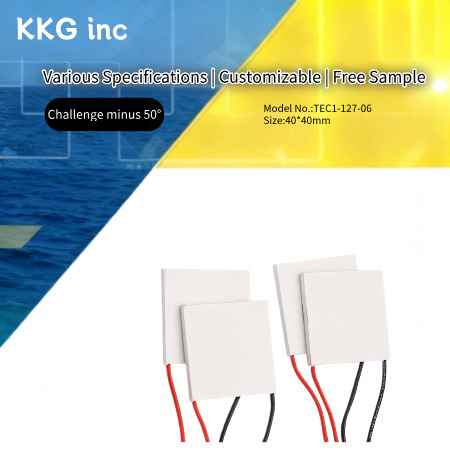

Standard Sizes: Common footprints include 40×40mm (TEC1-127-08, our flagship model), 30×30mm, 20×20mm, and custom micro-sizes like 15×15mm.

Critical Note: Even if two modules have the same size their thickness, and mounting hole positions may vary. Always confirm the full dimensional drawing (length × width × thickness) to ensure a perfect fit in your enclosure.

2. Power, Voltage & Current: The Performance Trio of Thermoelectric Cooling System

These three parameters are interdependent and directly determine cooling capacity.

Key Relationship: For modules with the same size and power rating, if the current is different, the voltage will also differ (per Ohm's Law: Power (W) = Voltage (V) × Current (A)).

Example: A 40×40mm 72W module can be 12V/6A (TEC1-127-08) or 24V/3A. The power is identical, but the voltage/current is different, requiring a different power supply.

What to Confirm:

Rated Voltage (V): Match your system's power input (12V, 24V, 48V, etc.).

Rated Current (A): Ensure your power supply can handle the peak current draw.

Maximum Power (W): Align with your cooling load requirements.

3. Element Peltier's Cooling Capacity (Qmax) & COP: Efficiency Metrics

These define how well the module cools and how energy-efficient it is.

Cooling Capacity (Qmax): The maximum heat the module can move (in Watts) at a 0℃ temperature difference. This is the core spec for sizing your cooling system.

Coefficient of Performance (COP): The ratio of cooling power to input power. A higher COP means a more energy-efficient module, critical for battery-powered or portable devices.

Why It Matters: A module with a high Qmax but low COP will consume more power and generate excess heat, negating cooling benefits.

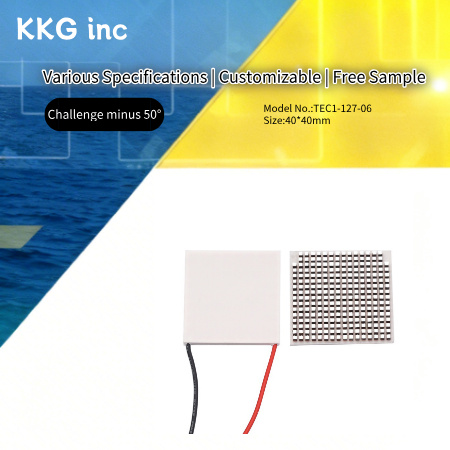

4. Peltier Cooling Element's Thermocouple Pairs: The Core of the Module

The number of N/P-type semiconductor thermocouple pairs directly impacts performance.

Common Counts: 127 pairs (standard for 40×40mm modules like TEC1-127-08), 71 pairs, 31 pairs, etc.

Impact:

More pairs = higher voltage, lower current, and greater maximum temperature difference (ΔT).

Fewer pairs = lower voltage, higher current, and faster response.

Action: Confirm the pair count matches your design requirements for voltage, current, and cooling speed.

5.TEC Cooling System's Application & Use Case: Tailor the Specs to Your Needs

The intended use case dictates all other parameters. Always share your application with us to ensure the right module:

Smart Home (Mini Fridges, Water Dispensers): Prioritize low noise, 12V compatibility, and reliability.

Industrial Equipment (Laser Cooling, Dehumidifiers): Prioritize high Qmax, wide operating temperature range, and durability.

Medical Devices (Lab Equipment, Diagnostic Tools): Prioritize precision temperature control (±0.1℃) and long lifespan.

Aerospace & Defense (Guidance Systems): Prioritize shock/vibration resistance, sealed packaging, and extreme environment performance.

Portable Devices (Camping Coolers): Prioritize low power, lightweight, and 12V DC compatibility.

6. Thermoelectric Cooling Device's Optional Accessories: Complete Your Cooling Solution

A TEC module only works optimally with the right supporting components. We offer pre-packaged kits to save you time:

Thermal Grease (Silicone Grease): Reduces contact thermal resistance between the module, cold side, and heat sink.

Heat Sink & Cooling Fan: Dissipates heat from the hot side (critical for maximum cooling performance).

Cold Plate / Heat Conduction Sheet: Transfers cold from the module to the target object (e.g., a water tank).

Insulation Cotton / Foam: Prevents condensation and heat leakage, improving efficiency.

Mounting Hardware: Screws, brackets, and gaskets for secure installation.

Why Buy a Kit: Ensures all components are perfectly matched, eliminating compatibility issues and reducing assembly time.

Thermoelectric Cooling Element's Quick Purchase Checklist

Use this checklist to confirm all requirements before ordering:

1.Physical dimensions (L×W×T) match your design

2. Power, voltage, and current are compatible with your power supply

3. Cooling capacity (Qmax) meets your heat load requirement

4. COP is acceptable for your energy efficiency goals

5. Thermocouple pair count aligns with your performance needs

6. Application-specific requirements (noise, vibration, temperature range) are met

7. Need for accessory kits (heat sink, fan, grease, etc.) is confirmed
