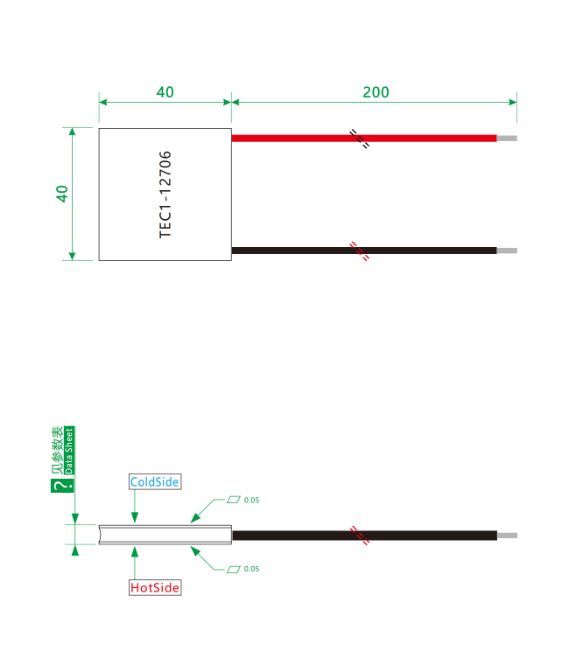

🔷Product Drawing

🔷Basic Performance Spec

🔷 Additional Performance Spec

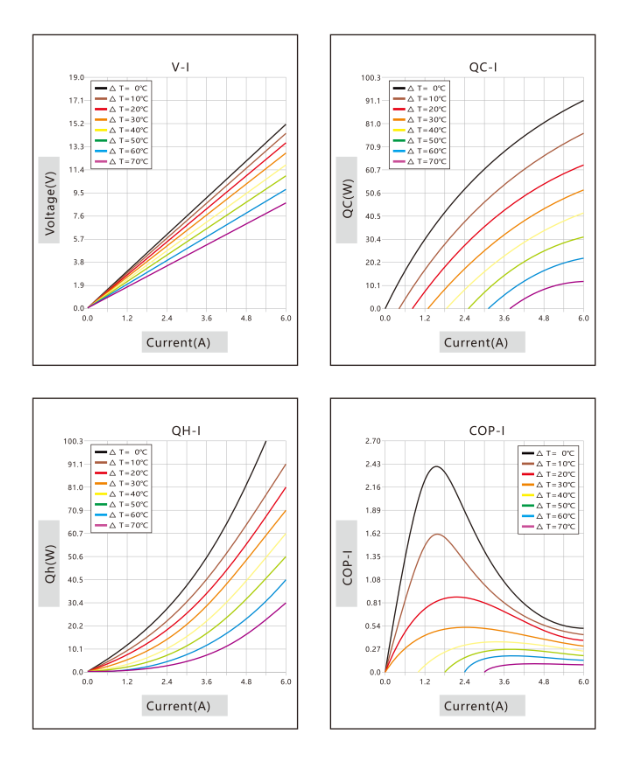

🔷 Performance Curve

🔷 Product Overview

TEC1-12706 is a 40×40mm high-power thermoelectric cooler based on the Peltier effect.It provides bidirectional heating and cooling with no moving parts, refrigerant or compressor.The module is suitable for AI hardware, laser systems, semiconductor equipment, medical devices and laboratory instruments.For precise temperature regulation, the TEC1-12706 can be paired with a programmable thermoelectric controller.

🔷 Product Features

1.40×40mm High-Power Peltier Module

2.TEC1-12706 with 60–70°C ΔTmax

3.Up to 6A Current and 91W Maximum Power

4.3.4–4.2mm Compact Thickness Options

5.Bidirectional Heating and Cooling

6.Compatible with Digital Thermoelectric Controllers

🔷Product Applications

• AI industry chip cooling, artificial intelligence hardware temperature control
• Thermoelectric controller for laser cooling, laser module constant‑temperature control
• Thermoelectric temperature controller for medical equipment, medical instrument constant‑temperature system
• Thermoelectric controller for industrial chiller, small industrial circulating water cooling
• Semiconductor thermoelectric cooling controller, electronic component temperature‑holding test
• Laboratory small‑size refrigeration, precision instrument thermal management

🔷 Product Structure

🔷Operation Principle

The TEC1‑12706 thermoelectric cooling device works based on the Peltier effect. The high‑precision thermoelectric controller collects real‑time temperature data via sensors, then automatically adjust output current and direction. The programmable thermoelectric cooling controller switches cooling or heating mode, to keep the AI equipment at a stable preset temperature.

🔷FAQ

Q1: Can this TEC1‑12706 40*40 cooling device work with your thermoelectric temperature controller?
A: Yes, our digital thermoelectric controller is perfectly compatible with TEC1‑12706 series peltier modules. Dual‑channel thermoelectric controller options are available.

Q2: Do you offer OEM thermoelectric temperature controller service for AI cooling projects?
A: Sure. As a professional thermoelectric controller supplier, we can provide custom thermoelectric cooling controller, including firmware, panel and interface customization.

Q3: Can I buy wholesale thermoelectric controller and TEC cooling modules in bulk?
A: Wholesale service is supported. Please contact us to get bulk price for thermoelectric cooling device and matching peltier thermoelectric controller.

Q4: Is this programmable thermoelectric cooling controller suitable for laser and medical equipment?
A: Absolutely. This high‑precision thermoelectric controller is widely used for laser cooling, medical instrument temperature control, industrial chiller and semiconductor thermal management.
