High‑quality TEC1‑09104 thermoelectric cooler 40*40mm cooling module, wholesale peltier module, OEM thermoelectric cooling module for laser cooling, industrial chiller and semiconductor temperature control. Custom cooling module supplier, fast delivery & stable performance. 🟧 Price List Contact Customer Service 🟦 Product PDF Spec Contact Customer Service ⬜ Certifications Contact Customer Service 🟪 Contact customer Contact Customer Service 🟨 MOQ:1 Pcs 🟥 Fast Delivery:2-15 Days 🟩 Source Factory：Online Factory Video 🟫 Multiple Payment Methods：T/T|PayPal|Alipay ⬛ Pre|After Service：+86 13377785035|xyy@kkg.tw

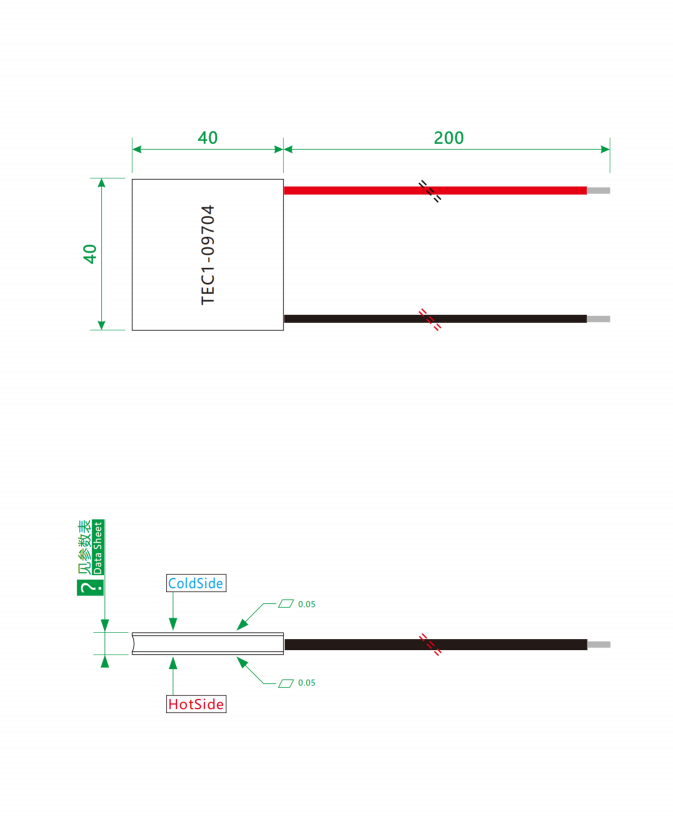

| Type Model | In APE | Max Temp Diff. ▲Tmax (°C) | Internal Resistance ACRohm (Ω) | Max Voltage Umax (V) | Max Current Imax (A) | Max Power Pmax (W) | Size (mm) |
|---|---|---|---|---|---|---|---|
| TEC1-09704 | K14 | 60 | 2.34 | 12 | 4 | 48 | 40x40x3.8 |
| K26 | 65 | 2.34 | 12 | 4 | 48 | 40x40x5.0 | |
| K38 | 70 | 2.34 | 12 | 4 | 48 | 40x40x6.2 |
| Parameter | Specification |
|---|---|
| Substrate Specification | 96% Alumina (Al₂O₃) 0.76 + Oxygen-Free Copper 0.4 sintering process |
| Lead Wire Specification | Special soft silicone wire 22AWG / L=200mm |
| Terminal Specification | Standard products have no terminals; can be added upon request |
| Assembly Pressure | 4kg / (0.25kg/CM²) |
| Packaging Standard | Polystyrene (PS) foam box packaging |
| Sealing Material | 704 silicone rubber seal |
| Max Temperature Resistance | Bismuth-tin (Bi-Sn) environmentally friendly solder, melting point 138°C |
| Storage Environment | Temperature < 120°C, Humidity < 60%Rh |
Our TEC1‑09104 thermoelectric cooler 40*40mm cooling module is a compact large‑size peltier element designed for solid‑state thermoelectric refrigeration. As a high‑power 40x40 cooling module, it transfers heat from one side to another without any refrigerant, compressor or moving parts. This thermoelectric cooling module is a perfect semiconductor temperature control component widely supplied for industrial cooling projects. We are a reliable cooling module supplier supporting wholesale thermoelectric cooler orders for global distributors.
This TEC1‑09104 40*40mm cooling module can be used for multiple thermoelectric cooling scenarios:
✅ Thermoelectric cooling for industrial chiller
✅ Cooling module for laser cooling & laser equipment temperature control
✅ Semiconductor temperature control for lab test instruments
✅ Small peltier refrigeration system, mini‑cooler, constant‑temperature cabinets
✅ Medical equipment, beauty device cooling, electronic component heat dissipation
✅ Wholesale cooling modules for distributors, OEM equipment manufacturers

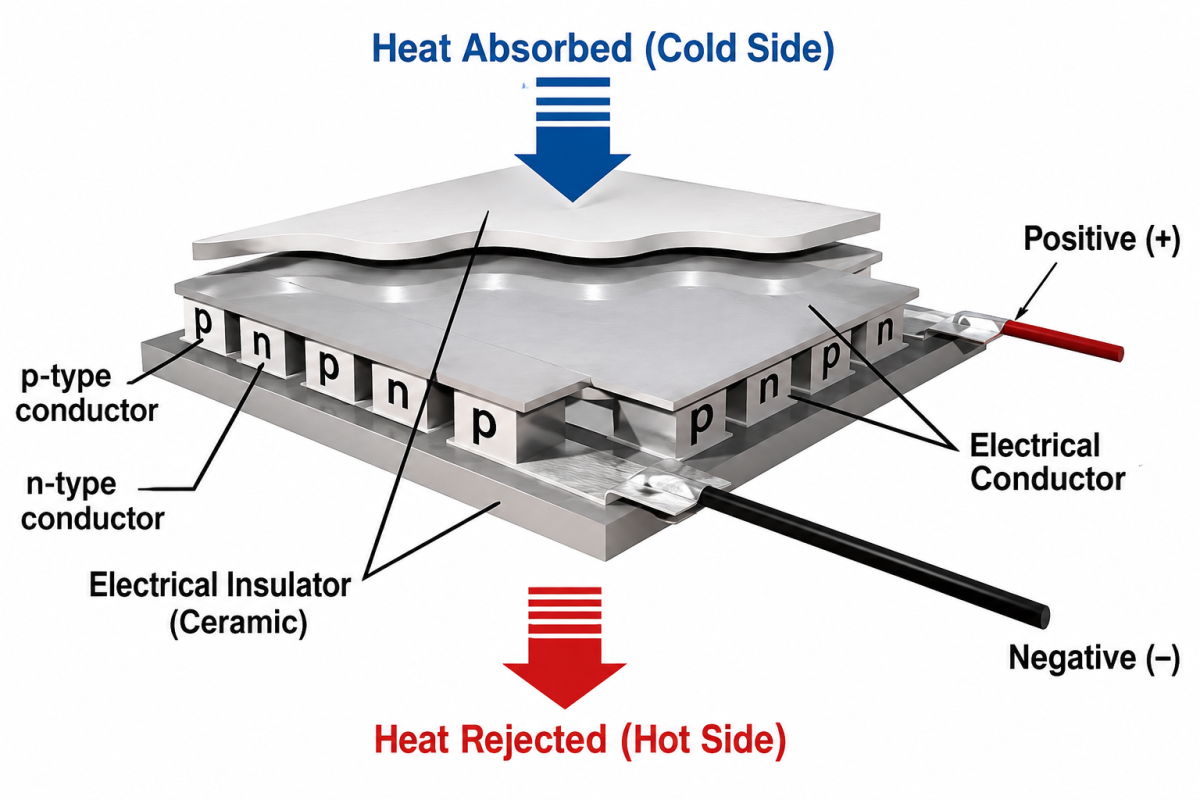

Based on the Peltier effect, once DC current flows through this cooling module, one ceramic surface will absorb heat and turn cold, while the opposite surface releases heat and becomes hot. By switching the direction of the direct current, the cooling and heating sides can be reversed. Users need to match a qualified heat sink on the hot side to get ideal thermoelectric refrigeration performance.
Q1: Can I buy this 40*40mm cooling module in wholesale quantity?
A1: Yes, we support wholesale thermoelectric cooler service for bulk orders, welcome distributors to contact us for the best price.
Q2: Do you provide OEM service for TEC1‑09104 thermoelectric cooler cooling module?
A2: OEM TEC module service is available. We can provide custom cooling module cooling plate, wire length and label modification as your requirements.
Q3: What heat sink should I match for this high‑power cooling module?
A3: A high‑performance radiator with fan is strongly recommended for the hot‑side, insufficient heat dissipation will greatly reduce its cooling‑down effect.
Q4: Is this peltier cooling module fit for laser cooling?
A4: Absolutely. TEC1‑09104 40*40mm thermoelectric cooler is one of the popular cooling module for laser cooling and industrial temperature‑holding projects.
