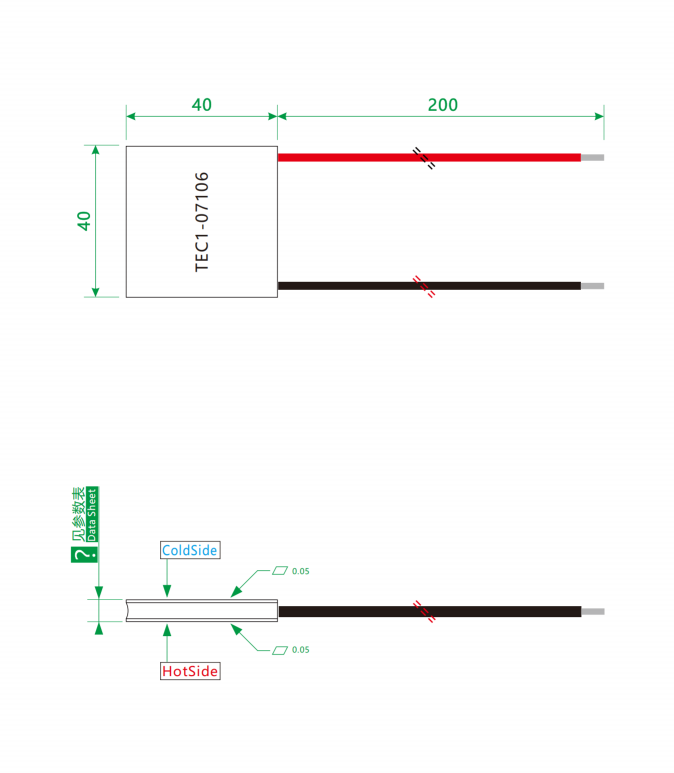

🔷Product Drawing

🔷Basic Performance Spec

🔷Additional Performance Spec

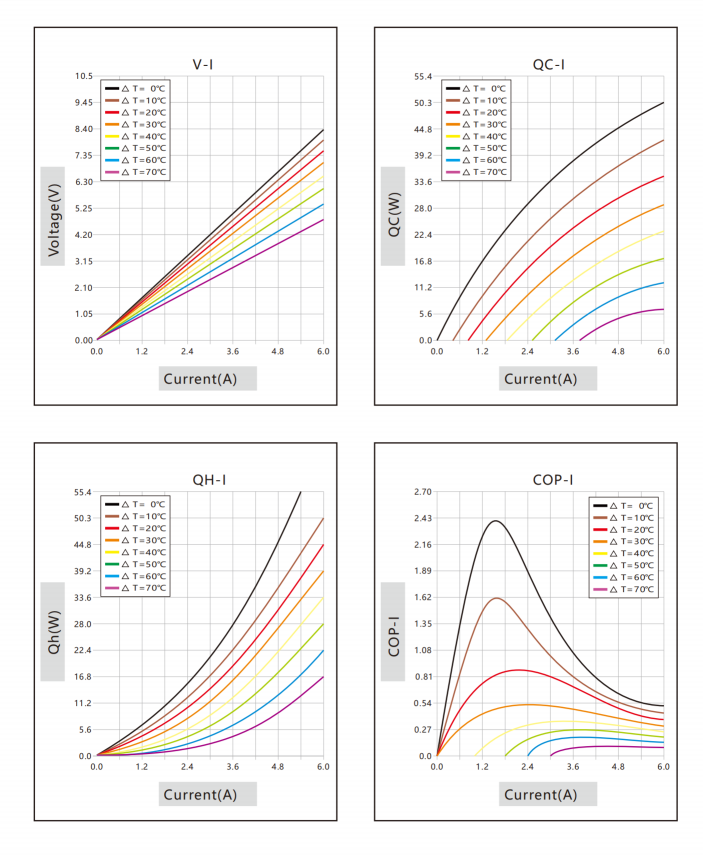

🔷Performance Curve

🔷Product Overview

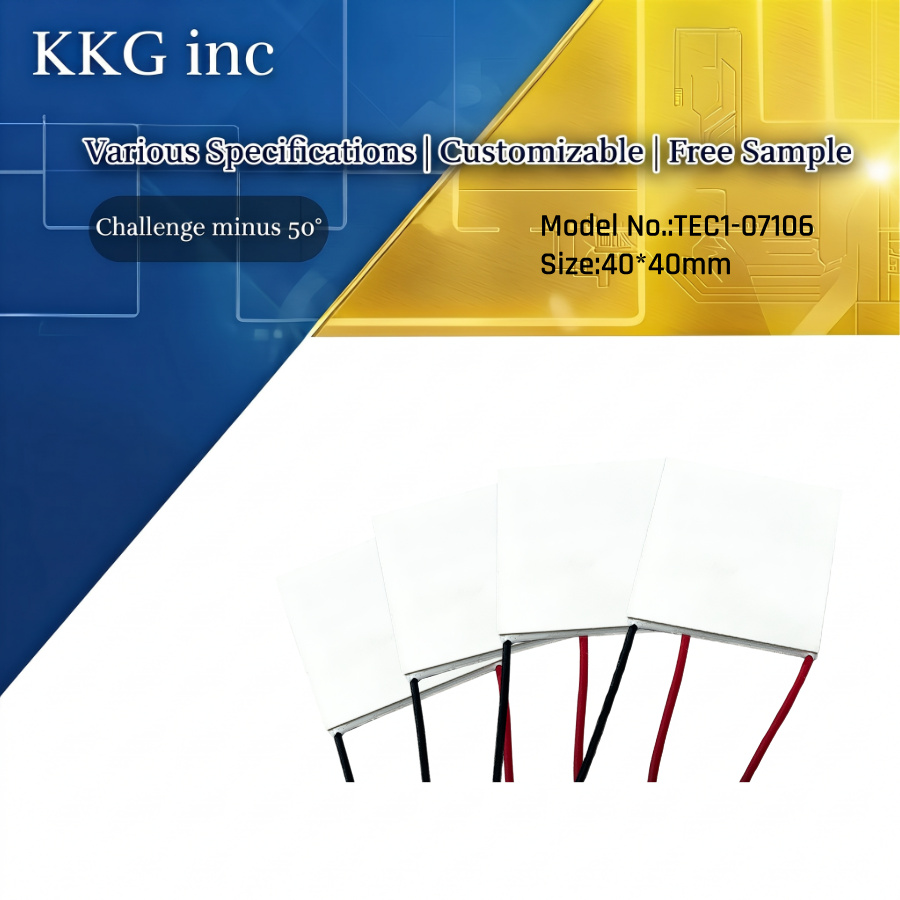

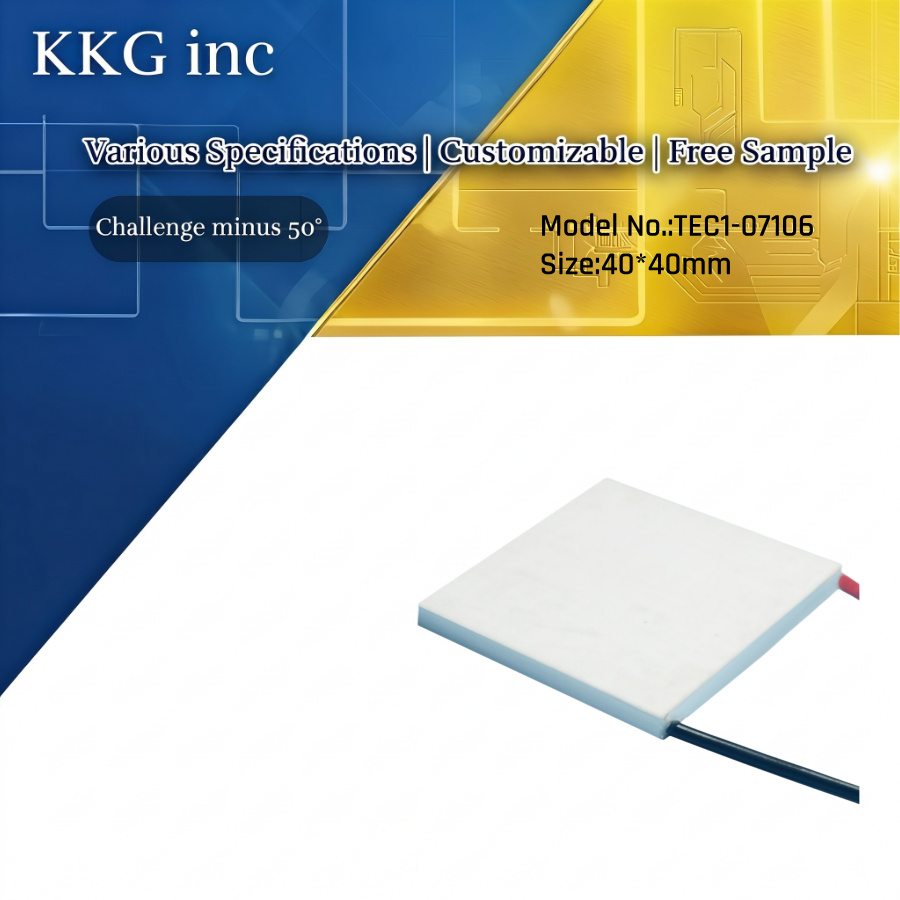

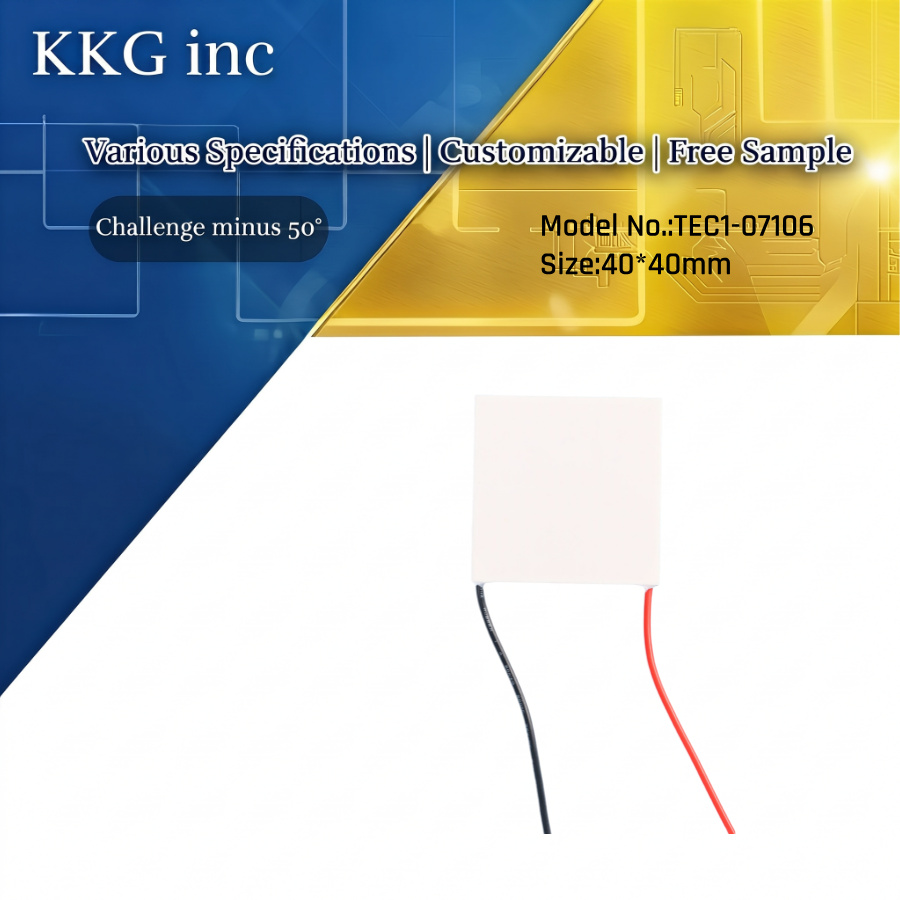

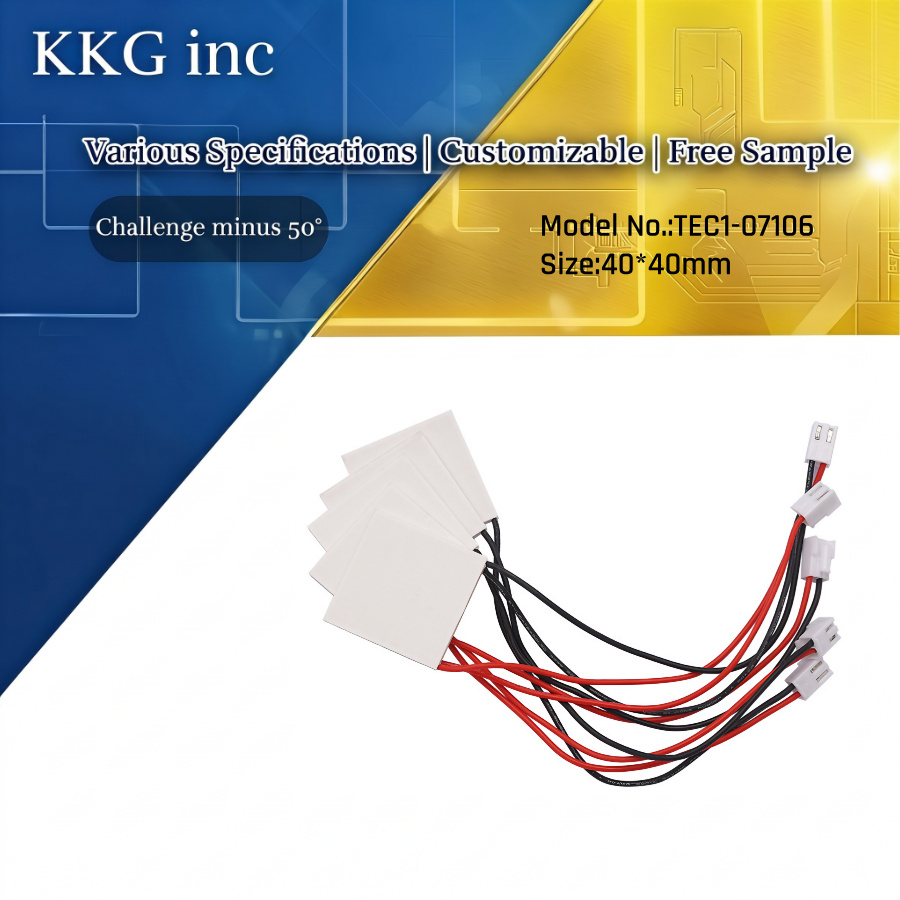

The TEC1-07106 Thermoelectric Cooler 40*40mm is a compact semiconductor cooling module based on the Peltier effect. It transfers heat from one side of the module to the other when DC power is applied, providing solid-state cooling without mechanical compressors or refrigerants.

With its 40*40mm form factor, TEC1-07106 can be integrated into compact temperature-control systems where space, precise temperature regulation and reliable solid-state cooling are important.

As a TEC cooler manufacturer and supplier, we provide thermoelectric cooling modules for equipment manufacturers, system integrators and OEM customers. Standard products as well as customized TEC cooler solutions can be discussed according to project requirements.

🔷Product Features

• 40*40mm compact size for space-limited equipment

• Solid-state cooling based on the Peltier effect

• No mechanical moving parts

• No refrigerant required

• Suitable for cooling and temperature control

• Compact structure for easy system integration

• Suitable for OEM and ODM projects

• Available for bulk purchasing and customized applications

• Suitable for equipment manufacturers and system integrators

• Can be integrated into different thermal management systems


For projects requiring specific dimensions, electrical characteristics or thermal performance, custom TEC cooler solutions can be evaluated according to application requirements.

🔷Product Applications

The TEC1-07106 TEC cooler can be used in various applications where compact thermoelectric cooling or temperature control is required.

Industrial Cooling

Used for localized cooling and temperature control in industrial equipment, control systems and thermal management devices.

Laser Cooling

TEC cooling modules can be integrated into laser equipment to assist with temperature stabilization and thermal management.

Semiconductor Temperature Control

Suitable for semiconductor-related equipment requiring localized temperature control and compact cooling solutions.

Optical Equipment

Can be applied to optical equipment where stable temperature conditions are important for system operation.

Medical Equipment

The compact TEC cooler design can be considered for temperature-controlled components and equipment requiring solid-state cooling.

Electronics Cooling

Suitable for localized cooling of electronic components, sensors and other heat-sensitive components.

Laboratory Equipment

Can be integrated into laboratory instruments and temperature-control systems requiring compact thermoelectric cooling.

🔷Product Structure

🔷Operation Principle / Work Principle

The TEC1-07106 TEC cooler operates according to the Peltier effect.

When DC current flows through the semiconductor thermoelectric elements, heat is transferred from the cold side to the hot side. The cold side absorbs heat from the target component, while the hot side releases the transferred heat to a heatsink or other thermal dissipation system.

The basic cooling process can be described as:

DC Power → Thermoelectric Elements → Heat Absorption on Cold Side → Heat Transfer → Heat Release on Hot Side

Unlike compressor-based cooling systems, a TEC cooler has no compressor, refrigerant or mechanical moving parts. This makes thermoelectric modules suitable for compact cooling and precise temperature-control applications.

For actual system design, sufficient heat dissipation on the hot side is essential because the hot-side thermal load includes both the heat pumped from the cold side and the electrical input power.

🔷FAQ

1. What is TEC1-07106?

TEC1-07106 is a 40*40mm thermoelectric cooler based on the Peltier effect. It is designed for compact cooling and temperature-control applications.

2. What is the size of TEC1-07106?

The standard module size is 40*40mm. Detailed dimensional information should be confirmed from the product drawing.

3. What is a TEC cooler?

A TEC cooler, also known as a thermoelectric cooler or Peltier cooler, is a solid-state cooling device that transfers heat from one side to the other when DC power is applied.

4. Can TEC1-07106 be used for industrial cooling?

Yes. TEC1-07106 can be considered for localized cooling and temperature-control applications in industrial equipment, electronics, optical equipment and other systems.

5. Can you provide custom TEC cooler solutions?

Yes. Custom TEC cooler solutions can be evaluated according to required dimensions, electrical characteristics, cooling performance, wire configuration and application requirements.

6. Are you a TEC cooler manufacturer?

We provide TEC cooler manufacturer and supplier services for standard products, OEM projects and customized thermoelectric cooling requirements.

7. Can I buy TEC coolers in bulk?

Yes. Bulk TEC cooler purchasing is available for equipment manufacturers, distributors, system integrators and other B2B customers.

8. Do you support TEC cooler OEM and ODM?

Yes. TEC cooler OEM and ODM cooperation can be discussed according to project requirements, including module specifications, dimensions, wire configuration and other customization requirements.

9. Do you provide TEC cooler wholesale?

Yes. TEC cooler wholesale services are available for distributors, equipment manufacturers and other B2B customers.

10. Are you a China TEC cooler manufacturer?

We provide China TEC cooler manufacturer and supplier services, supporting standard thermoelectric cooling modules as well as OEM, ODM and customized projects.
