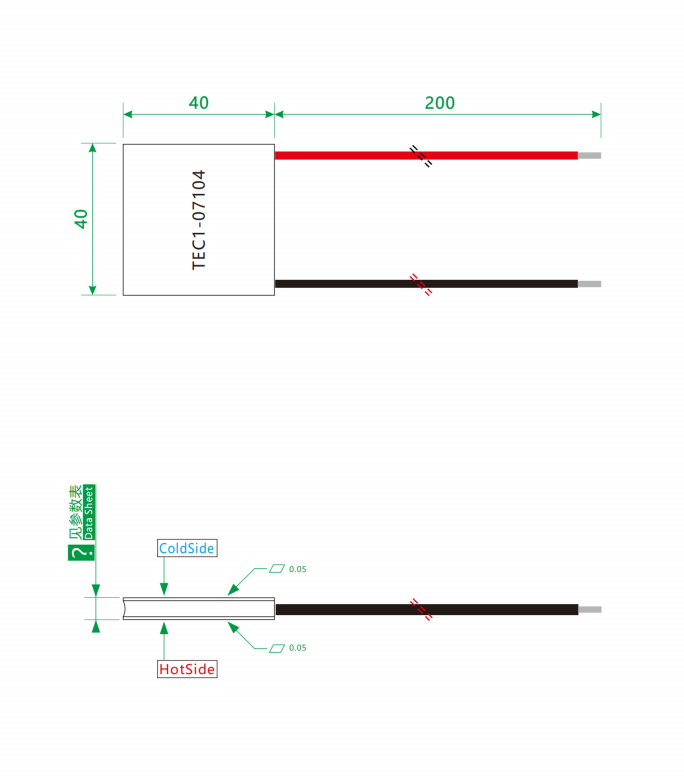

🔷Product Drawing
![]()
🔷Basic Performance Spec
| Type model | In APE | ▲Tmax(°C) | ACRohm(Ω) | Umax(V) | Imax(A) | Pmax(W) | Size(mm) |
|---|
| TEC1-07104 | K20 | 60 | 1.66 | 8.5 | 4 | 34 | 40x40x4.4 |
| K30 | 65 | 1.66 | 8.5 | 4 | 34 | 40x40x5.4 |
| K40 | 70 | 1.66 | 8.5 | 4 | 34 | 40x40x6.4 |
🔷Additional Performance Spec
| Parameter | Specification |
|---|
| Substrate Specification | 96% Alumina 0.76 + Oxygen-free Copper 0.4 sintering process |
| Wire Specification | Ultra-soft silicone wire 22AWG / L=200mm |
| Terminal Specification | Standard product has no terminals; can be added upon request |
| Assembly Pressure | 4kg / (0.25kg/CM²) |
| Packaging Standard | Polystyrene (PS) foam box packaging |
| Sealing Material | 704 silicone rubber seal |
| Maximum Temperature Resistance | Tin-bismuth environmental solder, melting point 138°C |
| Storage Environment | Temperature < 120°C, Humidity < 60%Rh |

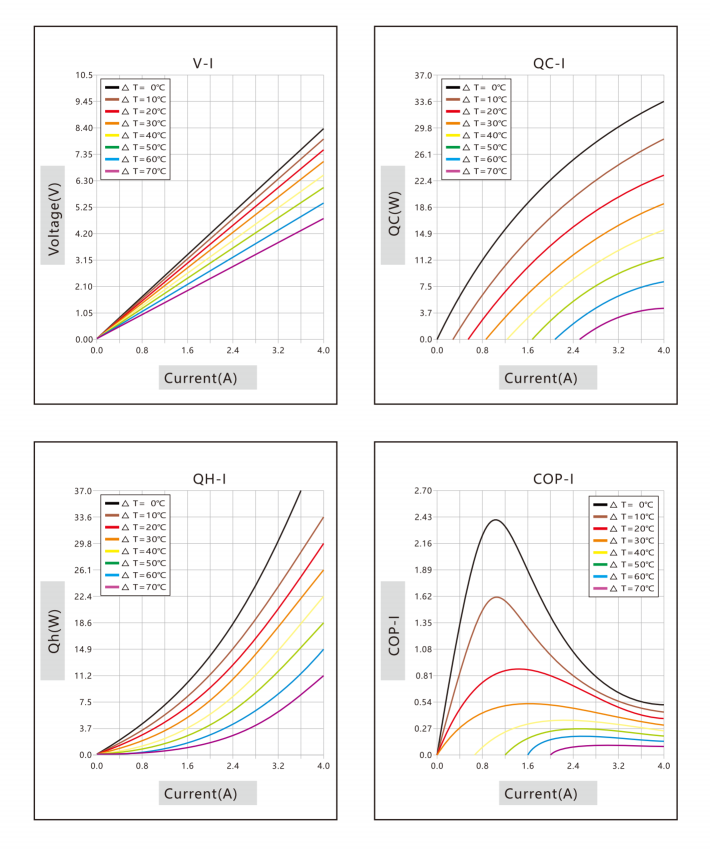

🔷Performance Curve
![]()
🔷Product Overview

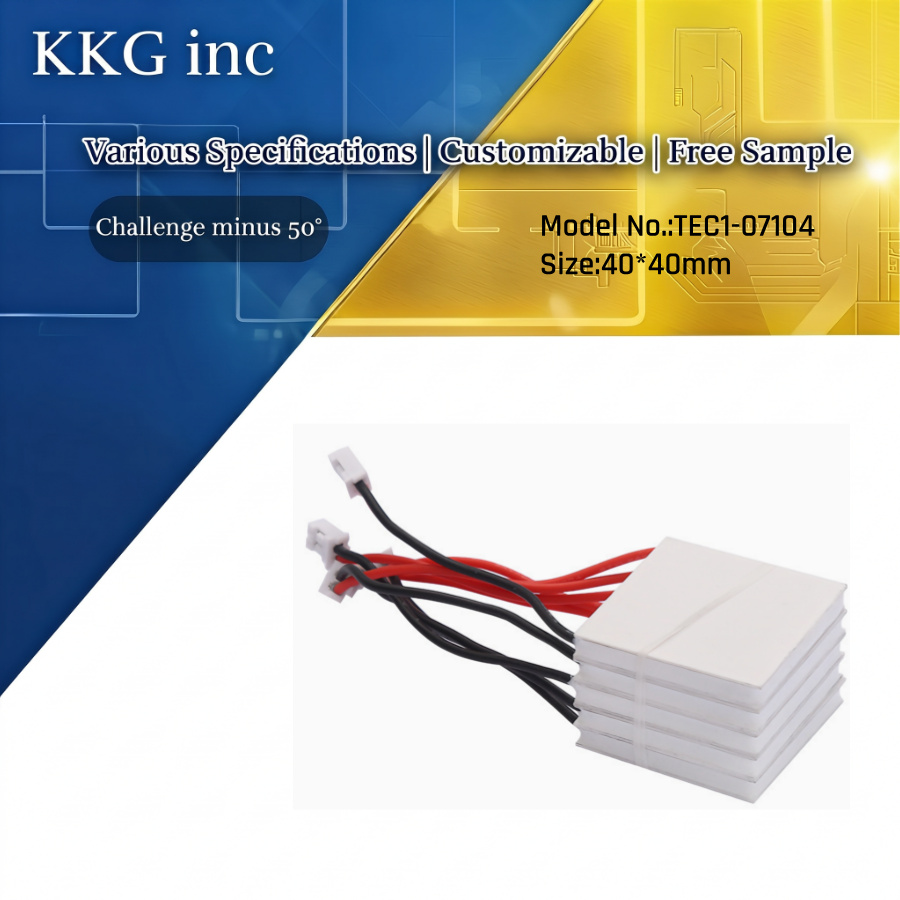

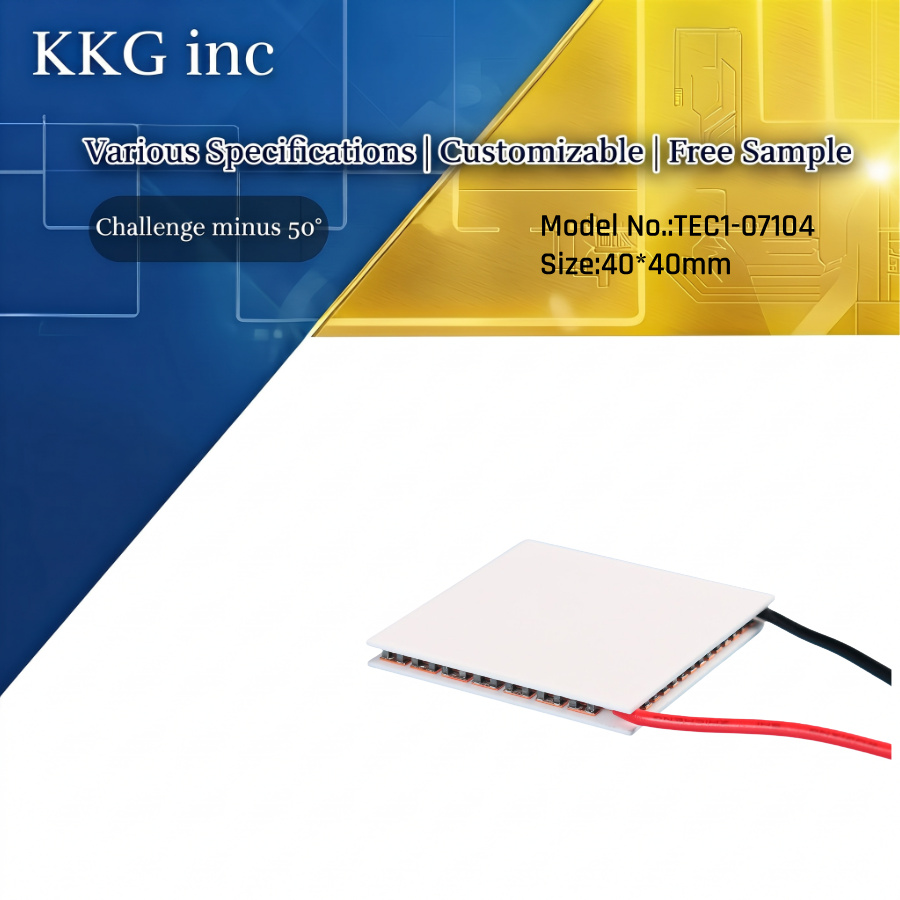

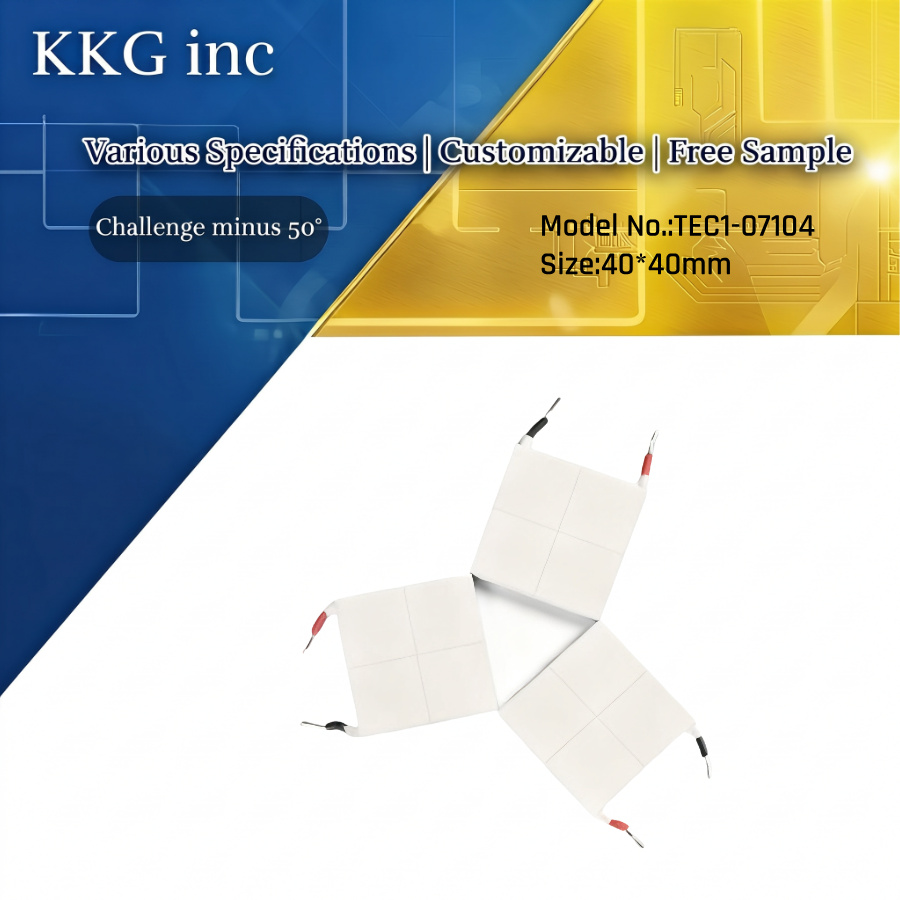

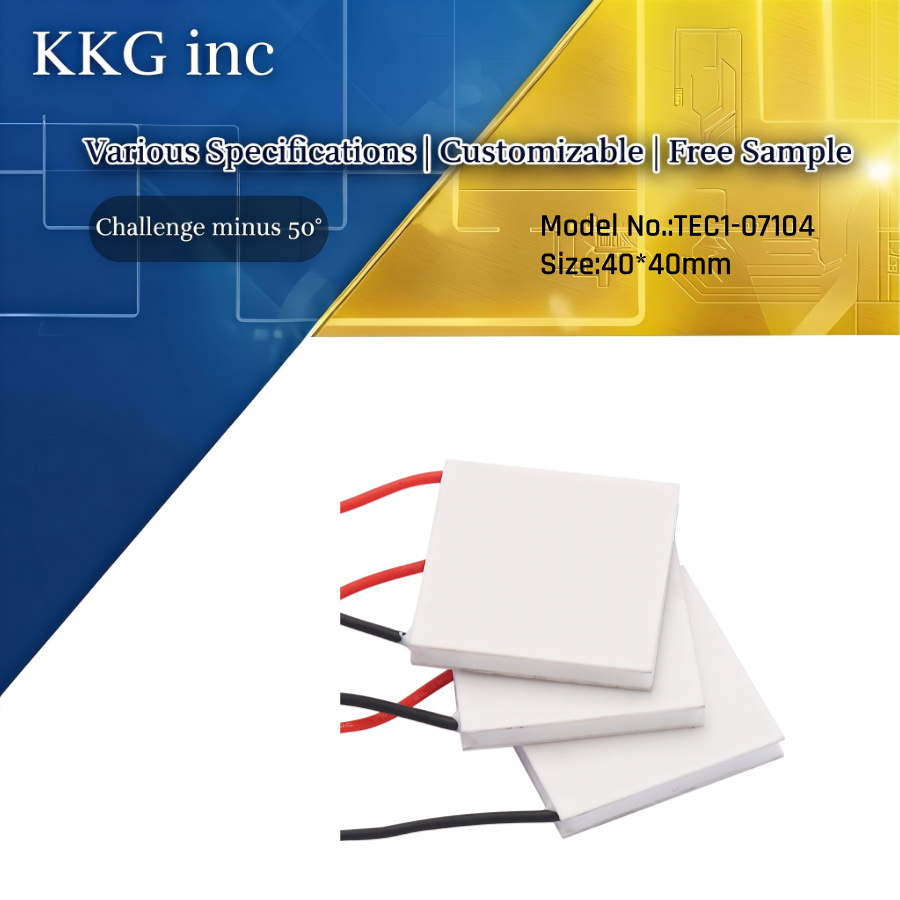

TEC1-07104 Thermoelectric Cooler 40×40mm is a compact Peltier-based cooling module designed for solid-state cooling and temperature control applications.
Unlike conventional mechanical refrigeration systems, a thermoelectric cooler has no compressor or refrigerant circulation system. When DC power is applied, the Peltier effect creates a temperature difference between the two sides of the module. One side absorbs heat while the other side releases heat.
With its 40×40mm compact form factor, TEC1-07104 can be incorporated into various cooling assemblies and electronic equipment where space, reliability and temperature control are important.
As an industrial cooler manufacturer, we can support standard TEC modules as well as OEM, ODM and custom thermoelectric cooling solutions for different equipment requirements.
🔷Product Features
1. Compact 40×40mm Size
The 40×40mm structure provides a practical solution for equipment with limited installation space.
2. Solid-State Cooling
The Peltier cooling principle operates without mechanical moving parts inside the thermoelectric module.
3. Suitable for Temperature Control
The module can be incorporated into systems requiring localized cooling and temperature regulation.
4. Flexible System Integration
TEC1-07104 can be combined with heat sinks, fans, cold plates and temperature controllers.
5. Industrial Application
It can be integrated into industrial equipment, electronics and other thermal management systems.
6. OEM & Custom Support
For special applications, an industrial cooler manufacturer can develop customized thermoelectric cooling modules based on size, electrical and thermal requirements.
🔷Product Applications
TEC1-07104 can be used in a variety of equipment and thermal management applications.
Industrial Temperature Control
Used as an industrial cooler for temperature control in equipment requiring localized thermal management.
Electronics Cooling
Suitable for industrial cooler for electronics cooling applications, including electronic components and control equipment.
Laser Cooling
A thermoelectric module can be integrated into industrial cooler for laser cooling systems for localized temperature management.
Semiconductor Equipment
Can be incorporated into industrial cooler for semiconductor cooling systems where precise thermal control is required.
Optical Equipment
Suitable for industrial cooler for optical equipment and other compact temperature-control applications.
Industrial Equipment
The module can be integrated into industrial cooler for industrial equipment systems where solid-state cooling is preferred.
Chiller Systems
TEC technology can also be used as a localized cooling element in certain industrial cooler for chiller systems designs.
🔷Product Structure
![]()
🔷Operation Principle / Work Principle
TEC1-07104 works based on the Peltier effect.
When direct current passes through the thermoelectric semiconductor elements, heat is transferred from one ceramic surface to the other.
DC Power → Peltier Effect → Heat Transfer → Cold Side Cooling + Hot Side Heat Dissipation
The cold side absorbs heat from the target object, while the hot side transfers the absorbed heat to a heat sink, fan-cooled radiator, water-cooling system or other heat dissipation structure.
Therefore, the performance of an industrial Peltier cooler depends not only on the TEC module itself but also on the design of the entire thermal system.
🔷FAQ
Q1: What is TEC1-07104?
TEC1-07104 is a 40×40mm thermoelectric cooler based on Peltier technology. It can be integrated into cooling and temperature-control equipment.
Q2: Is TEC1-07104 suitable for industrial cooling?
Yes. TEC1-07104 can be integrated into industrial temperature-control, electronics cooling, laser cooling and other thermal management systems when its actual electrical and thermal specifications match the application.
Q3: Is TEC1-07104 a Peltier cooler?
Yes. A thermoelectric cooler is commonly referred to as a Peltier cooler, Peltier module or TEC module.
Q4: Can I purchase TEC1-07104 in bulk?
Yes. Bulk purchasing can be supported according to product availability and order requirements. For large-volume projects, customers can discuss requirements with an industrial cooler supplier or manufacturer.
Q5: Can you provide OEM or custom industrial coolers?
Yes. OEM industrial cooler, ODM industrial cooler and custom industrial cooler manufacturer services can be provided according to requirements such as dimensions, electrical parameters, cooling capacity and installation structure.
Q6: How do I select an industrial thermoelectric cooler?
The main selection parameters normally include module size, voltage, current, cooling capacity, maximum temperature difference, hot-side temperature, cold-side target temperature and heat dissipation conditions.
Q7: Can TEC1-07104 be used for laser or semiconductor cooling?
It may be suitable for these applications when its actual performance parameters meet the system requirements. For laser and semiconductor equipment, thermal load and temperature-control accuracy should be evaluated before selection.
Q8: Do you provide other TEC or Peltier modules?
Yes. Different industrial thermoelectric cooling modules, industrial Peltier cooling modules and customized TEC solutions can be selected according to application and engineering requirements.
