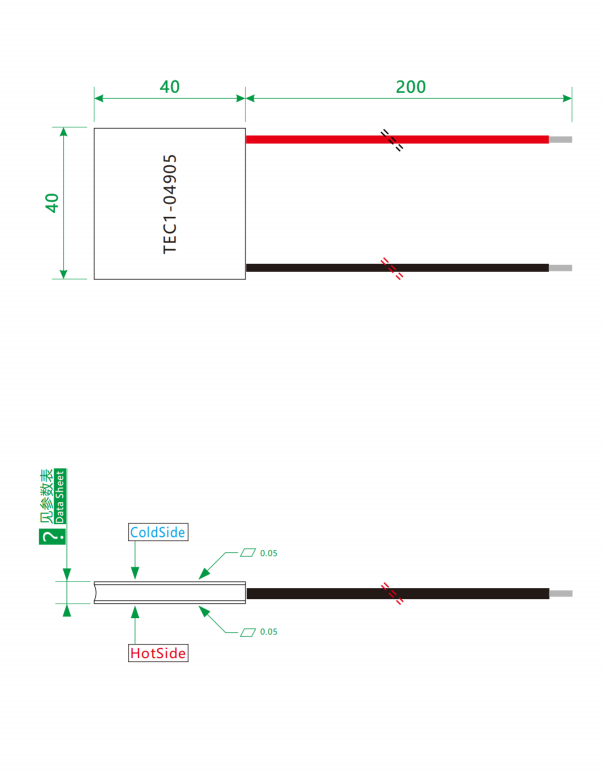

🔷Product Drawing
![]()
🔷Basic Performance Spec

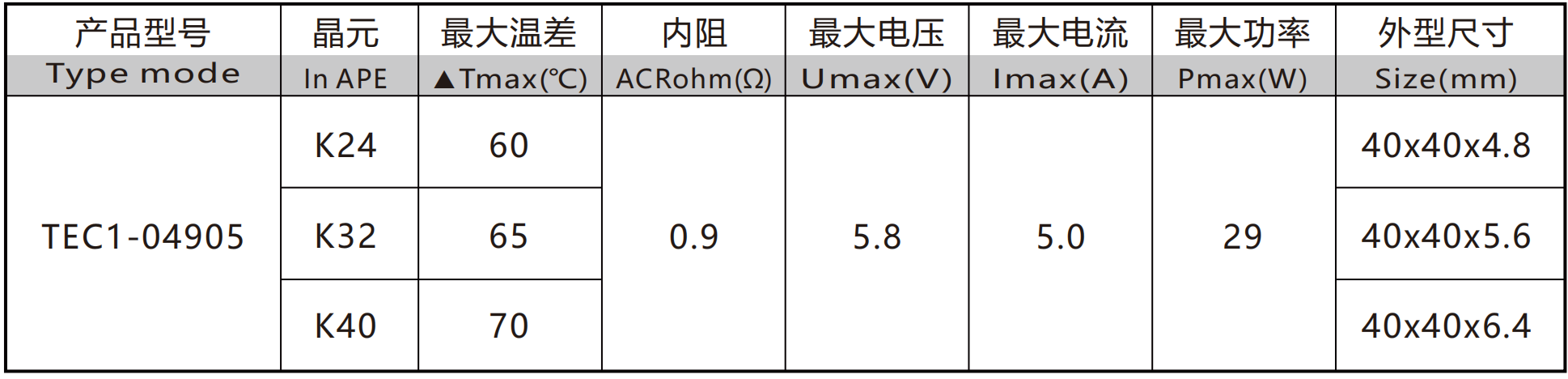

| Type model | In APE | ▲Tmax(°C) | ACRohm(Ω) | Umax(V) | Imax(A) | Pmax(W) | Size(mm) |
|---|
| TEC1-04905 | K24 | 60 | 0.9 | 5.8 | 5.0 | 29 | 40x40x4.8 |
| K32 | 65 | 0.9 | 5.8 | 5.0 | 29 | 40x40x5.6 |
| K40 | 70 | 0.9 | 5.8 | 5.0 | 29 | 40x40x6.4 |
🔷Additional Performance Spec
| Parameter | Specification |
|---|
| Substrate Specification | 96% Alumina 0.76 + Oxygen-free Copper 0.4 sintering process |
| Wire Specification | Ultra-soft silicone wire 20AWG / L=200mm |
| Terminal Specification | Standard product has no terminals; can be added upon request |
| Assembly Pressure | 4kg / (0.25kg/CM²) |
| Packaging Standard | Polystyrene (PS) foam box packaging |
| Sealing Material | 704 silicone rubber seal |
| Maximum Temperature Resistance | Tin-bismuth environmental solder, melting point 138°C |
| Storage Environment | Temperature < 120°C, Humidity < 60%Rh |

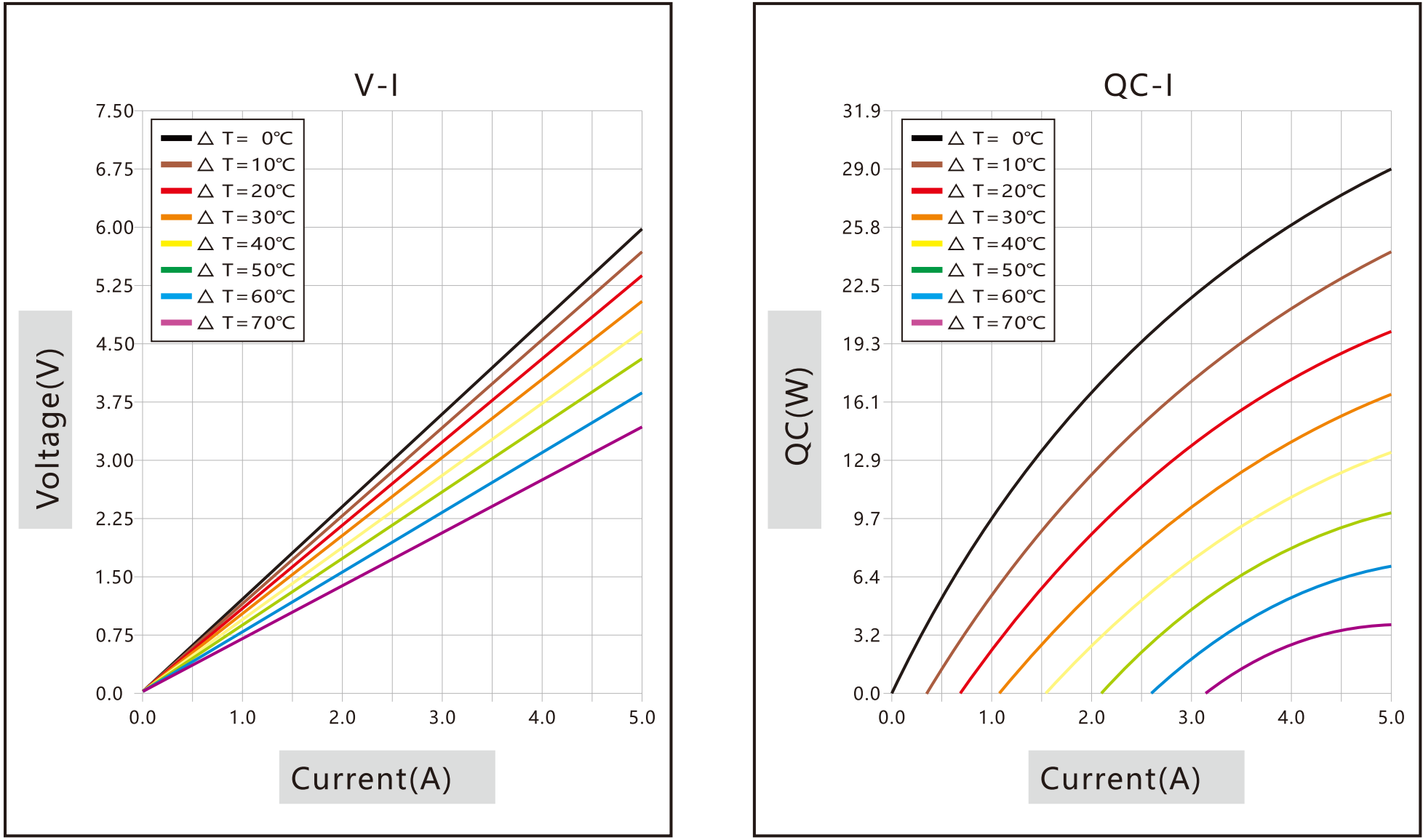

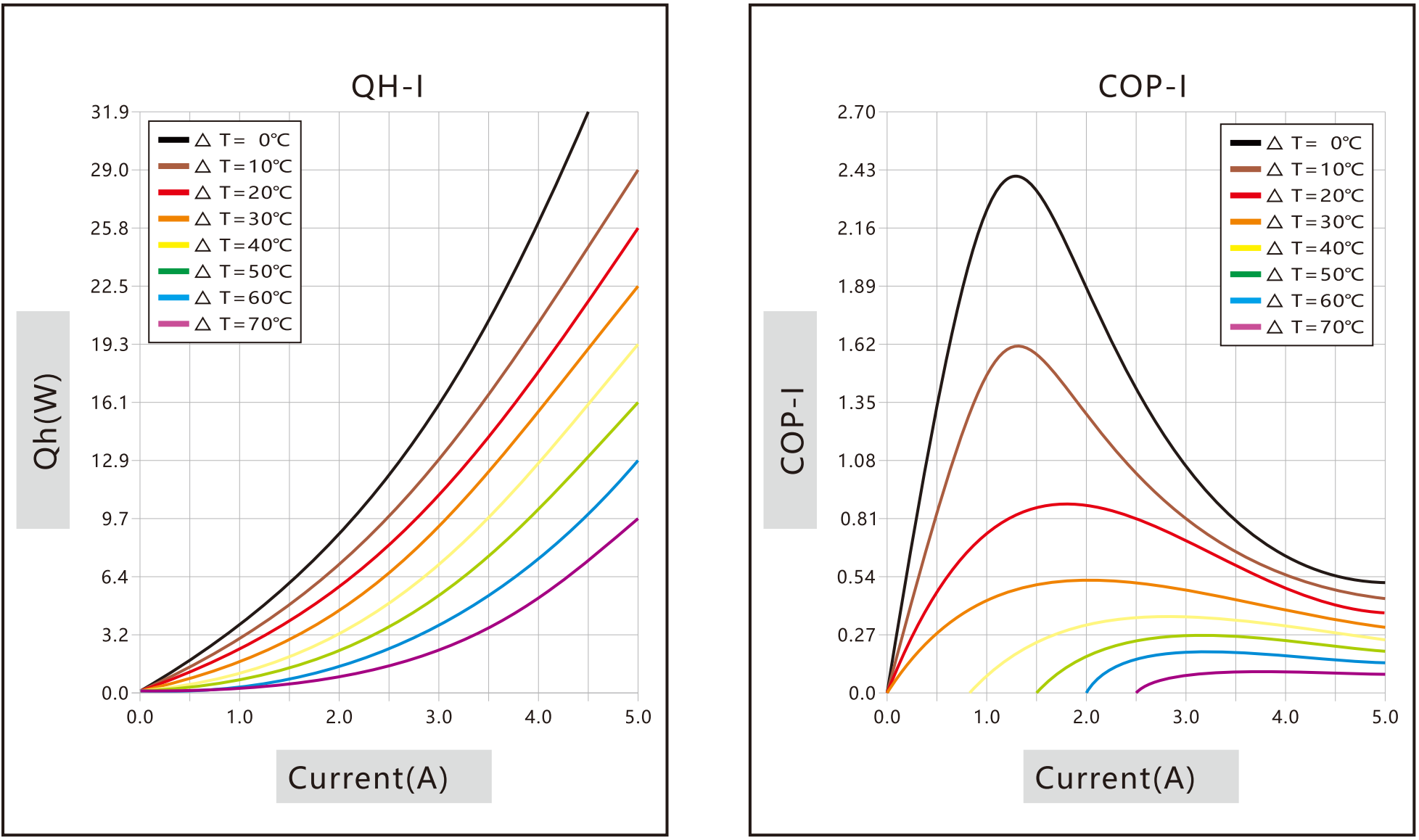

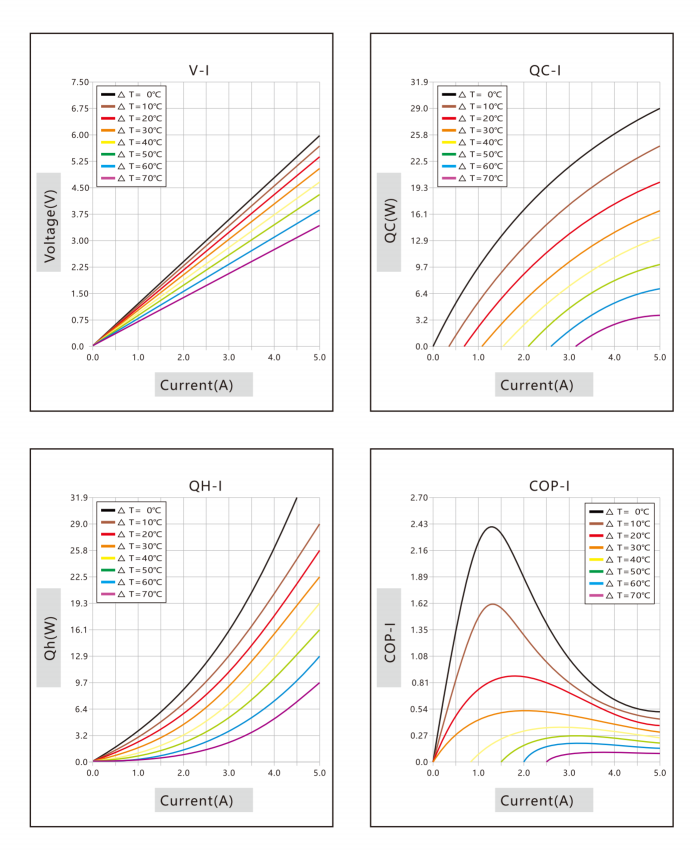

🔷Performance Curve
![]()

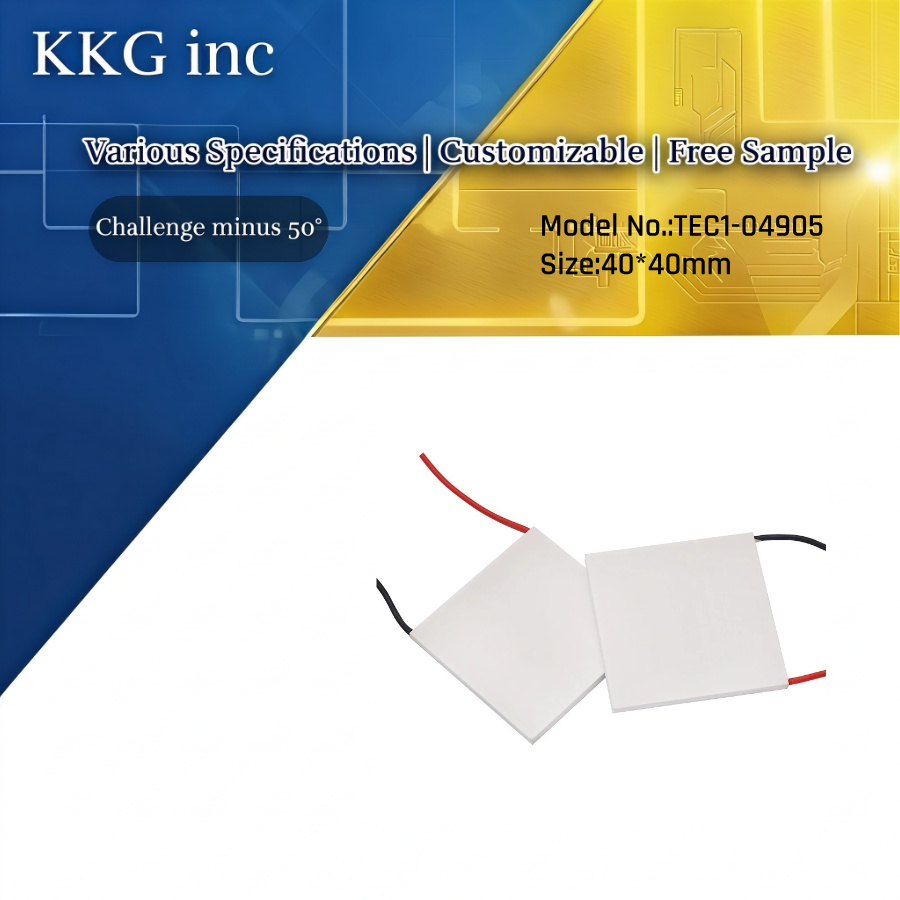

🔷Product Overview
The TEC1-04905 Thermoelectric Cooler 40*40mm is a compact Peltier thermoelectric cooling module designed for electronic temperature control applications.
Based on the Peltier effect, the module transfers heat from one side to the other when DC power is applied. By combining the thermoelectric module with a heat sink, cooling fan and temperature controller, engineers can build a compact peltier cooler kit with temperature controller for different cooling and temperature management applications.
Its 40*40mm footprint makes the TEC1-04905 suitable for equipment where a compact thermoelectric cooling component is required.
For system integrators, equipment manufacturers and OEM customers, the module can also be incorporated into customized cooling assemblies. Depending on system requirements, a complete solution can include the Peltier module, heat dissipation components, temperature controller, power supply and mounting structure.
As a thermoelectric cooler kit manufacturer, we can support different configurations for OEM and custom thermoelectric cooling applications.
🔷Product Features
1. Compact 40*40mm Design
The TEC1-04905 adopts a compact 40*40mm form factor, making it convenient for integration into space-limited cooling systems.
2. Peltier Thermoelectric Cooling
The module uses thermoelectric technology to provide solid-state cooling without mechanical refrigerant compression.
3. Temperature Controller Integration
The module can be combined with a suitable temperature controller to create a Peltier cooler kit with temperature controller for controlled cooling applications.
4. Flexible System Configuration
It can be integrated with different heat sinks, fans, power supplies and controllers according to system requirements.
5. Suitable for OEM Applications
The TEC1-04905 can be incorporated into OEM cooling equipment and customized thermoelectric assemblies.
6. Compact Cooling Solution
The module provides a practical cooling component for electronics, laboratory equipment, optical systems and other temperature-sensitive devices.
🔷Product Applications
The TEC1-04905 Thermoelectric Cooler can be integrated into various temperature control and cooling systems.
Electronics Cooling
Used for localized cooling of electronic components and compact electronic equipment.
Laboratory Temperature Control
Suitable for laboratory instruments and small temperature-controlled devices requiring compact thermoelectric cooling.
Optical Equipment Cooling
Can be integrated into optical and optoelectronic equipment where temperature stability is required.
Semiconductor Temperature Control
Can be used as a thermoelectric cooling component in semiconductor-related temperature control equipment.
Laser Cooling
The TEC1-04905 can be incorporated into suitable laser temperature control systems together with a heat dissipation system and temperature controller.
Industrial Temperature Control
Suitable for industrial equipment requiring compact solid-state temperature control.
Customized Peltier Cooling Systems
For OEM customers, the module can be integrated into a complete custom Peltier cooler kit with temperature controller according to equipment requirements.

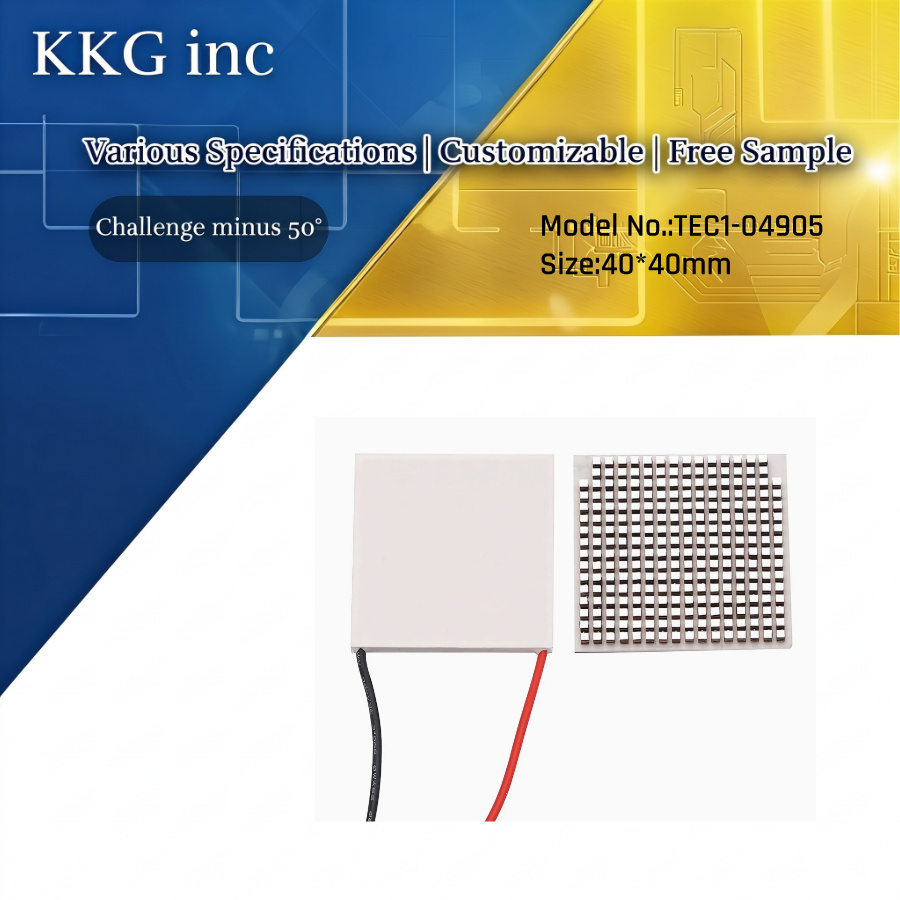

🔷Product Structure
![]()
🔷Operation Principle / Work Principle
The TEC1-04905 operates based on the Peltier effect.
When direct current passes through the thermoelectric semiconductor elements, heat is absorbed on one ceramic surface and released on the opposite surface. This creates a cold side and a hot side.
The basic cooling process is:
DC Power → Thermoelectric Effect → Heat Absorption → Heat Transfer → Heat Dissipation
The cold side provides the cooling effect, while the hot side must be connected to an appropriate heat dissipation system.
For a complete Peltier cooler kit with temperature controller, the temperature controller can regulate the operating conditions of the thermoelectric module according to the system's temperature requirements.
Proper heat dissipation is particularly important because the heat released on the hot side includes both the heat transferred from the cold side and the electrical input power of the module.
🔷FAQ
Q1: What is the TEC1-04905?
The TEC1-04905 is a 40*40mm thermoelectric cooler, also known as a Peltier module or TEC module, designed for thermoelectric cooling applications.
Q2: Can TEC1-04905 be used in a Peltier cooler kit with temperature controller?
Yes. The TEC1-04905 can be integrated with a suitable temperature controller, heat sink, fan and power supply to build a complete Peltier cooling system.
Q3: Can you supply a complete Peltier cooling kit?
A complete cooling kit can be configured according to the application. Depending on requirements, the kit may include the thermoelectric module, heat sink, fan, temperature controller, power supply and related components.
Q4: Are you a peltier cooler kit with temperature controller manufacturer?
We provide thermoelectric cooling components and support OEM/custom thermoelectric cooling solutions. Customers can contact us to discuss the required module specifications and complete cooling system configuration.
Q5: Can you provide OEM Peltier cooling kits?
Yes. OEM Peltier cooler kit with temperature controller solutions can be developed according to application requirements, including module configuration, wiring, heat dissipation and controller integration.
Q6: Can the TEC1-04905 be customized?
Customization may be available for selected requirements such as wiring, configuration and cooling assembly. Please provide your application requirements for confirmation.
Q7: What heat sink should be used with TEC1-04905?
The appropriate heat sink depends on the required cooling capacity, hot-side temperature, operating current and system thermal load. The heat dissipation system should be selected based on the actual working conditions.
Q8: Where can TEC1-04905 be used?
It can be used in electronics cooling, laboratory equipment, optical equipment, semiconductor temperature control, laser cooling and other compact temperature control applications.
Get A Free Quote
