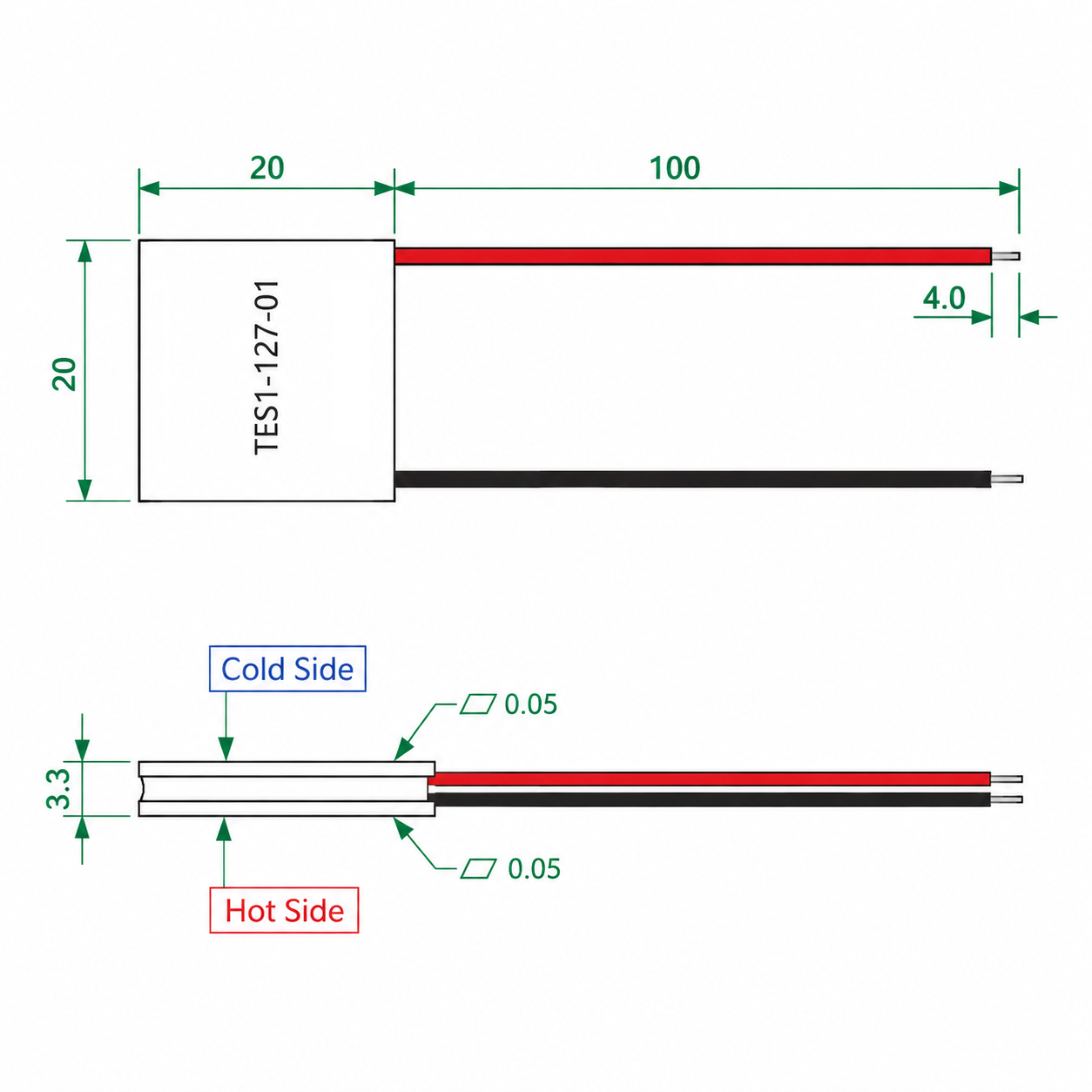

🔷Product Drawing

🔷Product Overview
This 20203.3mm 1A peltier cooler is a compact thermoelectric cooling module. It adopts semiconductor thermoelectric technology, small size and solid-state structure, no noise, no refrigerant. It can realize precise temperature control for small equipment.

🔷Product Features

• Compact size: 20203.3mm, low profile design, easy to integrate into mini devices
• Rated 1A working current, stable cooling output
• Solid state cooling, no moving parts, low vibration and long lifespan
• Bidirectional temperature control: cooling and heating by reversing current direction
• Customizable wiring and surface treatment available for OEM orders

🔷Product Applications
This 20203.3mm 1A peltier cooler is widely used in many temperature control scenarios:
✅ peltier cooler for industrial chiller
✅ peltier cooler for laser cooling
✅ peltier cooler for semiconductor temperature control
✅ peltier cooler for medical device cooling
✅ peltier cooler for beauty instrument
✅ peltier cooler for aquarium cooling
Also suitable for small laboratory instruments, portable thermal detectors and electronic component heat dissipation.

🔷Product Structure

🔷Operation Principle / Work Principle
Based on Peltier effect. When DC current passes through the thermoelectric module, heat will transfer from one ceramic side to the other side. One surface absorbs heat for cooling, the other releases heat. Reverse the current direction to switch between cooling and heating.

🔷FAQ
Q1: What is the maximum temperature difference of this 20203.3mm 1A peltier cooler?
A: The max ΔT depends on heat sink condition. Good heat dissipation can reach the rated temperature difference of the module.

Q2: Can this peltier cooler work continuously 24 hours?
A: Yes, stable continuous operation is supported with proper heat dissipation and operating current within rated 1A.

Q3: Do you support OEM and custom peltier cooler modules?
A: We provide OEM service, custom size, wire length and surface treatment according to customer drawings.

Q4: Is the peltier cooler waterproof?
A: Standard ceramic peltier module is not waterproof. It needs sealing treatment if used in humid environment.
