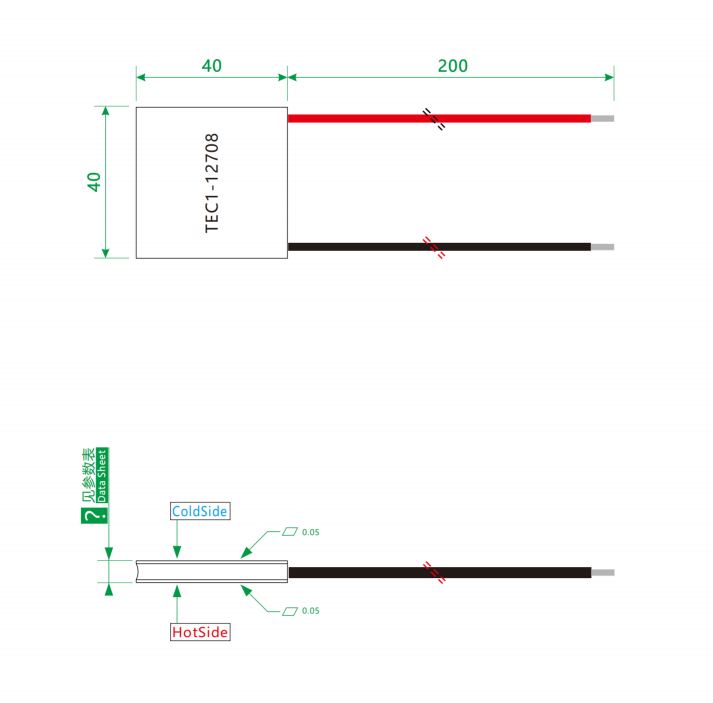

🔷Product Drawing
![]()
🔷Basic Performance Spec
| Product Model | Chip | Max Temp Difference | Internal Resistance | Max Voltage | Max Current | Max Power | Dimensions |
|---|
| Type mode | In APE | ▲Tmax(°C) | ACR (Ω) | Umax (V) | Imax (A) | Pmax (W) | Size (mm) |
| TEC1-12708 | K10 | 60 | | | | | 40×40×3.4 |
| K12 | 65 | 1.48 | 15.2 | 8 | 122 | 40×40×3.6 |
| K14 | 70 | | | | | 40×40×3.8 |
🔷 Additional Performance Spec
| Specification Item | Details |
|---|
| Substrate Specification | 96% alumina (0.76 mm) + oxygen-free copper (0.4 mm), sintered process |
| Lead Wire Specification | Extra-soft silicone wire, 18 AWG, length = 200 mm |
| Terminal Specification | Standard product without terminals (terminals can be added upon request) |
| Assembly Pressure | 4 kg (0.25 kg/cm²) |
| Packaging Standard | Polystyrene (PS) foam box packaging |
| Sealing Material | 704 silicone rubber sealant |
| Maximum Temperature Resistance | Bismuth-tin lead-free solder, melting point 138°C |
| Storage Environment | Temperature < 120°C, Humidity < 60% Rh |

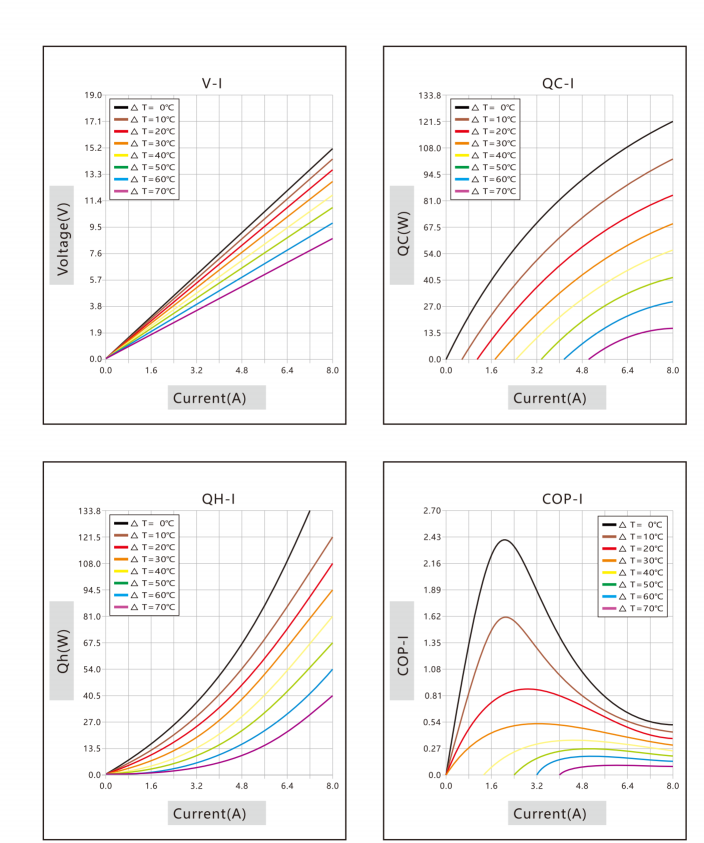

🔷 Performance Curve
![]()
🔷 Product Overview
TEC1‑12708 medium peltier effect cooler 40*40 is a widely‑used high‑power thermoelectric cooler module. As one classic medium‑capacity tec cooler, it adopts peltier effect to realize one‑side cooling and another‑side heating without refrigerant. We are a reliable custom high power peltier module manufacturer, supporting wholesale thermoelectric cooler and custom peltier cooling plate service for global buyers.
🔷 Product Features
- Compact 40×40mm square size, easy to install into limited‑space equipment
- Fast cooling‑up speed, stable temperature control performance
- Solid ceramic substrate, good pressure‑resistance and insulation property
- Reversible cooling & heating function by switching current direction
- Long service life, no vibration, no noise during operation
- Available for OEM TEC module, private label and customized wire requirements
🔷Product Applications
This TEC1‑12708 tec cooler fits a wide range of thermoelectric cooling scenarios:
Thermoelectric cooling for industrial chiller
Peltier module for laser cooling
Semiconductor temperature control
Peltier refrigeration for medical equipment
Tec cooler for laboratory thermostat
Thermoelectric chip cooling for laser diode
Industrial temperature controller peltier cooler
🔷 Product Structure
![]()
🔷Operation Principle/ Work Principle
The tec cooler runs on the Peltier Effect. When DC current flows through the thermoelectric module, heat will be transferred from one ceramic side to the opposite side. One surface becomes cold for cooling purpose, while the other side generates heat which must be dissipated by a matched heat sink. Reversing DC current will swap hot and cold sides.
🔷FAQ
Q1: Are you a peltier module supplier? Can I buy wholesale thermoelectric cooler?
A1: Yes, we are professional peltier module supplier. Wholesale thermoelectric cooler is welcome, we support bulk tec cooler purchase with competitive factory price.
Q2: Can you provide OEM TEC module service for TEC1‑12708?
A2: Yes. As thermoelectric cooler oem supplier, we can customize wire length, label and connector for TEC1‑12708 and other tec cooler models.
Q3: Can I get custom peltier cooling plate besides standard 40*40 TEC1‑12708?
A3: Sure, our engineering team can develop custom high power peltier module and cooling plate according to your cooling power, dimension and installation demands.
