TEC12708 Peltier Effect Cooler

$0.00

180 Views

🟧 Price List Contact Customer Service
🟦 Product Spec Contact Customer Service
⬜ Certifications Contact Customer Service
🟪 Contact customer Contact Customer Service
🟨 MOQ:1 Pcs
🟥 Fast Delivery:2-15 Days
🟩 Source Factory：Online Factory Video
🟫 Multiple Payment Methods：T/T|PayPal|Alipay
⬛ Pre|After Service：+86 13377785035|xyy@kkg.tw

Get A Free Quote

Category :

40*40mm Thermoelectric Cooler

Description

1. Thermoelectric Peltier Device's Product Overview

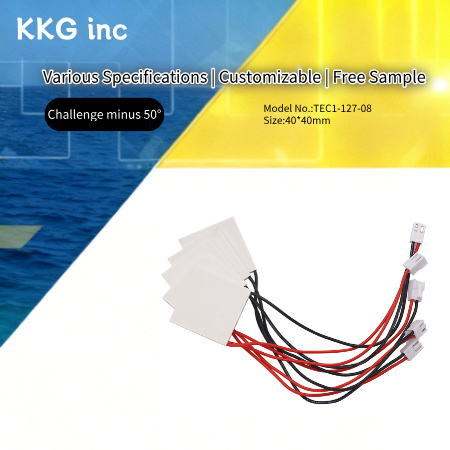

Model No.: TEC1-127-08

Dimension: 40×40mm (Standard Square)

Brand: KKG inc

Core Feature: Challenge Minus 50℃ Deep Cooling

Customization Support: Various Specifications | Customizable | Free Sample Available

Product Type: Standard Single-Stage Thermoelectric Cooler (Peltier Module)

2. Product Structure of Peltier Device Cooler

The TEC1-127-08 40×40mm Peltier cooler adopts a mature, high-reliability stacked structure, with 127 pairs of N-type and P-type semiconductor thermocouples as the core, encapsulated between two high-insulation, high-thermal-conductivity ceramic substrates (Al₂O₃).

Solid State Cooler's Key Structural Components:

Component	Material & Function
Ceramic Substrates	High-purity alumina (Al₂O₃) ceramic, providing electrical insulation, mechanical protection, and uniform heat distribution for both cold and hot sides.
Semiconductor Thermocouples	127 pairs of high-performance Bi₂Te₃-based N/P-type semiconductor pellets, the core unit that generates the Peltier effect for heat transfer.
Conductive Copper Bridges	High-purity oxygen-free copper, connecting semiconductor pellets in series to form a complete circuit, ensuring low resistance and high current transmission efficiency.
Lead Wires	Red (positive) and black (negative) high-temperature-resistant insulated wires, for power input, with standard length for easy soldering and wiring.
Encapsulation Layer	High-temperature-resistant epoxy resin, sealing the internal structure to prevent moisture, dust, and oxidation, ensuring long-term stability in harsh environments.

Structural Visual Features:

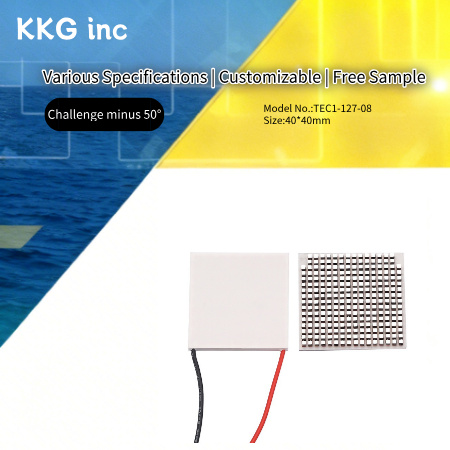

The cold side (left in the image) is a smooth white ceramic surface, used for direct contact with the object to be cooled.
The hot side (right in the image) exposes the internal copper bridge and semiconductor pellet array, requiring a matching heat sink for heat dissipation.
The 40×40mm standard size is compatible with most universal heat sinks and cooling systems, with high interchangeability.

4. Product Advantages of Thermoelectric Peltier Device

4.1 Core Performance Advantages of Thermo Electric

Ultra-Low Cooling Capacity: Achieves a maximum temperature difference of up to 68℃, with the cold side capable of reaching -50℃ under standard heat dissipation conditions, meeting deep cooling requirements for various applications.
High Reliability & Long Lifespan: Adopts high-purity Bi₂Te₃ semiconductor materials and mature packaging technology, with a service life of over 100,000 hours, no moving parts, zero wear, and low failure rate.
Fast Response & Precise Control: The thermoelectric effect has an extremely fast response time (millisecond level), enabling rapid temperature adjustment and precise temperature control with an accuracy of ±0.1℃, suitable for precision temperature control scenarios.
Solid-State & Silent Operation: No compressor, no refrigerant, no mechanical vibration, and zero operating noise, meeting the strict noise requirements of medical, laboratory, and consumer electronics.

4.2 Structural & Application Advantages of thermoelectric peltier

Standard 40×40mm Size: Universal square dimension, compatible with most off-the-shelf heat sinks, water cooling blocks, and mounting structures, reducing design and procurement costs.
Wide Compatibility: Supports 12V standard DC input, easy to integrate with power supplies, controllers, and embedded systems.
Customization Flexibility: KKG provides full customization services, including size adjustment, voltage/current optimization, lead length modification, and special packaging for harsh environments.
Free Sample Support: Available for free sample testing to verify performance in customer-specific applications before mass production.
Environmental Friendliness: No Freon or other harmful refrigerants, fully compliant with RoHS and environmental protection standards.

4.3 Manufacturing Advantages (KKG inc)

10+ years of R&D and production experience in thermoelectric modules, with a 15,000㎡ factory and 100+ skilled workers.
Monthly production capacity of 600,000+ pieces, ensuring stable supply for mass orders.
Strict quality control system, with 100% performance testing before delivery, ensuring consistent product quality.

5. Product Applications of Peltier Device

The TEC1-127-08 40×40mm Peltier cooler is a universal high-performance thermoelectric module, widely used in various industries requiring precise cooling and temperature control:Consumer Electronics,Industrial & Automotive,Medical & Laboratory,Industry Equipment......
